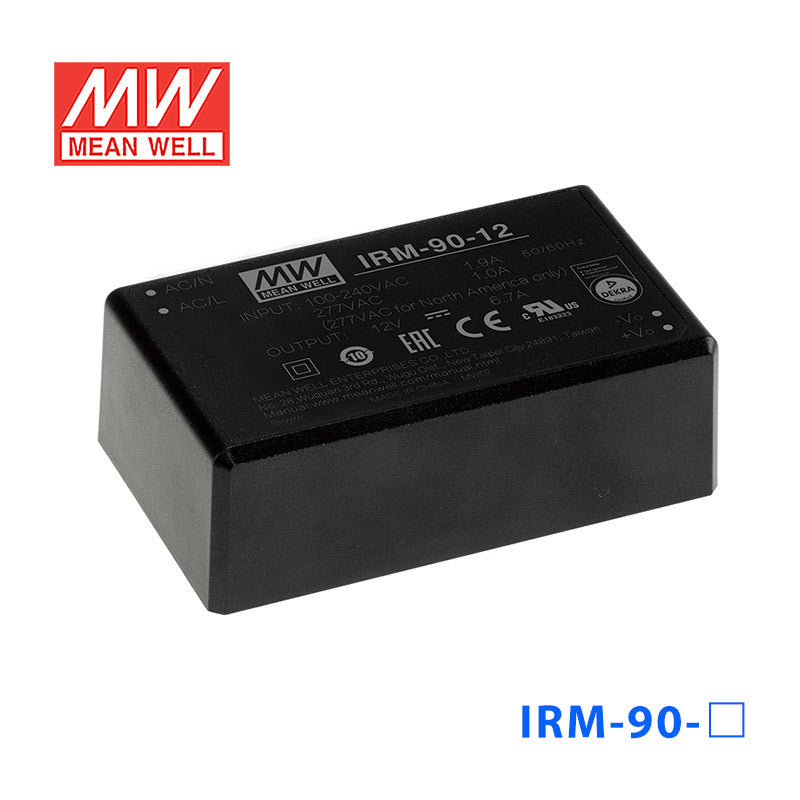

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

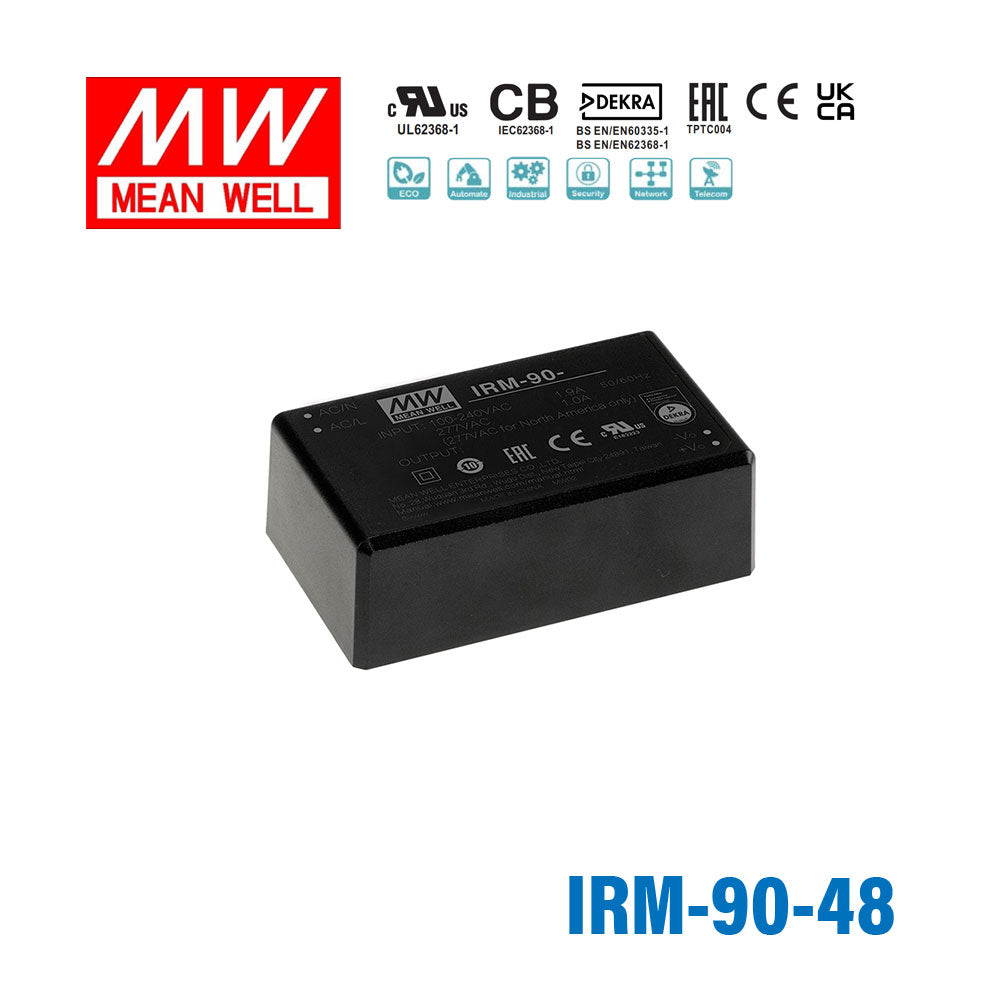

Mean Well IRM-90-48 Switching Power Supply 99.2W 48V 2.07A - Encapsulated

Name: Mean Well IRM-90-48 Switching Power Supply 99.2W 48V 2.07A - Encapsulated
Brand: Mean Well
SKU: IRM-90-48
Price: 28.99 USD
Availability: InStock

miniature encapsulated typePCB mouting style

SKU IRM-90-48

$28.99 USD

Shipping calculated at checkout.

In stock

Overview

IRM-90-48 is the 48V output model of this series: typical efficiency 93%. Type Blank: PCB mounting style.

IRM-90 is a 90W miniature (87*52*29.5mm) AC-DC PCB-mount module type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 80~305Vac. The 94V-0 flame retardant plastic case and potted with silicone enhance the heat dissipation and meet the anti-vibration demand up to 2~5G anti-vibration by model; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 93% and the extremely low no-load power consumption below 0.3W, IRM-90 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Ⅱ design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/EN55032 Class B; the super EMC features keep the end electronic units from from electromagnetic interference. In addition to the PCB mounting style model, IRM-90 series also offers the screw terminal style model (ST).

Features

3.43"x2.05" compact size
PCB, chassis or screw terminal mounting version
Universal input 80~305Vac
No load power consumption<0.3W
EMI BS EN/EN55032 ClassB without additional components
Wide operating temp. rage -40~+85℃
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Isolation Class Ⅱ
Over voltage category Ⅲ
Operating altitude up to 4000 meters (Note.7)
100W peak(10 sec.)
3 years warranty

Specifications

IRM-90-48Specifications from the official datasheet (2026-06-16 edition)

OUTPUT

DC VOLTAGE: 48V
CURRENT Peak(10 sec.): 2.07A
CURRENT Convection: 1.88A
RATED POWER Peak(10 sec.)^Note.2: 99.2W
RATED POWER Convection: 90.2W
RIPPLE & NOISE (max.)^Note.3: 240mVp-p
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 30ms/230Vac 1000ms, 30ms/115Vac at full load
HOLD UP TIME (Typ.): 30ms/230Vac 10ms/115Vac at full load

INPUT

VOLTAGE RANGE^Note.5: 80 ~ 305Vac 113 ~ 431Vdc
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 1.9A/115Vac 1.1A/230Vac
INRUSH CURRENT (Typ.): COLD START 30A/115Vac 65A/230Vac
LEAKAGE CURRENT (max.)^Note.6: < 0.25mA/240Vac

PROTECTION

OVERLOAD: 115% ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 50.4 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP.: -40 ~ +85℃
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
SOLDERING TEMPERATURE: Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
VIBRATION: Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.7: Ⅲ; EN62368-1;altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS: IEC62368-1, IEC60335-1, Dekra BS EN/EN60335-1,BS EN/EN62368-1,UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVac
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32),BS EN/EN55014-1 Class B
Radiated BS EN/EN55032 (CISPR32),BS EN/EN55014-1 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2,BS EN/EN55014-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
RF field susceptibility BS EN/EN61000-4-3 Level 3, criteria A
EFT bursts BS EN/EN61000-4-4 Level 3, criteria A
Surge susceptibility BS EN/EN61000-4-5 Level 4,2KV/L-N, criteria A
Conducted susceptibility BS EN/EN61000-4-6 Level 3, criteria A
Magnetic field immunity BS EN/EN61000-4-8 Level 4, criteria A
Voltage dip, interruption BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32),BS EN/EN55014-1	Class B
Radiated	BS EN/EN55032 (CISPR32),BS EN/EN55014-1	Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
RF field susceptibility	BS EN/EN61000-4-3	Level 3, criteria A
EFT bursts	BS EN/EN61000-4-4	Level 3, criteria A
Surge susceptibility	BS EN/EN61000-4-5	Level 4,2KV/L-N, criteria A
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, criteria A
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, criteria A
Voltage dip, interruption	BS EN/EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 5088.4K hrs min. Telcordia SR-332 (Bellcore) ; 609.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H)
PACKING: PCB mounting style : 0.197Kg;60pcs/11.8Kg/0.94CUFT Screw terminal style :0.219Kg;50pcs/12Kg/0.56CUFT

MODEL ENCODING

Blank (this model): PCB mounting style
ST: Screw terminal style

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Leakage current was measured from primary input to DC output.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

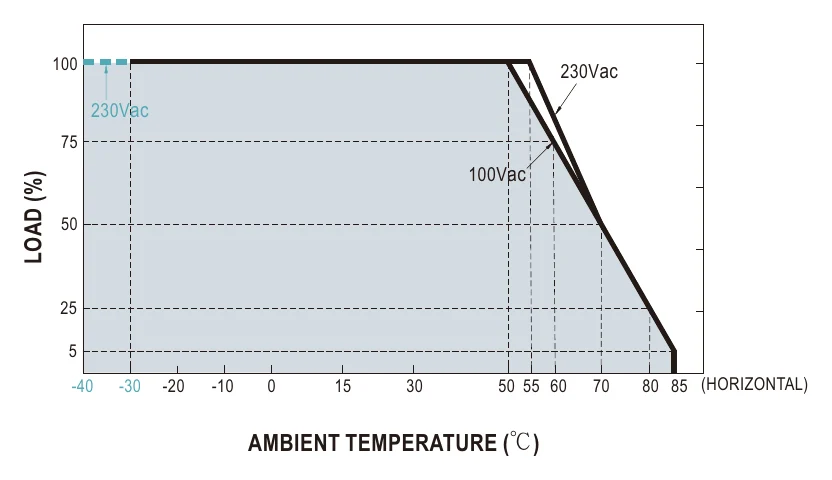

IRM-90-48 Derating Curve — Derating Curve

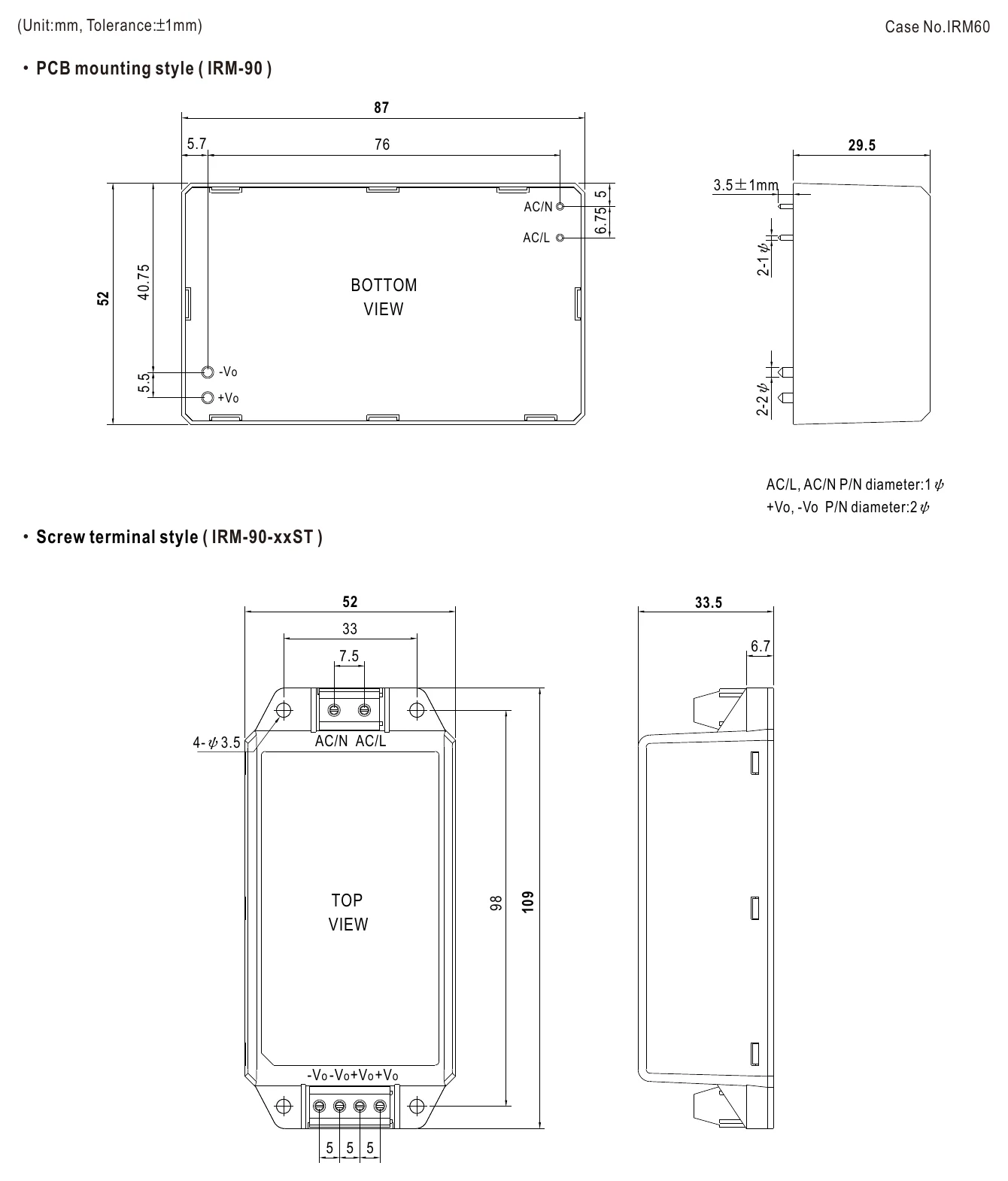

IRM-90-48 Mechanical Specification — Mechanical Specification

Typical applications

Industrial electrical equipment
Mechanical equipment
Factory automation equipment
Handheld electronic device

Downloads

Datasheet1

IRM-90-48 datasheetIRM-90-spec.pdf · 2026-06-16 edition PDF Download

Certificates9

Mean Well IRM-90-Dekra seal.PDF Certificate PDF Download

Mean Well IRM-90(ST)-DEKRA-Mark Certificate PDF Download

Mean Well IRM-90(ST)-CB Certificate PDF Download

Mean Well IRM-90(ST)-CB(UL) Certificate PDF Download

Mean Well IRM-90-EMC Certificate PDF Download

Mean Well IRM-90-UK-dec Certificate PDF Download

Mean Well IRM-90-CE-dec Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well E183223 UL Certificate PDF Download

Test reports1

Mean Well PHP-3500-24 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the IRM-90-48 for a 48V industrial controller or automation board?

Yes, this model is intended for constant-voltage 48V DC loads and can supply up to 1.88A with a 90.2W rating. It is an encapsulated PCB mounting style unit, so it fits embedded industrial and automation designs where the load needs 48V DC from an 80-305VAC input range.

Is the IRM-90-48 suitable for embedded 48V telecom or control electronics inside equipment?

It can be used for embedded 48V telecom or control circuits as long as the equipment needs a constant 48V output and the total draw stays within 1.88A and 90.2W. Its encapsulated PCB mounting construction and 87.0 × 52.0 × 29.5 mm size make it suited to internal equipment integration.

Can this power supply run a 48V monitoring, sensing, or industrial communications subsystem?

It is appropriate for 48V subsystems used in industrial monitoring, sensing, and communications when the combined load remains at or below 1.88A. The wide 80-305VAC input also helps when the equipment may be deployed across different AC supply environments.

Would the IRM-90-48 fit a compact OEM machine or test instrument design?

Yes, the compact 87.0 × 52.0 × 29.5 mm body and 0.197 kg weight make it practical for OEM equipment, test instruments, and control assemblies that need internal 48V DC power. It is still important that the end device is designed around a constant-voltage 48V rail and stays within the 90.2W output limit.

How does the IRM-90-48 compare with the other 48V models in the IRM series?

The IRM-90 series offers 12V at 80.4W and 6.7A, 15V at 85.05W and 5.67A, 24V at 90W and 3.75A, and 48V at 90.2W and 1.88A. For 48V, IRM-90-48 (PCB mounting style) and IRM-90-48ST (screw terminal style) share the same 90.2W, 1.88A rating, the highest output power in the IRM-90 series.

Is the IRM-90-48 suitable for outdoor or harsh-temperature equipment?

The specified operating temperature range is -40°C to +85°C, with output derating at higher ambient temperatures per the derating curve. No IP rating is listed in the provided specs, so it should be treated as suitable for protected indoor or enclosed applications rather than exposed outdoor or washdown environments.
