Mean Well IRM-10-12 10.2W 12V 0.85A Power Supply - Encapsulated

Name: Mean Well IRM-10-12 Switching Power Supply 10.2W 12V 0.85A - Encapsulated
Brand: Mean Well
SKU: IRM-10-12
Price: 9.53 USD
Availability: InStock

Overview

IRM-10-12 is the 12V output model of this series: rated current 0.85A, rated power 10.2W, typical efficiency 82%.

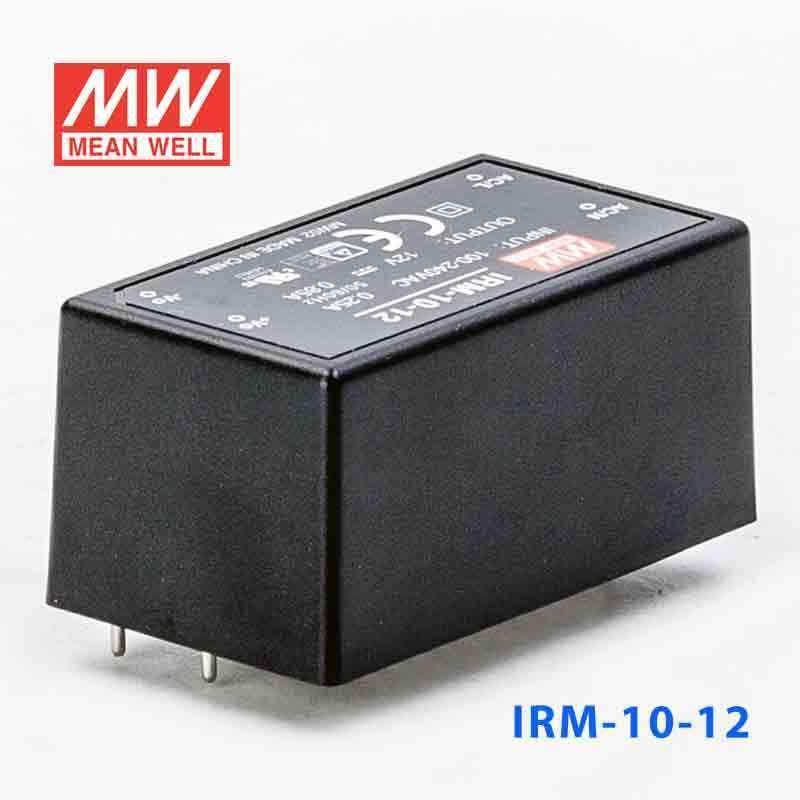

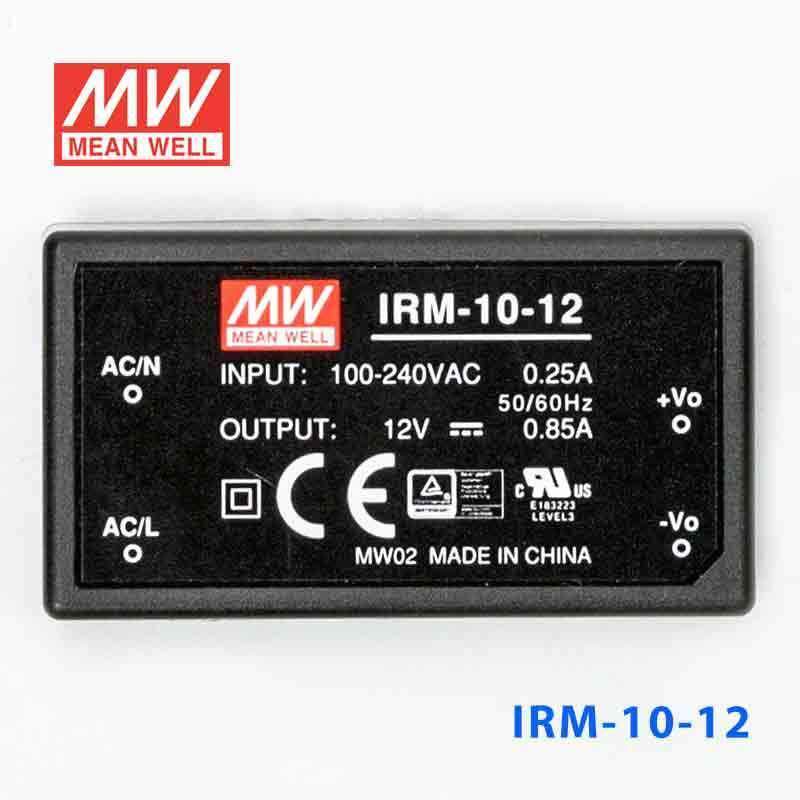

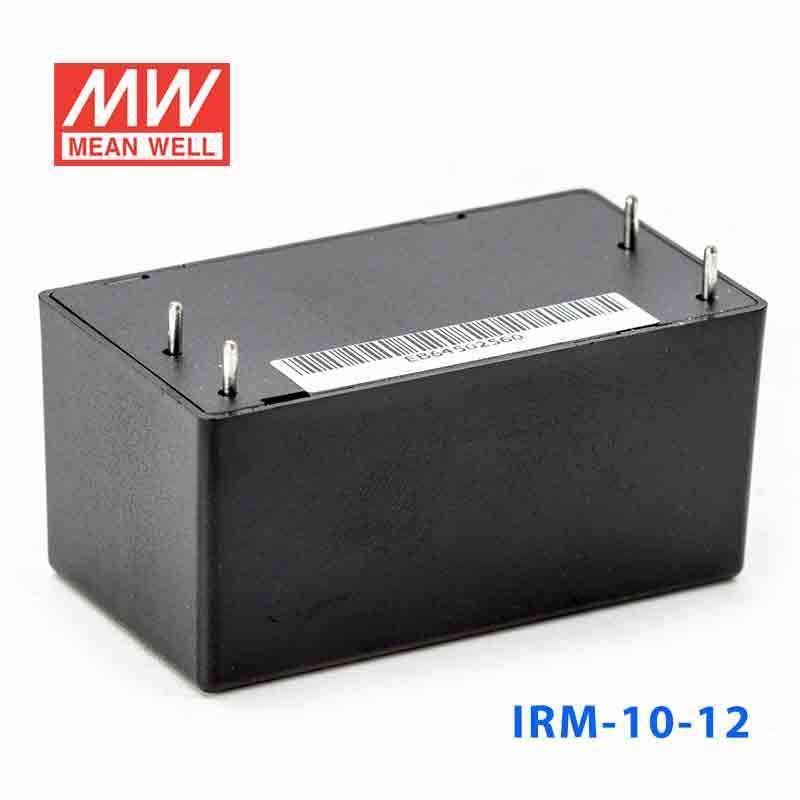

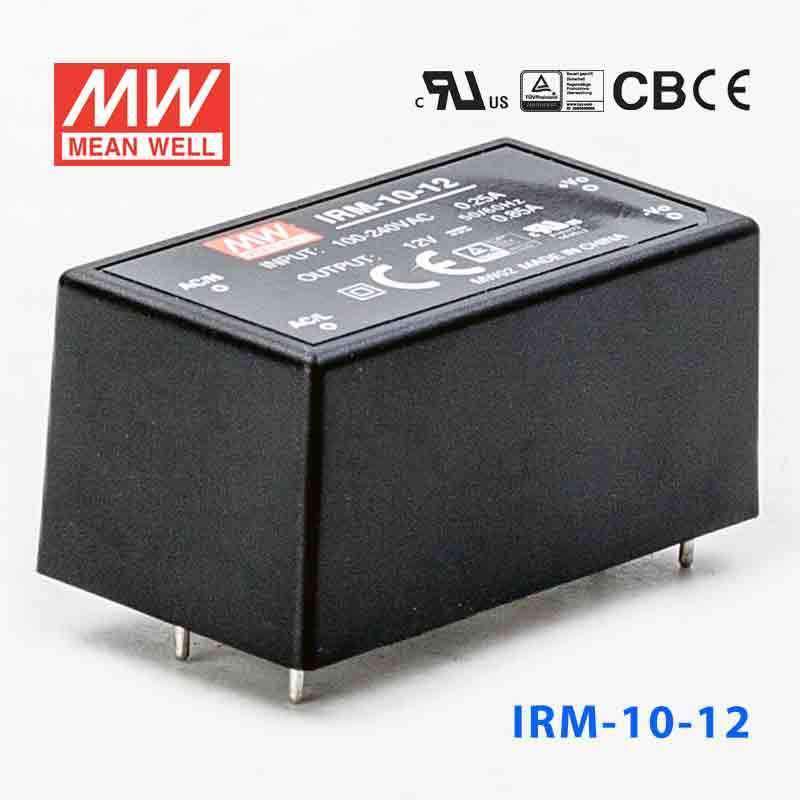

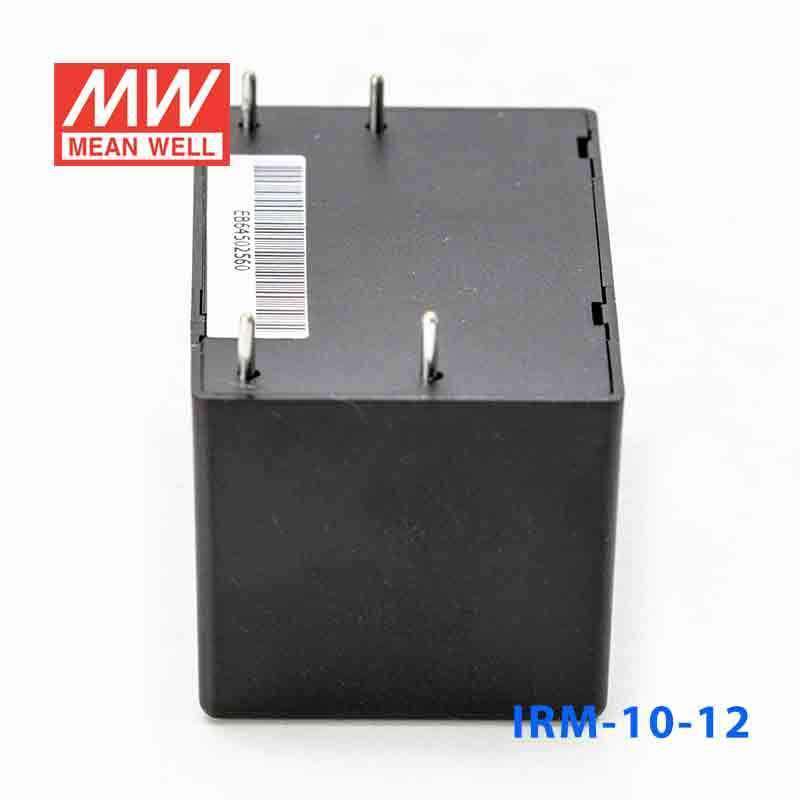

IRM-10 is a 10W miniature (45.7*25.4*21.5mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85~ 305 Vac. The 94V-0 flame retardant plastic case and potted with silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 82% and the extremely low no-load power consumption below 0.1W, IRM-10 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Ⅱ design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference.

Features

1.8''x1''compact size
Universal input 85~305Vac
No load power consumption<0.1W
EMI Class B without additional components
Wide operating temp. range -30~85℃
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Isolation Class Ⅱ
Over voltage category Ⅲ (OVC Ⅲ)
Pass LPS
3 years warranty

Specifications

IRM-10-12Specifications from the official datasheet (2025-08-08 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 0.85A
CURRENT RANGE: 0 ~ 0.85A
RATED POWER: 10.2W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE TOLERANCE^Note.3: ±2.5%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.4: 600ms, 30ms at full load
HOLD UP TIME (Typ.): 30ms/230Vac 8ms/115Vac at full load

INPUT

VOLTAGE RANGE: 85 ~ 305Vac 120 ~ 430Vdc
FREQUENCY RANGE: 47 ~ 440Hz
EFFICIENCY (Typ.): 82%
AC CURRENT (Typ.): 0.25A/115Vac 0.15A/230Vac 0.125A/277Vac
INRUSH CURRENT (Typ.): COLD START 20A/115Vac 40A/230Vac
LEAKAGE CURRENT: < 0.25mA/277Vac

PROTECTION

OVERLOAD: 115%~190% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.8 ~ 16.2V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SOLDERING TEMPERATURE: Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
OPERATING ALTITUDE^Note.5: 2000 meters

SAFETY & EMC

SAFETY STANDARDS: IEC62368-1,IEC61558-1/-2-16,UL62368-1,TUV BS EN/EN62368-1,TUV BS EN/EN61558-1/-2-16,EAC TP TC 004, BSMI CNS15598-1 approved
OVER VOLTAGE CATEGORY: IEC/EN 61558-1/-2-16(OVC Ⅲ, altitude up to 2000m); IEC/EN/UL 62368-1(OVC Ⅱ, altitude up to 5000m)
WITHSTAND VOLTAGE: I/P-O/P:4.2KVac
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION^Note.6: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32), CNS15936 Class B
Radiated BS EN/EN55032(CISPR32), CNS15936 Class B
Harmonic Current (Note 5) BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, criteria A
Surge BS EN/EN61000-4-5 Level 3,1KV/L-N, criteria A
Conducted BS EN/EN61000-4-6 Level 3, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, criteria A
Voltage Dips and interruptions BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32), CNS15936	Class B
Radiated	BS EN/EN55032(CISPR32), CNS15936	Class B
Harmonic Current (Note 5)	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 3, criteria A
Surge	BS EN/EN61000-4-5	Level 3,1KV/L-N, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, criteria A
Voltage Dips and interruptions	BS EN/EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 9094.9K hrs min. Telcordia SR-332 (Bellcore) ; 1495.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 45.7*25.4*21.5 mm (L*W*H)
PACKING: 0.033Kg;270pcs/ 9.8Kg/0.94CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. The power supply is considered as an independent unit ,but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

IRM-10-12 Derating Curve — Derating Curve

Typical applications

Industrial electrical equipment
Mechanical equipment
Factory automation equipment
Hand-held electronic device

Downloads

Datasheet1

IRM-10-12 datasheetIRM-10-SPEC.PDF · 2025-08-08 edition PDF Download

Certificates4

EMC Certificate (IRM-10)(EN) PDF Download

UL Certificate (IRM-10)(EN) PDF Download

CB Certificate (IRM-10)(EN) PDF Download

TUV Certificate (IRM-10)(EN) PDF Download

Test reports1

Test Report(IRM-10-12)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What output does the Mean Well IRM-10-12 provide?

The IRM-10-12 is a 12V AC/DC switching power supply rated for 0.85A output current. Its maximum power rating is 10.2W, making it suitable for low-power embedded and PCB-based applications that require a regulated 12V output.

What input voltage range does the IRM-10-12 support?

This model accepts a universal input range of 85 to 305VAC and also supports 120 to 430VDC input. That wide input range makes it useful for equipment intended for different mains regions without needing separate input-specific versions.

What kinds of applications is the IRM-10-12 typically used for?

The IRM-10-12 is designed for compact internal power conversion, soldered onto the PCB of embedded equipment where board space matters. Its miniature encapsulated form factor, free-air cooling, and low no-load power consumption make it a fit for industrial and commercial low-power electronics.

What protections are built into the Mean Well IRM-10-12?

This model includes short circuit, overload, and over voltage protection. The overload protection is listed at 115% to 190% of rated output power (hiccup mode, auto-recovery), and over voltage protection is listed at 13.8V to 16.2V, about 115% to 135% of rated output voltage.

How compact is the IRM-10-12 power supply?

The listed dimensions are 45.7 x 25.4 x 21.5 mm, and the product weight is 0.033 kg. That compact size helps when designing space-constrained products that still need an enclosed AC/DC power module.

Is the IRM-10-12 intended for reliability-focused applications?

Yes. The datasheet lists a 94V-0 flame-retardant plastic case potted with silicone, Class II isolation, and anti-vibration capability up to 5G, all of which support use in durability-focused equipment designs. It also carries a 3-year warranty.
