Mean Well

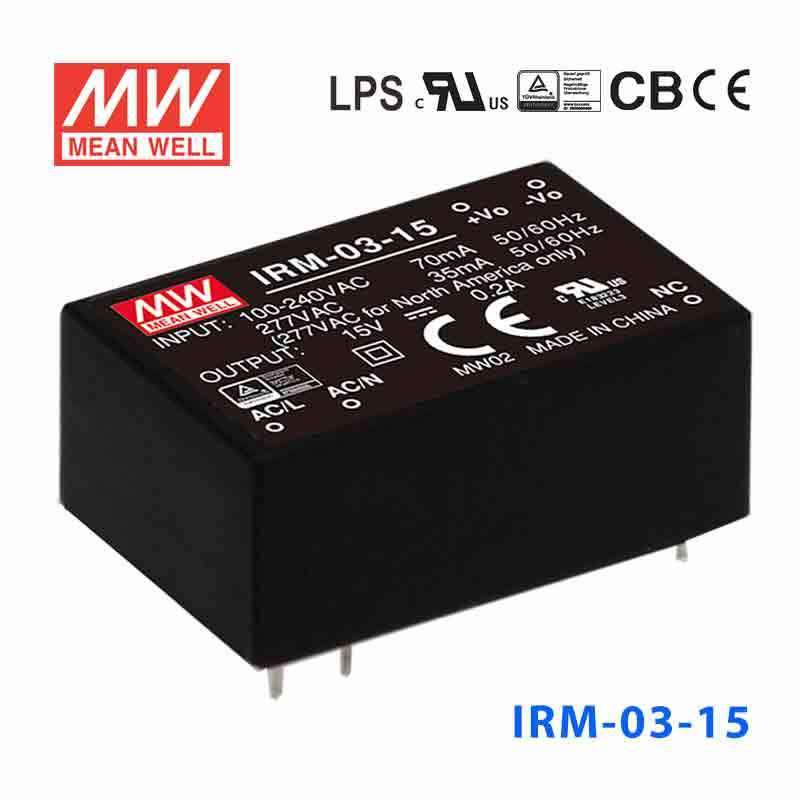

Mean Well IRM-03-15 Switching Power Supply 3W 15V 200mA - Encapsulated

miniature encapsulated typePCB mouting style
SKU IRM-03-15
$7.05 USD
Shipping calculated at checkout.

Select model — 18 in this family

IRM-03-15
In stock
|

Overview

IRM-03-15 is the 15V output model of this series: rated current 200mA, rated power 3W, typical efficiency 78%. Type Blank: PCB mounting style.

IRM-03 is a 3W miniature (37*24*15mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows a universal input voltage range of 85~305Vac. The phenolic case and potted with silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 80% and the extremely low no-load power consumption below 0.075W, IRM-03 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Ⅱ design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/ EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference. In addition to module-type model, IRM-03 series also offers the SMD style model.

Features

  • Universal AC input / Full range
  • No load power consumption<0.075W
  • Compact size
  • Comply with BS EN/EN55032 Class B without any additional components
  • Wide operating temp. range -30~85℃
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Isolation ClassⅡ
  • High reliability, low cost
  • 3 years warranty

Specifications

IRM-03-15Specifications from the official datasheet (2025-08-08 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
200mA
CURRENT RANGE
0 ~ 200mA
RATED POWER
3W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE TOLERANCENote.3
±2.5%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
600ms, 30ms/230Vac 600ms, 30ms/115Vac at full load
HOLD UP TIME (Typ.)
40ms/230Vac 8ms/115Vac at full load

INPUT

VOLTAGE RANGE
85 ~ 305Vac 120~430Vdc
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
78%
AC CURRENT (Typ.)
70mA/115Vac 40mA/230Vac 35mA/277Vac
INRUSH CURRENT (Typ.)
10A/115Vac 20A/230Vac
LEAKAGE CURRENT
< 0.25mA/277Vac

PROTECTION

OVERLOAD
105%~260% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
15.75 ~ 20.3V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-30 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +100℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SOLDERING TEMPERATURE
Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.); Reflow soldering(SMD style): 240℃,10s (max.)

SAFETY & EMC

SAFETY STANDARDS
IEC62368-1,IEC61558-1/-2-16,UL62368-1, TUV BS EN/EN62368, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, EAC TP TC 004, BSMI CNS15598-1 approved, design refer to IEC60601-1 (By request)
OVER VOLTAGE CATEGORY
IEC/EN 61558-1/-2-16(OVC Ⅱ, altitude up to 2000m); IEC/EN/UL 62368-1(OVC Ⅱ, altitude up to 2000m)
WITHSTAND VOLTAGE
I/P-O/P:4.2KVac
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level (surge L-N : 1KV), EAC TP TC 020

OTHERS

MTBF
10762.8K hrs min. Telcordia SR-332 (Bellcore) ; 2137.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
PCB mounting style : 37*24*15mm (L*W*H) SMD style : 37*24*16mm (L*W*H)
PACKING
PCB mounting style : 0.023Kg;560pcs/14.1Kg/0.77CUFT SMD style :0.023Kg;560pcs/14.1Kg/0.77CUFT

Certifications & ratings

Marked features
LPS

MODEL ENCODING

Blank (this model)
PCB mounting style
S
SMD style
Test conditions and notes4
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

IRM-03-15 fosc : 130KHz
fosc : 130KHz
IRM-03-15 Derating Curve
Derating Curve
IRM-03-15 Mechanical Specification
Mechanical Specification
IRM-03-15 Recommended PCB layout (for SMD
Recommended PCB layout (for SMD

Typical applications

  • Industrial electrical equipment
  • Mechanical equipment
  • Factory automation equipment
  • Handheld electronic device

Downloads

FAQ

What is the output rating of the Mean Well IRM-03-15?

The IRM-03-15 is a 3W encapsulated switching power supply with a single 15V DC output. Its rated output current is 200mA, making it suitable for low-power embedded and PCB-based applications.

What input voltage range does the IRM-03-15 support?

This model supports universal input and operates across 85 to 305VAC or 120 to 430VDC. That wide range helps B2B buyers standardize on one part across equipment intended for different regional power environments.

Is the Mean Well IRM-03-15 a good fit for compact PCB applications?

Yes. The IRM-03-15 is designed as a compact encapsulated power module for PCB mounting, with dimensions of 37 x 24 x 15mm in PCB mounting style. Its small footprint and low 3W output make it a practical choice where board space is limited.

What protection features are included in the IRM-03-15?

The IRM-03-15 includes protection for short circuit, overload, and over voltage. Overload protection operates in hiccup mode with auto-recovery, and over voltage protection trips at 15.75 to 20.3V, shutting off the output via zener diode clamping.

Can the IRM-03-15 be used in demanding temperature conditions?

This model is rated for operation from -30°C to +85°C, subject to the output derating curve. That makes it suitable for equipment that may face wider ambient temperature variation than standard indoor electronics.

How does the IRM-03-15 differ from larger AC-DC power supplies?

The IRM-03-15 is intended for low-power applications that need a compact 15V, 200mA output rather than higher-wattage system power. Compared with larger AC-DC supplies, it emphasizes small size, low no-load power consumption under 0.075W, and PCB-level integration.
