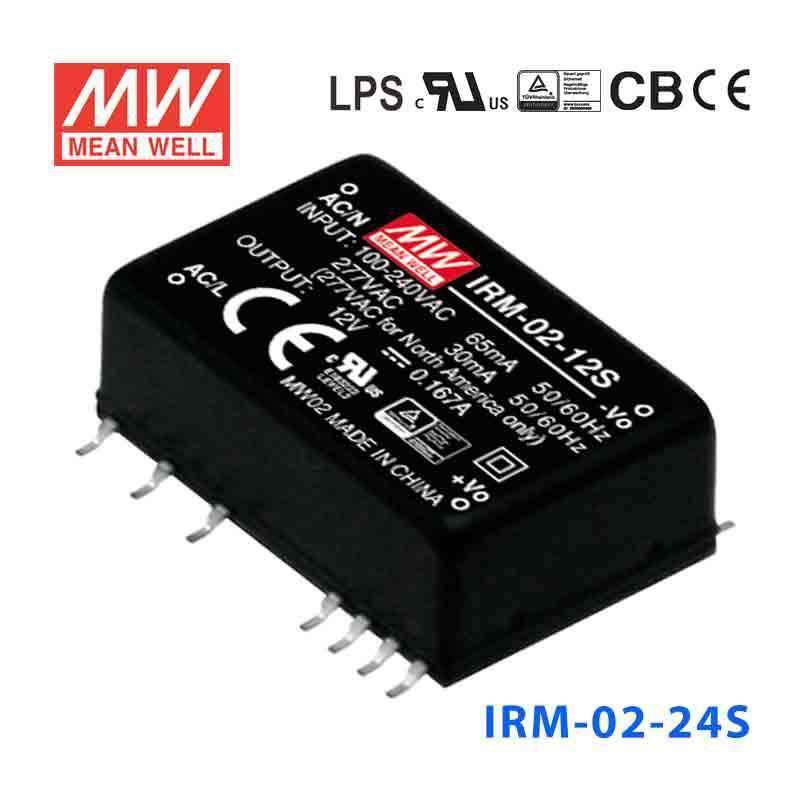

Mean Well IRM-02-24S Switching Power Supply 2W 24V 83mA - Encapsulated

miniature encapsulated typeSMD style
SKU IRM-02-24S
$7.47 USD
Shipping calculated at checkout.

Select model — 17 in this family

IRM-02-24S
In stock
|

Overview

IRM-02-24S is the 24V output model of this series: rated current 83mA, rated power 2W, typical efficiency 77%. Type S: SMD style.

IRM-02 is a 2W miniature (33.7*22.2*15mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows a universal input voltage range of 85~305Vac. The phenolic case and potted with silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 77% and the extremely low no-load power consumption below 0.075W, IRM-02 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Ⅱ design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/ EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference. In addition to module-type model, IRM-02 series also offers the SMD style model.

Features

  • Universal AC input / Full range
  • No load power consumption<0.075W
  • Compact size
  • Comply with BS EN/EN55032 Class B without any additional components
  • Wide operating temp. range -30~85℃
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Isolation ClassⅡ
  • High reliability, low cost
  • 3 years warranty

Specifications

IRM-02-24SSpecifications from the official datasheet (2025-11-21 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
83mA
CURRENT RANGE
0 ~ 83mA
RATED POWER
2W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE TOLERANCENote.3
±2.5%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
600ms, 30ms/230Vac 600ms, 30ms/115Vac at full load
HOLD UP TIME (Typ.)
40ms/230Vac 12ms/115Vac at full load

INPUT

VOLTAGE RANGE
85 ~ 305Vac 120 ~ 430Vdc
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
77%
AC CURRENT (Typ.)
45mA/115Vac 30mA/230Vac 25mA/277Vac
INRUSH CURRENT (Typ.)
5A/115Vac 10A/230Vac
LEAKAGE CURRENT
< 0.25mA/277Vac

PROTECTION

OVERLOAD
≥110% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
25.2 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-30 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +100℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 75℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SOLDERING TEMPERATURE
Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.); Reflow soldering(SMD style): 240℃,10s (max.)

SAFETY & EMC

SAFETY STANDARDS
IEC62368-1,IEC61558-1/-2-16,UL62368-1,TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16,EAC TP TC 004, BSMI CNS15598-1 approved
OVER VOLTAGE CATEGORY
IEC/EN 61558-1/-2-16(OVC Ⅱ, altitude up to 2000m); IEC/EN/UL 62368-1(OVC Ⅱ, altitude up to 2000m)
WITHSTAND VOLTAGE
I/P-O/P:4.2KVac
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level (surge L-N : 1KV), EAC TP TC 020

OTHERS

MTBF
13571.4K hrs min. Telcordia SR-332 (Bellcore) ; 1960.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
PCB mounting style : 33.7*22.2*15mm (L*W*H) SMD style : 33.7*22.2*16mm (L*W*H)
PACKING
PCB mounting style : 0.024Kg; 640pcs/ 16.3 Kg/ 0.84CUFT SMD style : 0.024Kg; 640 pcs/ 16.3 Kg/ 0.84CUFT

Certifications & ratings

Marked features
LPS

MODEL ENCODING

Blank
PCB mounting style
S (this model)
SMD style
Test conditions and notes4
  1. 1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

IRM-02-24S Block Diagram
Block Diagram
IRM-02-24S Mechanical Specification
Mechanical Specification
IRM-02-24S Recommended PCB Layout (for SMD
Recommended PCB Layout (for SMD

Typical applications

  • Industrial electrical equipment
  • Mechanical equipment
  • Factory automation equipment
  • Handheld electronic device

Downloads

FAQ

Can I use the IRM-02-24S in a surface-mount automation board that needs 24V DC?

Yes, this version provides 24V constant-voltage output at 2W and 83mA with an 85-305VAC input range. Its SMD style makes it relevant for compact 24V automation or control boards designed around surface-mount assembly.

Is the IRM-02-24S appropriate for powering a low-power 24V monitoring or alarm circuit?

It can be appropriate for low-power 24V monitoring, alarm, or signaling electronics that stay within the 2W and 83mA output limit. It is intended for small constant-voltage DC loads rather than heavier 24V field devices.

Can this model power a compact 24V embedded control module from worldwide AC input?

Yes, the 85-305VAC input range supports equipment intended for varied AC supply conditions, while the output remains 24V constant voltage. It is best suited to compact embedded modules whose 24V demand stays within 2W and 83mA.

What is the difference between IRM-02-24S and the other low-power IRM 24V models?

This datasheet covers only the 2W IRM-02 series, so it does not specify the other IRM 24V power levels. Within it, the IRM-02-24S is the SMD style version (33.7 × 22.2 × 16 mm) and the IRM-02-24 is the PCB mounting style version (33.7 × 22.2 × 15 mm), both rated 2W, 24V, 83mA.

Can the IRM-02-24S be used in exposed outdoor equipment?

An outdoor rating is not listed for this model. The specified environmental data is -30°C to +85°C operation, subject to the derating curve, and the encapsulated SMD format is more appropriate inside protected indoor assemblies than in directly exposed installations.
