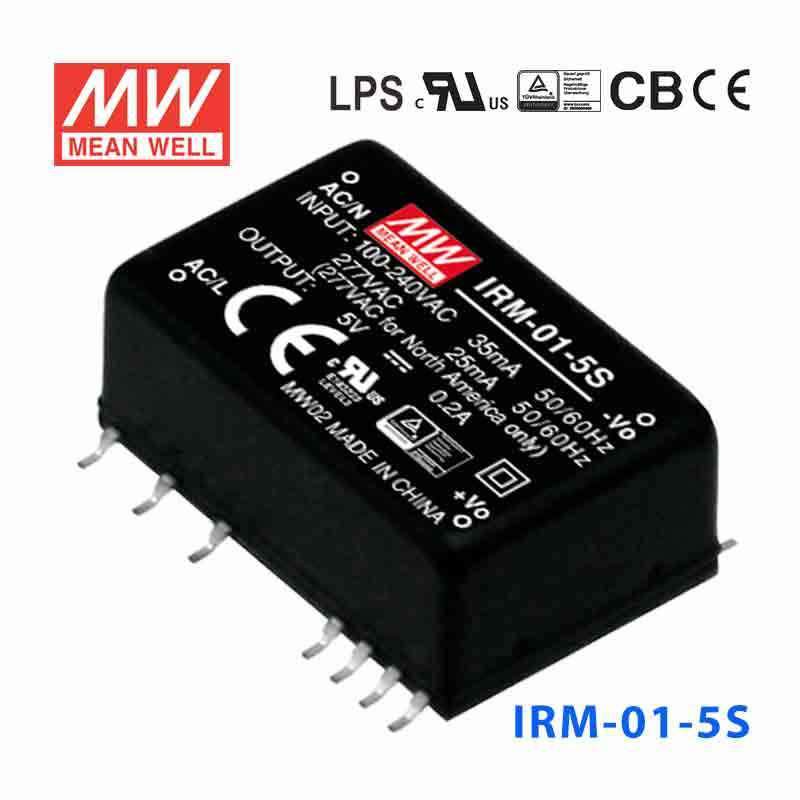

Mean Well IRM-01-5S Switching Power Supply 1W 5V 200mA - Encapsulated

Name: Mean Well IRM-01-5S Switching Power Supply 1W 5V 200mA - Encapsulated
Brand: Mean Well
SKU: IRM-01-5S
Price: 7.25 USD
Availability: InStock

Overview

IRM-01-5S is the 5V output model of this series: rated current 200mA, rated power 1W, typical efficiency 70%.

IRM-01 is a 1W miniature (33.7*22.2*15mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows a universal input voltage range of 85~305VAC. The phenolic case and the fully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 77% and the extremely low no-load power consumption below 0.075W, IRM-01 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Ⅱ design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference. In addition to module-type model, IRM-01 series also offers the SMD style model.

Features

Universal AC input / Full range
No load power consumption<0.075W
Compact size
Comply with EN55032 Class B without any additional components
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Isolation ClassⅡ
High reliability, low cost
3 years warranty

Specifications

IRM-01-5SSpecifications from the official datasheet (2020-10-12 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 200mA
CURRENT RANGE: 0 ~ 200mA
RATED POWER: 1W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE TOLERANCE^Note.3: ±2.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 600ms, 30ms/230VAC 600ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 40ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 305VAC 120 ~ 430VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 70%
AC CURRENT (Typ.): 25mA/115VAC 18mA/230VAC 16mA/277VAC
INRUSH CURRENT (Typ.): 5A/115VAC 10A/230VAC
LEAKAGE CURRENT: < 0.25mA/277VAC

PROTECTION

OVERLOAD: ≥110% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.2 ~ 6.8V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +100℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 75℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
LEAD TEMPERATURE: 260℃,10s (max.)

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV EN62368-1, EAC TP TC 004 , BSMI CNS14336-1 approved , Design refer to EN61558-1/-2-16
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level (surge L-N : 1KV), criteria A, EAC TP TC 020

OTHERS

MTBF: 1960Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: PCB mounting style : 33.7*22.2*15mm (L*W*H) SMD style : 33.7*22.2*16mm (L*W*H)
PACKING: PCB mounting style : 0.024Kg; 640pcs/ 16.3 Kg/ 0.84CUFT SMD style : 0.024Kg; 640 pcs/ 16.3 Kg/ 0.84CUFT

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

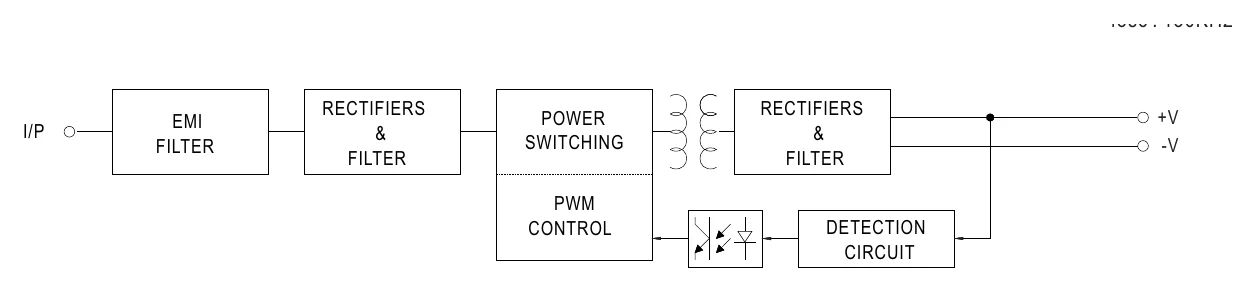

Technical drawings

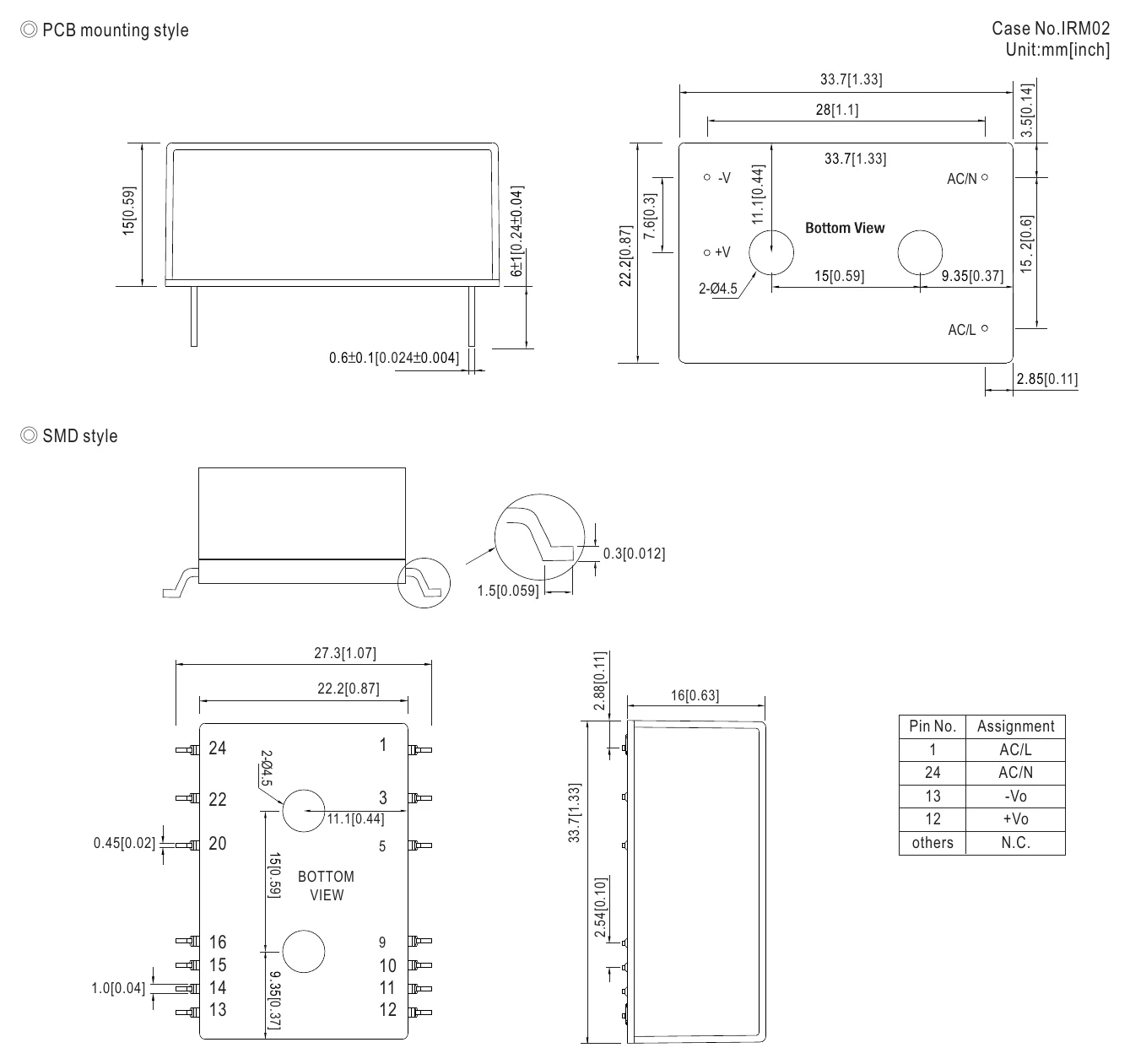

IRM-01-5S Mechanical Specification — Mechanical Specification

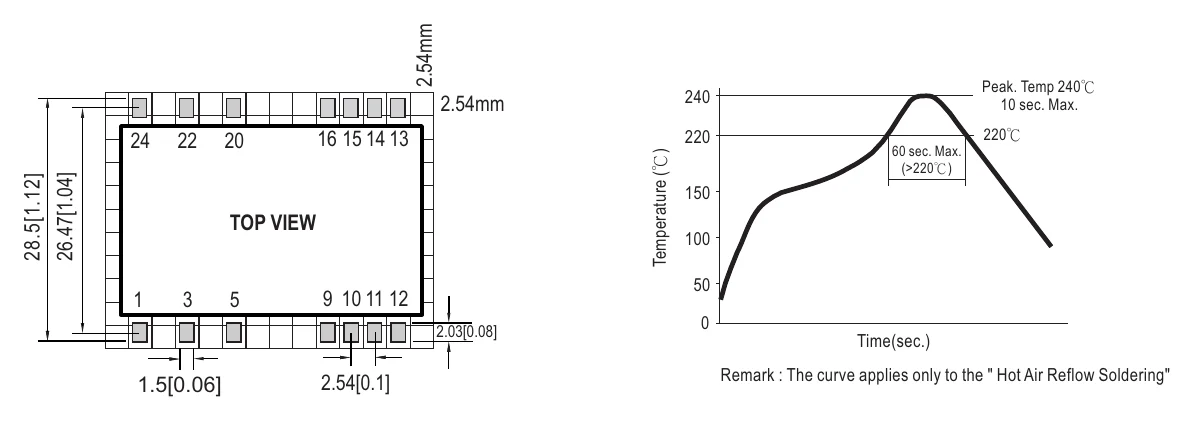

IRM-01-5S Recommended PCB Layout (for SMD — Recommended PCB Layout (for SMD

Typical applications

Industrial electrical equipment
Mechanical equipment
Factory automation equipment
Handheld electronic device

Downloads

Datasheet1

IRM-01-5S datasheetIRM-01-SPEC.PDF · 2020-10-12 edition PDF Download

Certificates4

EMC Certificate (IRM-01)(EN) PDF Download

UL Certificate (IRM-01)(EN) PDF Download

CB Certificate (IRM-01)(EN) PDF Download

TUV Certificate (IRM-01)(EN) PDF Download

Test reports1

Test Report (IRM-01-5)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the IRM-01-5S for a compact 5V embedded or automation PCB?

Yes, this version is intended for low-power 5V DC electronics where 1W is sufficient. Its miniature encapsulated construction, SMD style, and 33.7 × 22.2 × 16.0 mm dimensions make it relevant for dense board layouts with onboard AC-to-DC conversion.

Is the IRM-01-5S suitable for a small industrial control or communications circuit?

It can be suitable when the circuit uses a regulated 5V rail and remains within the 1W rating. This is the right scale for low-consumption control, monitoring, or communications electronics, not for high-current 5V loads.

Can the IRM-01-5S be used for low-power IT or appliance control boards?

Yes, for small 5V constant voltage sections that need direct conversion from 85-305VAC. The package is designed for embedded board use, so it fits compact internal electronics better than standalone higher-power equipment.

Does the IRM-01-5S support outdoor or high-temperature conditions?

The operating range is -30°C to +85°C, which covers wide ambient conditions. Since no IP rating is listed, it should be used inside a protected enclosure rather than in exposed outdoor locations.

What other IRM outputs should I compare against the IRM-01-5S?

The 1W IRM-01 range includes 3.3V 300A, 5V 200A, 9V 111A, 12V 0.08A, 15V 0.07A, and 24V 0.04A models, with standard and S versions across several voltages. Beyond that, IRM-02 through IRM-90 siblings raise power from 2W to 90.2W and extend voltage choices from 3.3V to 48V.
