Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

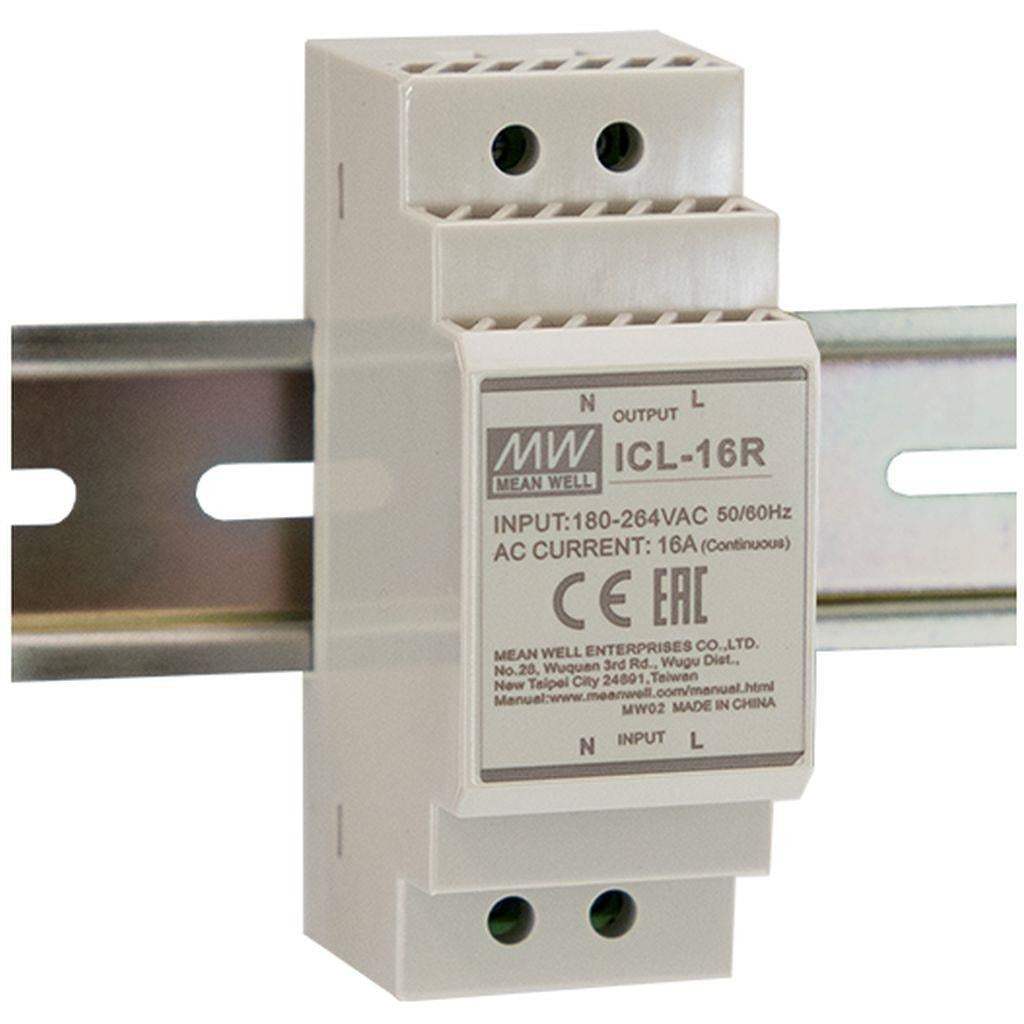

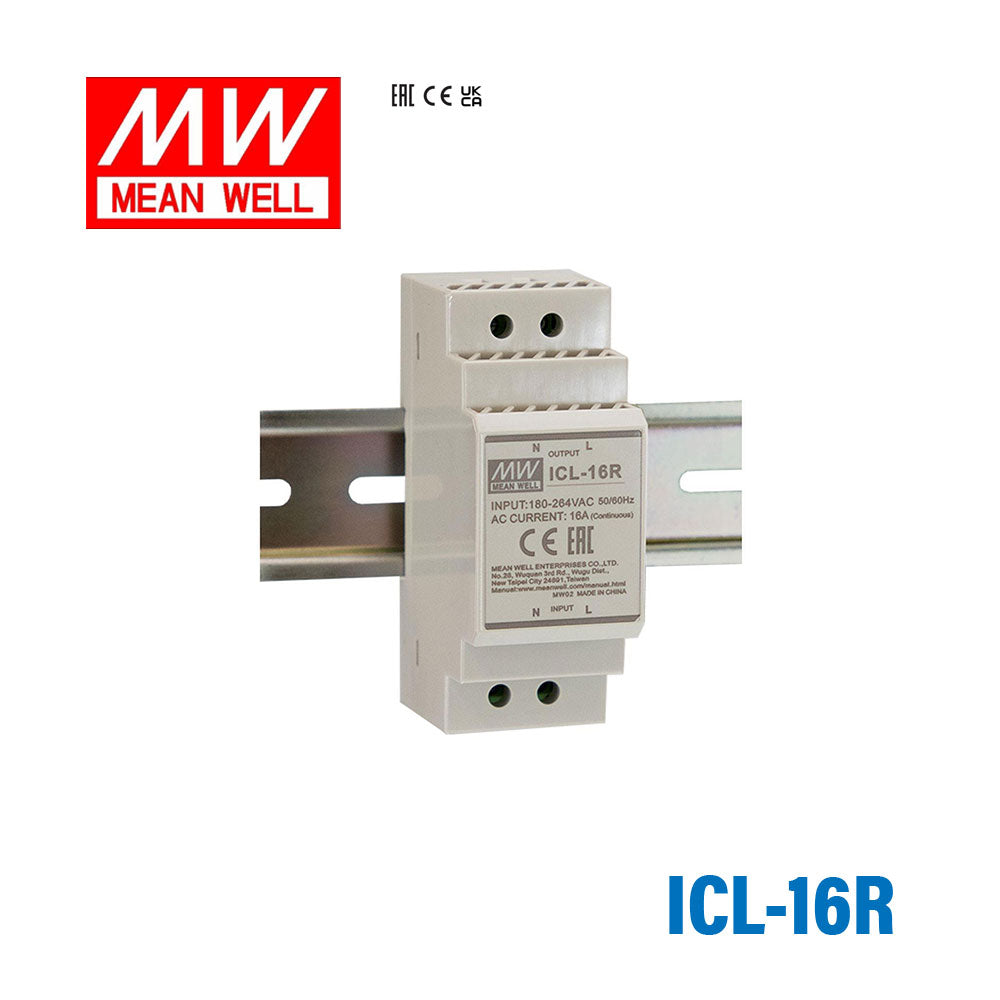

Mean Well ICL-16R AC Inrush Current Limiter
$52.01 USD
Unit price /
Unavailable
Description
Description
Features
23A inrush limiting current, 16A continuous| 180~264VAC AC input |
| Integrated bypass relay, no simple NTC |
| Internal thermal protection |
| -30~+70°C wide working temperature |
| Installed on DIN Rail TS-35/7.5 or 15 |
| 3 years warranty |
General Specification
| AC input voltage | 180~264VAC |
| Inrush current limiting | 23A |
| AC input power | 3680VA |
| Internal protection | Thermal fuse protects overload and fire |
| Working temperature | -30~+70°C |
| Operating altitude | 5000 meters |
| Safety standards | LVD BS EN/EN62368-1 approved |
| EMC standards | EN55032 class B, EN61000-4-2,3,4,5,6,8,11 |
| Case No | ICL-16R |
| Dimension (LxWxH) | 35x90x54.5 |
| Packing | 96pcs / 12.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesICL
-
Rated Current16 Ampere
-
Input Voltage85V~264V
-
Standards MetCE,EAC
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height1.38 in
-
Weight0.26 lb
File Downloads
File Downloads
::specification::
