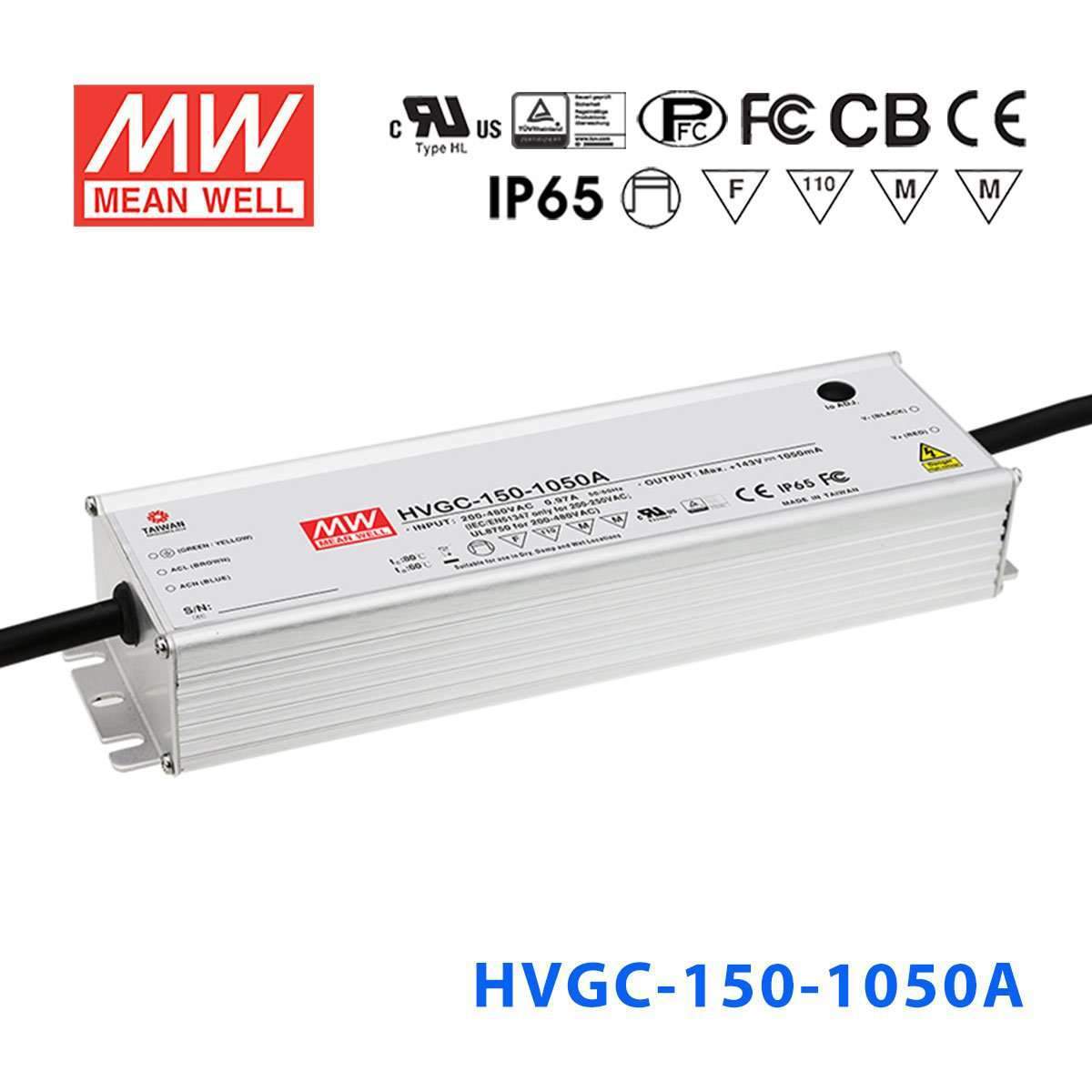

Mean Well HVGC-150-1050A Power Supply 150W 1050mA - Adjustable

Name: Mean Well HVGC-150-1050A Power Supply 150W 1050mA - Adjustable
Brand: Mean Well
SKU: HVGC-150-1050A
Price: 80.37 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVGC-150-1050A

$80.37 USD

Shipping calculated at checkout.

In stock

Overview

HVGC-150-1050A is the model of this series: rated current 1050mA, rated power 150.15W, typical efficiency 90%.

HVGC-150 series is a 150W LED AC/DC LED power supply featuring the constant current mode and high voltage output. HVGC-150 operates from 180~528VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming
Typical lifet ime>50000 hours
5 years warranty

Specifications

HVGC-150-1050ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

RATED CURRENT: 1050mA
RATED POWER: 150.15W
CONSTANT CURRENT REGION^Note.2: 15 ~ 143V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 630 ~ 1050mA
CURRENT RIPPLE^Note.5: 8.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms / 230Vac 400ms / 347VAC,480VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 0.5A / 347VAC 0.38A / 480VAC
INRUSH CURRENT (Typ.): COLD START 35A(twidth=790μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 151 ~ 165V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, FCC part 15 class B, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1755.7K hrs min. Telcordia SR-332 (Bellcore) ; 179.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 245*68*38.8mm (L*W*H)
PACKING: 1.24Kg; 12pcs/15.9Kg/0.78CUFT

Certifications & ratings

Type: HL

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. Current ripple is measured between 50%~100% of maximum voltage under rated power delivery.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

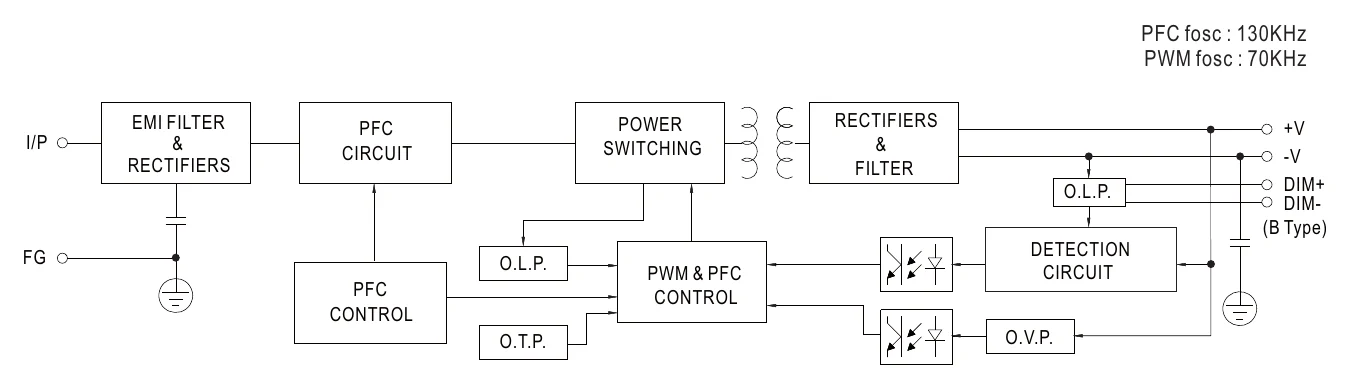

HVGC-150-1050A Block Diagram — Block Diagram

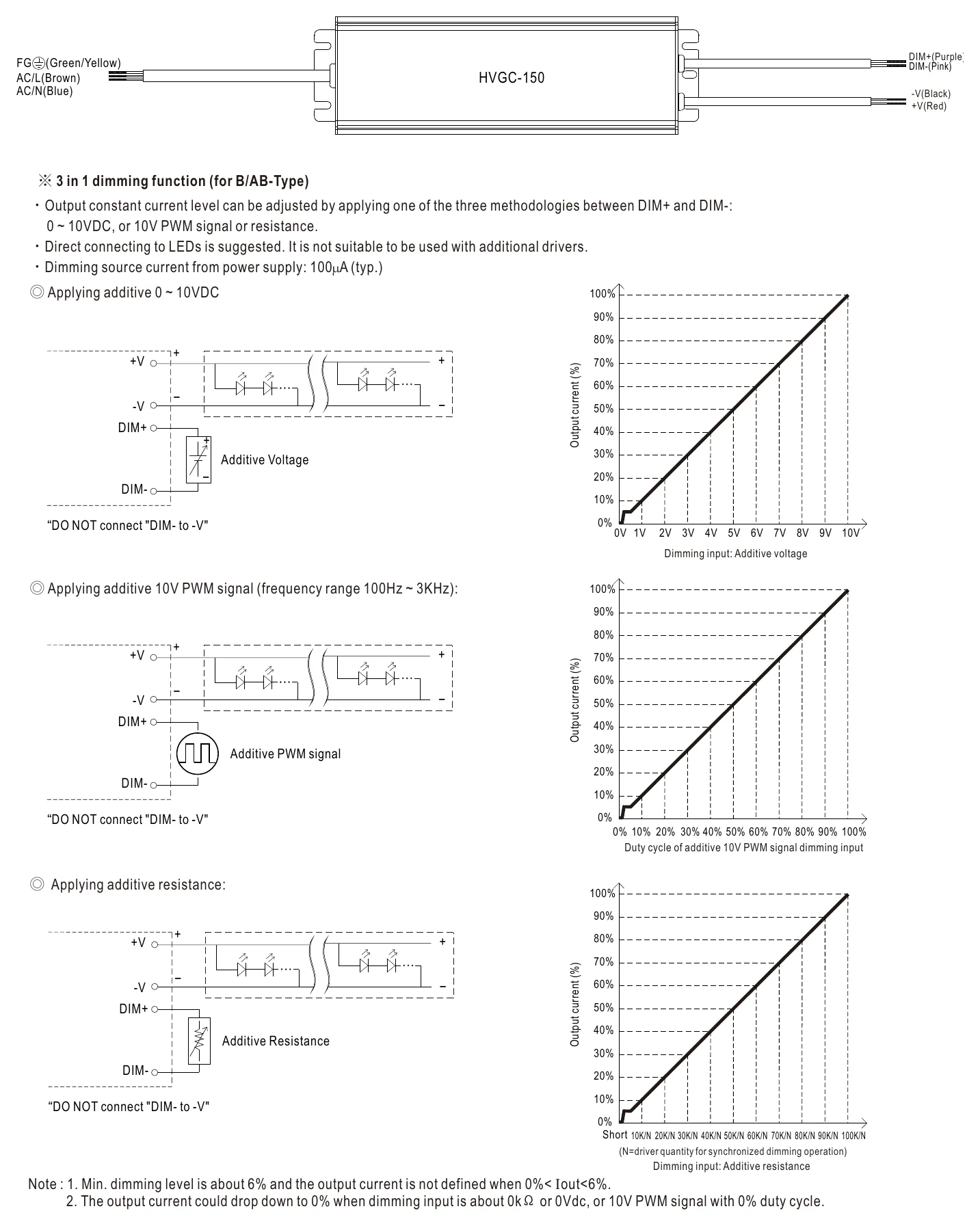

HVGC-150-1050A DIMMING OPERATION — DIMMING OPERATION

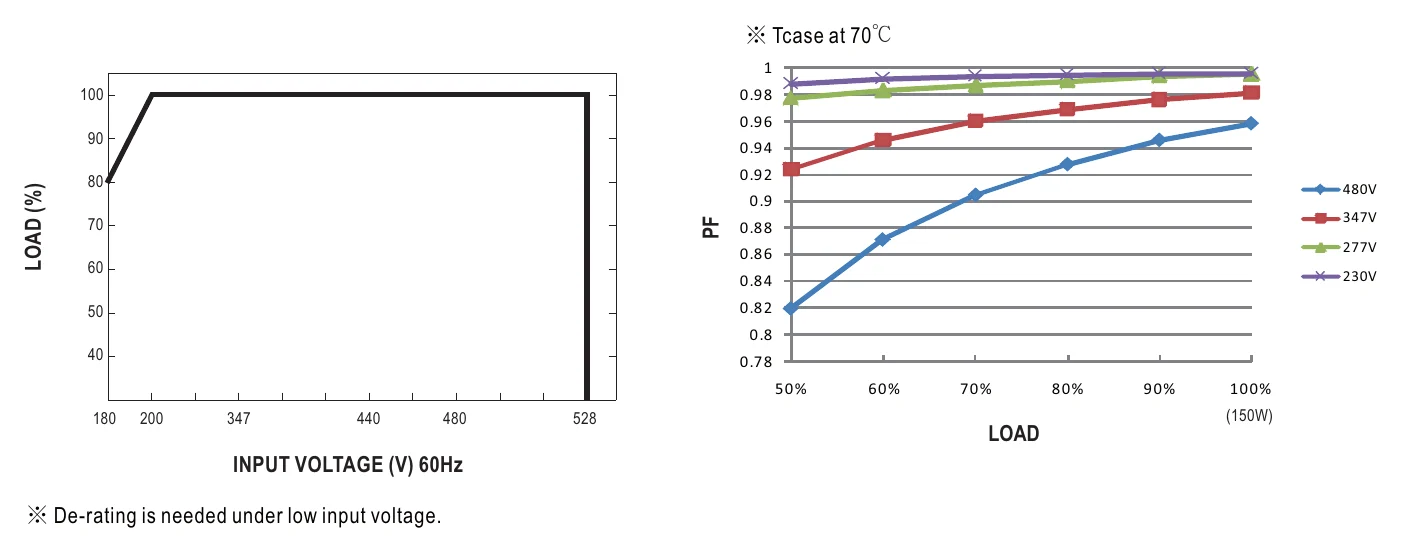

HVGC-150-1050A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

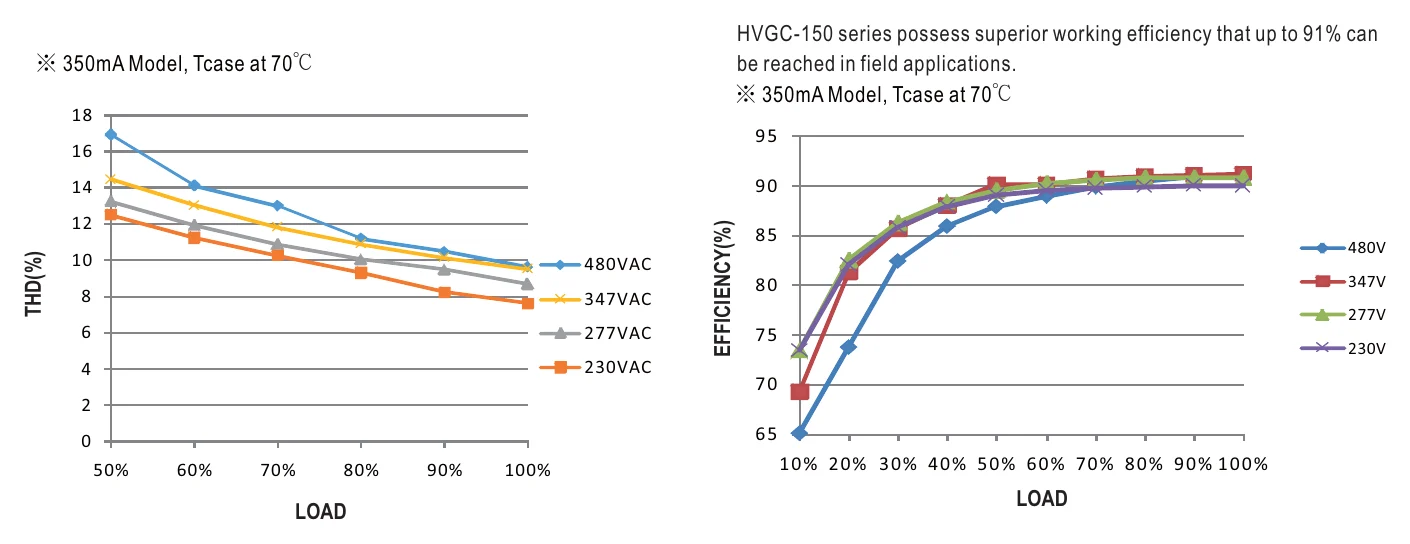

HVGC-150-1050A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

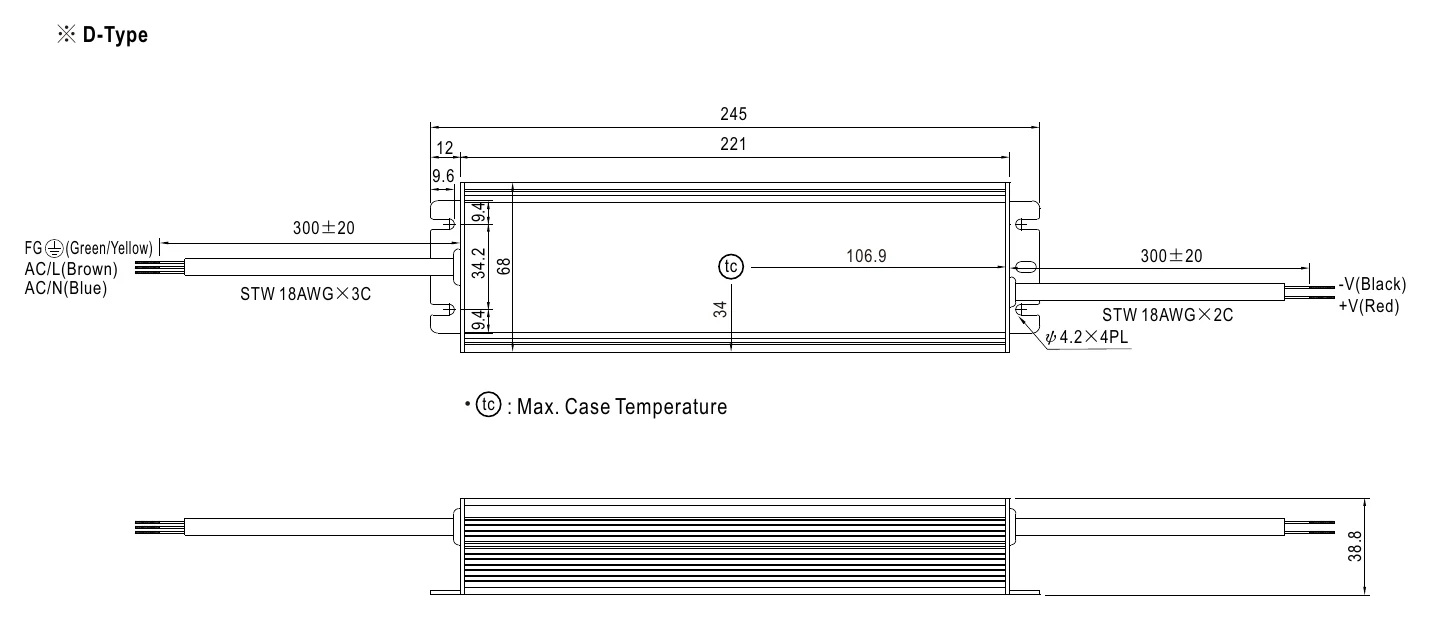

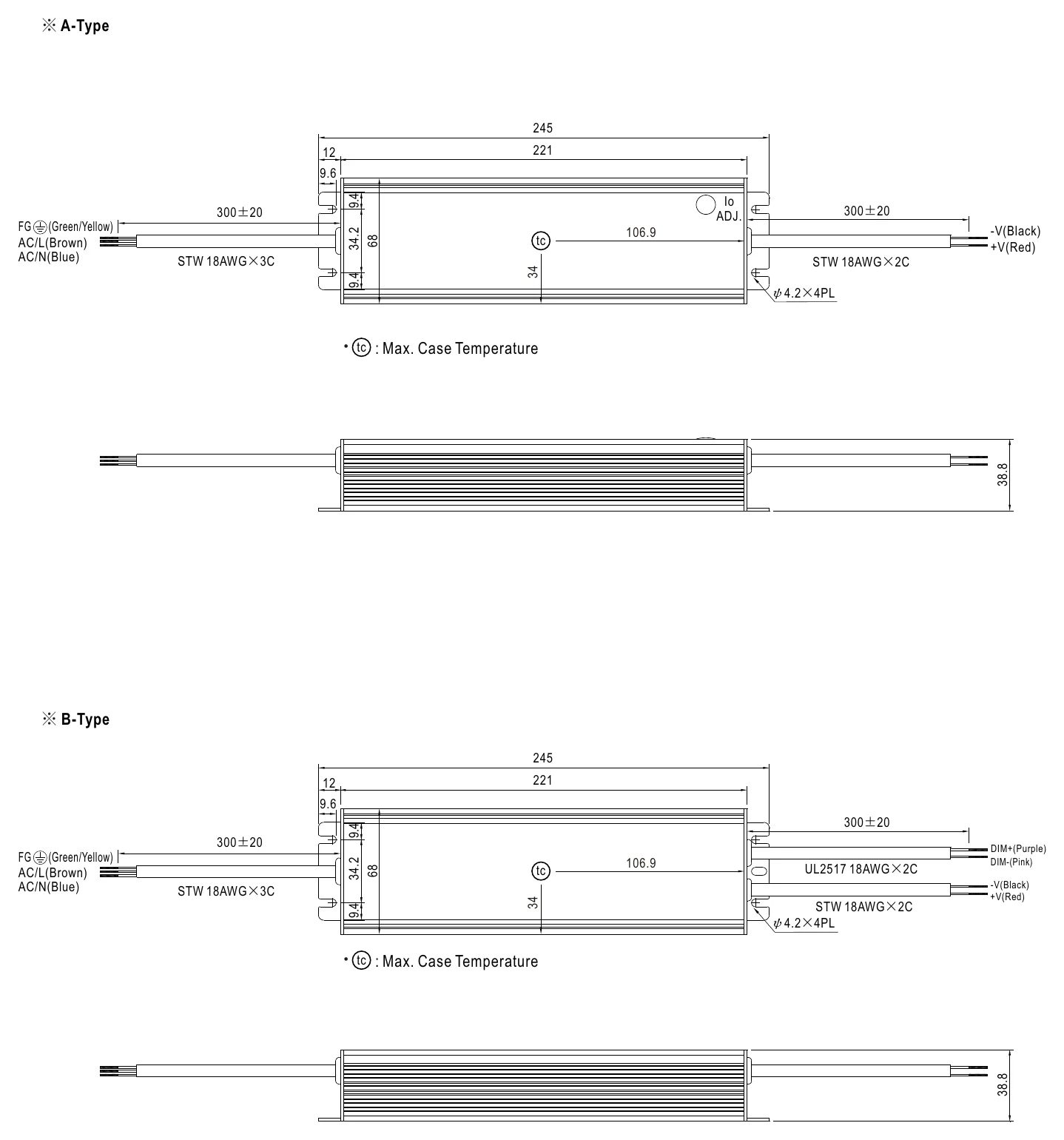

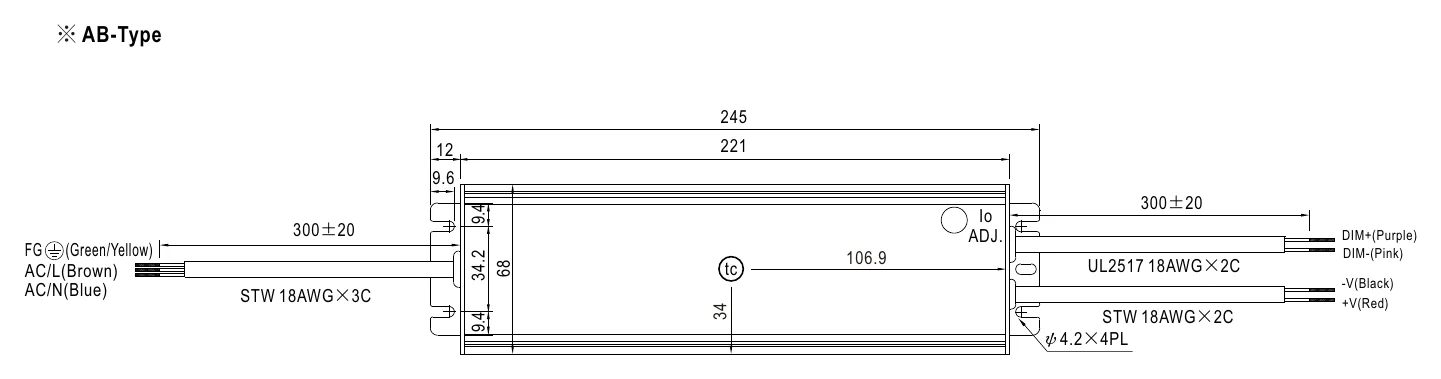

HVGC-150-1050A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

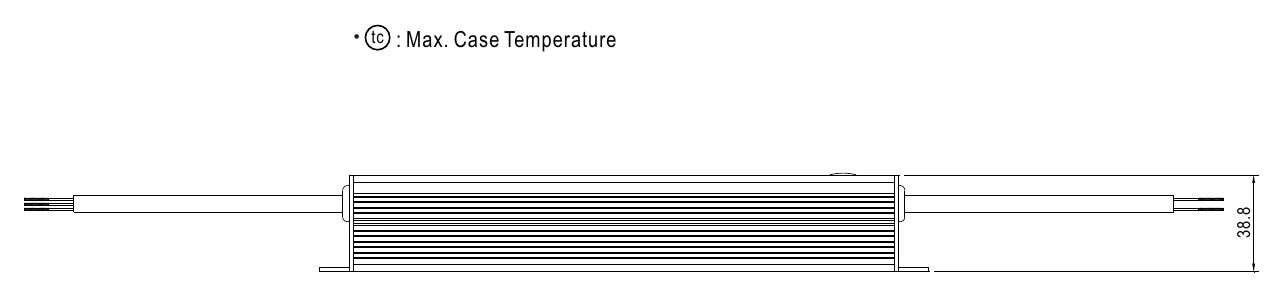

HVGC-150-1050A ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

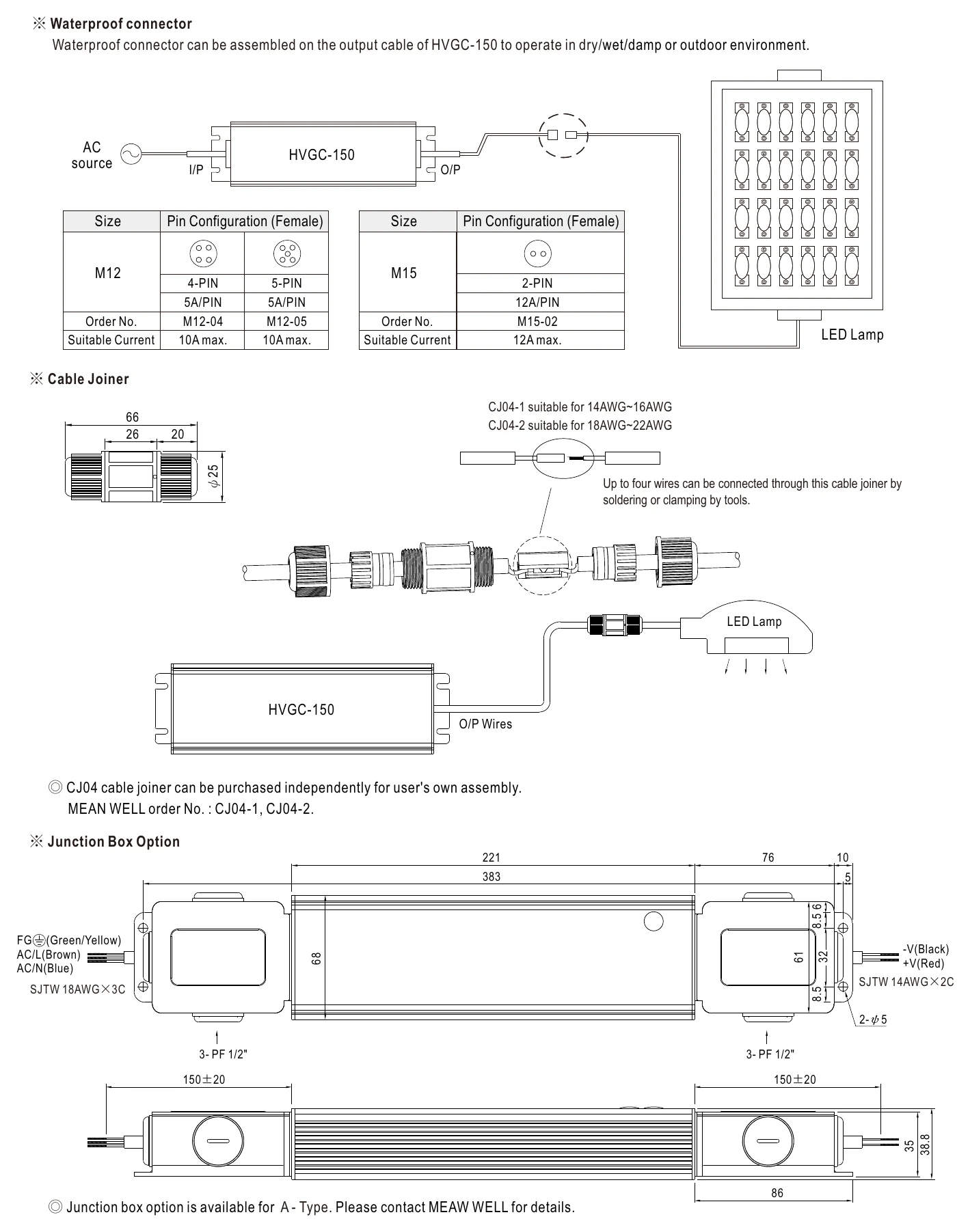

HVGC-150-1050A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Certificates4

TUV Certificate(HVGC-150)(EN) PDF Download

EMC Certificate(HVGC-150)(EN) PDF Download

FCC Certificate(HVGC-150)(EN) PDF Download

CB Certificate(HVGC-150)(EN) PDF Download

Test reports1

Test Report(HVGC-150-1050)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVGC-150-1050A for 1050mA LED downlights?

Yes, this is a constant current LED driver rated for 1050mA, which matches LED downlights built for that current. The full LED load must also stay within the 15-143V CC range and the 150.15W power rating.

Is this driver suitable for constant current signage modules?

It can be used for signage modules if they are designed for constant current operation at 1050mA. It is not a constant voltage unit, so it should not be used for signage products that require a fixed voltage supply.

Can the HVGC-150-1050A power a small LED array in a semi-exposed location?

Yes, it can power a small LED array when the array needs 1050mA constant current and fits within the 15-143V CC range. The HVGC-150 series is IP65 or IP67 approved, which supports use where protection from dust and water is needed.

How do I verify LED compatibility with this driver?

The connected LEDs must require 1050mA constant current, and their combined forward voltage must stay within the 15-143V constant current range. The number of LEDs depends on the forward voltage of each LED, so a specific LED count should not be assumed.

Is the HVGC-150-1050A meant for outdoor and temperature-challenging environments?

The HVGC-150 series is IP65 or IP67 approved and works at a case temperature (Tcase) of -40°C to +80°C, with output load derated at higher temperatures. For outdoor use the sheet notes a waterproof connector can be assembled on the output cable, and A-type units need to be considered for built-in use to comply with UL8750 Type HL.
