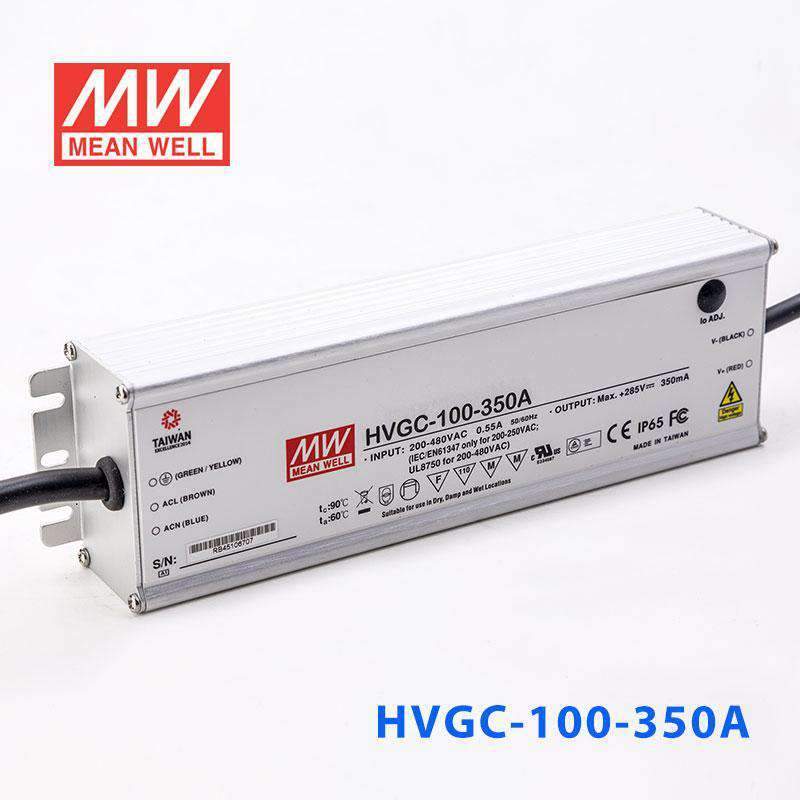

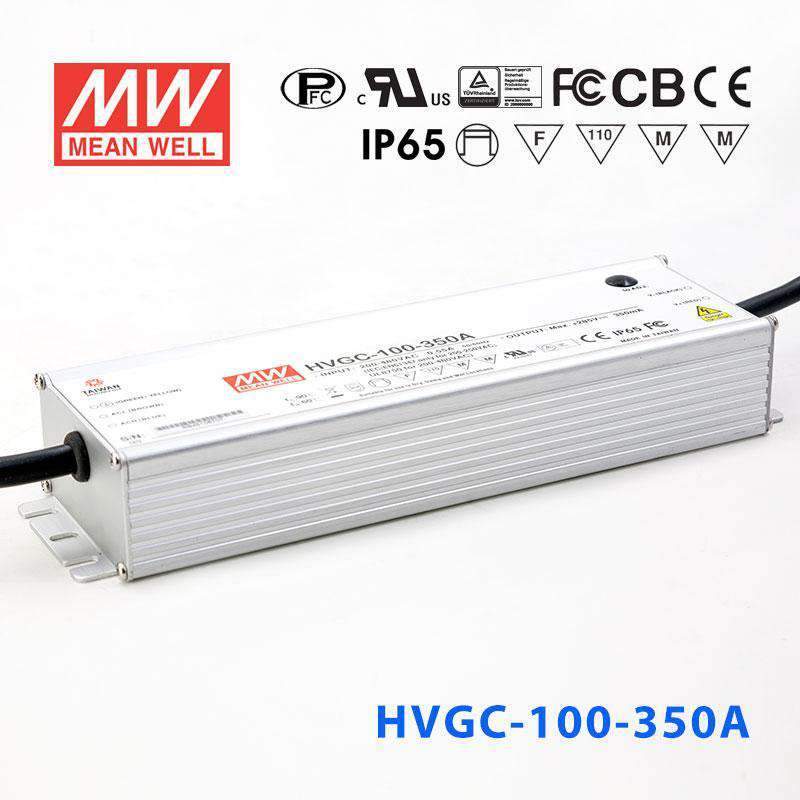

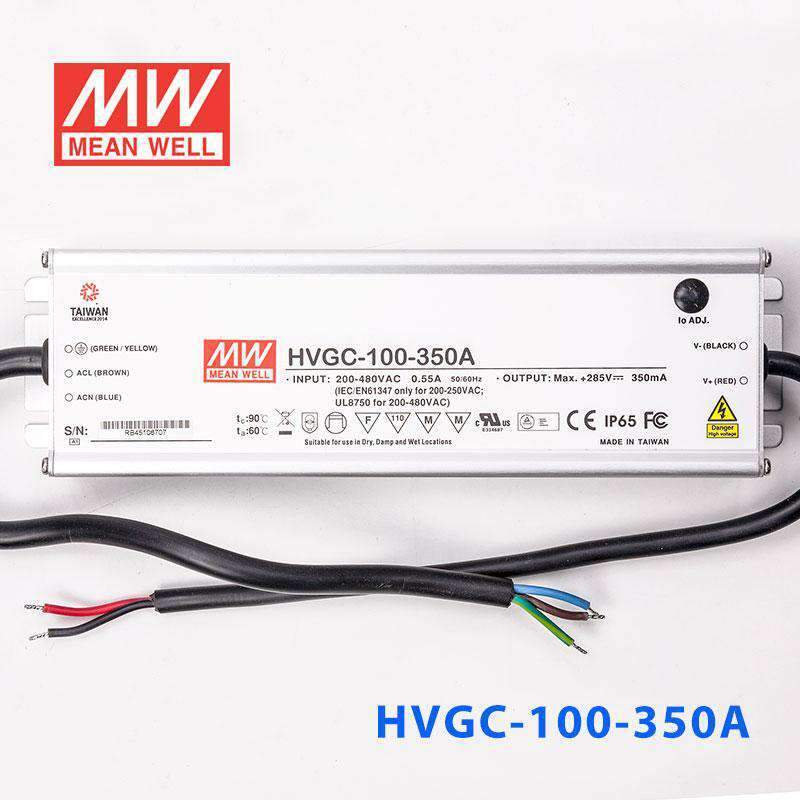

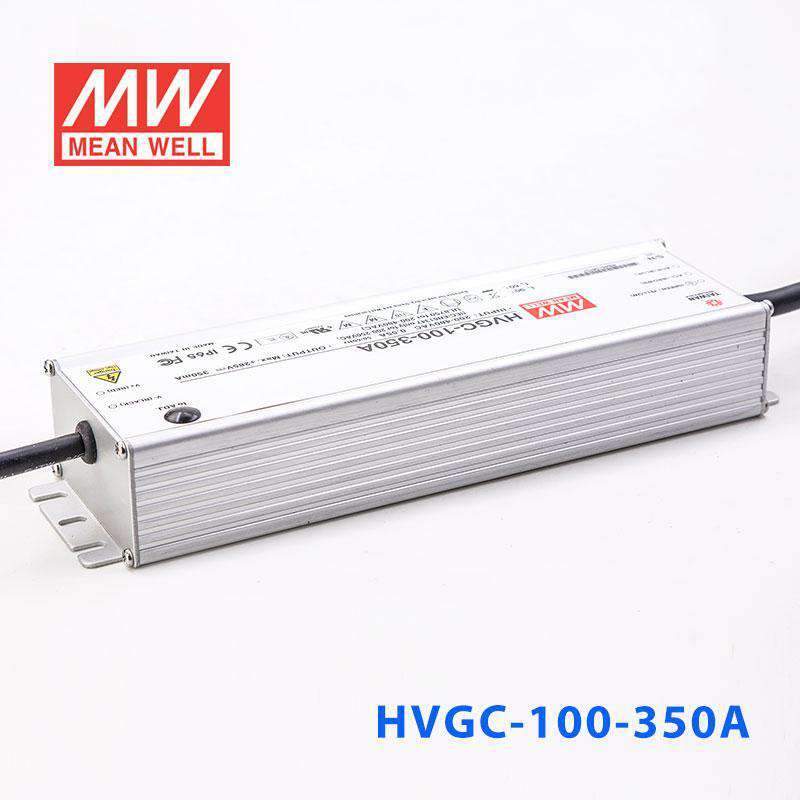

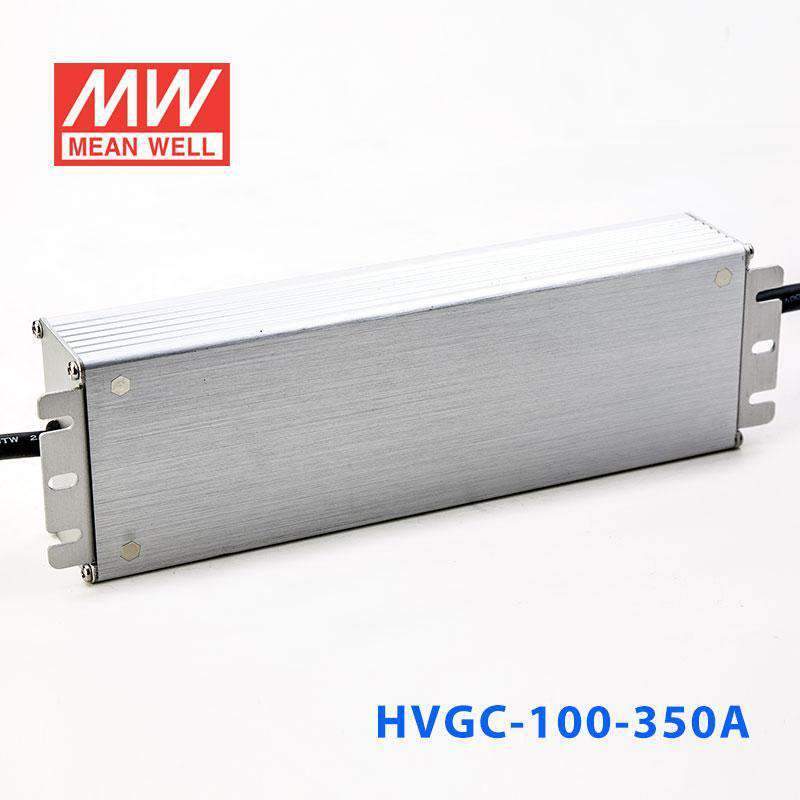

Mean Well HVGC-100-350A Power Supply 75W 350mA - Adjustable

Name: Mean Well HVGC-100-350A Power Supply 75W 350mA - Adjustable
Brand: Mean Well
SKU: HVGC-100-350A
Price: 78.83 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVGC-100-350A

$78.83 USD

Shipping calculated at checkout.

In stock

Overview

HVGC-100-350A is the model of this series: rated current 350mA, rated power 99.75W, typical efficiency 91%.

HVGC-100 series is a 100W LED AC/DC LED drive featuring the constant current mode and high voltage output. HVGC-100 operates from 180~528VAC and offers models with different rated current, 350mA and 700mA, respectively. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming
Typical lifettime>50000 hours
5 years warranty

Specifications

HVGC-100-350ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

RATED CURRENT: 350mA
RATED POWER: 99.75W
CONSTANT CURRENT REGION^Note.2: 29 ~ 285V
CURRENT ADJ. RANGE: 210 ~ 350mA
CURRENT RIPPLE^Note.5: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms, 80ms /230VAC, 347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.38A / 347VAC 0.28A / 480VAC
INRUSH CURRENT (Typ.): COLD START 25A(twidth=900μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 300 ~ 320V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP65 or IP67 approved; design refer to UL60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, FCC Part 15 Subpart, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 745.0K hrs min. Telcordia SR-332 (Bellcore) ; 186.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 236*68*38.8mm (L*W*H)
PACKING: 1.18Kg; 12pcs/15.2Kg/0.74CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. It is measured 50% ~ 100% of maximum voltage under rated power delivery.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.

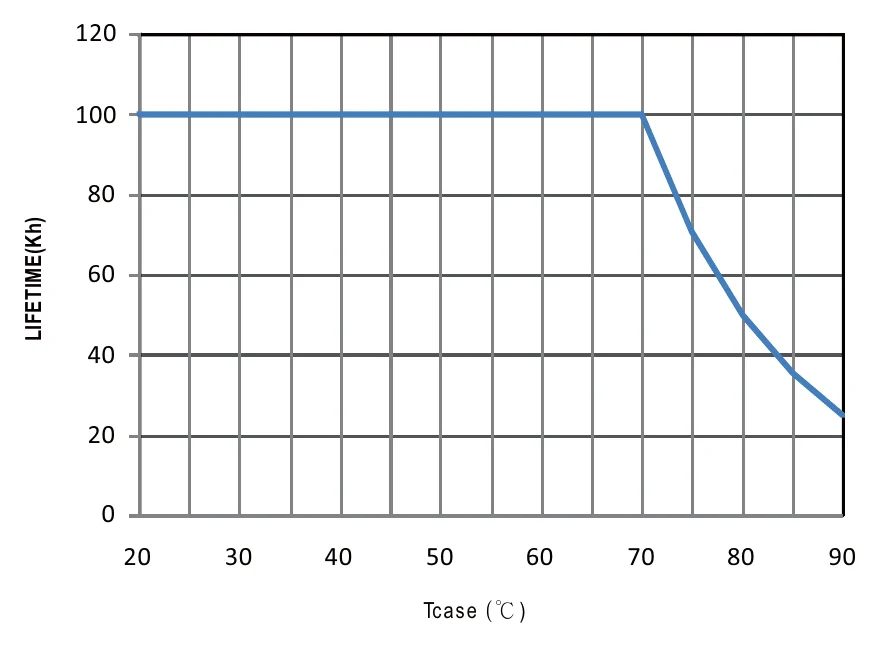

8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

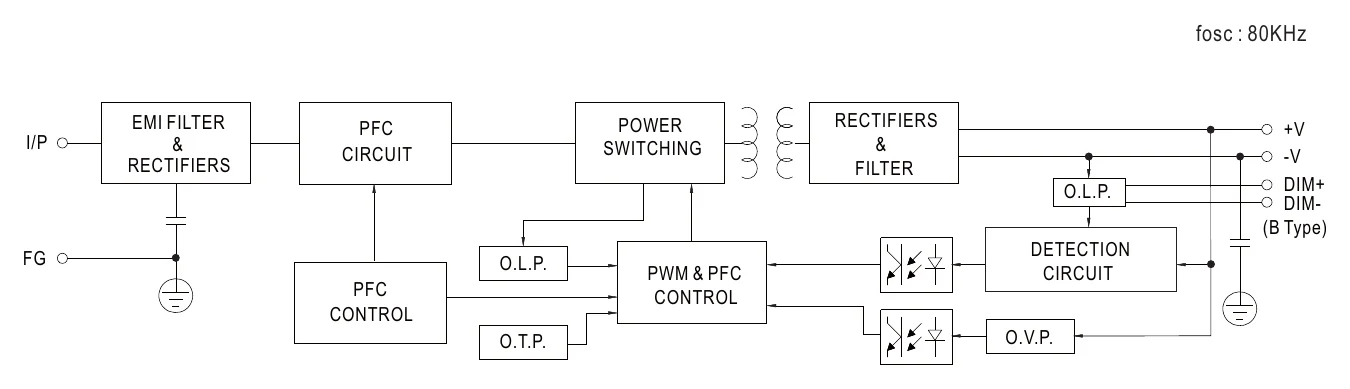

HVGC-100-350A Block Diagram — Block Diagram

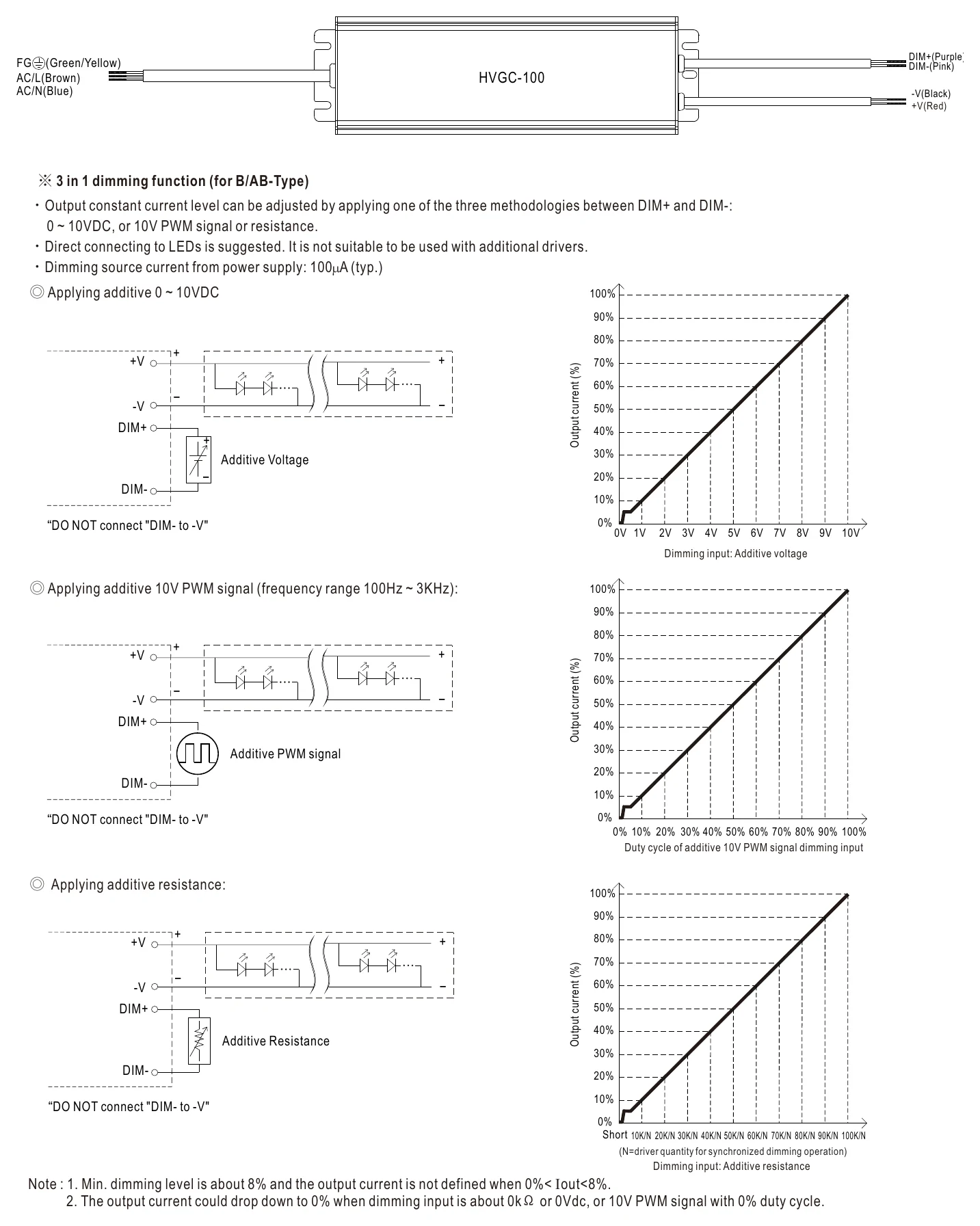

HVGC-100-350A DIMMING OPERATION — DIMMING OPERATION

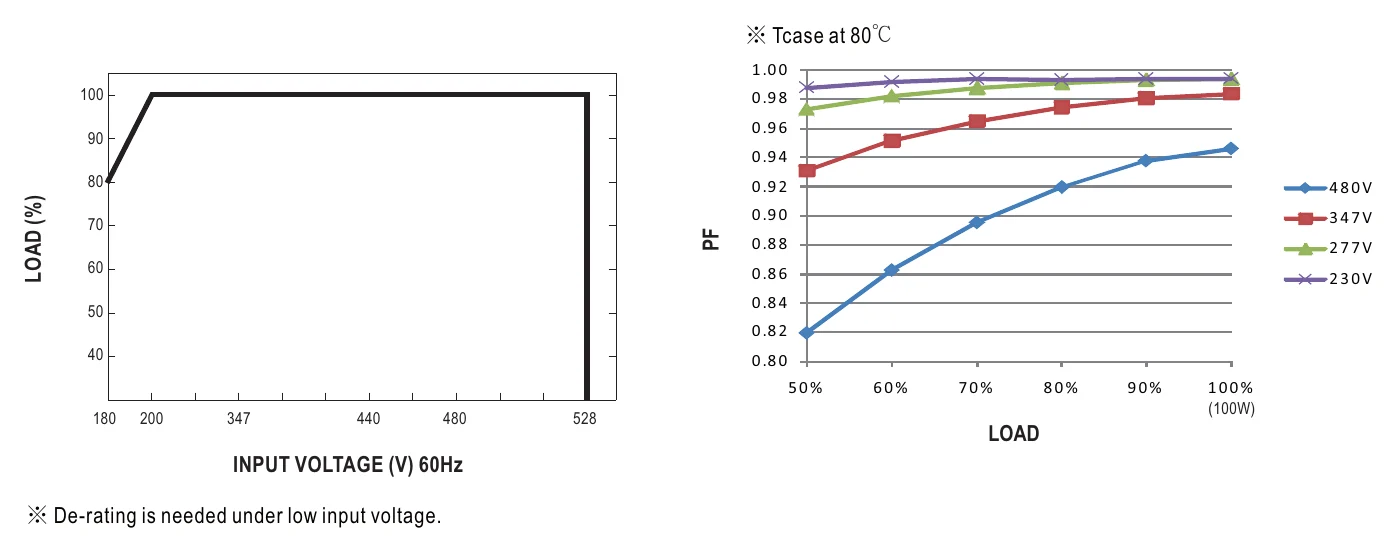

HVGC-100-350A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

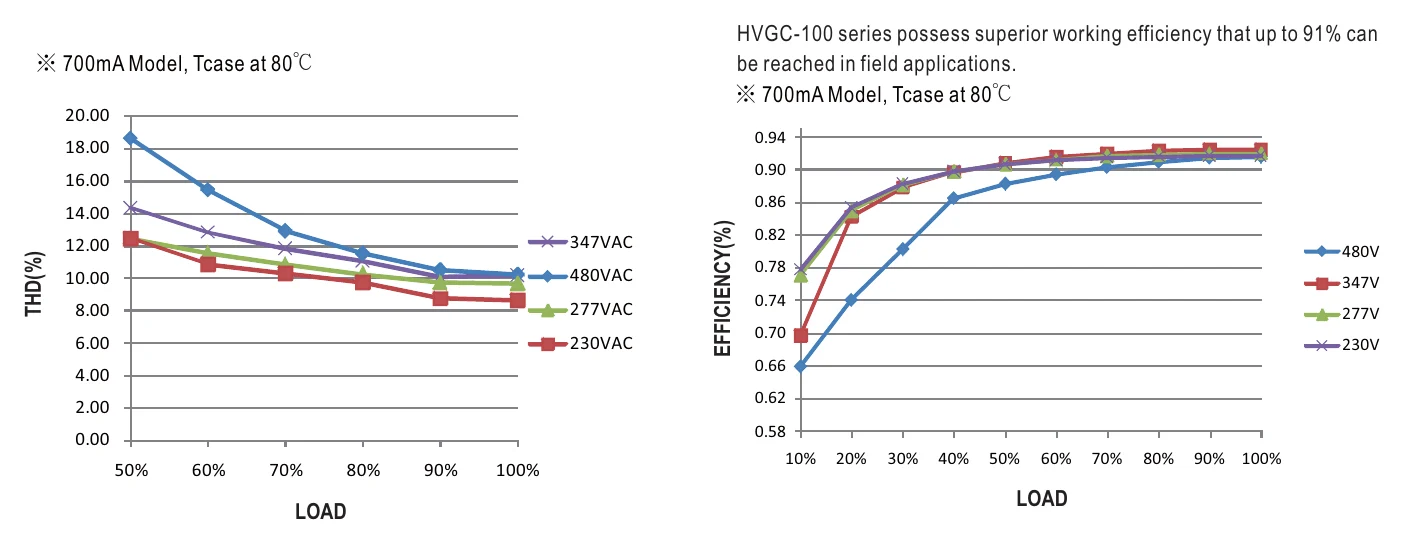

HVGC-100-350A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

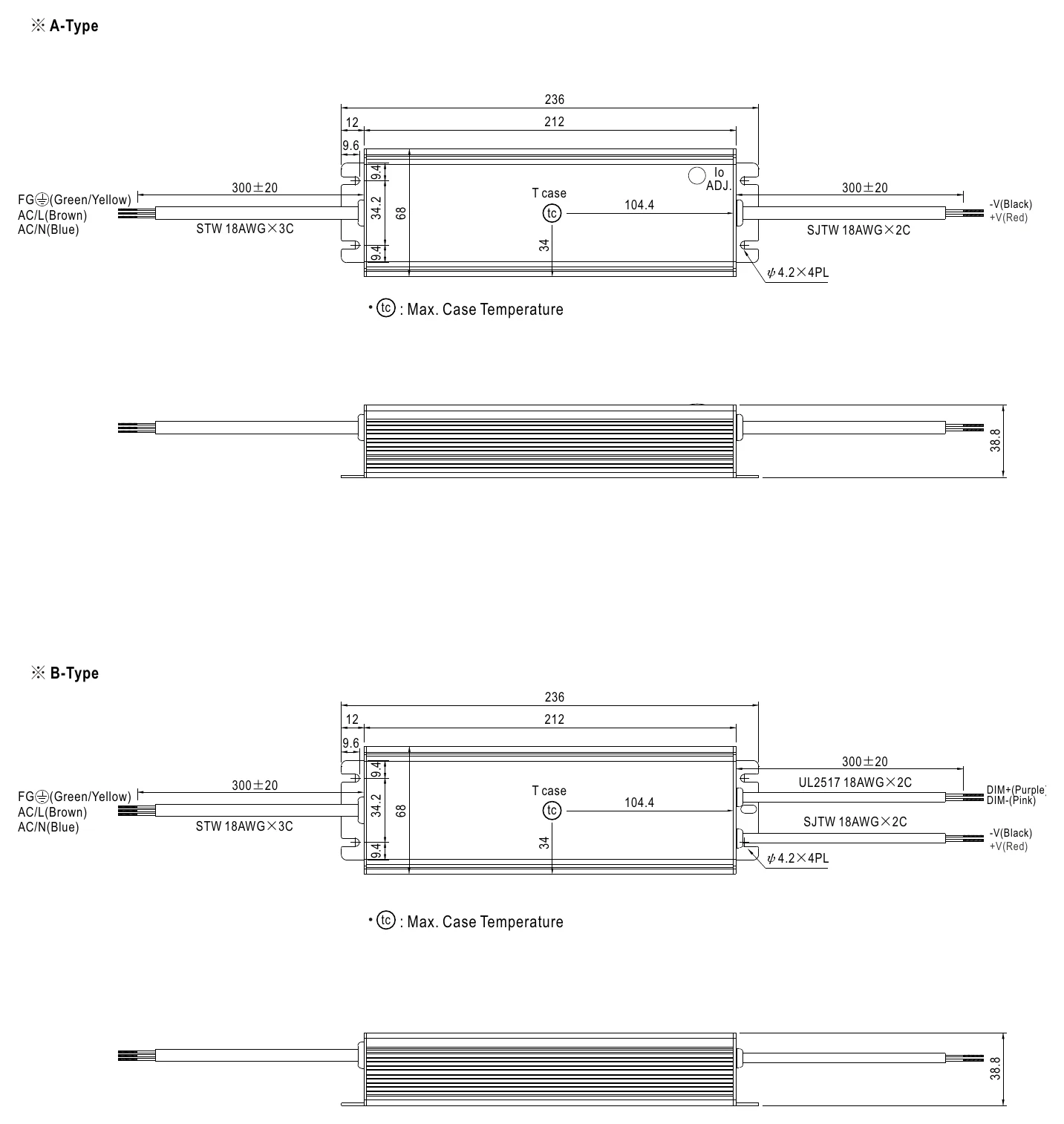

HVGC-100-350A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

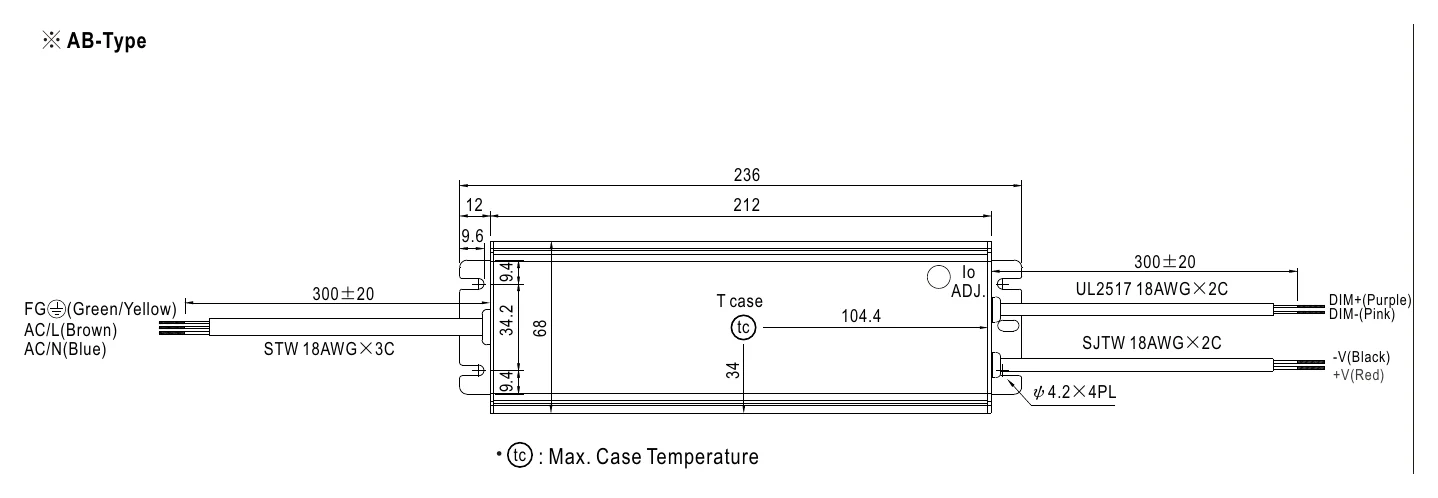

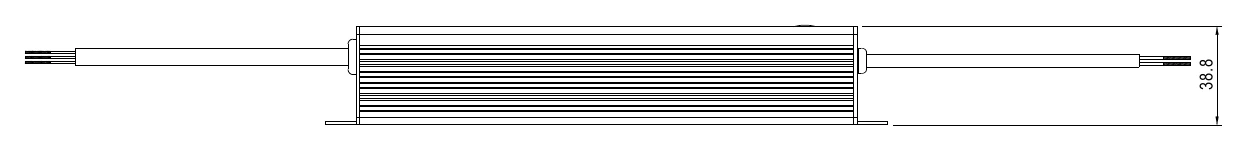

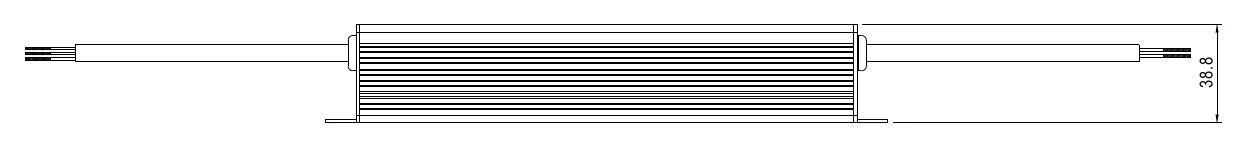

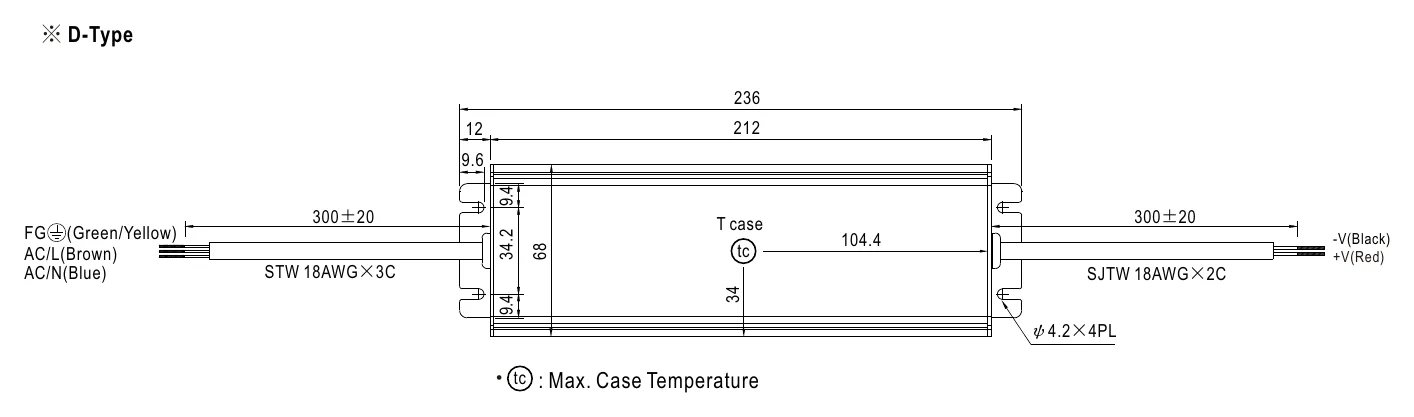

HVGC-100-350A Dimensions (mm) — Dimensions (mm)

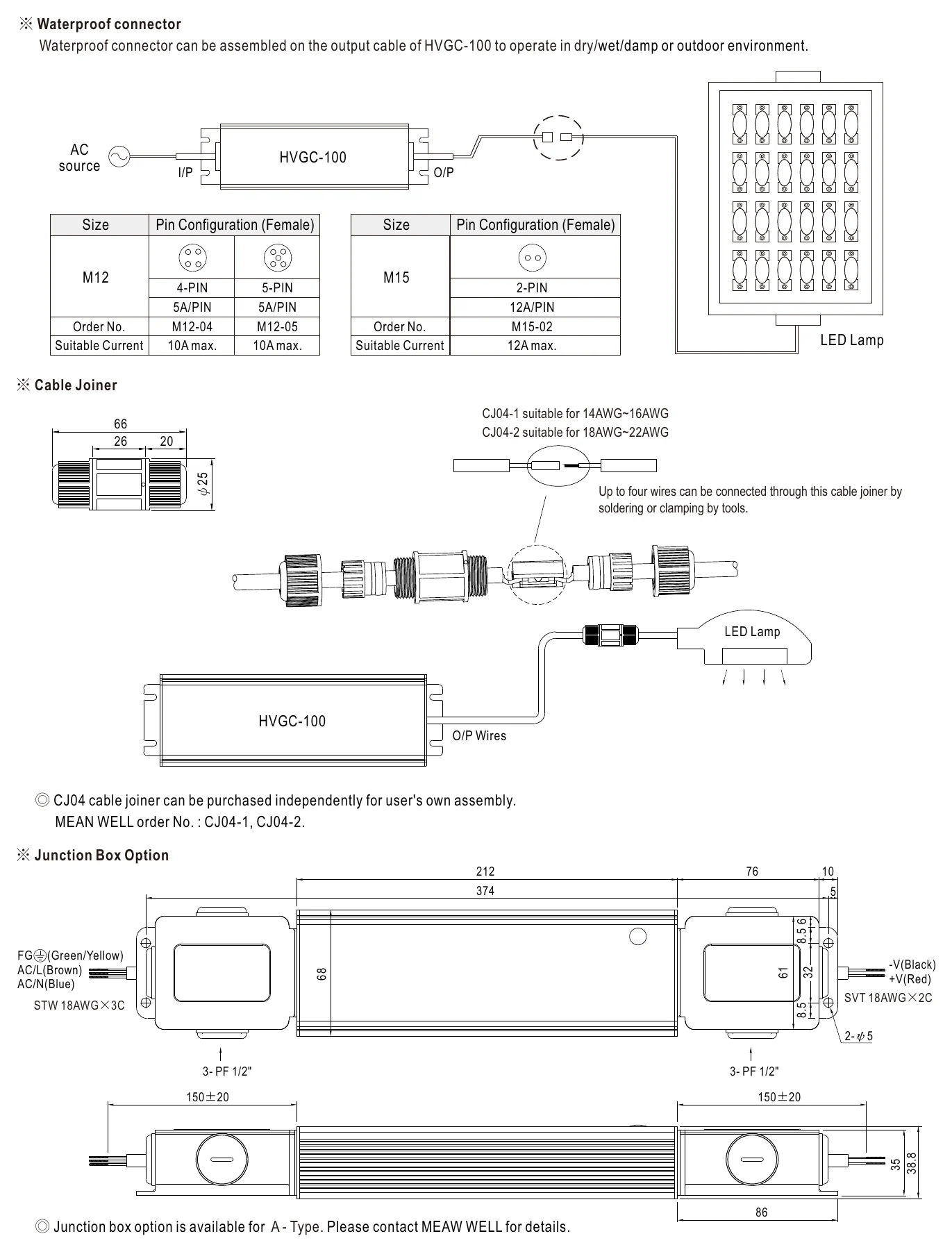

HVGC-100-350A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp

Downloads

Certificates5

UL Certificate(HVGC-100)(EN) PDF Download

TUV Certificate(HVGC-100)(EN) PDF Download

EMC Certificate(HVGC-100)(EN) PDF Download

FCC Certificate(HVGC-100)(EN) PDF Download

CB Certificate(HVGC-100)(EN) PDF Download

Test reports1

Test Report(HVGC-100-350)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVGC-100-350A for LED downlights that need a constant current driver?

Yes, this model is a constant current LED driver with a 350mA output and a 29-285V constant current range. It is suited to LED downlights built around a 350mA drive current, as long as the full LED load stays within 29-285V and 99.75W. It is not a constant voltage driver.

Is the HVGC-100-350A suitable for powering a long string of signage LEDs or small LED arrays?

It can work for signage modules or small LED arrays that are designed for constant current operation at 350mA. The available constant current range is 29-285V, so the total forward voltage of the LED load must fall inside that window and stay within 99.75W. Whether it supports a short or long series string depends on each LED's forward voltage.

Can this driver be used in outdoor or damp locations?

The HVGC-100 series is IP65 or IP67 approved, and with waterproof connectors on its cables it can operate in dry, wet, damp or outdoor environments. It is specified for a case temperature (Tcase) of -40°C to +90°C, with load derating at higher temperatures. For harsher washdown or full-submersion exposure, the IP rating should be reviewed carefully against the site conditions.

Will the HVGC-100-350A work for custom LED arrays where the LED count may vary?

Yes, if the array is a constant current design that requires 350mA and the total LED forward voltage falls within 29-285V. The exact number of LEDs cannot be fixed from the driver alone because it depends on the forward voltage of each LED in the array. This is a constant current unit, so it should be matched to LED loads that are specified that way rather than constant voltage loads.

What is the difference between the HVGC-100-350A and the other HVGC-100 current options?

Within the HVGC-100 family, the 350mA versions are rated at 99.75W with a 29-285V constant current range, while the 700mA versions are rated at 99.4W with a 15-142V constant current range. The A, AB, and B versions keep those same electrical ratings within each current group. The A version adds potentiometer current adjustment, B adds 3-in-1 dimming, and AB has both.
