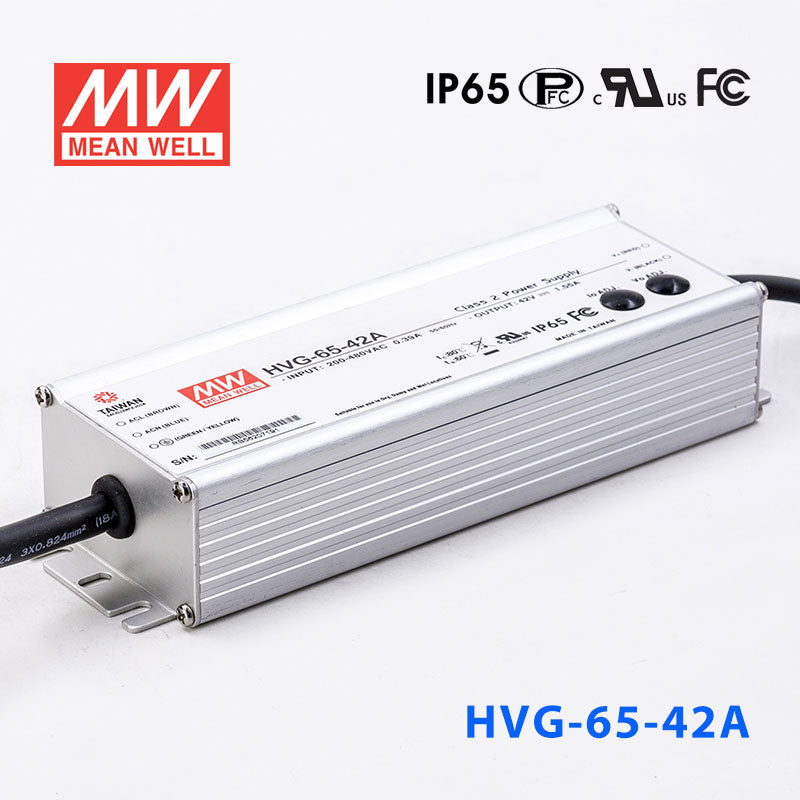

Mean Well HVG-65-42A Power Supply 65W 42V - Adjustable 1.55A

Name: Mean Well HVG-65-42A Power Supply 65W 42V - Adjustable 1.55A
Brand: Mean Well
SKU: HVG-65-42A
Price: 59.16 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVG-65-42A

$59.16 USD

Shipping calculated at checkout.

Select model — 2 in this family

HVG-65-42A

HVG-65-42A 65W 42V Adjustable Backorder$59.16 USD

HVG-320-42A 320W 42V 7.6A Low stock$124.89 USD

Product variants

Available to order

Overview

HVG-65-42A is the 42V output model of this series: rated current 1.55A, rated power 65.1W, typical efficiency 89.5%.

HVG-65 series is a 65W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-65 operates from 180~528 VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
Class 2 power unit
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HVG-65-42ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 42V
CONSTANT CURRENT REGION^Note.4: 25.2 ~ 42V
RATED CURRENT: 1.55A
RATED POWER: 65.1W
RIPPLE & NOISE (max.)^Note.2: 300mVp-p
VOLTAGE ADJ. RANGE: 38 ~ 46V (adjustable for A-Type only, via the built-in potentiometer)
CURRENT ADJ. RANGE: 0.93 ~ 1.55A (adjustable for A/AB-Type only, via the built-in potentiometer)
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 500ms, 80ms /230VAC 400ms, 80ms /347VAC, 480VAC
HOLD UP TIME (Typ.): 16ms / 347VAC 30ms / 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.97/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧60%/230VAC, 277VAC, 347VAC; @ load≧75%/480VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 89.5%
AC CURRENT (Typ.): 0.22A / 347VAC 0.18A / 480VAC
INRUSH CURRENT (Typ.): COLD START 25A(twidth=420μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 47 ~ 53V; Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2170.5K hrs min. Telcordia SR-332 (Bellcore) ; 208.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 189*61.5*36.8mm (L*W*H)
PACKING: 0.77Kg; 18pcs/14.9Kg/0.89CUFT

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

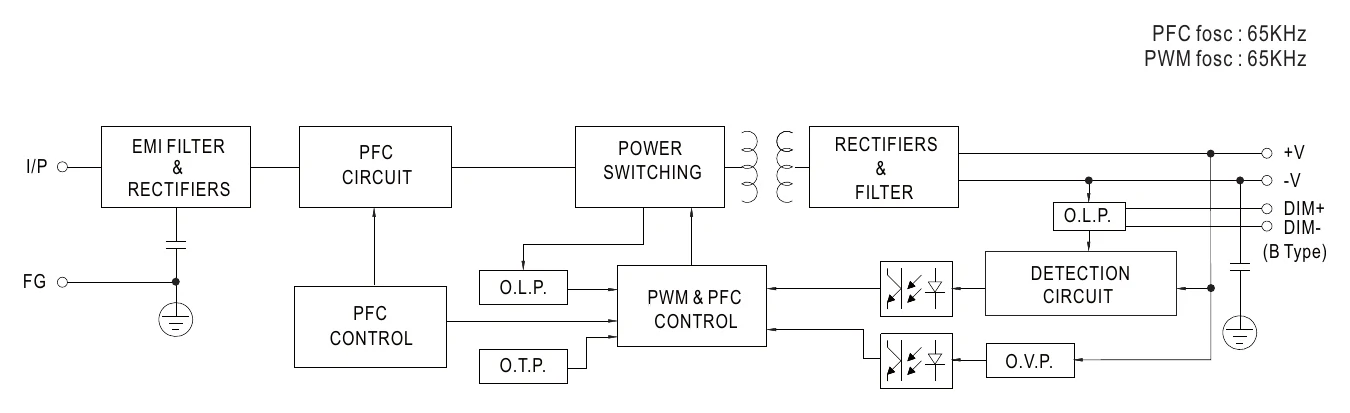

HVG-65-42A Block Diagram — Block Diagram

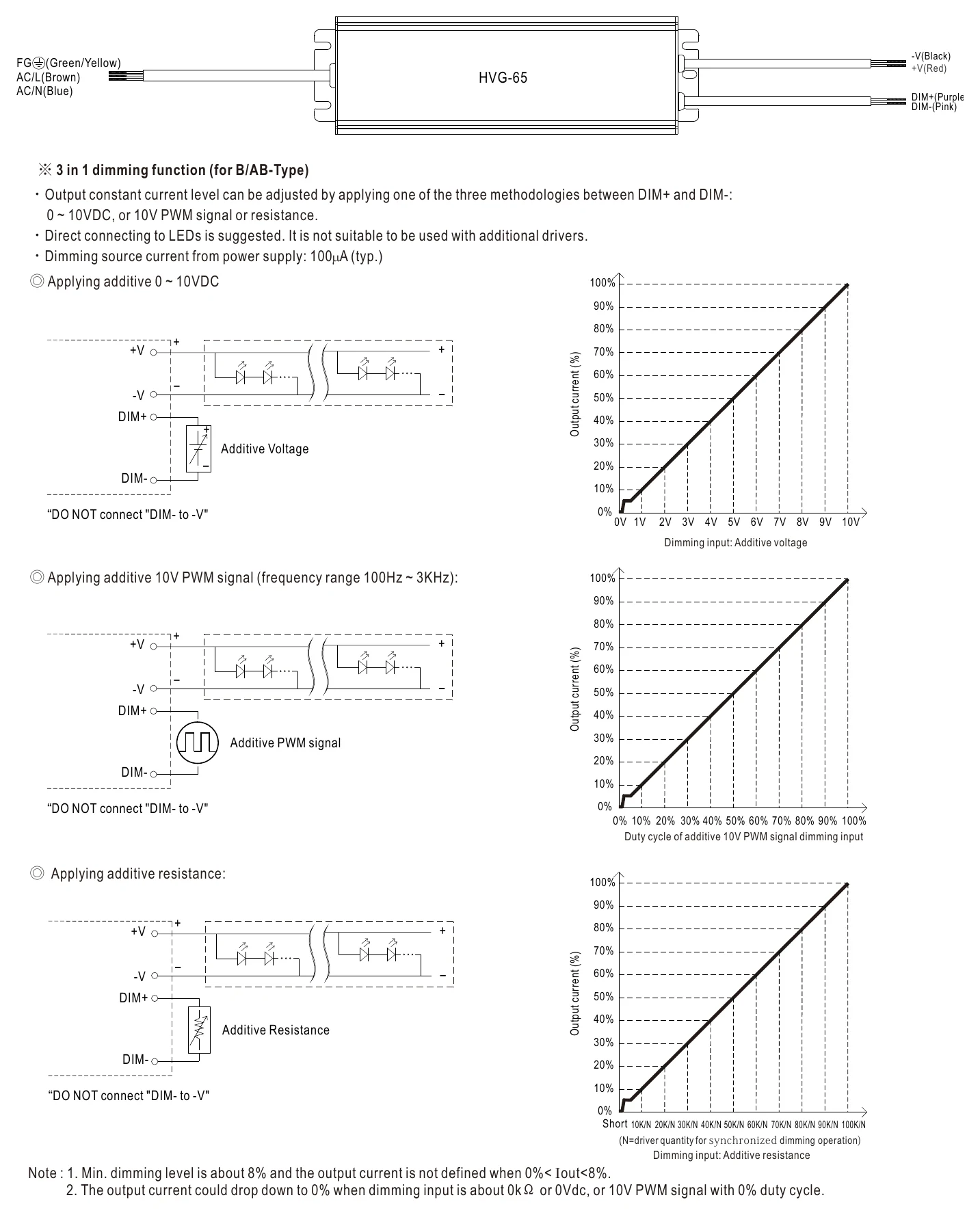

HVG-65-42A DIMMING OPERATION — DIMMING OPERATION

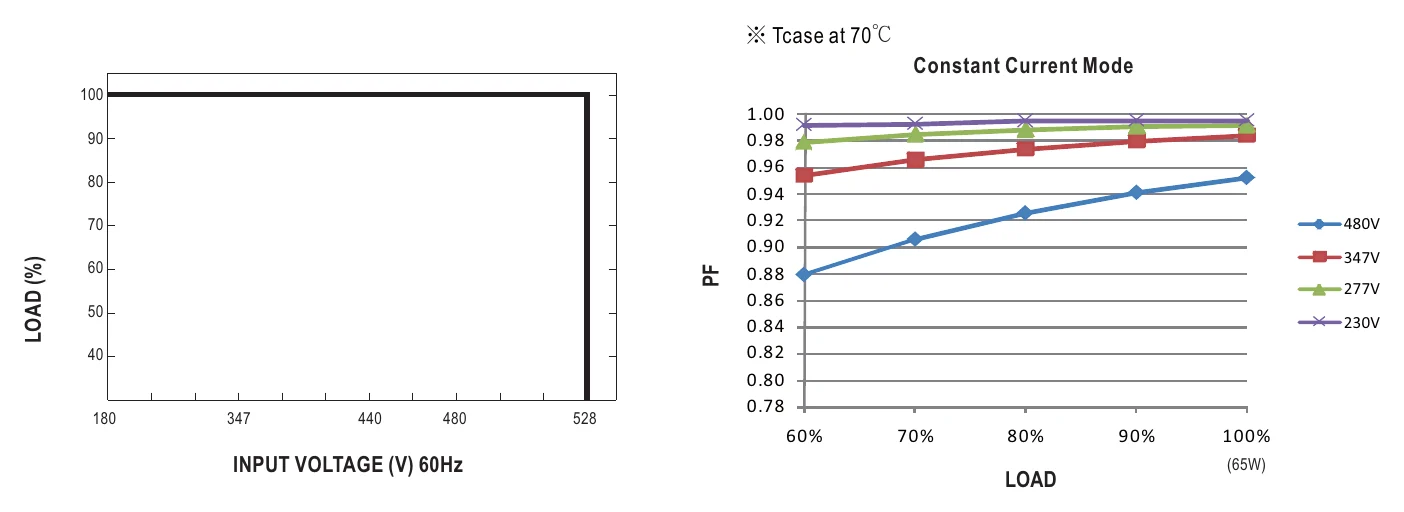

HVG-65-42A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

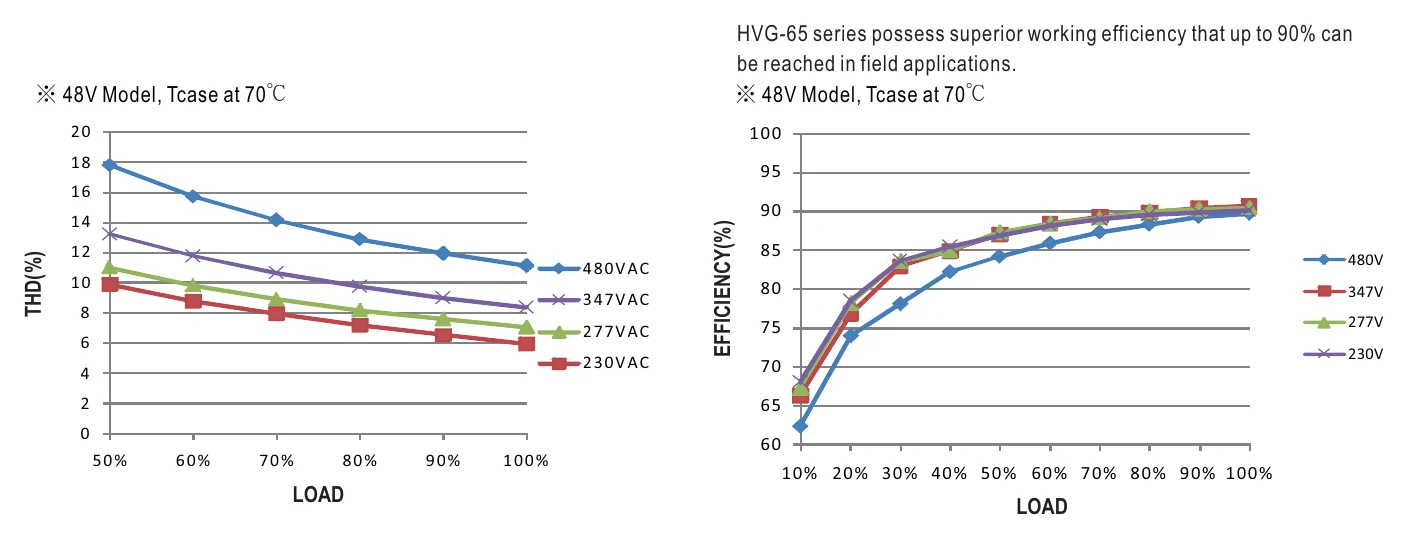

HVG-65-42A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

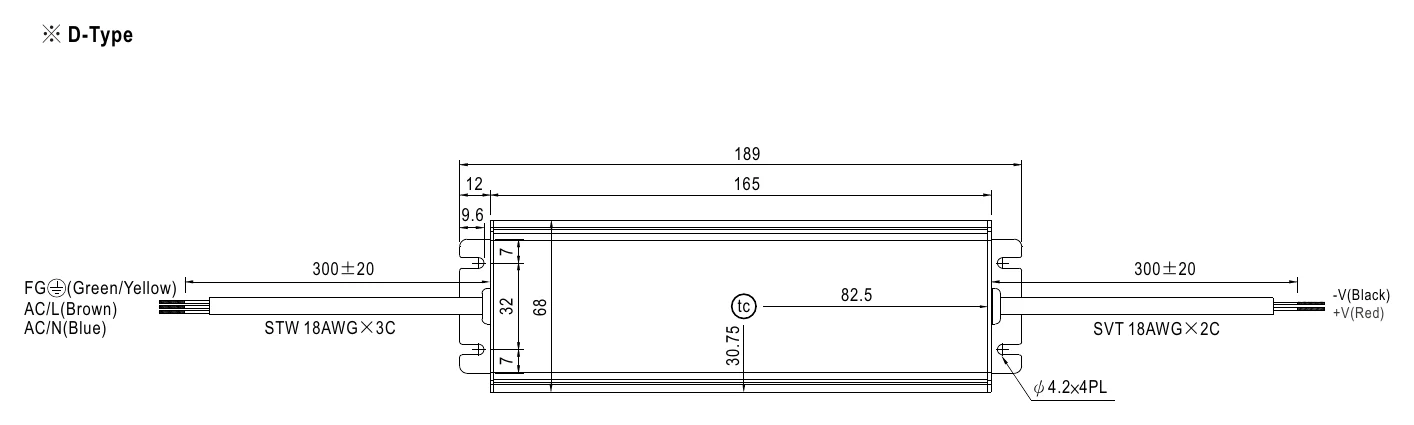

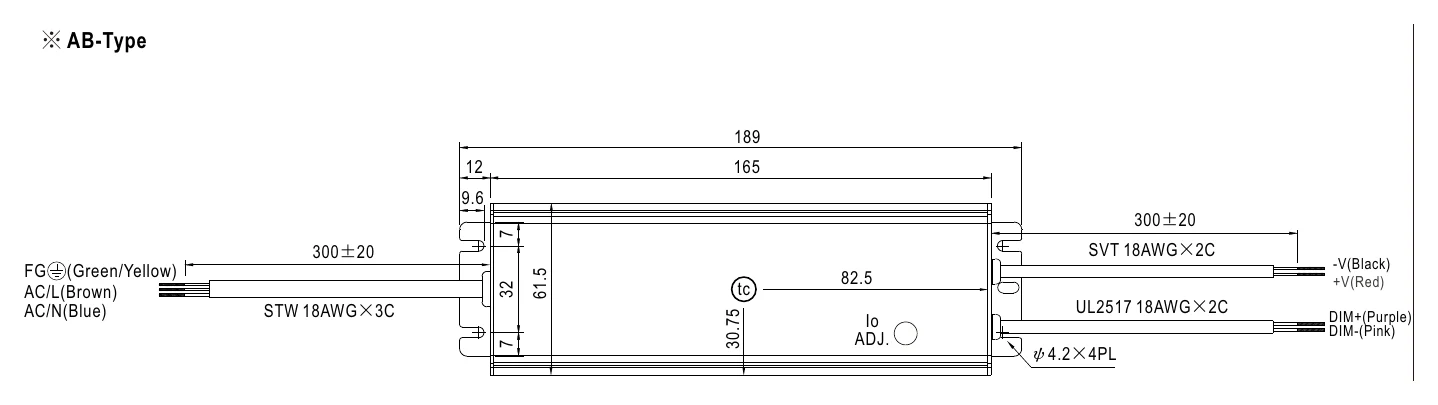

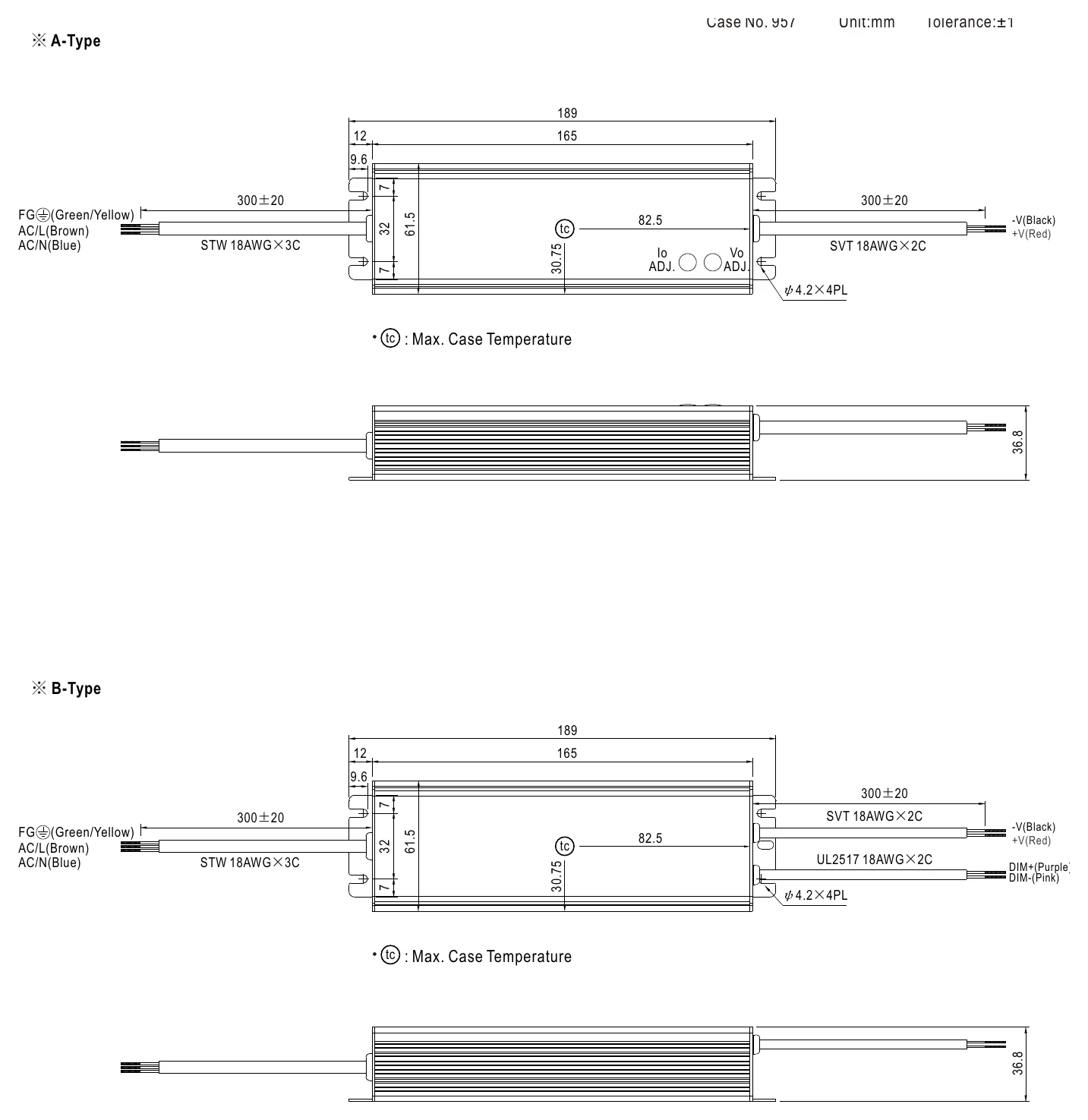

HVG-65-42A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

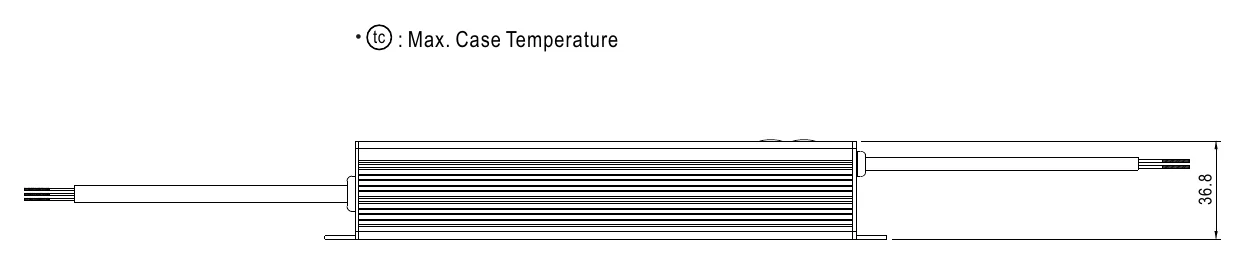

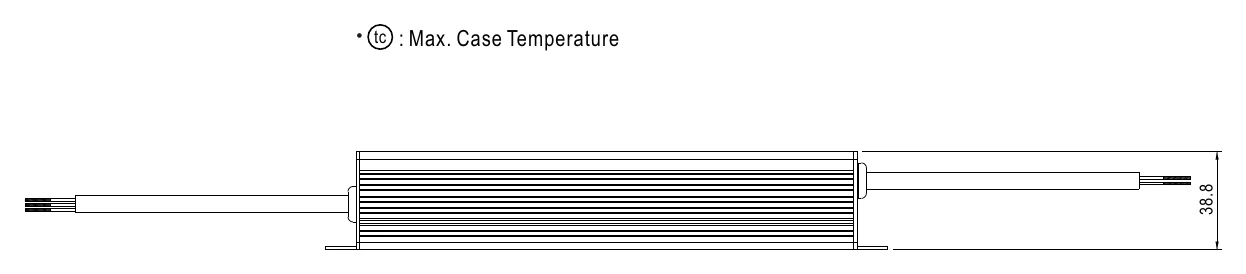

HVG-65-42A ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

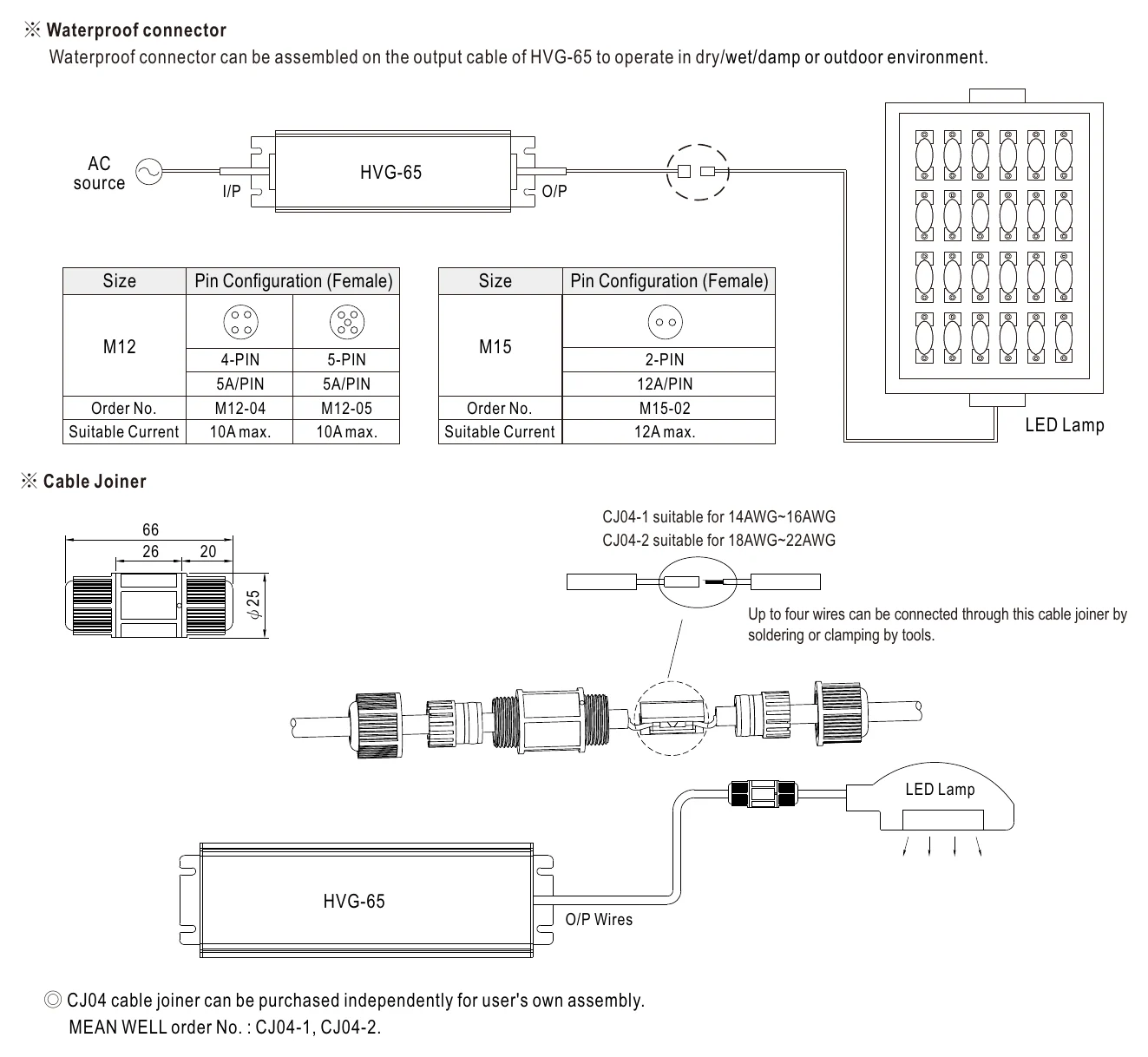

HVG-65-42A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting

Downloads

Certificates3

Mean Well HVG-65 FCC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HVG-65-42 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-65-42A for 42V LED strip or linear lighting in commercial displays?

Yes, if the lighting load is a 42V constant-current product operating within the 25.2-42V CC range. The driver can supply up to 1.55A with a 65.1W maximum load.

Is the HVG-65-42A suitable for covered outdoor signage lighting?

It can work for covered outdoor 42V constant-current signage because the HVG-65 series is IP65 or IP67 approved and rated for a case temperature (Tcase) of -40°C to +80°C. The connected load must still fit within 42V, 1.55A, and 65.1W.

Can this driver power 42V LED modules for wall-wash or facade lighting?

Yes, for 42V constant-current wall-wash or facade fixtures that fall within the 25.2-42V CC range. Size the load so it does not exceed 1.55A or 65.1W.

Will the HVG-65-42A work in buildings with higher AC input ranges?

It is designed for a wide 180-528VAC input range, so it fits many commercial lighting environments where input flexibility matters. Output-side matching still depends on the LED load being a 42V constant-current application within 65.1W.

How do I estimate the maximum 42V LED strip length for this driver?

Use the formula 65.1W divided by the strip's rated watts per meter to estimate the maximum length. That only works as a first pass, so also check your strip rated power per meter and confirm it is compatible with a 42V constant-current driver.

Can the HVG-65-42A be installed where it may see rain or washdown spray?

The HVG-65 series is IP65 or IP67 approved, and the sheet notes that a waterproof connector can be fitted to the output cable for damp or outdoor environments; check the rating marked on your unit before exposure to rain or spray. The case temperature (Tcase) range is -40°C to +80°C, but the full lighting assembly should be rated for the same conditions.
