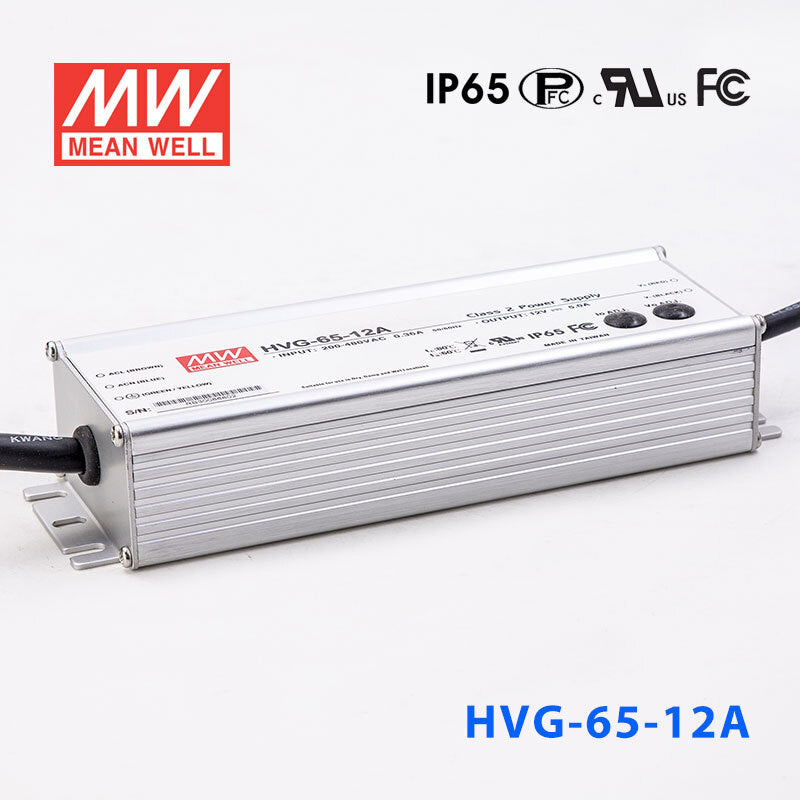

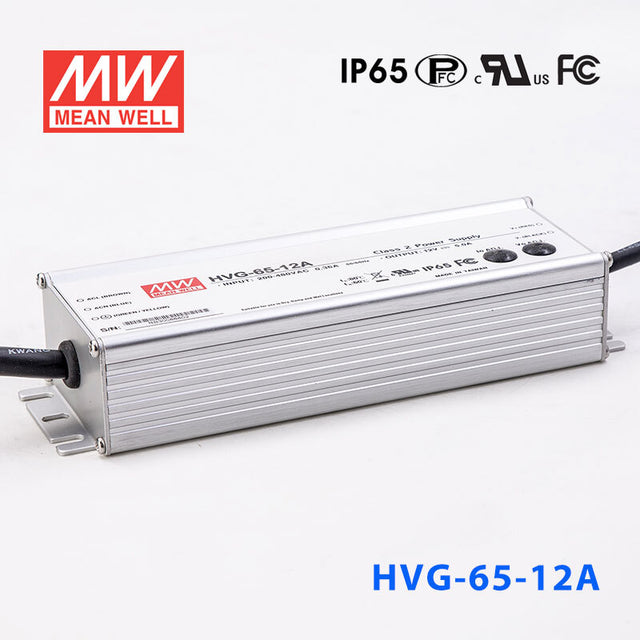

Mean Well HVG-65-12A Power Supply 60W 12V - Adjustable 5A

Name: Mean Well HVG-65-12A Power Supply 60W 12V - Adjustable 5A
Brand: Mean Well
SKU: HVG-65-12A
Price: 65.73 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVG-65-12A

$65.73 USD

Shipping calculated at checkout.

In stock

Overview

HVG-65-12A is the 12V output model of this series: rated current 5A, rated power 60W, typical efficiency 86.5%.

HVG-65 series is a 65W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-65 operates from 180~528 VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
Class 2 power unit
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HVG-65-12ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 12V
CONSTANT CURRENT REGION^Note.4: 7.2 ~12V
RATED CURRENT: 5A
RATED POWER: 60W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 10.8 ~ 13.5V (adjustable for A-Type only, via the built-in potentiometer)
CURRENT ADJ. RANGE: 3 ~ 5A (adjustable for A/AB-Type only, via the built-in potentiometer)
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.5%
SETUP, RISE TIME: 500ms, 80ms /230VAC 400ms, 80ms /347VAC, 480VAC
HOLD UP TIME (Typ.): 16ms / 347VAC 30ms / 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.97/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧60%/230VAC, 277VAC, 347VAC; @ load≧75%/480VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 86.5%
AC CURRENT (Typ.): 0.22A / 347VAC 0.18A / 480VAC
INRUSH CURRENT (Typ.): COLD START 25A(twidth=420μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 14.4 ~ 16.8V; Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2170.5K hrs min. Telcordia SR-332 (Bellcore) ; 208.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 189*61.5*36.8mm (L*W*H)
PACKING: 0.77Kg; 18pcs/14.9Kg/0.89CUFT

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVG-65-12A Block Diagram — Block Diagram

HVG-65-12A DIMMING OPERATION — DIMMING OPERATION

HVG-65-12A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVG-65-12A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVG-65-12A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HVG-65-12A ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HVG-65-12A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting

Downloads

Certificates3

Mean Well HVG-65 FCC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HVG-65-12 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-65-12A for 12V LED strip lighting?

Yes, for 12V lighting loads that stay within 60W and 5A. Its 7.2-12V constant current range means the strip or fixture should be designed to work with this 12V driver output.

Is this driver suitable for small illuminated signs or lightboxes?

It can be used for compact 12V sign or lightbox loads that do not exceed 60W total. The HVG-65 series is IP65 or IP67 approved, which is useful in locations where moisture resistance matters.

Can the HVG-65-12A power under-canopy or accent lighting outdoors?

Yes, for 12V accent or canopy lighting loads within 60W and 5A. The series' IP65/IP67 approval and -40°C to +80°C case temperature (Tcase) range make it suitable for outdoor conditions where splash and weather resistance are needed.

How much 12V LED strip can this 60W driver run?

Estimate the maximum length with 60W ÷ strip watts per meter. That gives the power-based limit, but you should check your strip rated power per meter and confirm the strip is designed for this 12V driver output.

What should I know about using the HVG-65-12A in wet locations?

The HVG-65 series is IP65 or IP67 approved, and the sheet notes that a waterproof connector can be fitted to the output cable for wet or outdoor environments. Check the rating marked on your unit, as that matters if the driver will be directly exposed.
