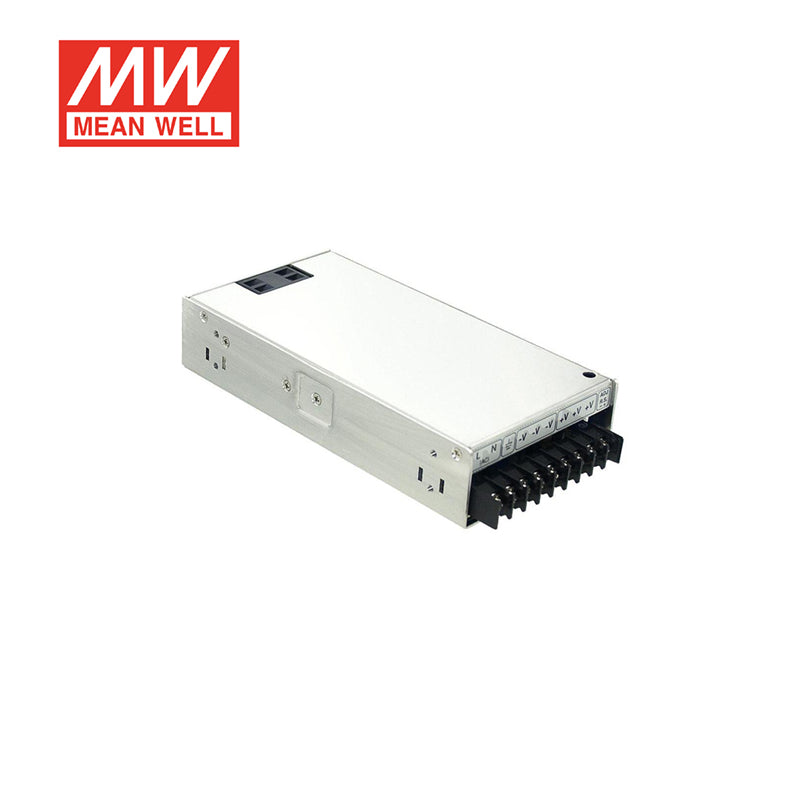

Mean Well HSP-250-5 PFC Switching Power Supply
$49.60 USD
Unit price /
Unavailable
Features
| Universal AC input / Full range |
| Built-in active PFC function, PF>0.95 |
| High efficiency up to 87% |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Free air cooling by built-in DC fan |
| 1U low profile 41mm |
| Conformal coated |
| Built-in cooling fan ON-OFF control |
| Built-in remote sense functionl |
| 3 years warranty |
General Specification
| Line regulation (max.) | ± 0.5% |
| Load regulation (max.) | ± 1.0% |
| Overload protection Range | 105 ~ 135% rated output power |
| Overload protection Type | Hiccup mode, recovers automatically after fault condition is removed |
| Over-voltage protection | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3KVAC | I/P-FG:1.5KVAC | O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
| Working temperature | -40 ~ +70 ℃ (Refer to "Derating Curve") |
| Safety standards | UL60950-1, TUV EN60950-1, approved |
| Dimension (LxWxH) (mm) | 199*105*41mm (L*W*H) |
| Packing | 0.97Kg;16pcs/16.5Kg/0.87CUFT |
-
BrandMean Well
-
SeriesMean Well HSP Series
-
Power Rating250 Watt
-
Output Voltage5 Volt
-
Rated Current50 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CCC,UL
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.14 lb
