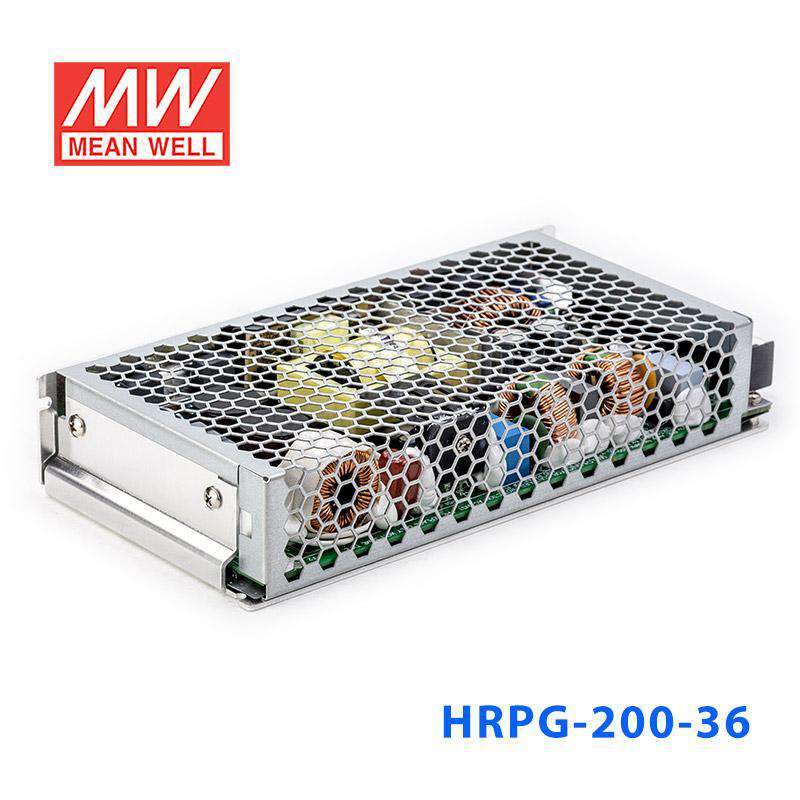

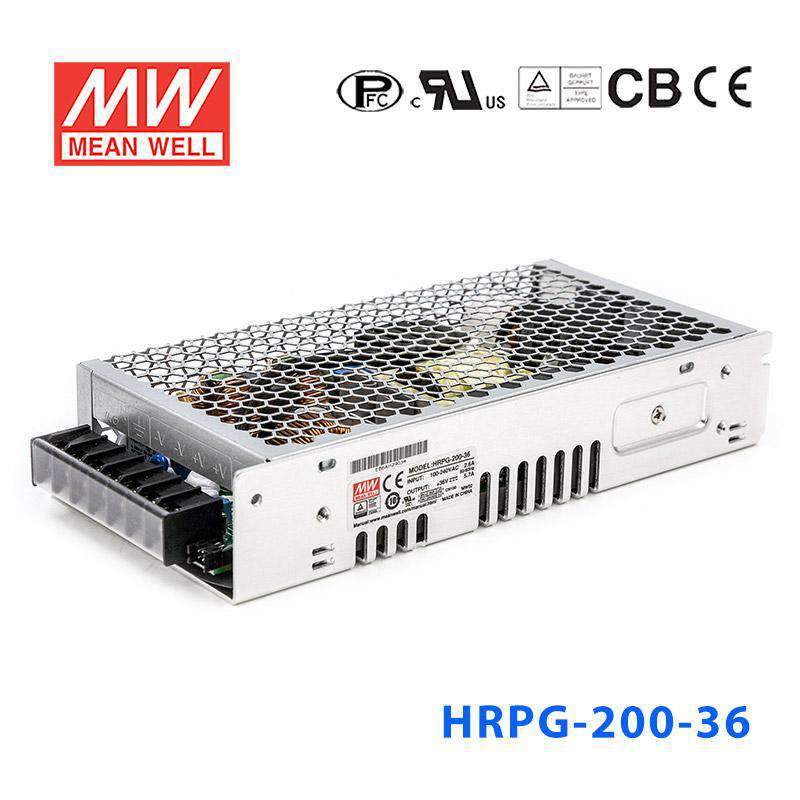

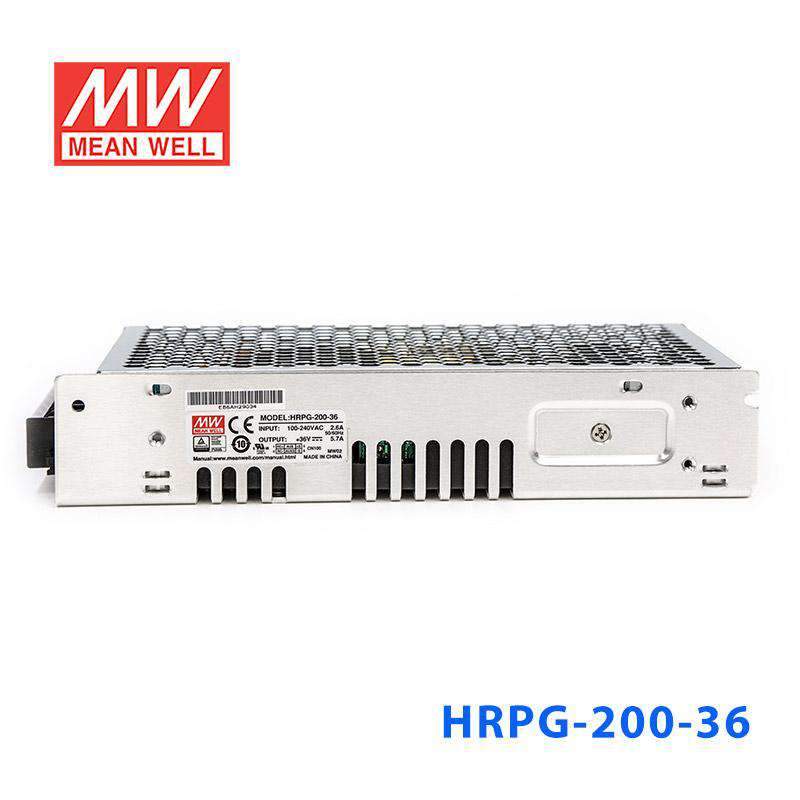

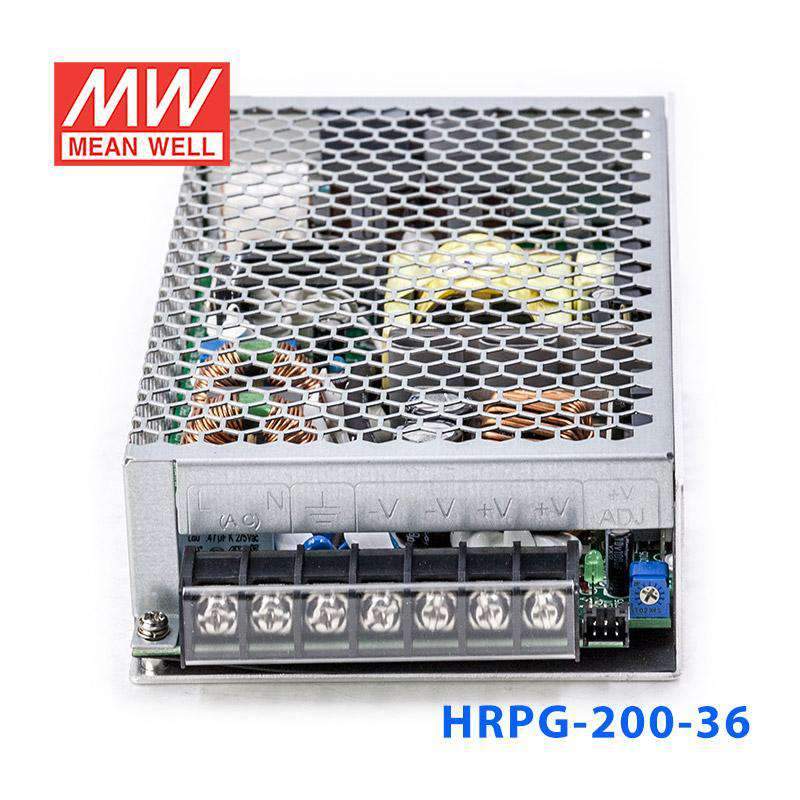

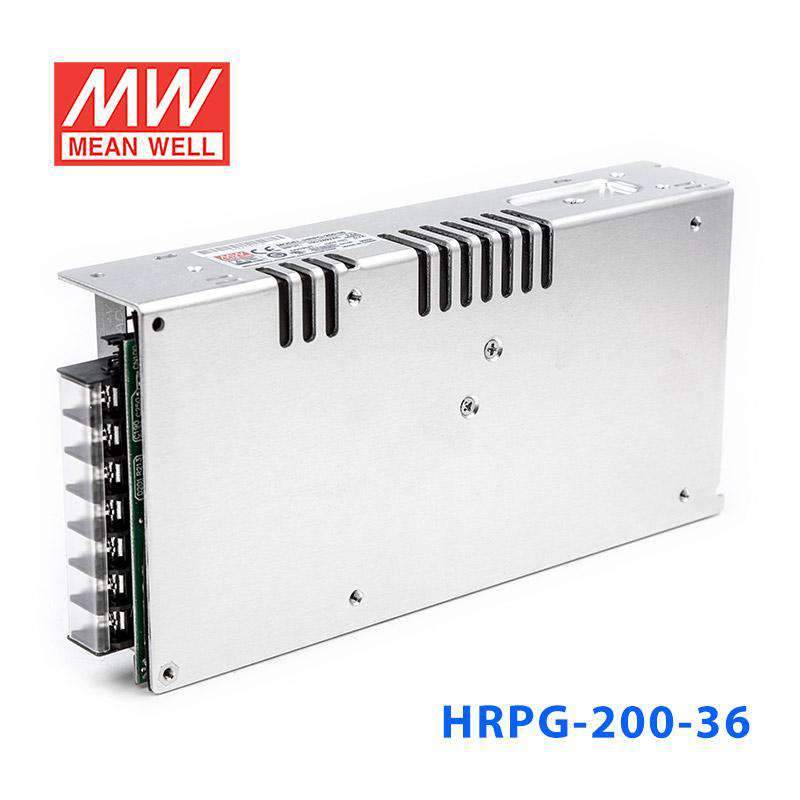

Mean Well HRPG-200-36 Power Supply 205.2W 36V 5.7A

Name: Mean Well HRPG-200-36 Power Supply 205.2W 36V 5.7A
Brand: Mean Well
SKU: HRPG-200-36
Price: 90.9 USD
Availability: InStock

built-in active PFCPF > 0.95high efficiency up to 90%no load power consumption <0.5W~0.75W1U low profile

SKU HRPG-200-36

$90.90 USD

Shipping calculated at checkout.

In stock

Overview

HRPG-200-36 is the 36V output model of this series: rated current 5.7A, rated power 205.2W, typical efficiency 89%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 38mm
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.5W (Note.6)
5 years warranty

Specifications

HRPG-200-36Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 5.7A
CURRENT RANGE: 0 ~ 5.7A
RATED POWER: 205.2W
RIPPLE & NOISE (max.)^Note.2: 250mVp-p
VOLTAGE ADJ. RANGE: 28.8 ~ 39.6V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 2.1A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT: <1.2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 41.4 ~ 48.6V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY: 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
REMOTE CONTROL: RC+/RC- : 4 ~10V or open = power on ; 0 ~ 0.8V or short = power off

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 1612.1K hrs min. Telcordia SR-332 (Bellcore) ; 189.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*98*38mm (L*W*H)
PACKING: 0.77Kg; 18pcs/14.9Kg/0.87CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. No load power consumption<0.5W when RC+ & RC- (CN100 pin1,2) 0 ~ 0.8V or short.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRPG-200-36 Mechanical Specification — Mechanical Specification

HRPG-200-36 Block Diagram — Block Diagram

HRPG-200-36 Derating Curve — Derating Curve

HRPG-200-36 Function Manual (2) — Function Manual (2)

HRPG-200-36 2.Remote Sense — 2.Remote Sense

Downloads

Datasheet1

HRPG-200-36 datasheetHRPG-200-SPEC.PDF · 2026-04-03 edition PDF Download

Certificates4

EMC Certificate (HRPG-200)(EN) PDF Download

UL Certificate(HRPG-200)(EN) PDF Download

CB Certificate (HRPG-200)(EN) PDF Download

TUV Certificate(HRPG-200)(EN) PDF Download

Test reports1

Test Report (HRPG-200-36)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the HRPG-200-36 for a 36V industrial control or automation load?

Yes, this model is a constant voltage 36V power supply rated for 5.7A and 205.2W. It fits 36V DC industrial or automation equipment that stays within those output limits.

Is the HRPG-200-36 suitable for embedded systems that need a 36V DC rail?

It can be used for embedded or control systems that require a regulated 36V constant voltage output. The available output is 5.7A, with total power up to 205.2W.

Can this 36V power supply support smaller 36V motion or actuator subsystems?

It is suited to 36V DC subsystems where the combined load does not exceed 5.7A or 205.2W. That makes it a fit for compact industrial or automation assemblies built around a 36V bus.

Is the HRPG-200-36 a good fit for 1U equipment or shallow power compartments?

The sheet does not specify a 1U rating; the unit measures 199 x 98 x 38 mm (L x W x H). Check that the 38 mm height fits your compartment when a 36V, 205.2W supply is required.

Can I use the HRPG-200-36 outdoors or in harsh temperature conditions?

The specified operating temperature range is -40C to +70C, with output derating at higher ambient temperatures per the derating curve. No IP rating is listed in the provided specs, so outdoor or washdown suitability is not confirmed here.
