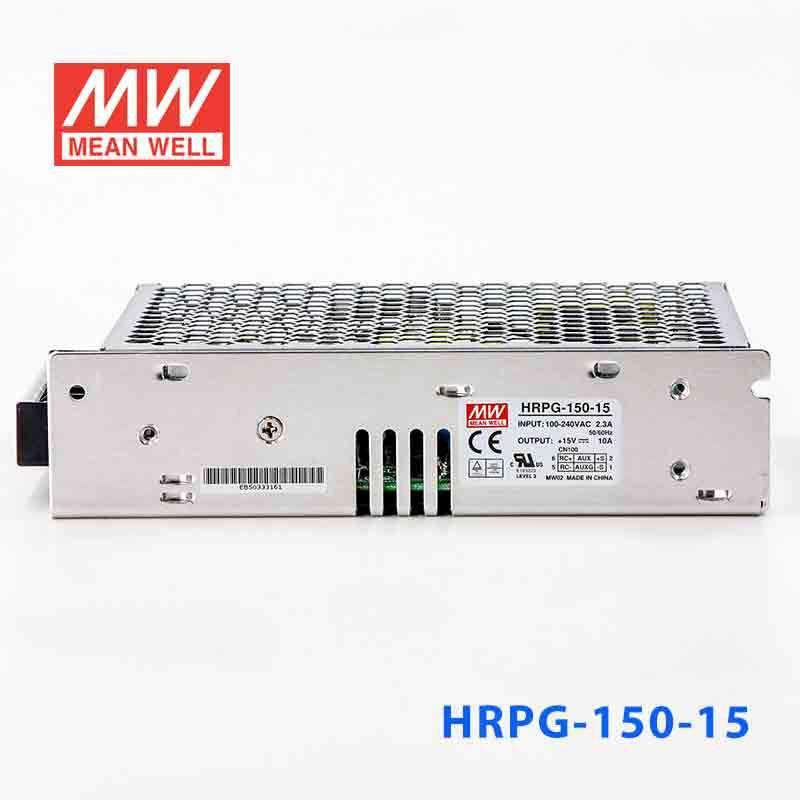

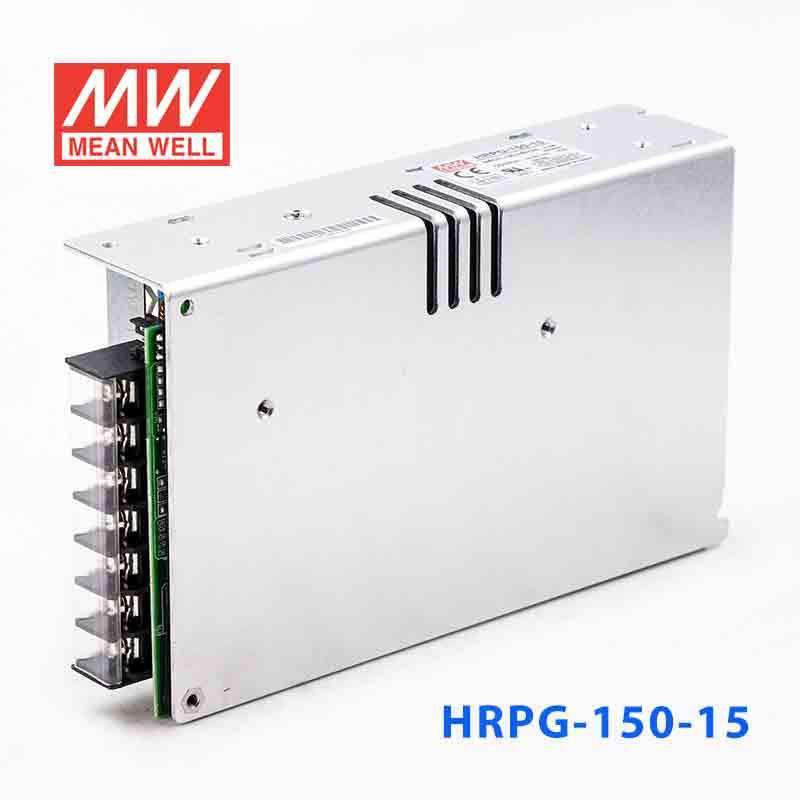

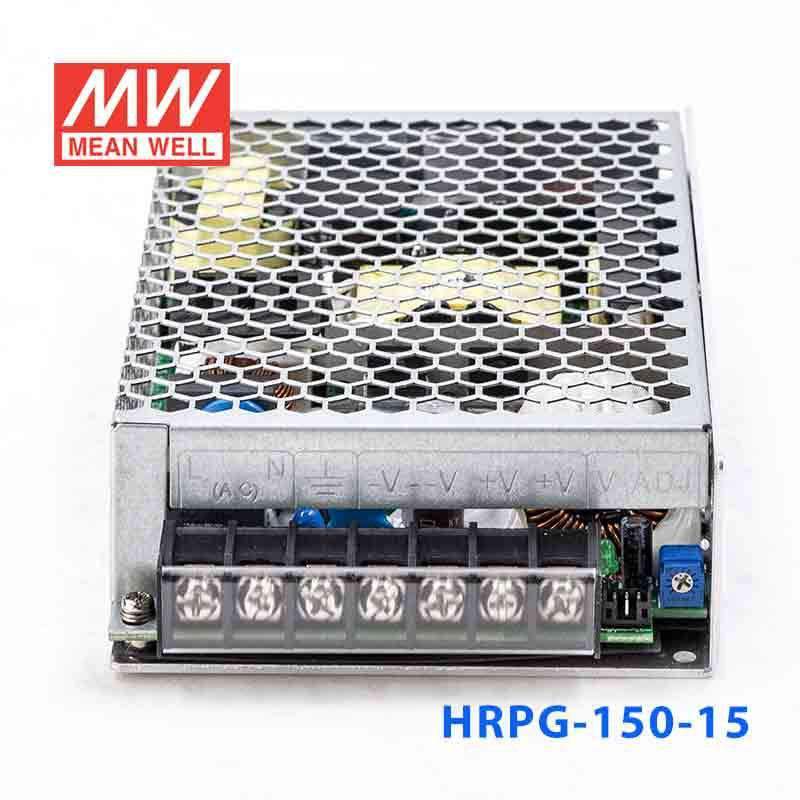

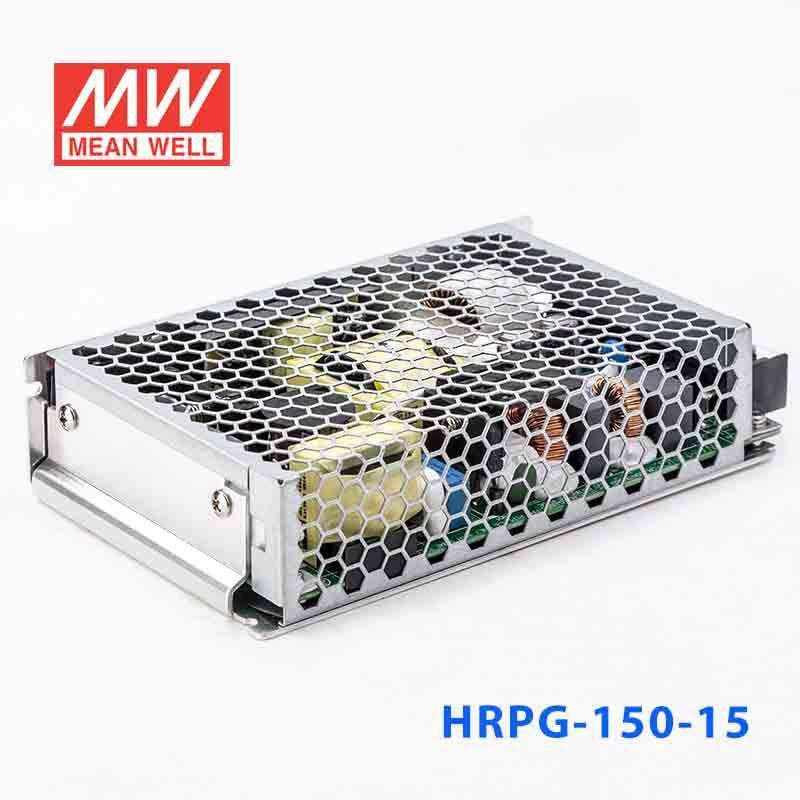

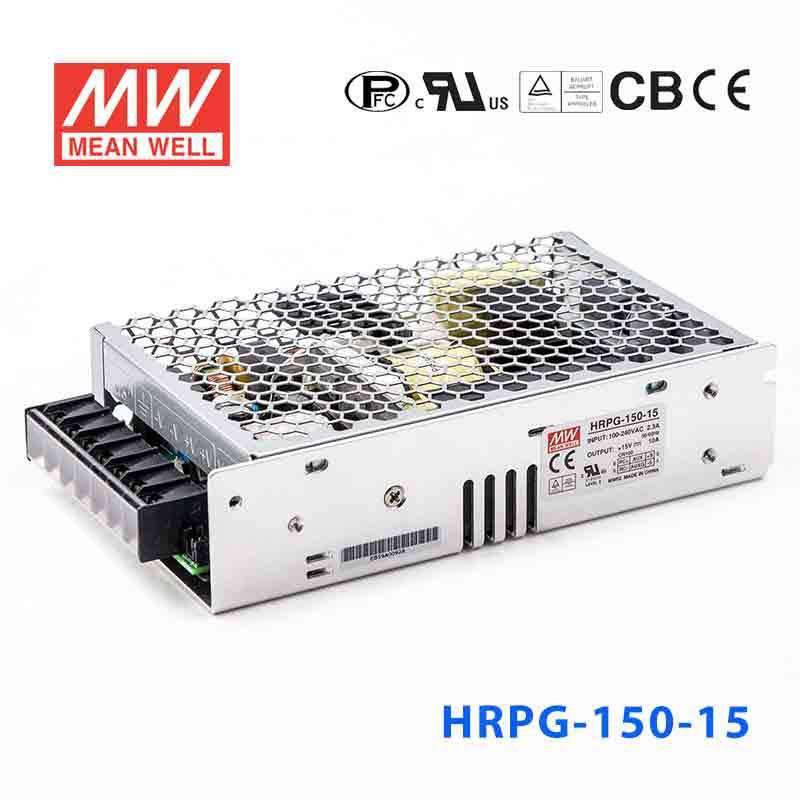

Mean Well HRPG-150-15 Power Supply 150W 15V 10A

Name: Mean Well HRPG-150-15 Power Supply 150W 15V 10A
Brand: Mean Well
SKU: HRPG-150-15
Price: 76.92 USD
Availability: InStock

built-in active PFCPF > 0.95high efficiency up to 90%no load power consumption <0.5W~0.75W1U low profile

SKU HRPG-150-15

$76.92 USD

Shipping calculated at checkout.

In stock

Overview

HRPG-150-15 is the 15V output model of this series: rated current 10A, rated power 150W, typical efficiency 87%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 88%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 38mm
Built-in remote ON-OFF control
Stand by 5V@0.3A
Built-in remote sense function
No load power consumption<0.5W (Note.6)
5 years warranty

Specifications

HRPG-150-15Specifications from the official datasheet (2026-07-13 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 10A
CURRENT RANGE: 0 ~ 10A
RATED POWER: 150W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 13.5 ~ 18V
VOLTAGE TOLERANCE^Note.3: ±1.5%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 1.7A/115VAC 0.9A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 18.8 ~ 21.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY: 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
REMOTE CONTROL: RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, BS EN/ EN61000-6-2,heavy industry level,EAC TP TC 020

OTHERS

MTBF: 1544.0K hrs min. Telcordia SR-332 (Bellcore) ; 213.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*38mm (L*W*H)
PACKING: 0.63Kg; 24pcs/16Kg/0.9CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. No load power consumption<0.5W when RC- & RC+ (CN100 pin5,6) 0 ~ 0.8V or short.
7. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: HRPG-150-3.3/-5/-7.5/-12/-15)
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRPG-150-15 Mechanical Specification — Mechanical Specification

HRPG-150-15 Block Diagram — Block Diagram

HRPG-150-15 Derating Curve — Derating Curve

HRPG-150-15 Function Manual (2) — Function Manual (2)

HRPG-150-15 2.Remote Sense — 2.Remote Sense

Downloads

Datasheet1

HRPG-150-15 datasheetHRPG-150-SPEC.PDF · 2026-07-13 edition PDF Download

Certificates3

UL Certificate (HRPG-150)(EN) PDF Download

TUV Certificate (HRPG-150)(EN) PDF Download

EMC Certificate (HRPG-150)(EN) PDF Download

Test reports1

Test Report (HRPG-150-15)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the HRPG-150-15 for a smaller 15V industrial or embedded system?

Yes, this is a constant-voltage 15V supply rated for 150W and up to 10A, which suits smaller 15V industrial, embedded, or automation loads. It is intended for applications that need a fixed 15V source within that 10A and 150W limit.

Is the HRPG-150-15 appropriate for a compact 15V bench or equipment build?

It can be a good fit when the total 15V demand stays within 10A and 150W. The compact 159 x 97 x 38 mm housing and 0.63 kg weight make it easy to fit into smaller builds.

Can this model power multiple modest 15V loads in one enclosure?

Yes, provided the combined load remains within its 150W output and 10A current limit. If your combined 15V demand is higher than that, this model is too small.

Can the HRPG-150-15 handle colder or hotter environments, and is it outdoor rated?

Its operating temperature range is specified as -40C to +70C, so it is rated across a broad temperature window. No IP rating is listed in the provided specs, so the available data does not confirm outdoor exposure or protection from water and dust.
