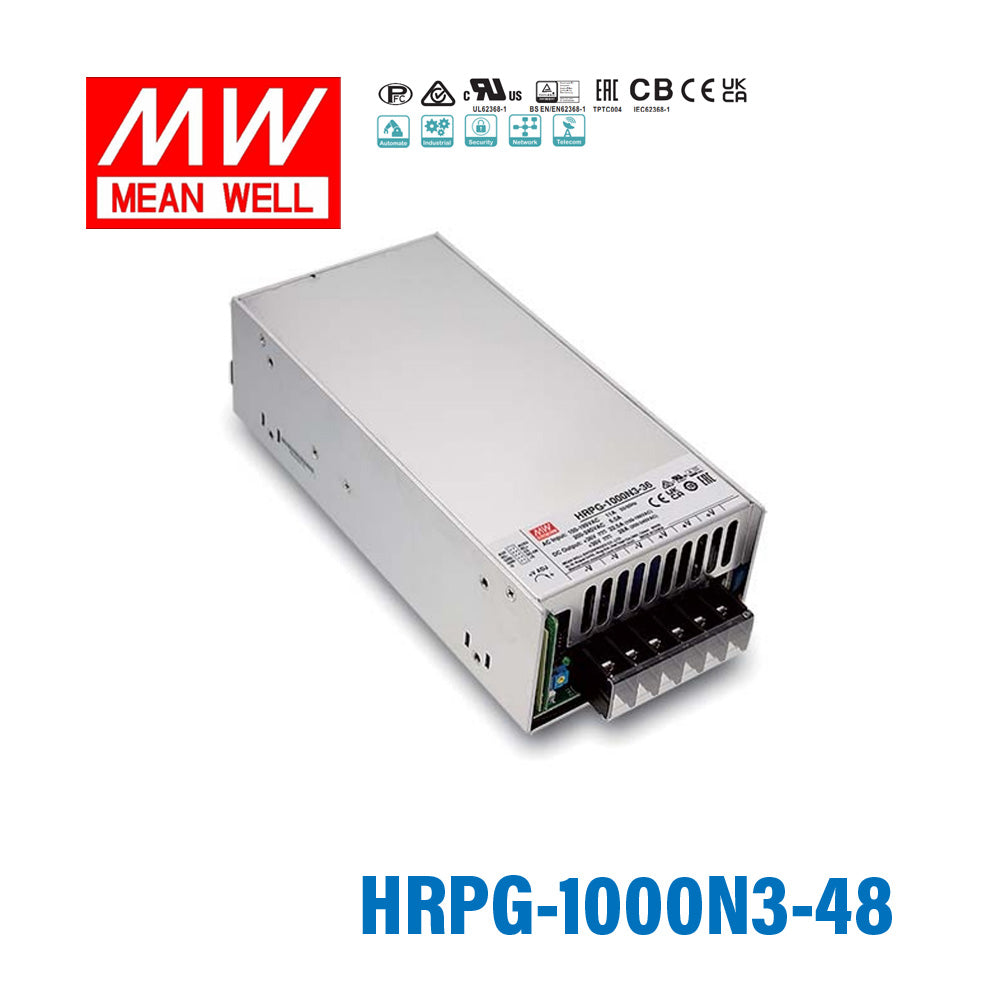

Mean Well HRPG-1000N3-48 Power Supply 960W 48V, 320% peak power model
$233.89 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function, PF>0.95 |
| High efficiency up to 94% |
| Withstand 300VAC surge input for 5 seconds |
| Up to 320% peak power capability |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in cooling fan ON-OFF control |
| Current sharing up to 4000W (3+1) |
| Built-in DC OK signal |
| Built-in remote ON-OFF control |
| Standby 5V@0.3A |
| Built-in remote sense function |
| No load power consumption<0.85W (Note.6) |
| 5 years warranty |
Specifications
Specifications
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating1000 Watt
-
Output Voltage21 Volt
-
Rated Current21 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.42 in
-
Weight3.22 lb
