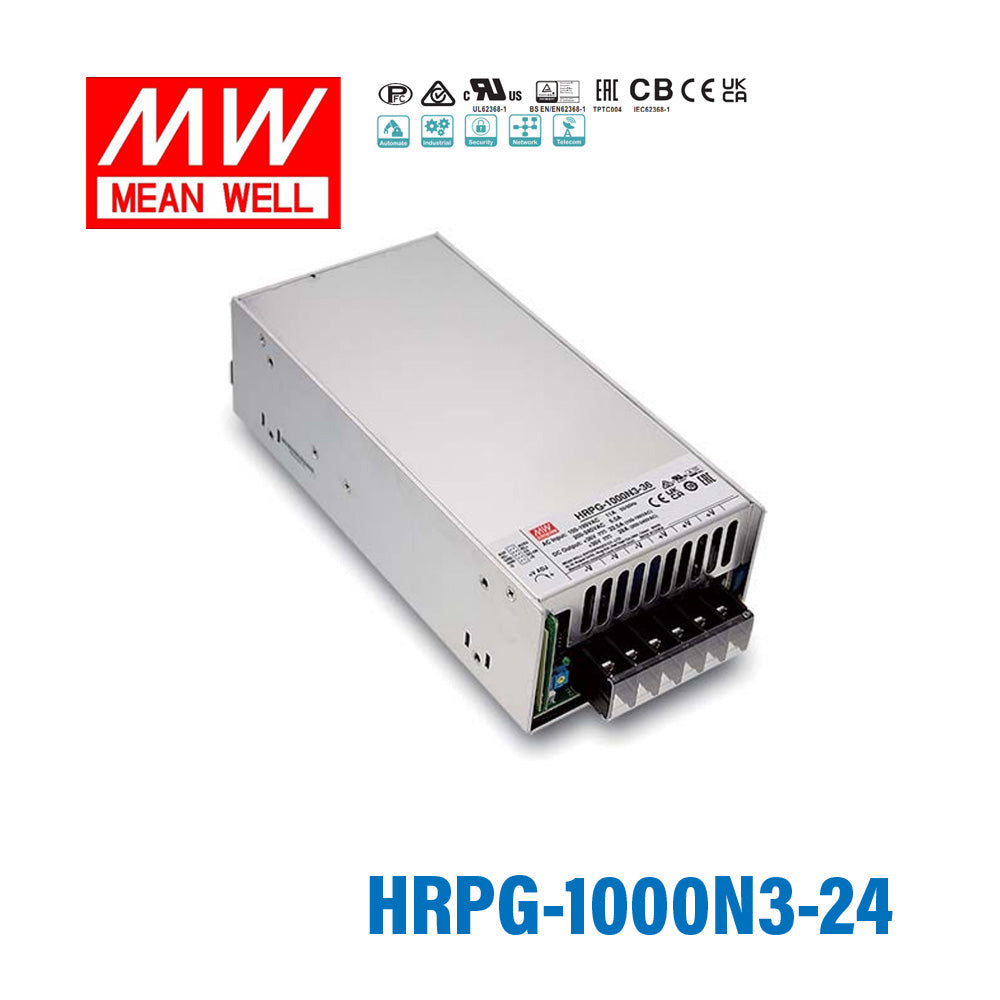

Mean Well HRPG-1000N3-24 Power Supply 960W 24V, 320% peak power model

$233.89 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 94%
Withstand 300VAC surge input for 5 seconds
Up to 320% peak power capability
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in cooling fan ON-OFF control
Current sharing up to 4000W (3+1)
Built-in DC OK signal
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.85W (Note.6)
5 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    HRPG Series
  • Power Rating
    1000 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    42 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    5 Year
  • Length
    8.58 in
  • Width
    4.13 in
  • Height
    2.42 in
  • Weight
    3.22 lb

File Downloads

::specification::
