Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

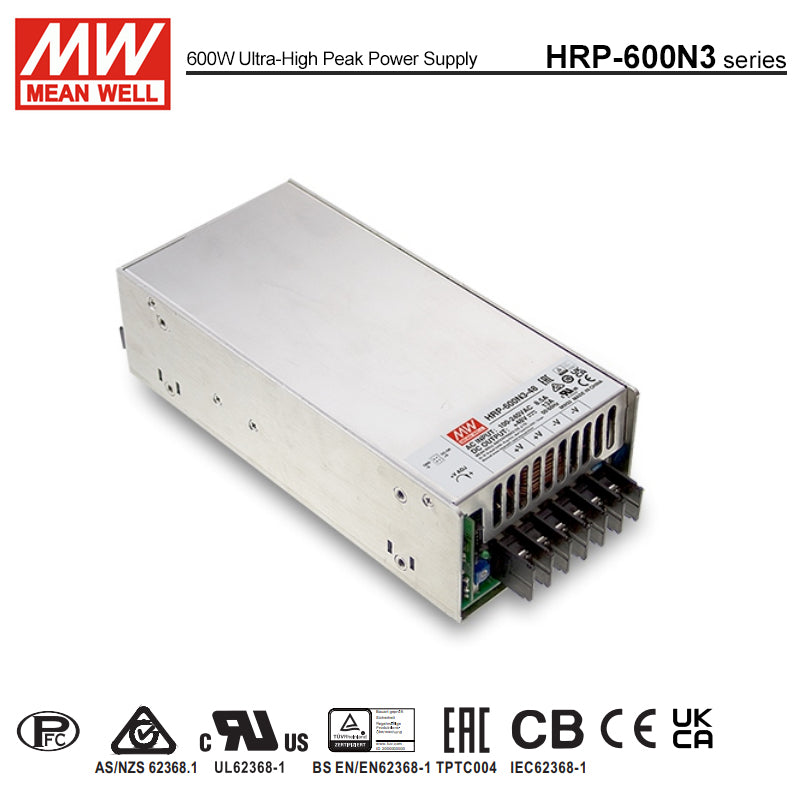

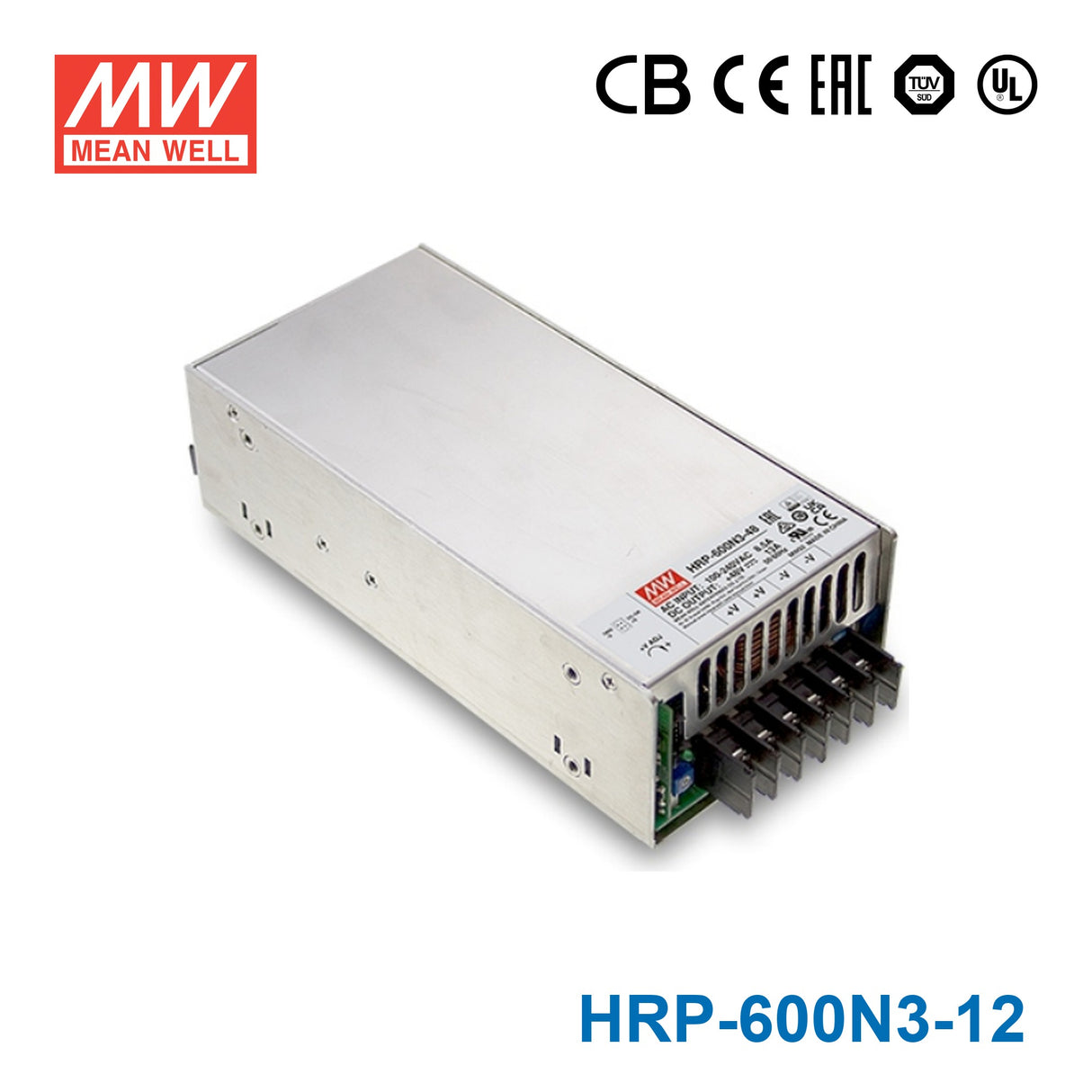

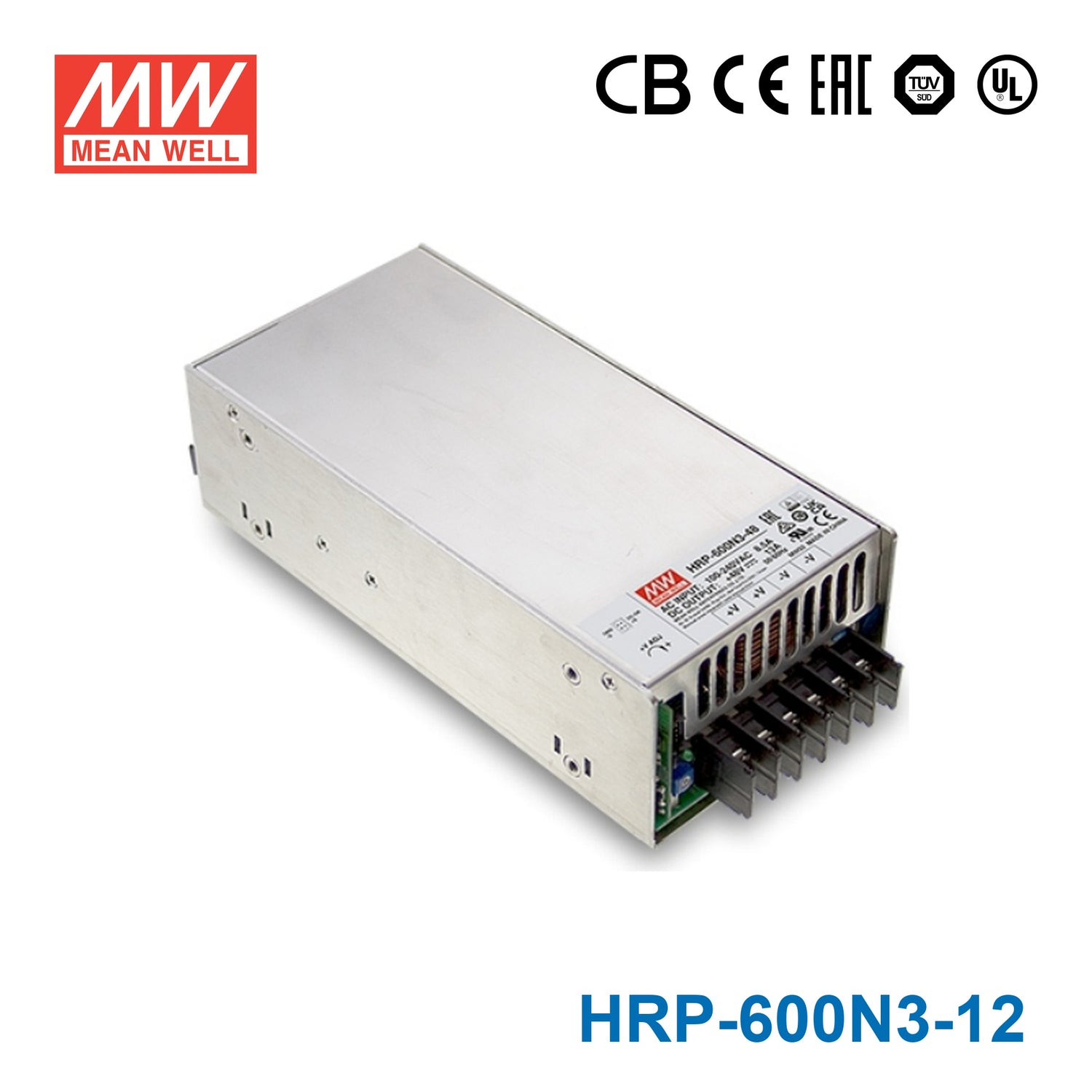

Mean Well HRP-600N3-12 Power Supply 636W 12V, 350% peak power model 53A

Name: Mean Well HRP-600N3-12 Power Supply 636W 12V, 350% peak power model 53A
Brand: Mean Well
SKU: HRP-600N3-12
Price: 185.45 USD
Availability: InStock

built-in active PFC1U low profile300% peak power capacity

SKU HRP-600N3-12

$185.45 USD

Shipping calculated at checkout.

In stock

Overview

HRP-600N3-12 is the 12V output model of this series: rated current 53A, rated power 636W, typical efficiency 88%.

HRP-600N3 series is a 600W single output AC/DC ultra-high peak power supply. This series operates at 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan ON-OFF control, working for the temperature up to 70℃.Moreover, HRP-600N3 can provide 350% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Up to 350% peak power capability
Built-in constant current limiting circuit
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
Withstand 5G vibration
Operating altitude up to 5000 meters(Note.5)
Output voltage adjustable ±15%(Avg.)
5 years warranty

Specifications

HRP-600N3-12Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 53A
CURRENT RANGE: 0 ~ 53A
RATED POWER: 636W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 10.2 ~ 13.8V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1800ms, 50ms/230VAC 3600ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 7.6A/115VAC 3.6A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover Constant current limiting for output power >380% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 14.4 ~ 16.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK SIGNAL: PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
FAN CONTROL (Typ.): Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.5: 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 , AS/NZS 62368.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class B
Radiated BS EN/EN55032 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2)

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field BS EN/EN61000-4-3 Level 3, 10V/m
EFT/ Burst BS EN/EN61000-4-4 Level 3, 2KV
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3, 10V
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class B
Radiated	BS EN/EN55032	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field	BS EN/EN61000-4-3	Level 3, 10V/m
EFT/ Burst	BS EN/EN61000-4-4	Level 3, 2KV
Surge	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 3, 10V
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage Dips and Interruptions	BS EN/EN61000-4-11	95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods

OTHERS

MTBF: 1380.2K hrs min. Telcordia TR/SR-332 (Bellcore) ; 191.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 218*105*61.5mm (L*W*H)
PACKING: 1.39Kg;8pcs/12.1Kg/1.58CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

HRP-600N3-12 Block Diagram — Block Diagram

HRP-600N3-12 Derating Curve — Derating Curve

HRP-600N3-12 H R P - 6 0 0 N 3 series — H R P - 6 0 0 N 3 series

HRP-600N3-12 H R P - 6 0 0 N 3 series (2) — H R P - 6 0 0 N 3 series (2)

HRP-600N3-12 3.DC-OK Signal — 3.DC-OK Signal

HRP-600N3-12 Mechanical Specification — Mechanical Specification

Typical applications

Downloads

Datasheet1

HRP-600N3-12 datasheetHRP_600N3_spec.pdf · 2026-04-03 edition PDF Download

FAQ

What is the output rating of the Mean Well HRP-600N3-12?

The HRP-600N3-12 is a 12V enclosed AC-DC power supply rated for 636W output power. It provides a rated output current of 53A. This makes it suitable for higher-current 12V industrial equipment that needs a compact enclosed supply.

What kinds of industrial applications is the HRP-600N3-12 designed for?

This model is aimed at demanding industrial applications that need a reliable 12V power source with high output capacity. Its enclosed form factor, DC OK signal, remote sense function, and high-reliability positioning make it a fit for control systems, automation equipment, and other industrial power applications. It is especially relevant where peak power capability and solid protection features matter.

Can the HRP-600N3-12 handle harsh electrical or industrial environments?

Yes. The unit accepts a universal input range of 85 to 264VAC and its surge immunity is rated Level 4 (4KV line-FG, 2KV line-line) to BS EN/EN61000-4-5. It also meets the BS EN/EN61000-6-2 industrial immunity standard and is rated to withstand 5G vibration, which supports use in tougher industrial environments.

What temperature range can the HRP-600N3-12 operate in?

The specified operating temperature range is -40°C to +70°C, with reference to the derating curve. That gives it a wide operating window for industrial environments. Buyers should still confirm derating requirements for high ambient temperatures.

What protection features are included in the HRP-600N3-12?

The HRP-600N3-12 includes overload, over voltage, and over temperature protection. The unit shuts down output voltage if output power exceeds 105% of rated power for more than 5 seconds, then recovers after re-powering. It also includes constant current limiting, which shuts down the output if output power exceeds 380% rated for more than 5 seconds.

Is the HRP-600N3-12 a good choice when space is limited?

This model uses an enclosed design intended for industrial builds. Its dimensions are 218 x 105 x 61.5 mm and it weighs 1.39 kg. That makes it easy to assess where a compact high-power 12V supply is needed.

What certifications and compliance standards does the HRP-600N3-12 meet?

The HRP-600N3-12 is approved to UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1 safety standards. Its EMC compliance includes BS EN/EN55032 Class B emissions and BS EN/EN55035 and BS EN/EN61000-6-2 immunity. These approvals are relevant for buyers who need a supply aligned with industrial and commercial compliance requirements.
