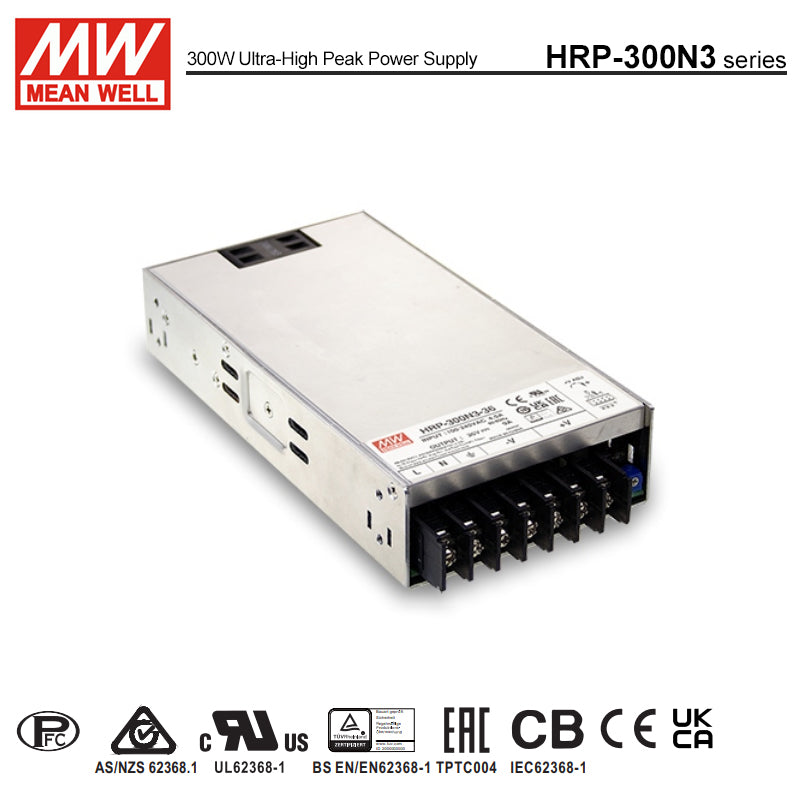

Mean Well HRP-300N3-24 Power Supply 336W 24V, 350% peak power model 14A

Name: Mean Well HRP-300N3-24 Power Supply 336W 24V, 350% peak power model 14A
Brand: Mean Well
SKU: HRP-300N3-24
Price: 93.74 USD
Availability: InStock

built-in active PFC1U low profile300% peak power capacity

SKU HRP-300N3-24

$93.74 USD

Shipping calculated at checkout.

Available to order

Overview

HRP-300N3-24 is the 24V output model of this series: rated current 14A, rated power 336W, typical efficiency 87%.

HRP-300N3 series is a 300W single output AC/DC ultra-high peak power supply. This series operates at 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan ON-OFF control, working for the temperature up to 70℃. Moreover, HRP-300N3 can provide 350% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
350% peak power capability
Built-in constant current limiting circuit
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
Withstand 5G vibration
Operating altitude up to 5000 meters(Note.5)
Output voltage adjustable ±15%(Avg.)
1U low profile 41mm
5 years warranty

Specifications

HRP-300N3-24Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 14A
CURRENT RANGE: 0 ~ 14A
RATED POWER: 336W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 21.6 ~ 28.8V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 3.5A/115VAC 1.8A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 75A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover Constant current limiting for output power >380%(1140W) rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 30 ~ 34.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: TSW1:Shut down o/p voltage, recovers automatically after temperature goes down RTH3: Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK SIGNAL: PSU turns on : 3.3 ~ 5.6V ; PSU turns off : 0 ~ 1V
FAN CONTROL (Typ.): Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.5: 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 , AS/NZS 62368.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class B
Radiated BS EN/EN55032 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2)

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field BS EN/EN61000-4-3 Level 3, 10V/m
EFT/ Burst BS EN/EN61000-4-4 Level 3, 2KV
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3, 10V
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class B
Radiated	BS EN/EN55032	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field	BS EN/EN61000-4-3	Level 3, 10V/m
EFT/ Burst	BS EN/EN61000-4-4	Level 3, 2KV
Surge	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 3, 10V
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage Dips and Interruptions	BS EN/EN61000-4-11	95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods

OTHERS

MTBF: 1524.0K hrs min. Telcordia TR/SR-332 (Bellcore) ; 187.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*105*41mm (L*W*H)
PACKING: 0.9Kg;15pcs/14.5Kg/0.84CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

HRP-300N3-24 Block Diagram — Block Diagram

HRP-300N3-24 Derating Curve — Derating Curve

HRP-300N3-24 H R P - 3 0 0 N 3 series — H R P - 3 0 0 N 3 series

HRP-300N3-24 2.Remote Sense — 2.Remote Sense

HRP-300N3-24 3.DC-OK Signal — 3.DC-OK Signal

HRP-300N3-24 Mechanical Specification — Mechanical Specification

Typical applications

Downloads

Datasheet1

HRP-300N3-24 datasheetHRP_300N3_spec.pdf · 2026-04-03 edition PDF Download

FAQ

What are the key output specifications of the Mean Well HRP-300N3-24?

The HRP-300N3-24 is a 24V enclosed AC-DC power supply rated at 336W continuous output. It provides 14A rated current and has an output voltage adjustment range of 21.6 to 28.8V. This model is designed for applications that need a compact 41mm low-profile power supply.

What makes the HRP-300N3-24 suitable for demanding industrial applications?

This model is built for high-reliability industrial use with protections for overload, over voltage, and over temperature. It also operates from -40°C to +70°C with derating, withstands 5G vibration, and includes a built-in DC OK signal. These features help it perform well in tougher operating environments.

What input voltage range does the HRP-300N3-24 support?

The HRP-300N3-24 accepts a universal AC input range of 85 to 264VAC, as well as 120 to 370VDC. That wide input range makes it suitable for use across many regional power systems and industrial DC supply environments. It is intended for applications where input flexibility is important.

Can the HRP-300N3-24 operate in high-temperature or high-altitude environments?

Yes, this model is rated for operation from -40°C to +70°C when used within its derating limits. It is also specified for operating altitudes up to 5000 meters. Those ratings make it a strong fit for industrial environments with harsher temperature or elevation requirements.

How compact is the Mean Well HRP-300N3-24?

The HRP-300N3-24 measures 199 x 105 x 41 mm and weighs approximately 0.9 kg. Its 41 mm height gives it a low-profile form factor, which is useful where installation space is limited. This makes it easier to specify in compact industrial enclosures and equipment.

How does the HRP-300N3-24 differ from a basic 24V power supply?

Compared with a basic enclosed 24V supply, the HRP-300N3-24 adds features aimed at higher reliability and tougher industrial use. These include peak power capability, remote sense, a DC OK signal, fan ON-OFF control, wide operating temperature range, and BS EN/EN61000-6-2 EMC immunity. It is better suited to applications where power quality, monitoring, and durability matter.

What certifications and compliance standards does the HRP-300N3-24 meet?

This model is approved to UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1 safety standards. For EMC, it meets BS EN/EN55032 Class B and EN61000 series requirements, including EN61000-6-2. These approvals are relevant for many commercial and industrial equipment applications.
