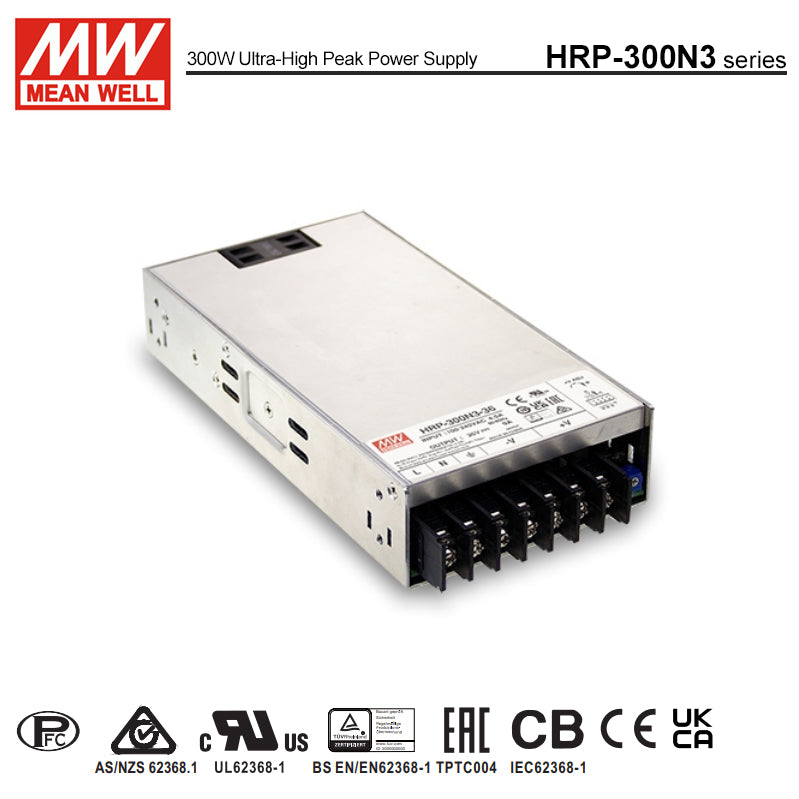

Mean Well HRP-300N3-12 Power Supply 324W 12V, 350% peak power model 27A

Name: Mean Well HRP-300N3-12 Power Supply 324W 12V, 350% peak power model 27A
Brand: Mean Well
SKU: HRP-300N3-12
Price: 93.74 USD
Availability: InStock

built-in active PFC1U low profile300% peak power capacity

SKU HRP-300N3-12

$93.74 USD

Shipping calculated at checkout.

In stock

Overview

HRP-300N3-12 is the 12V output model of this series: rated current 27A, rated power 324W, typical efficiency 88%.

HRP-300N3 series is a 300W single output AC/DC ultra-high peak power supply. This series operates at 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan ON-OFF control, working for the temperature up to 70℃. Moreover, HRP-300N3 can provide 350% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
350% peak power capability
Built-in constant current limiting circuit
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
Withstand 5G vibration
Operating altitude up to 5000 meters(Note.5)
Output voltage adjustable ±15%(Avg.)
1U low profile 41mm
5 years warranty

Specifications

HRP-300N3-12Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 27A
CURRENT RANGE: 0 ~ 27A
RATED POWER: 324W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 10.2 ~ 13.8V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 3.5A/115VAC 1.8A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 75A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover Constant current limiting for output power >380%(1140W) rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 14.4 ~ 16.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: TSW1:Shut down o/p voltage, recovers automatically after temperature goes down RTH3: Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK SIGNAL: PSU turns on : 3.3 ~ 5.6V ; PSU turns off : 0 ~ 1V
FAN CONTROL (Typ.): Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.5: 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 , AS/NZS 62368.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class B
Radiated BS EN/EN55032 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2)

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field BS EN/EN61000-4-3 Level 3, 10V/m
EFT/ Burst BS EN/EN61000-4-4 Level 3, 2KV
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3, 10V
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class B
Radiated	BS EN/EN55032	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field	BS EN/EN61000-4-3	Level 3, 10V/m
EFT/ Burst	BS EN/EN61000-4-4	Level 3, 2KV
Surge	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 3, 10V
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage Dips and Interruptions	BS EN/EN61000-4-11	95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods

OTHERS

MTBF: 1524.0K hrs min. Telcordia TR/SR-332 (Bellcore) ; 187.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*105*41mm (L*W*H)
PACKING: 0.9Kg;15pcs/14.5Kg/0.84CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

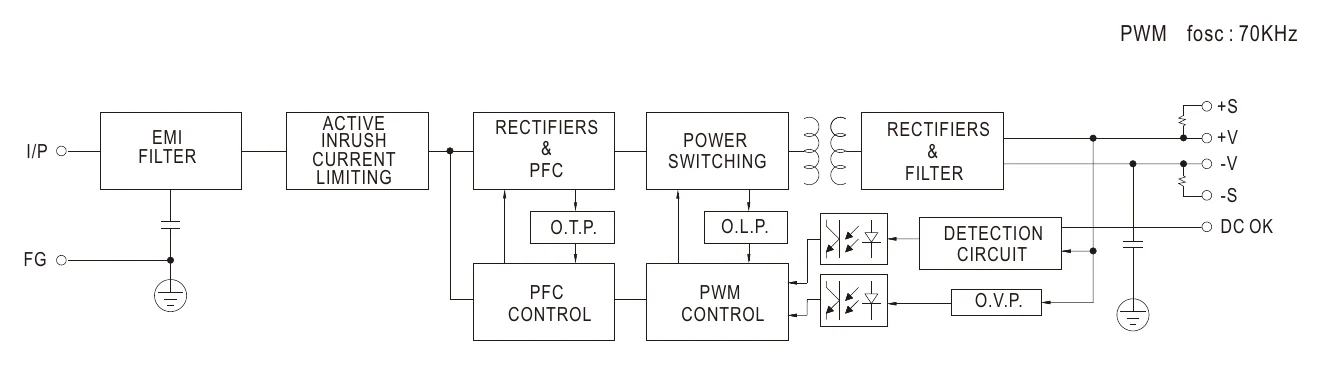

HRP-300N3-12 Block Diagram — Block Diagram

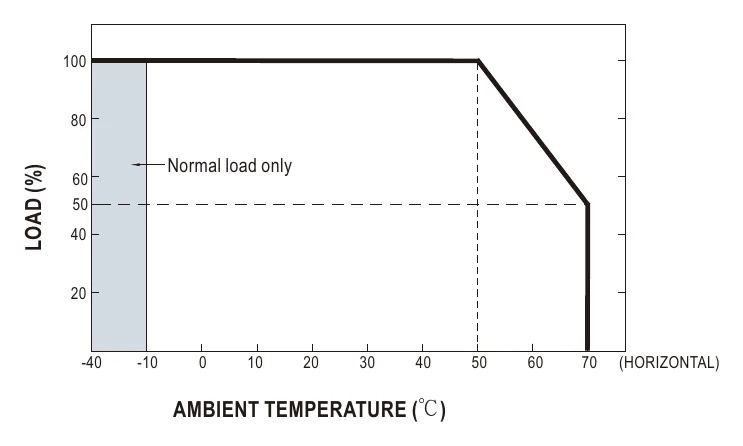

HRP-300N3-12 Derating Curve — Derating Curve

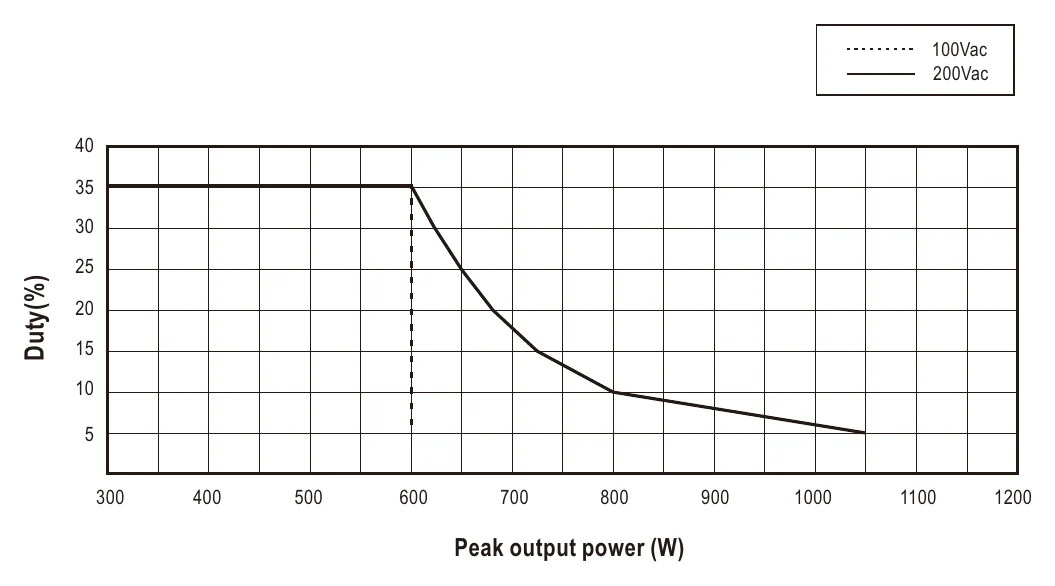

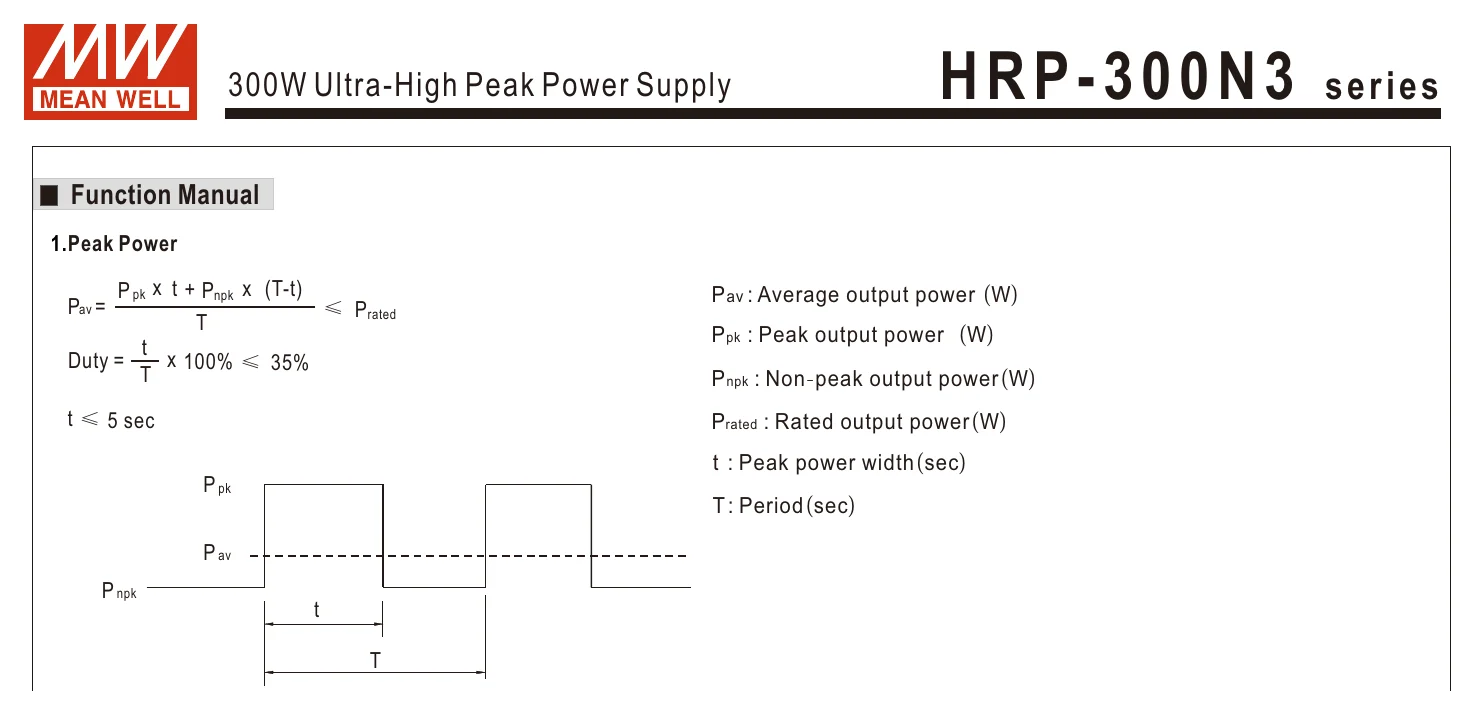

HRP-300N3-12 H R P - 3 0 0 N 3 series — H R P - 3 0 0 N 3 series

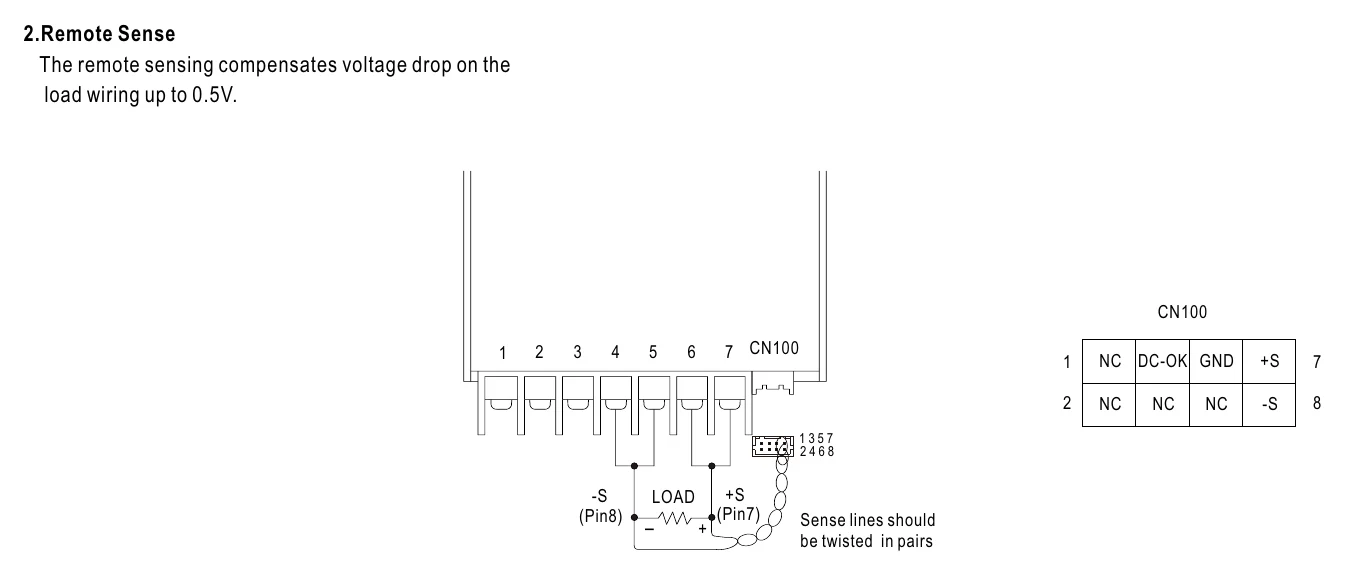

HRP-300N3-12 2.Remote Sense — 2.Remote Sense

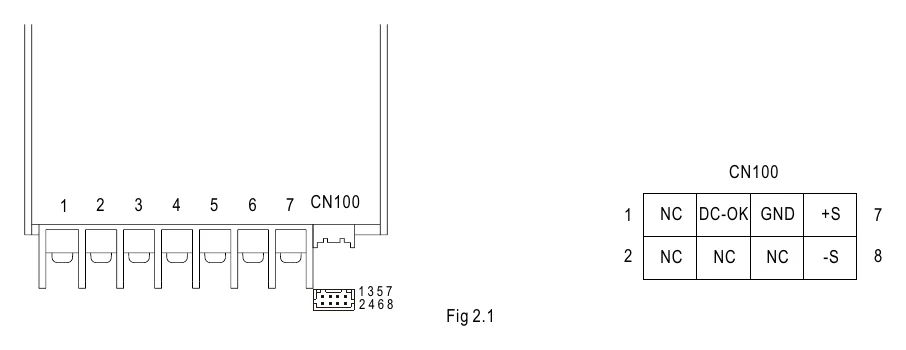

HRP-300N3-12 3.DC-OK Signal — 3.DC-OK Signal

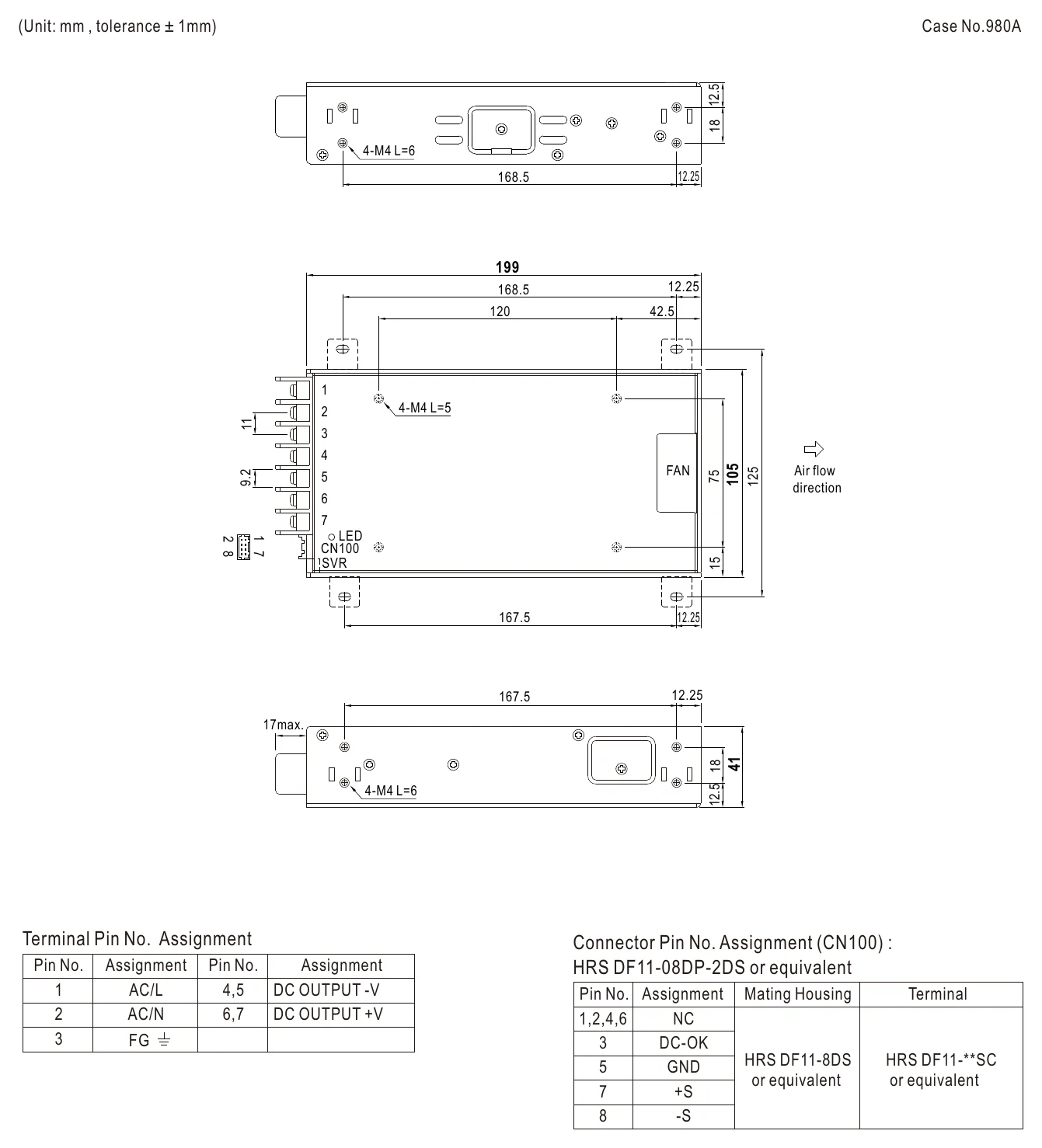

HRP-300N3-12 Mechanical Specification — Mechanical Specification

Typical applications

Downloads

Datasheet1

HRP-300N3-12 datasheetHRP_300N3_spec.pdf · 2026-04-03 edition PDF Download

FAQ

What are the main output specs of the Mean Well HRP-300N3-12?

The HRP-300N3-12 is a 12V enclosed AC/DC power supply rated at 27A. Its rated output power is 324W, within the 300W-class HRP-300N3 series. It also includes an output voltage adjustment range of approximately plus or minus 15% (10.2 to 13.8V).

What kinds of applications is the HRP-300N3-12 suited for?

This model is aimed at industrial and high-reliability applications that need a compact enclosed 12V power supply. Its low 41mm profile, DC OK signal, remote sense function, and protection features make it relevant for equipment builders and OEM use. It is best evaluated where dependable 12V output and industrial compliance matter.

What input range does the HRP-300N3-12 support?

The HRP-300N3-12 supports a universal input range of 85 to 264VAC and 120 to 370VDC. The datasheet notes that output derating may be needed at low input voltages. This gives buyers flexibility across a wide range of global power environments.

Is the HRP-300N3-12 suitable for demanding industrial environments?

Yes. The published specifications list an operating temperature range of -40 to +70 degrees C (refer to the derating curve), vibration resistance up to 5G, and operating altitude up to 5000 meters. It also meets BS EN/EN61000-6-2 EMC immunity and includes overload, over voltage, and over temperature protection.

How compact is the Mean Well HRP-300N3-12?

This power supply measures 199 x 105 x 41 mm and weighs 0.9 kg. Its low-profile 41 mm height is a key differentiator for space-constrained industrial equipment. That makes it easier to specify where enclosure height is limited.

What approvals and warranty does the HRP-300N3-12 include?

The HRP-300N3-12 is listed with UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1 safety approvals. EMC compliance includes BS EN/EN55032 Class B and EN61000 series standards, including EN61000-6-2. The datasheet does not state a warranty period, so please confirm warranty terms with the seller.
