Mean Well

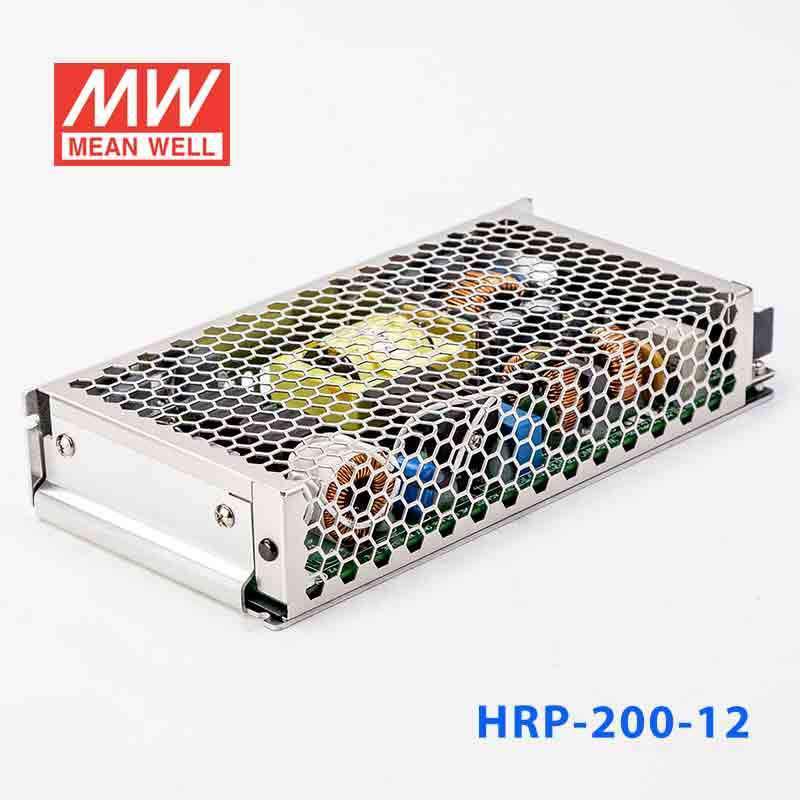

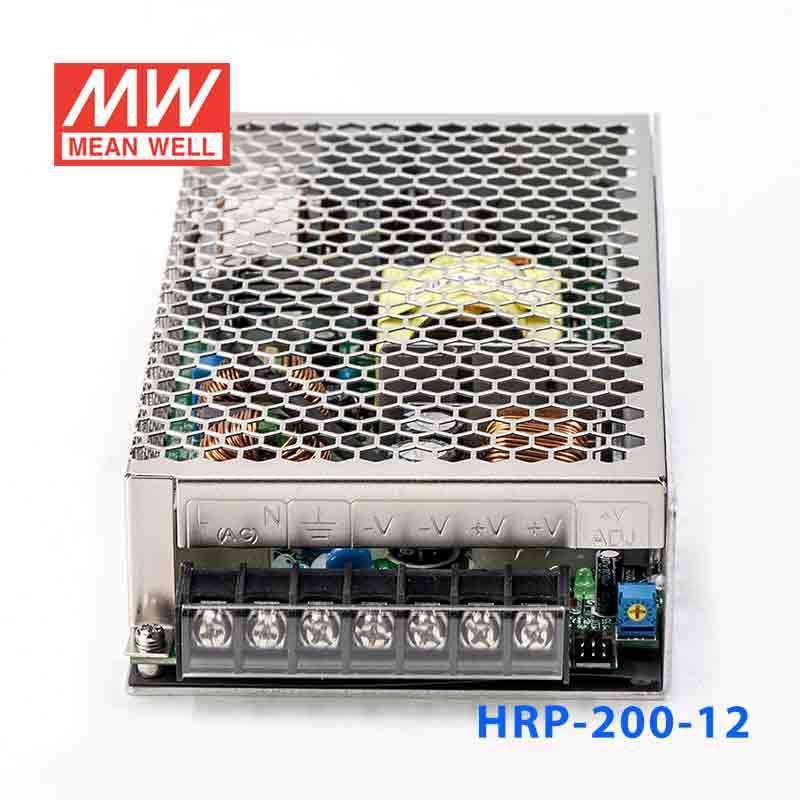

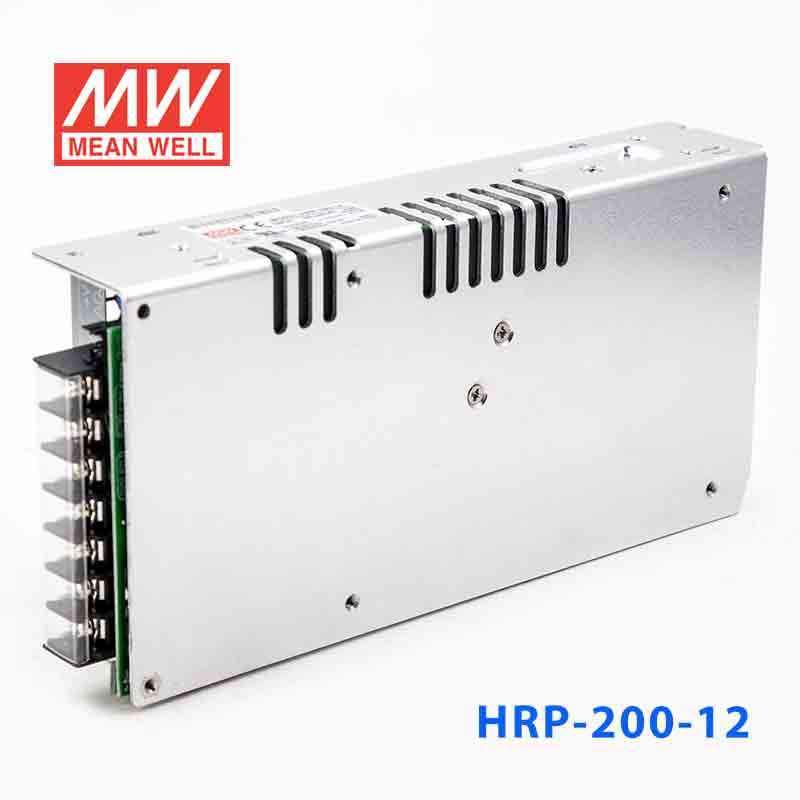

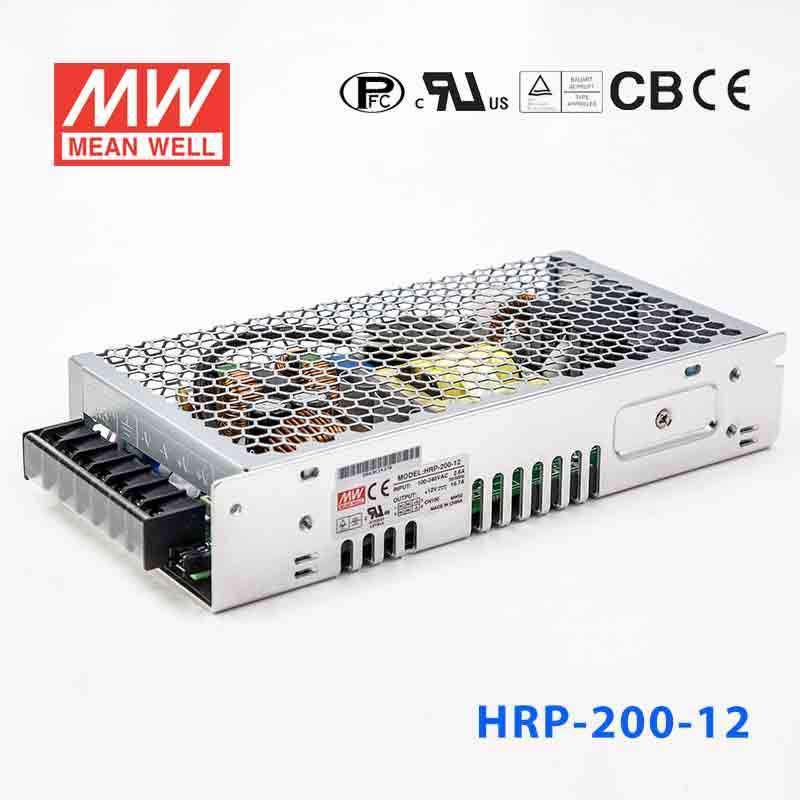

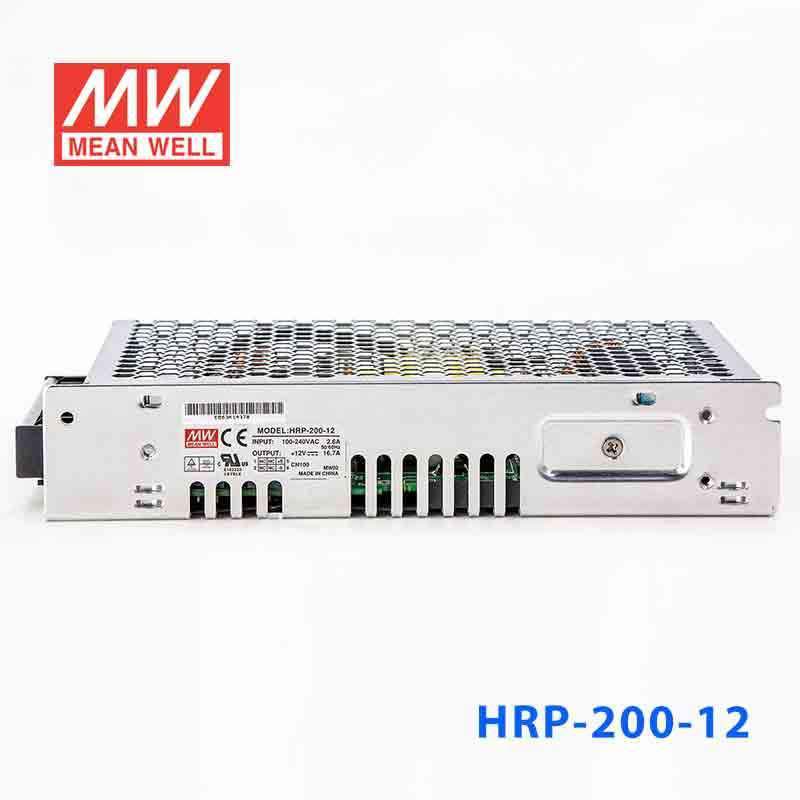

Mean Well HRP-200-12 Power Supply 200.4W 12V 16.7A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W
SKU HRP-200-12
$85.35 USD
Shipping calculated at checkout.

Select model — 7 in this family

HRP-200-12
In stock
|

Overview

HRP-200-12 is the 12V output model of this series: rated current 16.7A, rated power 200.4W, typical efficiency 88%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 38mm
  • Built-in remote sense function
  • 5 years warranty

Specifications

HRP-200-12Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
16.7A
CURRENT RANGE
0 ~ 16.7A
RATED POWER
200.4W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
10.2 ~ 13.8V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.3%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)
88%
AC CURRENT (Typ.)
2.1A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1.2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
14.4 ~ 16.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55035,heavy industry level, EAC TP TC 020

OTHERS

MTBF
1830.6K hrs min. Telcordia SR-332 (Bellcore) ; 209.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*98*38mm (L*W*H)
PACKING
0.77Kg; 18pcs/14.9Kg/0.87CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRP-200-12 Mechanical Specification
Mechanical Specification
HRP-200-12 Block Diagram
Block Diagram
HRP-200-12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the HRP-200-12 for a 12V industrial automation system?

Yes, if the automation load needs a constant 12V output and stays within 200.4W and 16.7A. That makes it relevant for 12V control, monitoring, and support loads in industrial equipment. The 85-264VAC input is also useful where site AC power may vary.

Is the HRP-200-12 suitable for 12V CCTV or low-voltage security hardware?

It can be used for 12V security hardware when the combined load does not exceed 16.7A or 200.4W. This model is constant voltage, so it is intended for equipment that specifically expects a 12V DC supply. Its 16.7A rating suits higher-current 12V systems.

Can this model power a 12V embedded or mobile-style computing platform?

It can fit embedded computing, edge processing, or IT hardware that is designed for a 12V DC input and remains within 200.4W. The built-in PFC and 88% typical efficiency can be useful where power quality and heat matter. Its size of 199 x 98 x 38 mm also helps define whether it fits the equipment envelope.

How does the HRP-200-12 compare with other 200-series HRP models?

The 200-series options are 3.3V 132W 40A, 5V 175W 35A, 7.5V 200.3W 26.7A, 12V 200.4W 16.7A, 15V 201W 13.4A, 24V 201.6W 8.4A, 36V 205.2W 5.7A, and 48V 206.4W 4.3A. The main differences are output voltage, available current, and total wattage. This model is the 12V version and provides 16.7A.

Can the HRP-200-12 be used in cold or hot equipment environments?

The specified operating temperature range is -40°C to +70°C, which supports use in very cold or hot equipment locations. No IP rating is listed in the provided specs, so environmental sealing is not defined here. That means indoor or protected-enclosure use is the safer assumption unless the final system provides the needed protection.
