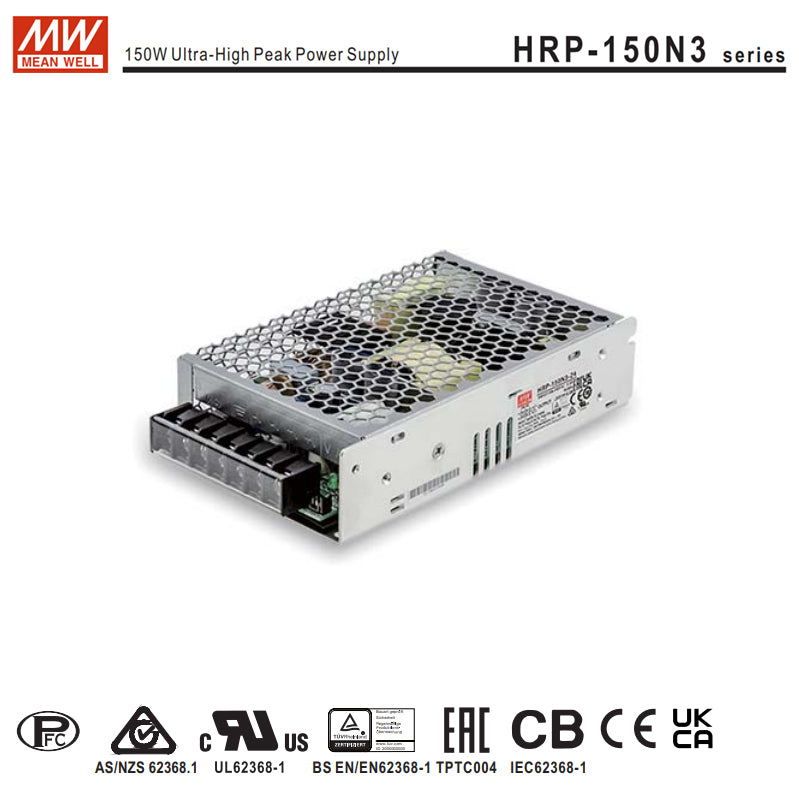

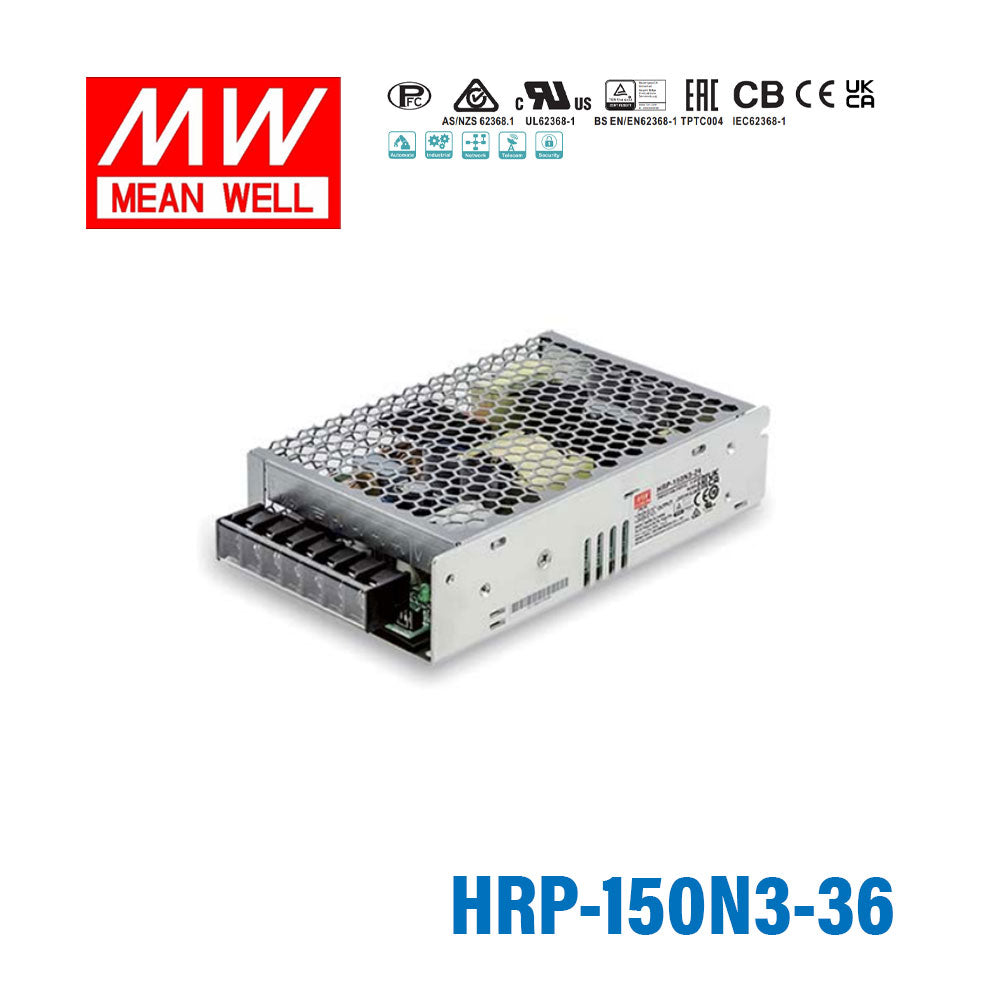

Mean Well HRP-150N3-36 Power Supply 154.8W 36V, 300% peak power model 4.3A

Name: Mean Well HRP-150N3-36 Power Supply 154.8W 36V, 300% peak power model 4.3A
Brand: Mean Well
SKU: HRP-150N3-36
Price: 77.52 USD
Availability: InStock

built-in active PFC1U low profile300% peak power capacity

SKU HRP-150N3-36

$77.52 USD

Shipping calculated at checkout.

In stock

Overview

HRP-150N3-36 is the 36V output model of this series: rated current 4.3A, rated power 154.8W, typical efficiency 89%.

HRP-150N3 series is a 150W single output AC/DC ultra-high peak power supply. This series operates at 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, working for the temperature up to 70℃ without cover. Moreover, HRP-150N3 can provide 300% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
300% peak power capability
Built-in constant current limiting circuit
Fanless design, Cooling by free air convection
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in remote sense function
Withstand 5G vibration
Operating altitude up to 5000 meters(Note.5)
Output voltage adjustable ±15%(Avg.)
1U low profile 38mm
5 years warranty

Specifications

HRP-150N3-36Specifications from the official datasheet (2026-07-13 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 4.3A
CURRENT RANGE: 0 ~ 4.3A
RATED POWER: 154.8W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 28.8 ~ 39.6V
VOLTAGE TOLERANCE^Note.3: ±1.5%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 1.7A/115VAC 0.9A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover Constant current limiting for output power >330% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 41.4 ~ 48.6V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -50 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.5: 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 , AS/NZS 62368.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class B
Radiated BS EN/EN55032 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2) (Note 6)

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field BS EN/EN61000-4-3 Level 3, 10V/m
EFT/ Burst BS EN/EN61000-4-4 Level 3, 2KV
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3, 10V
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class B
Radiated	BS EN/EN55032	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field	BS EN/EN61000-4-3	Level 3, 10V/m
EFT/ Burst	BS EN/EN61000-4-4	Level 3, 2KV
Surge	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 3, 10V
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage Dips and Interruptions	BS EN/EN61000-4-11	95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods

OTHERS

MTBF: 1706.0K hrs min. Telcordia TR/SR-332 (Bellcore) ; 222.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*38mm (L*W*H)
PACKING: 0.54Kg; 24pcs/12.96Kg/0.9CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

HRP-150N3-36 Block Diagram — Block Diagram

HRP-150N3-36 Derating Curve — Derating Curve

HRP-150N3-36 Function Manual — Function Manual

HRP-150N3-36 Ppk x t + Pnpk x (T-t) — Ppk x t + Pnpk x (T-t)

HRP-150N3-36 2.Remote Sense — 2.Remote Sense

HRP-150N3-36 Illustration (page 6) — Illustration (page 6)

Typical applications

Downloads

Datasheet1

HRP-150N3-36 datasheetHRP_150N3_spec.pdf · 2026-07-13 edition PDF Download

FAQ

What is the output rating of the Mean Well HRP-150N3-36?

The HRP-150N3-36 is rated for 154.8W output with a nominal 36V DC output. Its rated output current is 4.3A. This makes it suitable for applications that need a regulated 36V supply in a compact enclosed form factor.

What makes the HRP-150N3-36 different from a standard 150W power supply?

A key differentiator is its ultra-high peak power capability: peaks of up to 5 seconds are supported while the average power stays within the 154.8W rating, and constant current limiting only shuts the output down if power exceeds 330% of rated for more than 5 seconds. It also includes remote sense and a low-profile 38mm height. These features make it better suited to demanding industrial use cases.

What input voltage range does the HRP-150N3-36 support?

This model accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. It is designed for global deployment where input conditions may vary. Output derating may be needed at low input voltages.

Is the HRP-150N3-36 suitable for harsh industrial environments?

Yes, the HRP-150N3-36 is designed for industrial environments with an operating temperature range of -40 to +70 degrees C, with load derating at higher temperatures per the derating curve. It also withstands 5G vibration and supports operating altitudes up to 5000 meters. EMC immunity includes the industrial standard EN61000-6-2.

What protection features are included in the HRP-150N3-36?

This model includes protection for overload, over voltage, and over temperature conditions. If output power exceeds 105% rated power for more than 5 seconds, the output shuts down until power is reapplied, and over voltage protection trips at 41.4 to 48.6V. These protections help support reliable operation in demanding systems.

What kinds of applications is the HRP-150N3-36 typically used for?

The HRP-150N3-36 is a fit for industrial equipment that needs a compact enclosed 36V power supply with high reliability and short-duration peak power headroom. Its low-profile 38mm height, wide temperature range, and remote sense function make it relevant for space-constrained industrial systems. Buyers typically consider this model when stable 36V output and rugged operating capability are priorities.

What certifications and compliance standards does the HRP-150N3-36 meet?

The HRP-150N3-36 is approved to UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1 safety standards. For EMC, it meets EN55032 Class B emissions and multiple EN61000 immunity and emissions standards, including EN61000-6-2 for industrial environments. These approvals are relevant for buyers evaluating compliance for commercial and industrial deployments.
