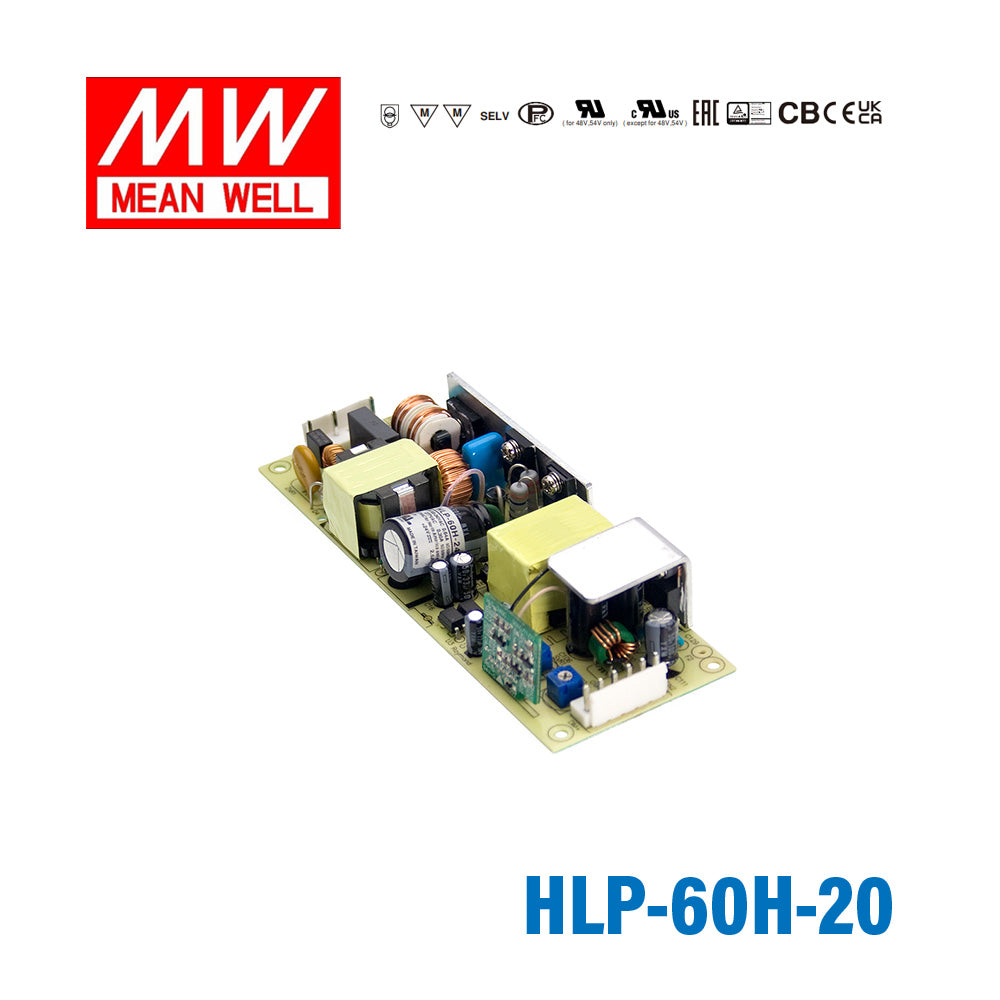

Mean Well HLP-60H-20 PCB Power Supply 60W 20V 3A

Name: Mean Well HLP-60H-20 PCB Power Supply 60W 20V 3A
Brand: Mean Well
SKU: HLP-60H-20
Price: 39.59 USD
Availability: InStock

$39.59 USD ~~$200.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well HLP-60H-20 is a 60W PCB-type LED power supply delivering 20V DC at up to 3A. The open PCB format is designed to be built into a luminaire or enclosure, with built-in active PFC and free-air convection cooling.

It accepts 90~305VAC universal input and operates from -40°C to 70°C and carries CB, CE, EAC and SELV approvals. It supports 1-10V, 10V PWM and resistance dimming. Short circuit, over-voltage and over-temperature protection are included, and it is backed by a 3-year warranty.

Key Features

✓Universal AC input / Full range (up to 305VAC)
✓Built-in active PFC function
✓Protections: Short circuit / Over current / Over voltage / Over temperature
✓Cooling by free air convection
✓Output constant current level adjustable
✓Class 2 power unit
✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
✓Suitable for built in LED lighting system
✓Suitable for dry / damp locations
✓100% full load burn-in test
✓3 years warrantyGeneral Specification

Specifications

Brand

Mean Well
Series

HLP Series
Power Rating

60 Watt
Output Voltage

20 Volt
Rated Current

3 Ampere
Input Voltage

90V~305V
Standards Met

CB,CE,EAC,SELV
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

5.79 in
Width

2.09 in
Height

1.06 in
Weight

0.6 lb

File Downloads

::specification::
