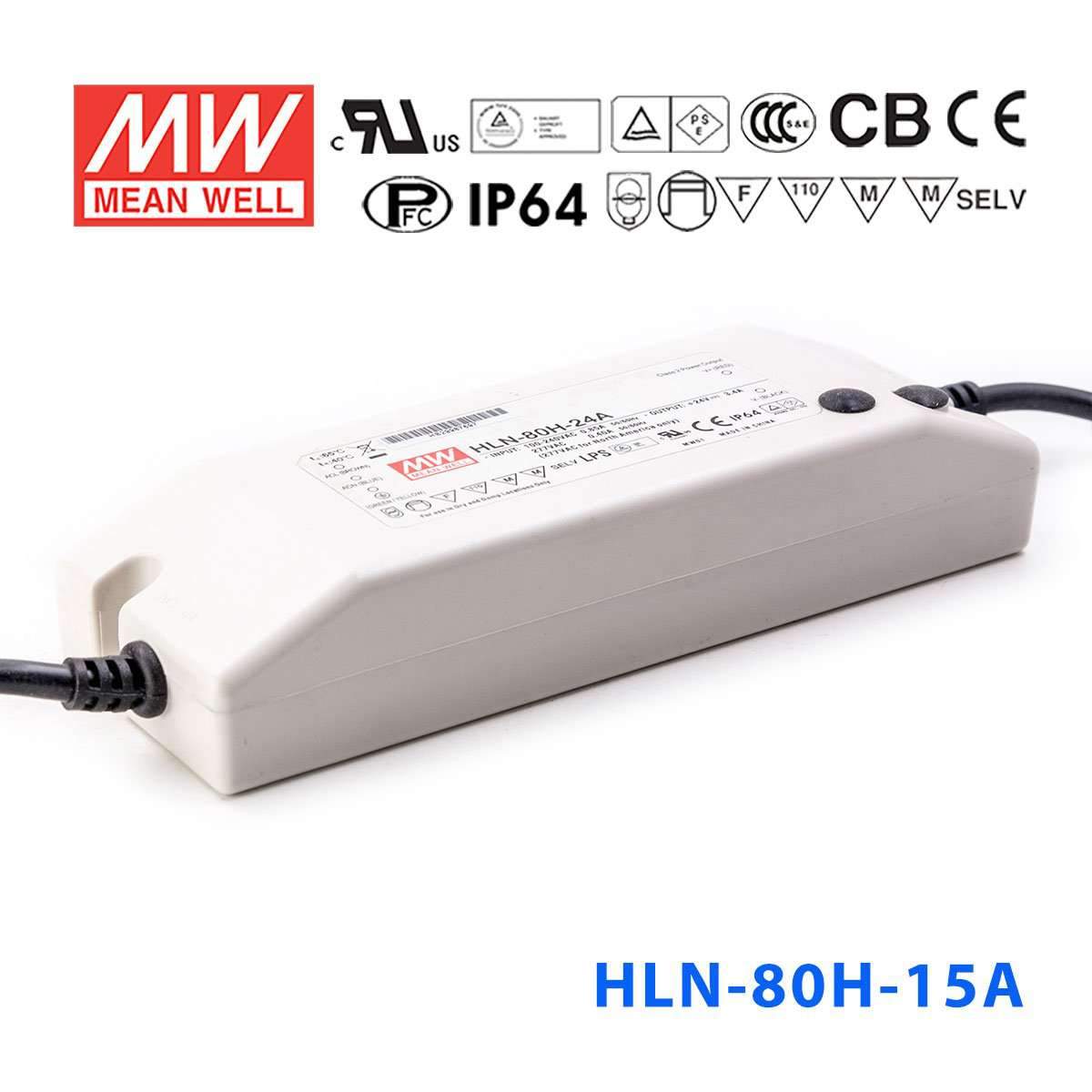

Mean Well HLN-80H-15A Power Supply 75W 15V - IP64, Adjustable 5A

Name: Mean Well HLN-80H-15A Power Supply 75W 15V - IP64, Adjustable 5A
Brand: Mean Well
SKU: HLN-80H-15A
Price: 53.15 USD
Availability: InStock

fully isolated plastic caseIP64suitable for signage applicationsClass 2 power unit

SKU HLN-80H-15A

$53.15 USD

Shipping calculated at checkout.

In stock

Overview

HLN-80H-15A is the 15V output model of this series: rated current 5A, rated power 75W, typical efficiency 89%. Type A: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer (IP64).

Features

Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
OCP point adjustable through output cable or internal potentiometer
Fully isolated plastic case with IP64 level
Class 2 power unit
Suitable for LED lighting, Industrial Lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp locations or outdoor application
3 years warranty

Specifications

HLN-80H-15ASpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 15V
CONSTANT CURRENT REGION^Note.4: 9 ~ 15V
RATED CURRENT: 5A
RATED POWER: 75W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE^Note.6: 13.5 ~ 17V
CURRENT ADJ. RANGE: Can be adjusted by internal potentiometer A type only
CURRENT ADJ. RANGE: 3 ~ 5A
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.5%
SETUP, RISE TIME^Note.8: 1200ms,80ms/115VAC 500ms,80ms/230VAC at full load
HOLD UP TIME (Typ.): 16ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION: THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT^Note.4: 95 ~ 108% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 18 ~ 24V
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -40 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.7: UL8750, CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent ; IP64, EAC TP TC 004 approved ; Design refer to UL60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧60% load, 12V model ≧65% load) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), criteria B, EAC TP TC 020

OTHERS

MTBF: 2786.8K hrs min. Telcordia SR-332(Bellcore) ; 316.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 181*61.5*35mm (L*W*H)
PACKING: 0.5Kg; 24pcs/13Kg/0.87CUFT

Certifications & ratings

Marked features: 110

MODEL ENCODING

A (this model): IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer; IP64
B: IP64 rated. Constant current level adjustable through output cable with 1~10Vdc or PWM signal or resistance; IP64

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. A type only.
7. Safety and EMC design refer to EN60598-1, CNS15233, FCC part18.
8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)
13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLN-80H-15A Mechanical Specification — Mechanical Specification

HLN-80H-15A Block Diagram — Block Diagram

HLN-80H-15A Derating Curve — Derating Curve

HLN-80H-15A Power Factor Characteristic — Power Factor Characteristic

HLN-80H-15A EFFICIENCY vs LOAD (48V Model) — EFFICIENCY vs LOAD (48V Model)

HLN-80H-15A H L N - 8 0 H series (2) — H L N - 8 0 H series (2)

HLN-80H-15A ※ Please DO NOT connect "DIM-" to "-V". — ※ Please DO NOT connect "DIM-" to "-V".

Downloads

Datasheet1

HLN-80H-15A datasheetHLN-80H-SPEC.PDF · 2026-02-09 edition PDF Download

Certificates5

UL Certificate (HLN-80)(EN) PDF Download

CB Certificate (HLN-80)(EN) PDF Download

EMC Certificate (HLN-80)(EN) PDF Download

TUV Certificate (HLN-80)(EN) PDF Download

PSE Certificate (HLN-80)(EN) PDF Download

Test reports1

Test Report(HLN-80-15)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLN-80H-15A for 15V LED signage modules?

Yes, this model is suitable for signage applications when the load matches its 15V output and stays within 75W and 5A. Its constant current range is 9-15V, so the connected signage load needs to operate inside that range.

Is this driver suitable for 15V LED strip lighting in display or accent projects?

It can work for 15V LED strip lighting if the strip system is compatible with a 15V, 5A, 75W driver and operates within the 9-15V constant current range. This makes it a fit for low-voltage lighting runs where the total strip load does not exceed the driver rating.

Can the HLN-80H-15A power small outdoor sign lighting?

It is a practical option for outdoor sign lighting because the housing is rated IP64 against dust and splashing water. The load still needs to stay within 15V output, 5A, and 75W.

How much 15V LED strip can this driver support?

Use the driver's maximum power for the estimate: 75W divided by your strip's rated watts per meter equals the maximum theoretical length. Also confirm the strip is a 15V load and check your strip rated power per meter so the total stays within 75W and 5A.

Is the HLN-80H-15A OK for wet or outdoor locations?

Its IP64 rating means it is intended for dusty or splash-prone environments rather than full water exposure. The operating temperature range is -40°C to +50°C, so it is built for demanding indoor or outdoor conditions within that temperature window.
