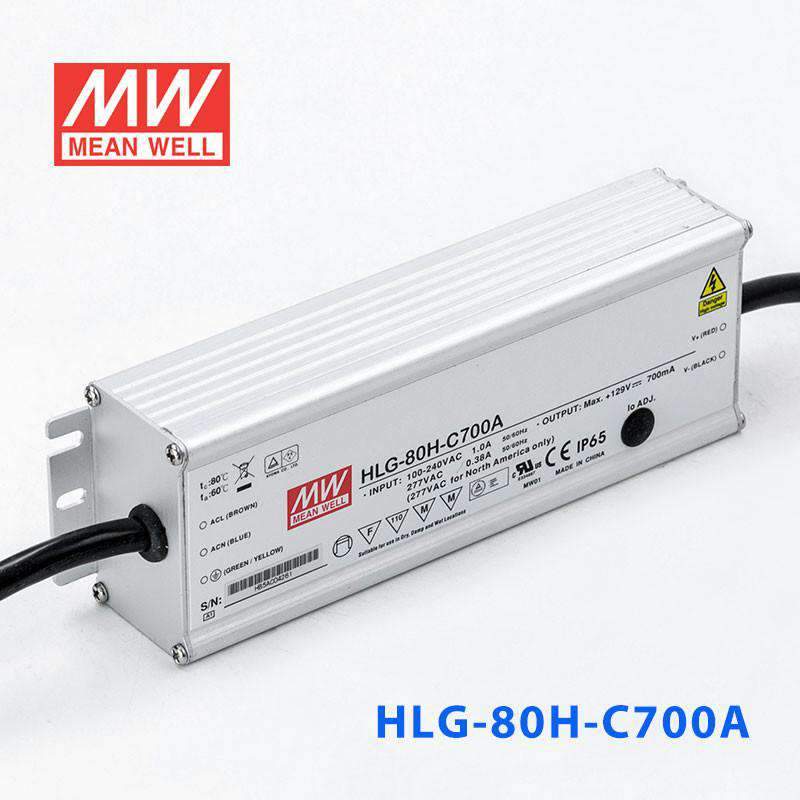

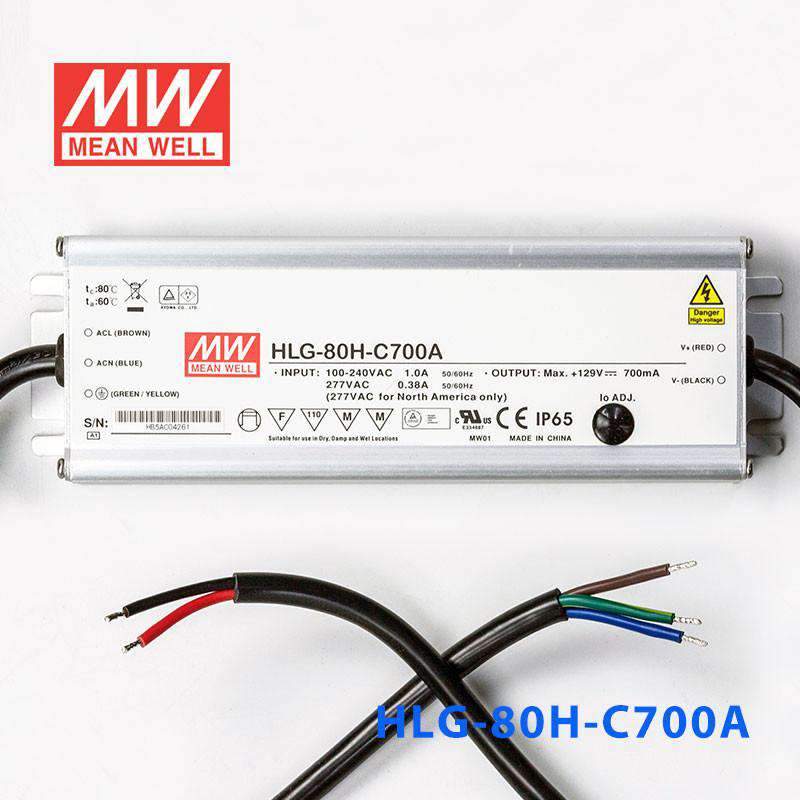

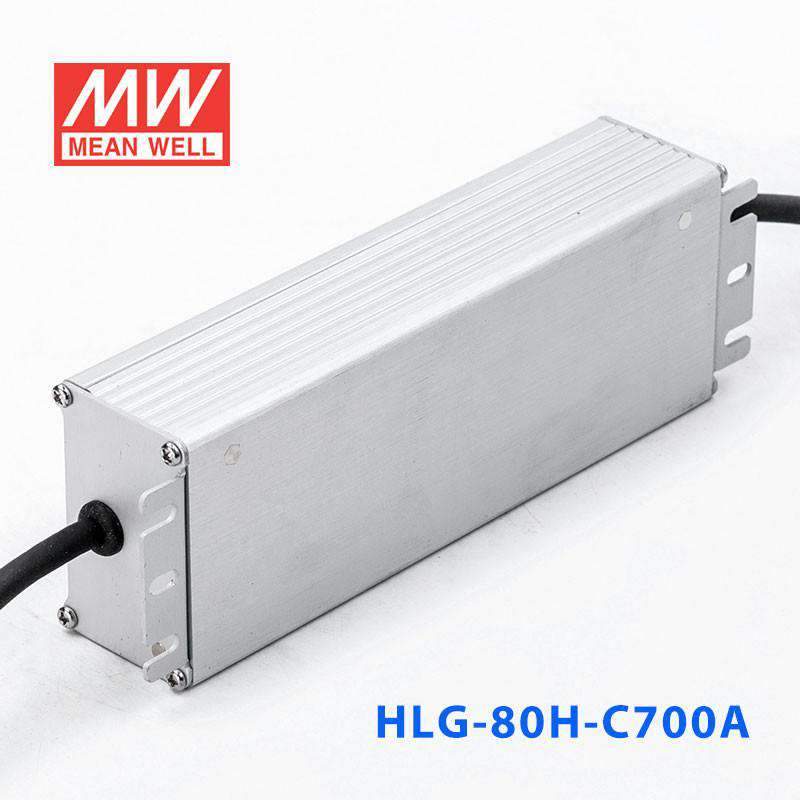

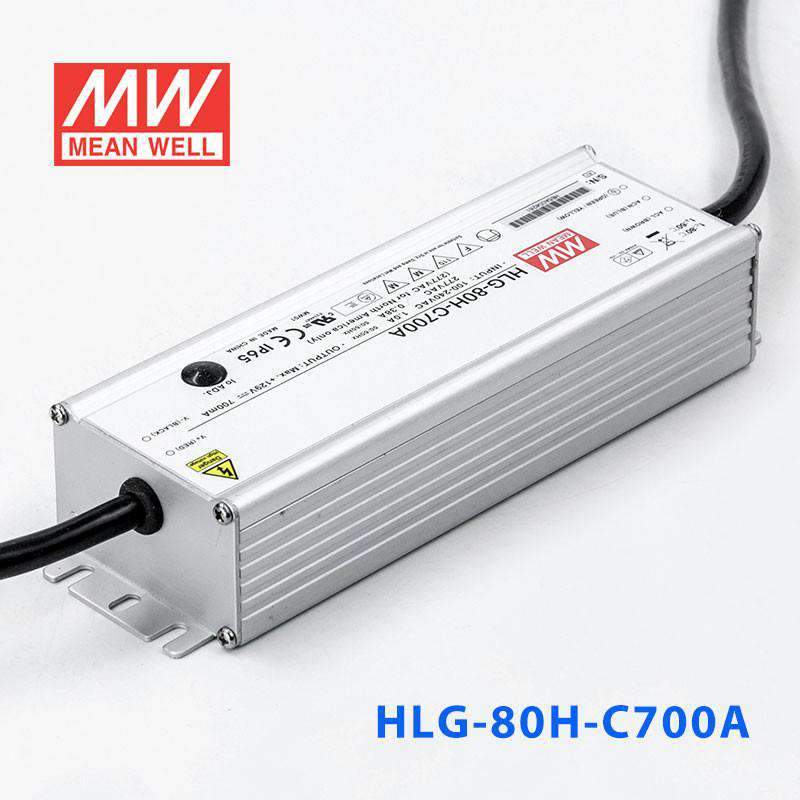

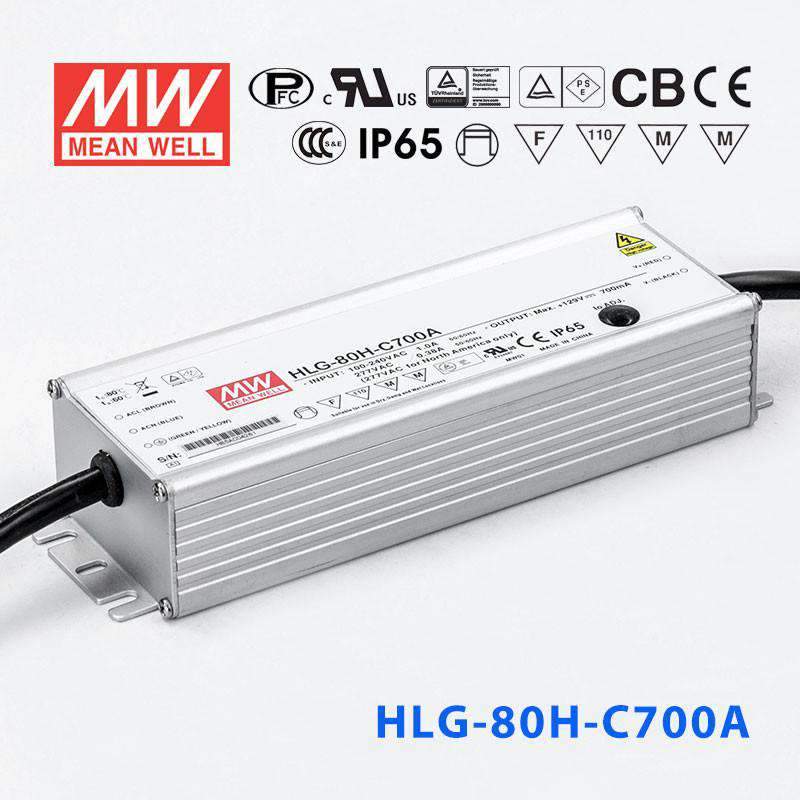

Mean Well HLG-80H-C700A Power Supply 90.3W 700mA - Adjustable

$43.98 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 305VAC) / Full range
Constant current output with high output voltage>60VDC
Built-in active PFC function
Protections: Short circuit / Over voltage / Over temperature
High efficiency up to 94%
Cooling by free air convection
Output current adjustable through output cable or internal potentiometer
IP67 / IP65 design for indoor or outdoor installations
Suitable for dry, damp and wet location
Suitable for LED lighting and street lighting applications
2Multiple models for choice: A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details
7 years warranty

General Specification

AC input voltage range 90~305VAC; 127VDC~431VDC
AC inrush current (typ.) Cold start, 60A at 230VAC
Current adjustment range 60%~100%
Short circuit protection Hiccup mode, auto-recovery
Over temp. protection 85OC±10OC(RTH2), shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:0.5kVAC
Working temperature -40~+70ºC
Safety standards UL8750, TUV EN61347-1, EN61347-2-13 approved
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input UL rated, SJTW 16AWGx3C(30cm)
Connection Output A&D-Type: SJTW 16AWGx2C(30cm) B-Type: SJTW 16AWGx2C(30cm) + SJTW 16AWGx2C(30cm)
Dimension (LxWxH) (mm) 195.6x 61.5x 38.8

Specifications

  • Brand
    Mean Well
  • Series
    HLG-C Series
  • Power Rating
    90.3 Watt
  • Output Voltage
    129 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,EAC,PSE,RCM,TUV,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~80°C
  • Warranty
    7 Year
  • Length
    7.7 in
  • Width
    2.42 in
  • Height
    1.53 in
  • Weight
    1.85 lb
