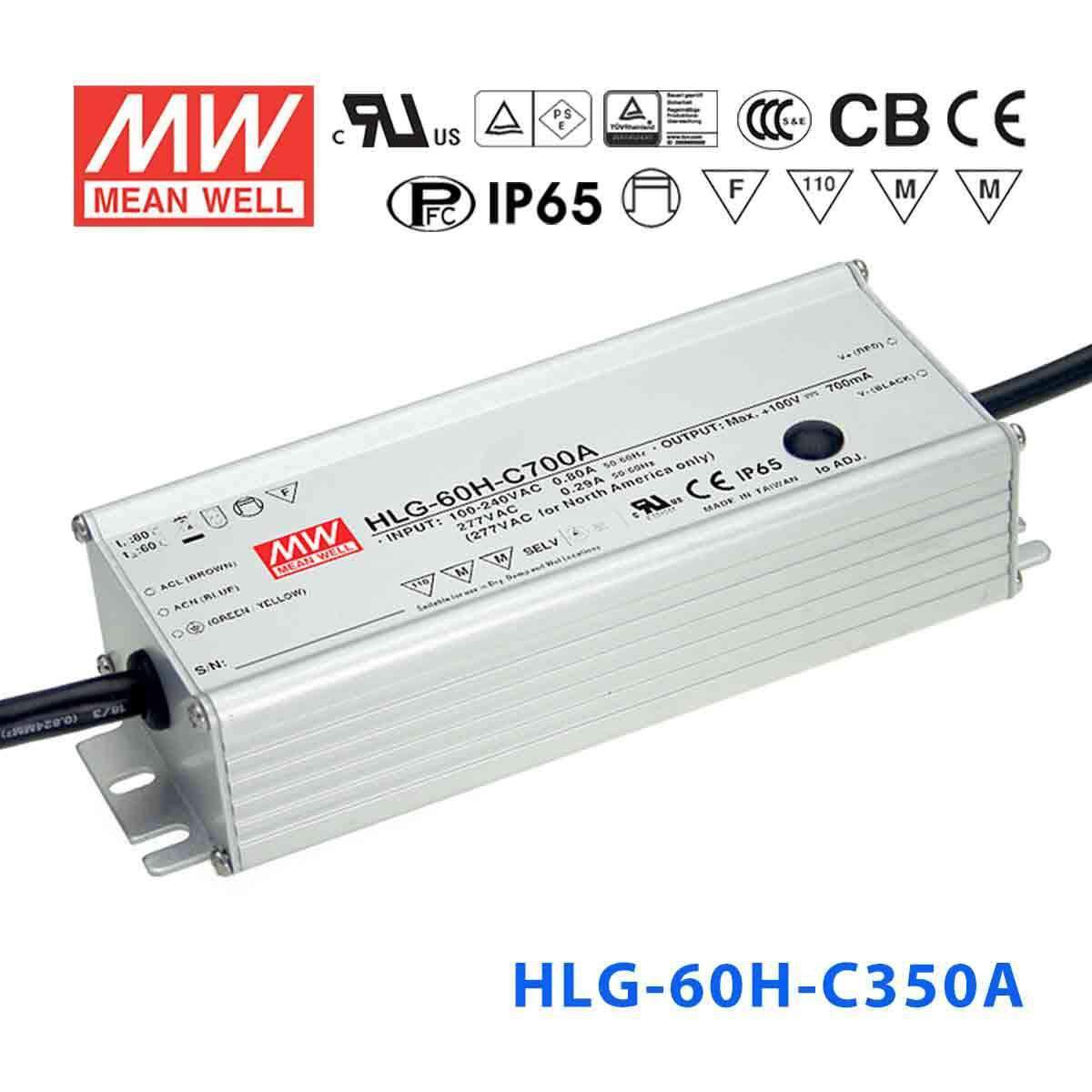

Mean Well HLG-60H-C350A Power Supply 70W 350mA - Adjustable

Name: Mean Well HLG-60H-C350A Power Supply 70W 350mA - Adjustable
Brand: Mean Well
SKU: HLG-60H-C350A
Price: 37.03 USD
Availability: InStock

premium quality7 years warrantyaluminium casinghigh efficiencyhigh output voltage > 60VDC

SKU HLG-60H-C350A

$37.03 USD

Shipping calculated at checkout.

Select model — 9 in this family

HLG-60H-C350A

HLG-60H-C350A 350mA Adjustable Low stock$37.03 USD

HLG-60H-C350AB 350mA Adjustable and Dimmable Low stock$41.96 USD

HLG-60H-C350B 350mA Dimmable Low stock$37.88 USD

HLG-80H-C350A 350mA Adjustable Low stock$39.62 USD

HLG-80H-C350AB 350mA Adjustable and Dimmable Low stock$48.60 USD

HLG-80H-C350B 350mA Dimmable Low stock$45.32 USD

HLG-120H-C350A 350mA Adjustable Low stock$54.79 USD

HLG-120H-C350AB 350mA Adjustable and Dimmable Low stock$61.18 USD

HLG-120H-C350B 350mA Dimmable Backorder$56.10 USD

Product variants

In stock

Overview

HLG-60H-C350A is the model of this series: rated current 350mA, rated power 70W, typical efficiency 91%.

HLG-60H-C series is a 70W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-60H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 700mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-60H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
Typical lifettime>62000 hours
7 years warranty

Specifications

HLG-60H-C350ASpecifications from the official datasheet (2024-07-19 edition)

OUTPUT

RATED CURRENT: 350mA
RATED POWER: 70W
CONSTANT CURRENT REGION^Note.2: 100 ~ 200V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 210 ~ 350mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 750ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.69A / 115VAC 0.35A / 230VAC 0.29A / 277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=275μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 8 units (circuit breaker of type B) / 13 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 230 ~ 250V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.6: UL8750, CSA C22.2 No. 250.0-08, BS EN/EN 61347-1,BS EN/EN 61347-2-13 independent, GB/T19510.1,GB/T19510. 213, EAC TP TC 004,IP65 or IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.6: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 3113.4K hrs min. Telcordia SR-332 (Bellcore) ; 336.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 171*61.5*36.8 mm (L*W*H)
PACKING: 0.73Kg; 20pcs/15.6Kg/0.9CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-60H-C350A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-60H-C350A DIMMING OPERATION — DIMMING OPERATION

HLG-60H-C350A Illustration (page 5) — Illustration (page 5)

HLG-60H-C350A OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-60H-C350A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-60H-C350A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-60H-C350A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HLG-60H-C350A ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HLG-60H-C350A Dimensions (mm) — Dimensions (mm)

HLG-60H-C350A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

Downloads

Certificates5

UL Certificate (HLG-60H-C)(EN) PDF Download

CB Certificate (HLG-60H-C)(EN) PDF Download

EMC Certificate (HLG-60H-C)(EN) PDF Download

TUV Certificate(HLG-60H-C)(EN) PDF Download

PSE Certificate(HLG-60H-C)(EN) PDF Download

Test reports1

Test Report(HLG-60H-C350)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-60H-C350A to power small LED downlights?

Yes. The HLG-60H-C350A delivers 70W at 350mA constant current with a CC voltage range of 100-200V. At 350mA, it is well-matched to standard-current LED modules used in recessed downlights for residential and commercial ceilings.

Is the HLG-60H-C350A suitable for driving LED signage modules?

Yes, provided the signage modules operate at 350mA and their series string voltage falls within 100-200V. The 70W total capacity supports a moderate string of LED sign modules, and the series' IP65 or IP67 approval allows installation in covered outdoor sign cabinets.

Can I use the HLG-60H-C350A for small LED array or accent lighting?

Yes. At 350mA and 70W, it suits small to medium LED arrays used in accent lighting, display cases, or architectural cove lighting. The built-in potentiometer lets you fine-tune the output current (210-350mA) to match the exact LED load without an external controller.

Can I adjust the output on the HLG-60H-C350A?

Yes. The A suffix indicates a built-in potentiometer for manual output current adjustment from 210 to 350mA. This is useful for trimming the drive current to match specific LED modules. However, it does not accept external dimming signals — for that, you would need the AB or B variant.

How do I know if my LED string is compatible with the HLG-60H-C350A?

Your series LED string's total forward voltage must be between 100V and 200V for the driver to regulate at 350mA. Add the forward voltages of each LED in the string and verify the sum is within that range. The exact number of LEDs depends on each LED's individual forward voltage.

Can the HLG-60H-C350A be installed in a damp or dusty location?

Yes. The HLG-60H-C series is IP65 or IP67 approved, protecting against dust and water. This makes it suitable for covered outdoor areas, garages, basements, and light-industrial spaces. Its compact 171 x 61.5 x 36.8 mm size also fits in tight mounting locations.
