Mean Well HLG-320H-C700DA Power Supply 299.6W 700mA - DALI | HLG-C Series | Constant Current LED Driver

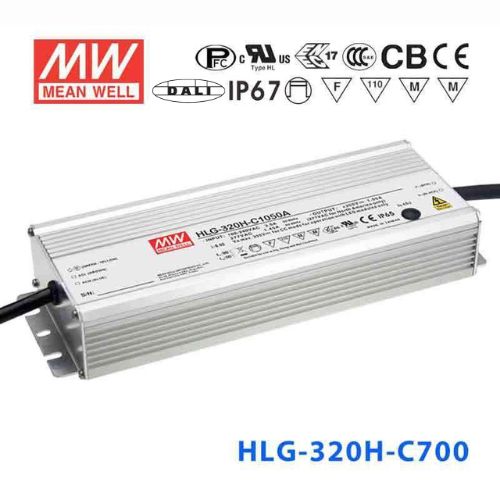

Name: Mean Well HLG-320H-C700DA Power Supply 299.6W 700mA - DALI
Brand: Mean Well
SKU: HLG-320H-C700DA
Price: 111.56 USD
Availability: InStock

Overview

HLG-320H-C700DA is the model of this series: rated current 700mA, rated power 299.6W, typical efficiency 94%. Type DA: DALI control technology (IP67).

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 design for indoor or outdoor installations
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-320H-C700DASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 700mA
RATED POWER: 299.6W
CONSTANT CURRENT REGION^Note.2: 214 ~ 428V
OPEN CIRCUIT VOLTAGE (max.): 435V
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 436 ~ 460V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP67 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A: Io adjustable through built-in potentiometer.; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
DA (this model): DALI control technology.; IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request.; IP67

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-320H-C700DA BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-320H-C700DA 320W Constant Current Mode LED Driver — 320W Constant Current Mode LED Driver

HLG-320H-C700DA OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-320H-C700DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-320H-C700DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-320H-C700DA LIFETIME(Kh) — LIFETIME(Kh)

HLG-320H-C700DA MECHANICAL SPECIFICATION ※ B/DA-Type — MECHANICAL SPECIFICATION ※ B/DA-Type

Typical applications

Downloads

Datasheet1

HLG-320H-C700DA datasheetHLG-320H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates4

UL Certificate(HLG-320H-C)(EN) PDF Download

CB Certificate(HLG-320H-C)(EN) PDF Download

EMC Certificate(HLG-320H-C)(EN) PDF Download

ENEC Certificate(HLG-320H-C)(EN) PDF Download

Test reports1

Test Report(HLG-320H-C700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-320H-C700DA with a DALI-2 building automation system for LED high-bay lighting?

Yes, with a DALI controller it supports. The DA suffix indicates a DALI interface compliant with IEC62386-101 and 102 (207 by request); the sheet does not state DALI-2 certification, so confirm compatibility with your system. At 299.6W and 700mA constant current with a CC range of 214-428V, it can drive high-bay LED fixtures with long series strings. DALI control enables addressing (64 addresses), grouping (16 groups), and scene management.

Is the HLG-320H-C700DA suitable for outdoor LED signage controlled by a central DALI network?

Yes, within its IP rating. The series is IP65 or IP67 approved, so confirm this version's rating for fully exposed locations; the 700mA constant current with 214-428V CC range drives long LED module strings typical in large signs. The DALI interface enables centralized scheduling of brightness levels from a building management system.

Can I install the HLG-320H-C700DA in a location subject to temporary flooding?

Only if this version is IP67-rated. The HLG-320H-C series is IP65 or IP67 approved, and the sheet does not assign a rating to the C700DA, so confirm it before installing at ground level, in flood-prone areas, or where standing water may accumulate. An IP65 unit is not rated for immersion.

Can the HLG-320H-C700DA power LED arrays in a parking structure with DALI occupancy control?

Yes. At 299.6W and 700mA, it can drive high-output LED arrays for parking garage lighting with forward voltages summing to 214-428V. The DALI interface works with DALI controllers that use occupancy sensors and daylight harvesting, enabling zone-based dimming that reduces energy consumption in unoccupied areas.

How many LEDs can I drive in series with the HLG-320H-C700DA?

The number depends on each LED's forward voltage. The driver provides 700mA constant current with a CC voltage range of 214-428V, accommodating very long series strings. Sum your LEDs' forward voltages and verify the total stays within that window. The high voltage capability makes this driver ideal for applications requiring many series-connected LEDs.

What separates the HLG-320H-C700DA from the other C700 variants in the HLG-320H series?

The -C700DA uses a DALI interface for dimming. The -C700A has a potentiometer for current adjustment (350-700mA). The -C700AB adds both potentiometer and 3-in-1 dimming (0-10VDC, 10V PWM, or resistance). The -C700B has 3-in-1 dimming only. All share the same 299.6W, 700mA, 214-428V constant current specs; the series is IP65 or IP67 approved depending on version.
