Mean Well HLG-320H-C700B LED Driver | 299.6W 700mA Dimmable

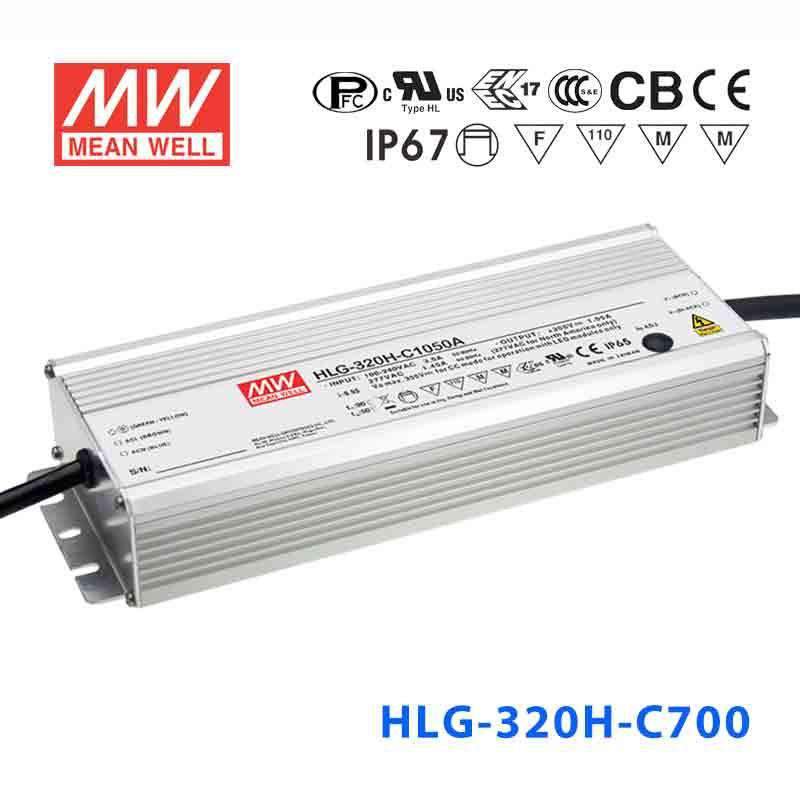

Name: Mean Well HLG-320H-C700B Power Supply 299.6W 700mA - Dimmable
Brand: Mean Well
SKU: HLG-320H-C700B
Price: 99.54 USD
Availability: InStock

Overview

HLG-320H-C700B is the model of this series: rated current 700mA, rated power 299.6W, typical efficiency 94%.

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-320H-C700BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 700mA
RATED POWER: 299.6W
CONSTANT CURRENT REGION^Note.2: 214 ~ 428V
OPEN CIRCUIT VOLTAGE (max.): 435V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 350 ~ 700mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 436 ~ 460V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP65 or IP67 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

Type: HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-320H-C700B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-320H-C700B DIMMING OPERATION — DIMMING OPERATION

HLG-320H-C700B 320W Constant Current Mode LED Driver — 320W Constant Current Mode LED Driver

HLG-320H-C700B OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-320H-C700B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-320H-C700B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-320H-C700B LIFETIME(Kh) — LIFETIME(Kh)

HLG-320H-C700B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Downloads

Certificates4

UL Certificate(HLG-320H-C)(EN) PDF Download

CB Certificate(HLG-320H-C)(EN) PDF Download

EMC Certificate(HLG-320H-C)(EN) PDF Download

ENEC Certificate(HLG-320H-C)(EN) PDF Download

Test reports1

Test Report(HLG-320H-C700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-320H-C700B to drive dimmable LED arrays for architectural lighting?

Yes. The HLG-320H-C700B delivers 700mA constant current at up to 299.6W with a 3-in-1 dimming input (0-10VDC, 10V PWM, or resistance), making it suitable for architectural LED installations that require brightness control. The connected LED array's total forward voltage must fall within the 214-428V CC range.

Is the HLG-320H-C700B suitable for dimming long LED strip arrays in a retail display?

It can work for high-voltage LED strip arrays that operate within the 214-428V CC range at 700mA. The B suffix provides a dimming input for scene control or scheduled brightness changes in retail environments. Ensure your strip array's total forward voltage is within the supported range.

Can the HLG-320H-C700B power LED modules in a large outdoor sign with scheduled dimming?

Yes. At 299.6W and 700mA constant current, it can drive substantial LED sign arrays whose series voltage falls within 214-428V. The dimming input enables day/night brightness scheduling. The HLG-320H-C series is IP65 or IP67 approved depending on version, so confirm this model's rating before mounting it in a fully exposed outdoor location.

How does the HLG-320H-C700B differ from the HLG-320H-C700A and C700AB?

The -C700B provides a 3-in-1 dimming input (0-10VDC, 10V PWM, or resistance) but no output adjustment potentiometer. The -C700A has a potentiometer for current adjustment (350-700mA) but no dimming input. The -C700AB combines both features. All three share the same 299.6W, 700mA, 214-428V CC specs. Choose the B if you need dimming but not manual current trimming.

How many LEDs can I connect in series to the HLG-320H-C700B?

The count depends on each LED's forward voltage. This driver outputs 700mA constant current across a CC voltage range of 214-428V, which supports very long series strings. Sum your LEDs' forward voltages and confirm the total falls within that range. The high voltage range makes it especially suited for applications with many LEDs in series.

Can the HLG-320H-C700B handle cold-weather outdoor installations?

Yes. It is rated for a case temperature (Tcase) of -40°C to +85°C, making it suitable for cold climates including unheated outdoor enclosures. The series is IP65 or IP67 approved against dust and water. Over-temperature protection shuts the output down if the driver overheats, while the wide Tcase range supports startup in freezing conditions.
