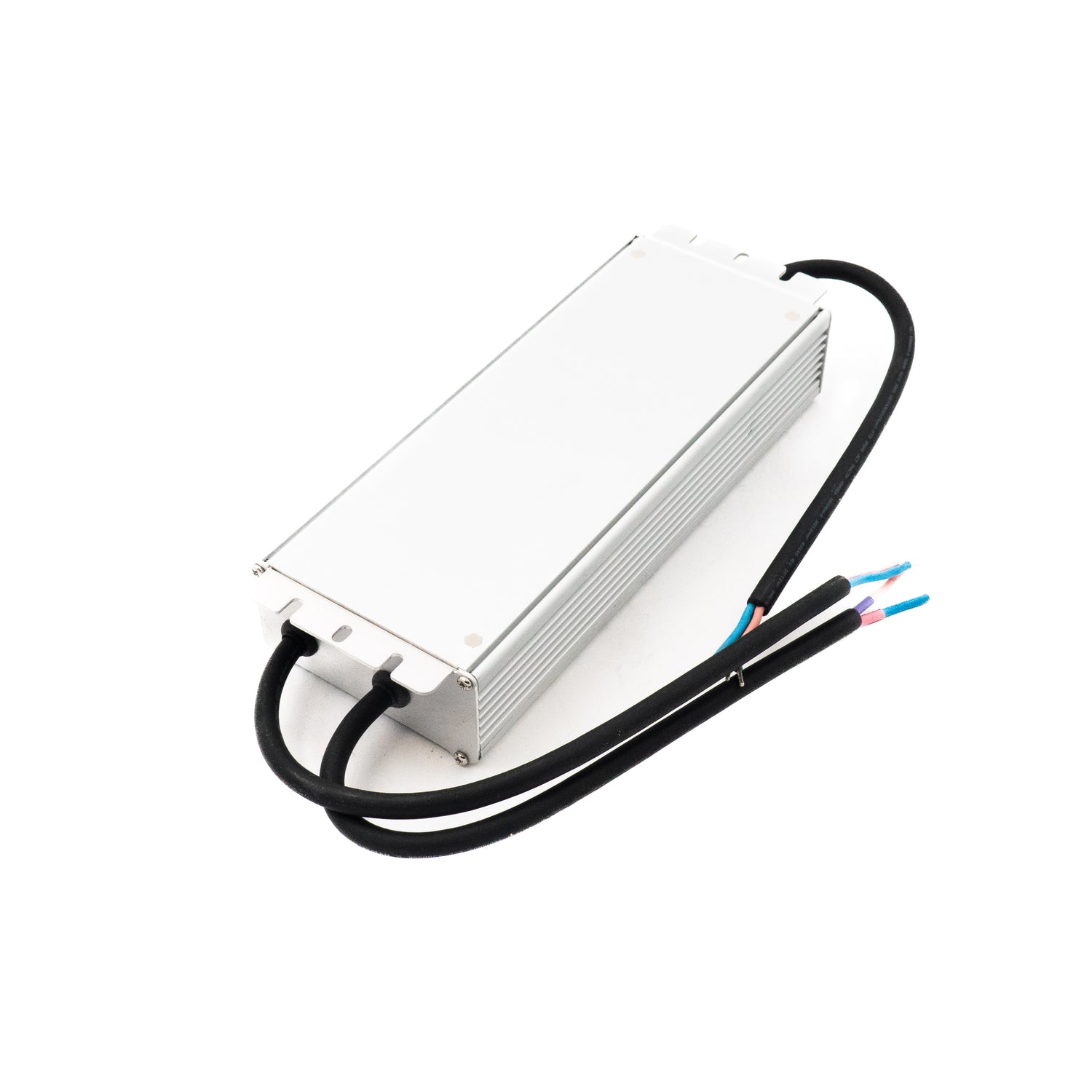

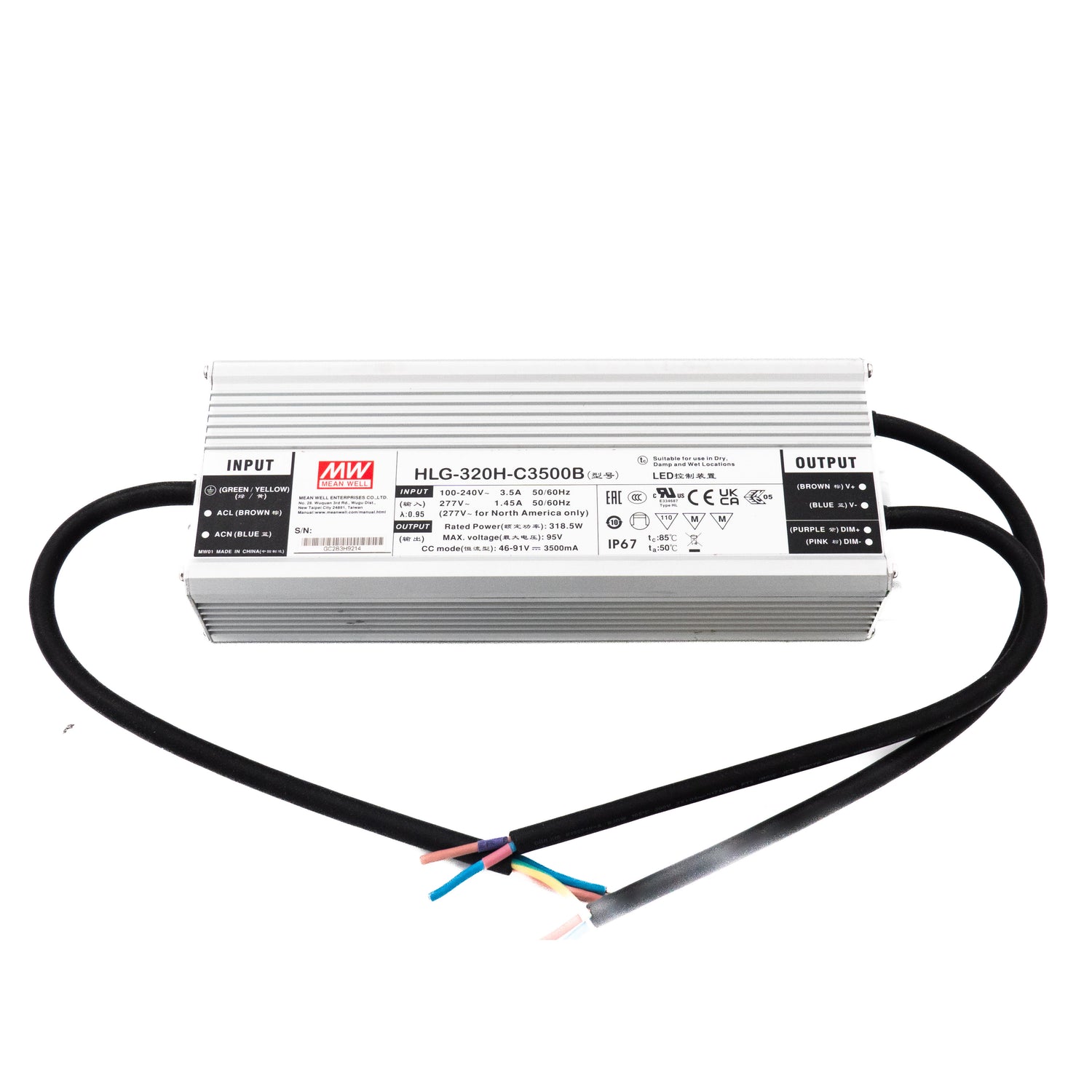

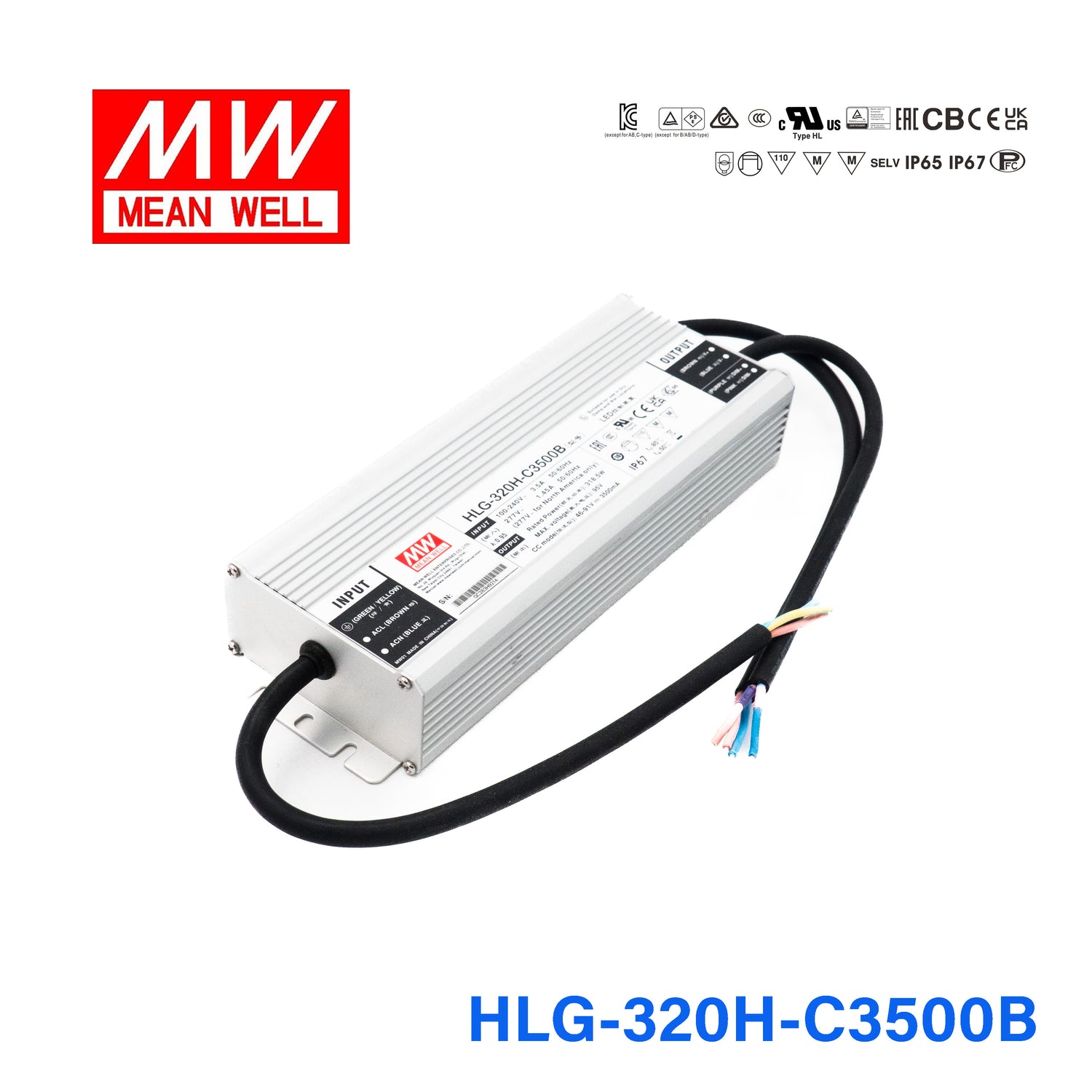

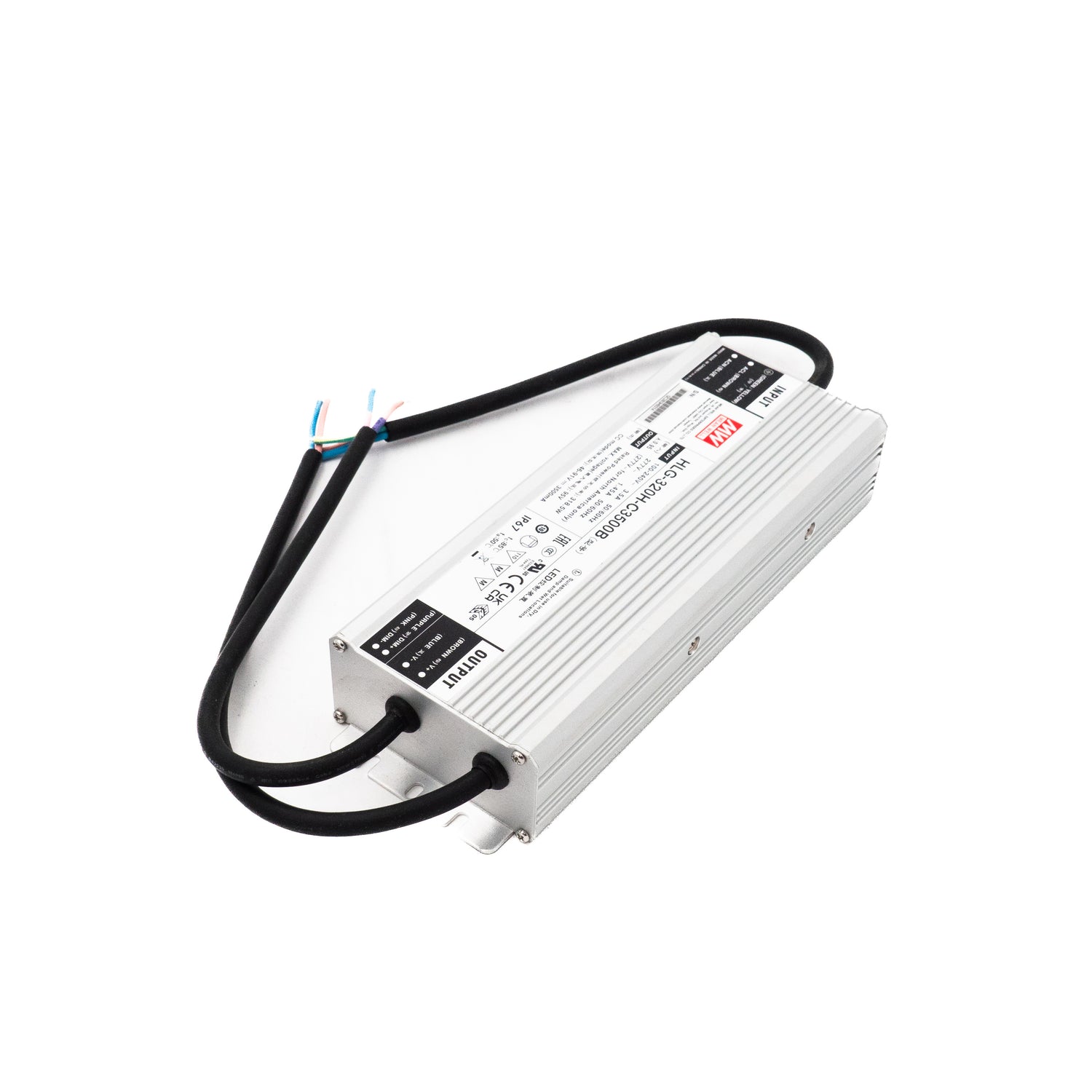

Mean Well HLG-320H-C3500B Power Supply 318.5W 3500mA - Dimmable

Name: Mean Well HLG-320H-C3500B Power Supply 318.5W 3500mA - Dimmable
Brand: Mean Well
SKU: HLG-320H-C3500B
Price: 99.54 USD
Availability: InStock

premium quality7 years warrantyaluminium casinghigh efficiencyhigh output voltage > 60VDC

SKU HLG-320H-C3500B

$99.54 USD

Shipping calculated at checkout.

Select model — 7 in this family

HLG-320H-C3500B

HLG-320H-C3500A 3500mA Adjustable Low stock$104.51 USD

HLG-320H-C3500AB 3500mA Adjustable and Dimmable Low stock$109.15 USD

HLG-320H-C3500DA 3500mA DALI Backorder$111.56 USD

HLG-320H-C3500B 3500mA Dimmable Low stock$99.54 USD

HLG-480H-C3500A 3500mA Adjustable Low stock$143.45 USD

HLG-480H-C3500AB 3500mA Adjustable and Dimmable Low stock$162.92 USD

HLG-480H-C3500B 3500mA Dimmable Low stock$154.07 USD

Product variants

In stock

Overview

HLG-320H-C3500B is the model of this series: rated current 3500mA, rated power 318.5W, typical efficiency 94%. Type B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP67).

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 design for indoor or outdoor installations
Function options: 3 in 1 dimming
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-320H-C3500BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 3500mA
RATED POWER: 318.5W
CONSTANT CURRENT REGION^Note.2: 46 ~ 91V
OPEN CIRCUIT VOLTAGE (max.): 95V
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 96 ~ 105V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A: Io adjustable through built-in potentiometer.; IP65
B (this model): 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
DA: DALI control technology.; IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request.; IP67

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-320H-C3500B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-320H-C3500B DIMMING OPERATION — DIMMING OPERATION

HLG-320H-C3500B 320W Constant Current Mode LED Driver — 320W Constant Current Mode LED Driver

HLG-320H-C3500B OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-320H-C3500B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-320H-C3500B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-320H-C3500B LIFETIME(Kh) — LIFETIME(Kh)

HLG-320H-C3500B MECHANICAL SPECIFICATION ※ B/DA-Type — MECHANICAL SPECIFICATION ※ B/DA-Type

Typical applications

Downloads

Datasheet1

HLG-320H-C3500B datasheetHLG-320H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates4

UL Certificate (HLG-320H-C)(EN) PDF Download

CB Certificate (HLG-320H-C)(EN) PDF Download

EMC Certificate (HLG-320H-C)(EN) PDF Download

ENEC Certificate(HLG-320H-C)(EN) PDF Download

Test reports1

Test Report(HLG-320H-C3500)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-320H-C3500B to drive high-power LED downlights in a commercial building?

Yes. The HLG-320H-C3500B delivers 3500mA constant current at up to 318.5W, making it capable of powering high-output LED downlight fixtures. The LED string's total forward voltage must fall within the 46-91V CC voltage range. Rated IP65 or IP67 depending on version, it suits damp or dusty mechanical rooms.

Is the HLG-320H-C3500B suitable for powering LED arrays in large illuminated signage?

It can work for signage modules that require high drive current at relatively low voltage. At 3500mA with a CC range of 46-91V, it is best suited for short series strings of high-current LEDs rather than long strings of low-current modules. Confirm that your sign modules' combined forward voltage stays within 46-91V.

Can I dim the HLG-320H-C3500B for nighttime brightness reduction in outdoor LED fixtures?

Yes. The B suffix indicates a built-in 3-in-1 dimming input (0-10VDC, 10V PWM, or resistance), allowing external dimming controllers or building automation systems to reduce output. This is useful for scheduling lower brightness at night in parking lot or pathway lighting applications.

How many LEDs can I run in series with the HLG-320H-C3500B?

The exact count depends on each LED's forward voltage. The driver operates in constant current mode at 3500mA with a CC voltage range of 46-91V, so you need to sum the forward voltages of your LEDs and verify the total stays within that range. Higher forward voltage LEDs will allow fewer in series; lower forward voltage LEDs will allow more.

Can I install the HLG-320H-C3500B in a semi-exposed outdoor location?

Yes. The HLG-320H-C series is IP65 or IP67 approved against dust and water, making it suitable for sheltered outdoor enclosures, soffits, or ventilated housings. For installations requiring submersion protection, confirm this version's IP rating first.

What is the difference between the HLG-320H-C3500B and the HLG-320H-C3500A?

Both share the same 318.5W, 3500mA, 46-91V constant current specs. The -C3500A includes a built-in potentiometer for output current adjustment (1750-3500mA) but no dimming signal input. The -C3500B provides a 3-in-1 dimming input (0-10VDC, 10V PWM, or resistance) instead. The -C3500AB combines both features, and the -C3500DA uses DALI dimming.
