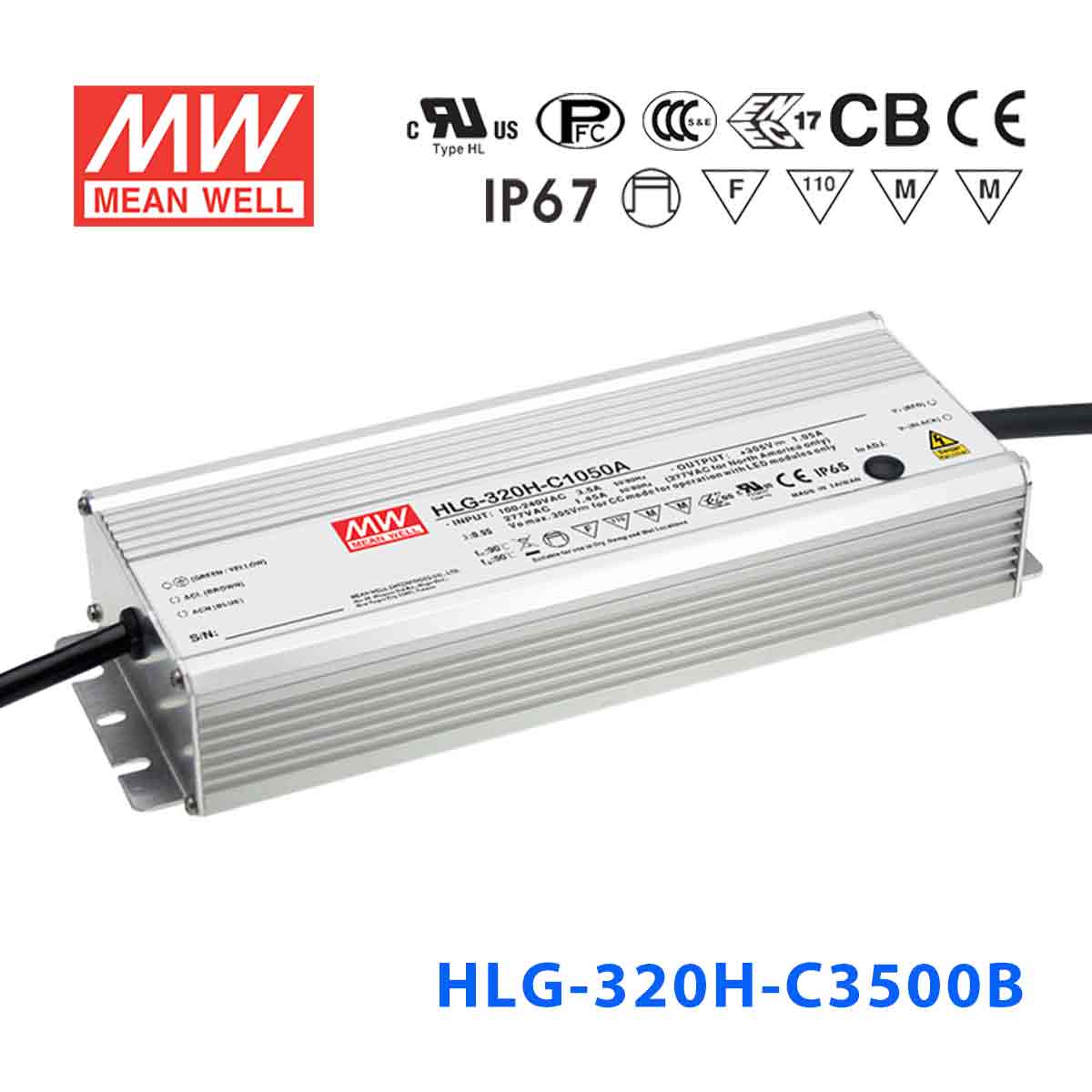

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HLG-320H-C3500AB Power Supply 318.5W 3500mA - Adjustable and Dimmable

Name: Mean Well HLG-320H-C3500AB Power Supply 318.5W 3500mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HLG-320H-C3500AB
Price: 109.15 USD
Availability: InStock

premium quality7 years warrantyaluminium casinghigh efficiencyhigh output voltage > 60VDC

SKU HLG-320H-C3500AB

$109.15 USD

Shipping calculated at checkout.

Select model — 7 in this family

HLG-320H-C3500AB

HLG-320H-C3500A 3500mA Adjustable Low stock$104.51 USD

HLG-320H-C3500AB 3500mA Adjustable and Dimmable Low stock$109.15 USD

HLG-320H-C3500DA 3500mA DALI Backorder$111.56 USD

HLG-320H-C3500B 3500mA Dimmable Low stock$99.54 USD

HLG-480H-C3500A 3500mA Adjustable Low stock$143.45 USD

HLG-480H-C3500AB 3500mA Adjustable and Dimmable Low stock$162.92 USD

HLG-480H-C3500B 3500mA Dimmable Low stock$154.07 USD

Product variants

In stock

Overview

HLG-320H-C3500AB is the model of this series: rated current 3500mA, rated power 318.5W, typical efficiency 94%.

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-320H-C3500ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 3500mA
RATED POWER: 318.5W
CONSTANT CURRENT REGION^Note.2: 46 ~ 91V
OPEN CIRCUIT VOLTAGE (max.): 95V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 1750 ~ 3500mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 96 ~ 105V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP65 or IP67 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

Type: HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-320H-C3500AB BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-320H-C3500AB DIMMING OPERATION — DIMMING OPERATION

HLG-320H-C3500AB 320W Constant Current Mode LED Driver — 320W Constant Current Mode LED Driver

HLG-320H-C3500AB OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-320H-C3500AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-320H-C3500AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-320H-C3500AB LIFETIME(Kh) — LIFETIME(Kh)

HLG-320H-C3500AB MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Downloads

Certificates4

UL Certificate (HLG-320H-C)(EN) PDF Download

CB Certificate (HLG-320H-C)(EN) PDF Download

EMC Certificate (HLG-320H-C)(EN) PDF Download

ENEC Certificate(HLG-320H-C)(EN) PDF Download

Test reports1

Test Report(HLG-320H-C3500)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-320H-C3500AB for dimmable LED high-bay fixtures in a distribution center?

Yes. The HLG-320H-C3500AB delivers 3500mA constant current at 318.5W with both output adjustment and a 3-in-1 dimming input (0-10VDC, 10V PWM, or resistance). This makes it ideal for high-bay luminaires in warehouses and distribution centers where occupancy-based or daylight-responsive dimming reduces energy costs.

Is the HLG-320H-C3500AB a good choice for dimmable LED grow lights?

Yes. At 3500mA and 318.5W, it provides high drive current for demanding grow light modules in the 46-91V range. The adjustable potentiometer sets the baseline output, while the dimming input allows automated intensity changes for different photoperiods or growth stages without rewiring.

Can the HLG-320H-C3500AB power dimmable LED floodlights for an outdoor event venue?

Yes, for floodlight modules operating within the 46-91V CC range at 3500mA. The dimming input supports scene control from a lighting console. The HLG-320H-C series is IP65 or IP67 approved depending on version, so confirm this model's rating and mount the driver in a protected location or enclosure for full rain exposure.

What is the difference between the HLG-320H-C3500A and the HLG-320H-C3500AB?

Both share the same 318.5W / 95V / 3500mA core specs, 46-91V CC range, and built-in output adjustment potentiometer (1750-3500mA). The -AB adds a dimming input (0-10VDC, 10V PWM, or resistance) for external brightness control. Choose the -A if you only need fixed output adjustment, or the -AB if you need dynamic dimming capability.

How many LEDs can the HLG-320H-C3500AB drive at 3500mA?

The number depends on each LED's forward voltage. With a CC voltage range of 46-91V, divide your target string voltage by the individual LED forward voltage. The driver will regulate at 3500mA constant current as long as the total string voltage remains within 46-91V.

Can the HLG-320H-C3500AB withstand freezing outdoor conditions in a sheltered enclosure?

Yes. Its -40°C to +85°C case temperature (Tcase) range covers extreme cold without requiring a heater. The series is IP65 or IP67 approved against dust and water, making it suitable for sheltered outdoor enclosures such as pole-mounted cabinets, canopy housings, or covered equipment rooms.
