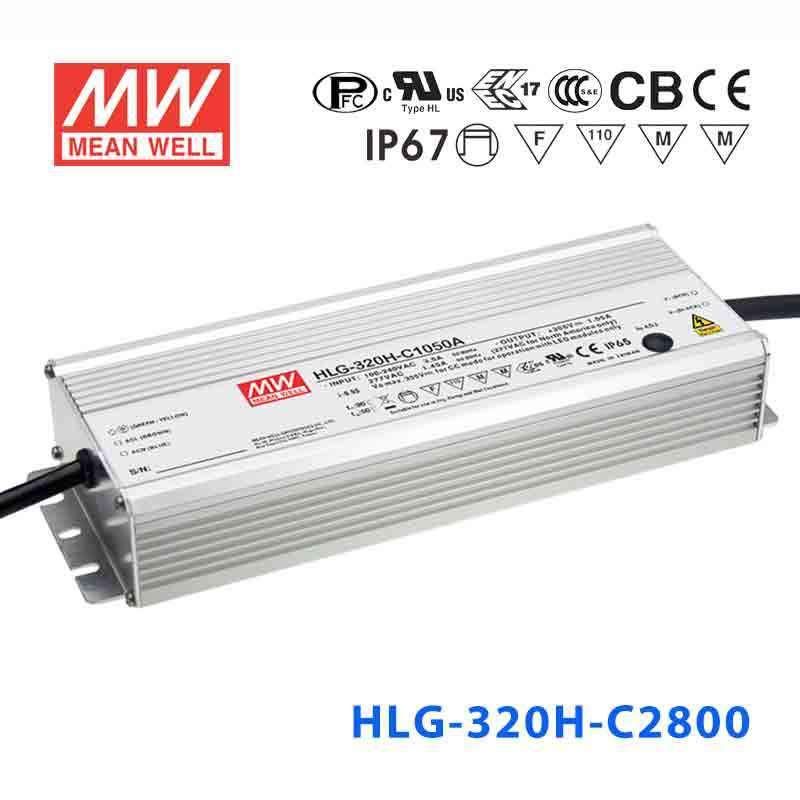

Mean Well HLG-320H-C2800B Power Supply 319.2W 2800mA - Dimmable

Name: Mean Well HLG-320H-C2800B Power Supply 319.2W 2800mA - Dimmable
Brand: Mean Well
SKU: HLG-320H-C2800B
Price: 99.54 USD
Availability: InStock

premium quality7 years warrantyaluminium casinghigh efficiencyhigh output voltage > 60VDC

SKU HLG-320H-C2800B

$99.54 USD

Shipping calculated at checkout.

Select model — 7 in this family

HLG-320H-C2800B

HLG-320H-C2800A 2800mA Adjustable Low stock$96.22 USD

HLG-320H-C2800AB 2800mA Adjustable and Dimmable Backorder$109.15 USD

HLG-320H-C2800DA 2800mA DALI Low stock$111.56 USD

HLG-320H-C2800B 2800mA Dimmable Low stock$99.54 USD

HLG-480H-C2800A 2800mA Adjustable Low stock$143.45 USD

HLG-480H-C2800AB 2800mA Adjustable and Dimmable Low stock$168.38 USD

HLG-480H-C2800B 2800mA Dimmable Low stock$153.94 USD

Product variants

In stock

Overview

HLG-320H-C2800B is the model of this series: rated current 2800mA, rated power 319.2W, typical efficiency 94%.

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-320H-C2800BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 2800mA
RATED POWER: 319.2W
CONSTANT CURRENT REGION^Note.2: 57 ~ 114V
OPEN CIRCUIT VOLTAGE (max.): 118V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 1400 ~ 2800mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 120 ~ 132V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP65 or IP67 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

Type: HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-320H-C2800B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-320H-C2800B DIMMING OPERATION — DIMMING OPERATION

HLG-320H-C2800B 320W Constant Current Mode LED Driver — 320W Constant Current Mode LED Driver

HLG-320H-C2800B OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-320H-C2800B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-320H-C2800B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-320H-C2800B LIFETIME(Kh) — LIFETIME(Kh)

HLG-320H-C2800B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Downloads

Certificates4

UL Certificate (HLG-320H-C)(EN) PDF Download

CB Certificate (HLG-320H-C)(EN) PDF Download

EMC Certificate (HLG-320H-C)(EN) PDF Download

ENEC Certificate(HLG-320H-C)(EN) PDF Download

Test reports1

Test Report(HLG-320H-C2800)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-320H-C2800B to power dimmable LED high-bay fixtures?

Yes. The HLG-320H-C2800B provides 319.2W at 2800mA constant current with a built-in dimming interface (0-10VDC, 10V PWM, or resistance). It can drive high-bay LED modules whose string voltage falls within the 57-114V range, and the dimming capability supports occupancy-based or scheduled brightness reduction.

Is the HLG-320H-C2800B suitable for LED street lighting with photocell dimming?

Yes. The dimming input accepts 0-10VDC, 10V PWM, or resistance, which many photocell dimming controllers can provide. At 319.2W and 2800mA, it can power street light modules in the 57-114V range. The series is IP65 or IP67 approved against dust and water, though it should be mounted in a pole-top enclosure for best protection.

Can the HLG-320H-C2800B drive LED fixtures in a cold-storage facility?

Yes. Its case temperature (Tcase) range of -40°C to +85°C covers cold-storage and freezer environments. The 2800mA constant current output at up to 319.2W can drive high-output LED luminaires, and the dimming input allows reducing light during non-working hours to save energy.

Will the HLG-320H-C2800B work for illuminated LED advertising displays?

Yes, provided the display modules operate within the 57-114V CC voltage range at 2800mA. The built-in dimming input is useful for reducing brightness at night. At 319.2W total output, it can handle large illuminated sign panels or backlit display cabinets.

How does the HLG-320H-C2800B differ from the HLG-320H-C2800A?

Both share identical core specs: 319.2W, 118V, 2800mA, and a 57-114V CC range. The -B model includes a dimming input (0-10VDC/PWM/resistance) but no output adjustment potentiometer. The -A model has an output adjustment potentiometer (1400-2800mA) but no dimming input. Choose -B for external dimming control or -A for fixed output trimming.

Can the HLG-320H-C2800B be mounted in an outdoor junction box?

Yes. The HLG-320H-C series is IP65 or IP67 approved for dust and water protection, making it suitable for outdoor junction boxes, electrical cabinets, or covered mounting locations. For submerged or heavily flooded installations, confirm this version's IP rating first.
