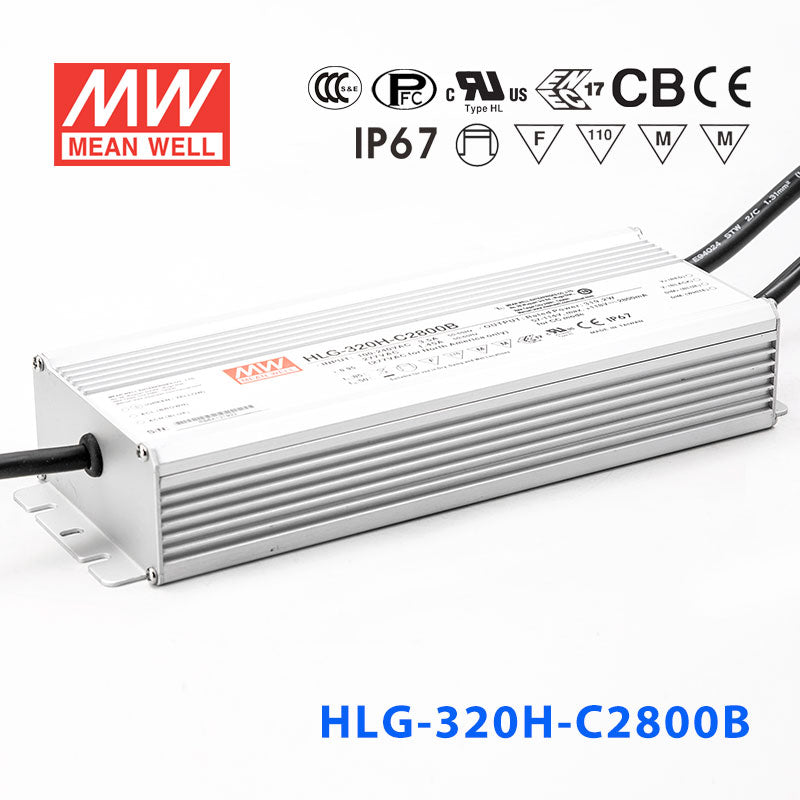

Mean Well HLG-320H-C2800AB Power Supply 319.2W 2800mA - Adjustable and Dimmable

Name: Mean Well HLG-320H-C2800AB Power Supply 319.2W 2800mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HLG-320H-C2800AB
Price: 109.15 USD
Availability: InStock

premium quality7 years warrantyaluminium casinghigh efficiencyhigh output voltage > 60VDC

SKU HLG-320H-C2800AB

$109.15 USD

Shipping calculated at checkout.

Select model — 7 in this family

HLG-320H-C2800AB

HLG-320H-C2800A 2800mA Adjustable Low stock$96.22 USD

HLG-320H-C2800AB 2800mA Adjustable and Dimmable Backorder$109.15 USD

HLG-320H-C2800DA 2800mA DALI Low stock$111.56 USD

HLG-320H-C2800B 2800mA Dimmable Low stock$99.54 USD

HLG-480H-C2800A 2800mA Adjustable Low stock$143.45 USD

HLG-480H-C2800AB 2800mA Adjustable and Dimmable Low stock$168.38 USD

HLG-480H-C2800B 2800mA Dimmable Low stock$153.94 USD

Product variants

Available to order

Overview

HLG-320H-C2800AB is the model of this series: rated current 2800mA, rated power 319.2W, typical efficiency 94%.

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-320H-C2800ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 2800mA
RATED POWER: 319.2W
CONSTANT CURRENT REGION^Note.2: 57 ~ 114V
OPEN CIRCUIT VOLTAGE (max.): 118V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 1400 ~ 2800mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 120 ~ 132V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP65 or IP67 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

Type: HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-320H-C2800AB BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-320H-C2800AB DIMMING OPERATION — DIMMING OPERATION

HLG-320H-C2800AB 320W Constant Current Mode LED Driver — 320W Constant Current Mode LED Driver

HLG-320H-C2800AB OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-320H-C2800AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-320H-C2800AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-320H-C2800AB LIFETIME(Kh) — LIFETIME(Kh)

HLG-320H-C2800AB MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Downloads

Certificates4

UL Certificate (HLG-320H-C)(EN) PDF Download

CB Certificate (HLG-320H-C)(EN) PDF Download

EMC Certificate (HLG-320H-C)(EN) PDF Download

ENEC Certificate(HLG-320H-C)(EN) PDF Download

Test reports1

Test Report(HLG-320H-C2800)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-320H-C2800AB for dimmable warehouse LED high-bay lighting?

Yes. The HLG-320H-C2800AB delivers 319.2W at 2800mA with both adjustable output and dimming input (0-10VDC, 10V PWM, or resistance). This combination lets you set a baseline output level with the potentiometer and then dynamically dim via an external signal, which is ideal for warehouse occupancy- or daylight-based dimming.

Is the HLG-320H-C2800AB a good choice for sports field LED floodlights with dimming?

It can power high-output floodlight modules operating within its 57-114V CC range at 2800mA. The dimming input allows reducing output for practice sessions versus competition lighting. However, the series is IP65 or IP67 approved depending on version, so confirm this model's rating and mount it in a sheltered enclosure if directly exposed to heavy rain.

Can I use the HLG-320H-C2800AB for large-format LED signage that needs brightness control?

Yes. At 319.2W and 2800mA, it has enough power for large sign modules in the 57-114V range. The built-in dimming lets you reduce brightness at night to comply with local light-pollution regulations or save energy, while the adjustable output trims the baseline to match your exact module configuration.

What is the difference between the A, AB, B, and DA variants of the HLG-320H-C2800?

All four share the same 319.2W / 118V / 2800mA core specs with a 57-114V CC range. The -A has an adjustable potentiometer only (1400-2800mA). The -AB adds both adjustment and 3-in-1 dimming (0-10VDC, 10V PWM, or resistance). The -B provides dimming only. The -DA replaces analog dimming with a DALI digital interface. The series is IP65 or IP67 approved depending on version.

How many LEDs can the HLG-320H-C2800AB drive in series?

The number depends on each LED's forward voltage. With a CC voltage range of 57-114V at 2800mA, divide your desired string voltage by the individual LED forward voltage. Ensure the total string voltage remains within 57-114V for proper constant current regulation.

Is the HLG-320H-C2800AB rated for dusty industrial environments?

Yes. The HLG-320H-C series is IP65 or IP67 approved; both ratings mean the enclosure is dust-tight (no dust ingress) and protected against water. This makes it suitable for factories, workshops, and dusty processing areas. The -40°C to +85°C case temperature (Tcase) range also covers harsh thermal conditions.
