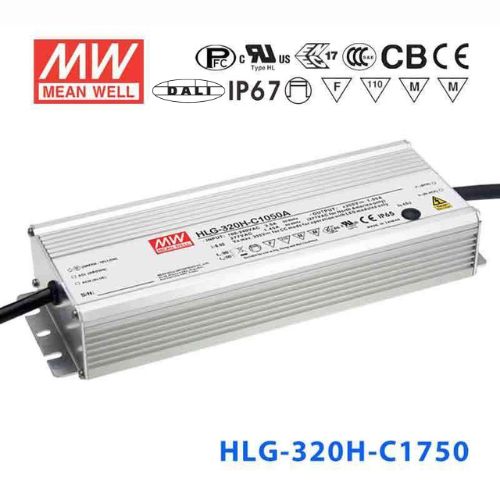

Mean Well HLG-320H-C1750DA Power Supply 320.25W 1750mA - DALI
Overview
HLG-320H-C1750DA is the model of this series: rated current 1750mA, rated power 320.25W, typical efficiency 94%. Type DA: DALI control technology (IP67).
HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- IP67 design for indoor or outdoor installations
- Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
- Typical lifetime>62000 hours
- 7 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 1750mA
- RATED POWER
- 320.25W
- CONSTANT CURRENT REGIONNote.2
- 91 ~ 183V
- OPEN CIRCUIT VOLTAGE (max.)
- 187V
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5%
- SET UP TIMENote.4
- 1000ms/115VAC, or 500ms/230VAC
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
- EFFICIENCY (Typ.)
- 94%
- AC CURRENT (Typ.)
- 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 192 ~ 211V Shut down and latch off o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down and latch off o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP67 approved
- DALI STANDARDS
- Compliance to IEC62386-101,102,(207 by request) for DA Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
OTHERS
- MTBF
- 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 252*90*43.8mm (L*W*H)
- PACKING
- 1.88Kg; 8pcs/16Kg/0.92CUFT
Certifications & ratings
- Type
- HL
MODEL ENCODING
- A
- Io adjustable through built-in potentiometer.; IP65
- B
- 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
- DA (this model)
- DALI control technology.; IP67
- AB
- Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
- DX
- Built-in Smart timer dimming function by user request.; IP67
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Typical applications
- LED street lighting
- LED fishing lamp
- LED harbor lighting
- LED building architectural lighting
- LED greenhouse lighting
- LED bay lighting
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can I use the HLG-320H-C1750DA for DALI-controlled LED street lighting?
Yes. The HLG-320H-C1750DA provides 1750mA constant current at up to 320.25W with DALI digital dimming (IEC62386-101, 102). The series is IP65 or IP67 approved, so confirm this version's rating before exposing it to rain, snow, or flooding inside street light poles or fixture housings. The DALI bus enables centralized scheduling and dimming across multiple luminaires.
Is the HLG-320H-C1750DA suitable for outdoor LED floodlights at a sports field?
Yes. The 320.25W output at 1750mA can drive high-power floodlight LED modules with string voltages in the 91-183V range. The DALI interface lets a central controller dim or switch fixtures for different event lighting scenes. The series is IP65 or IP67 approved; confirm this version's rating for direct weather exposure at the top of lighting poles.
Can I integrate the HLG-320H-C1750DA into a smart building lighting network?
Yes. The DALI interface (IEC62386-101, 102) allows individual addressing (64 addresses), group control (16 groups), and scene management through any DALI-compatible building automation system. This supports daylight harvesting, occupancy response, and scheduled dimming profiles run by the controller.
Can the HLG-320H-C1750DA be mounted in a location that may flood temporarily?
Only if this version is IP67-rated. The HLG-320H-C series is IP65 or IP67 approved, and the sheet does not assign a rating to the C1750DA, so confirm it first. An IP67 unit can handle temporary immersion but is not designed for permanent submersion; an IP65 unit is not rated for immersion. For flood-prone trenches, ensure drainage is adequate.
How do I confirm the HLG-320H-C1750DA will work with my LED modules?
Check that your LED modules require 1750mA drive current and that the total series string voltage at that current falls within 91-183V. Also verify your DALI controller supports IEC62386 devices; IEC62386-207 compliance is available by request. The driver automatically adjusts voltage to maintain 1750mA through the connected LED load.
How does the HLG-320H-C1750DA differ from the HLG-320H-C1750B?
Both deliver 1750mA at up to 320.25W with the same 91-183V CC range. The key difference is the dimming interface. The -C1750B uses analog 3-in-1 dimming (0-10VDC, 10V PWM, or resistance), while the -C1750DA uses DALI digital dimming (IEC62386-101, 102). The series is IP65 or IP67 approved depending on version. Choose DALI for digital building networks and -B for simple analog dimming.
