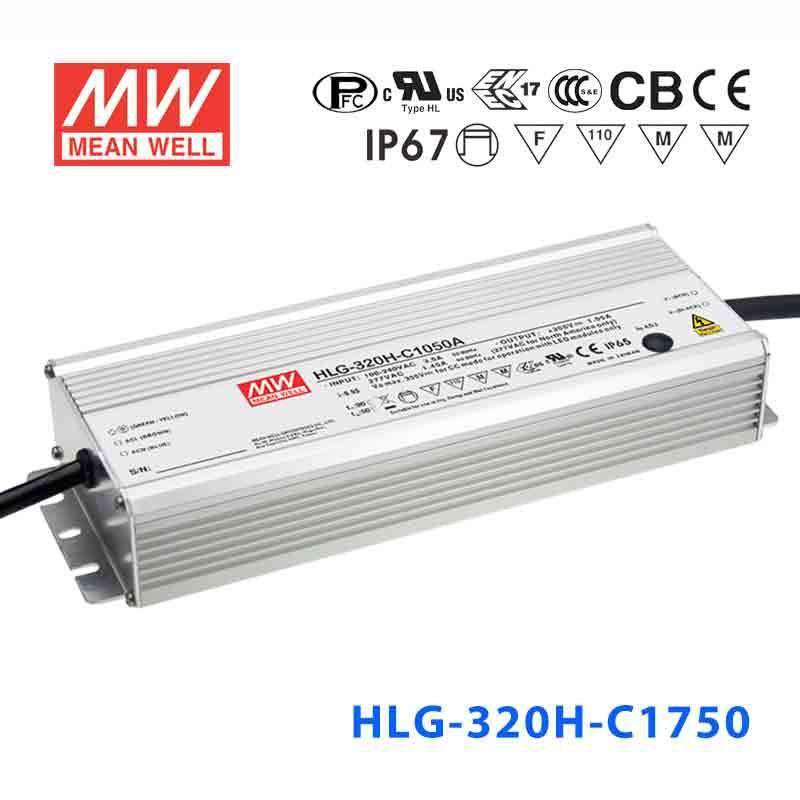

Mean Well HLG-320H-C1750A 320.25W 1750mA Power Supply - Adjustable

Name: Mean Well HLG-320H-C1750A Power Supply 320.25W 1750mA - Adjustable
Brand: Mean Well
SKU: HLG-320H-C1750A
Price: 96.22 USD
Availability: InStock

Overview

HLG-320H-C1750A is the model of this series: rated current 1750mA, rated power 320.25W, typical efficiency 94%. Type A: Io adjustable through built-in potentiometer (IP65).

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-320H-C1750ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1750mA
RATED POWER: 320.25W
CONSTANT CURRENT REGION^Note.2: 91 ~ 183V
OPEN CIRCUIT VOLTAGE (max.): 187V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 875 ~ 1750mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 192 ~ 211V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A (this model): Io adjustable through built-in potentiometer.; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
DA: DALI control technology.; IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request.; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-320H-C1750A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-320H-C1750A 320W Constant Current Mode LED Driver — 320W Constant Current Mode LED Driver

HLG-320H-C1750A OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-320H-C1750A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-320H-C1750A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-320H-C1750A LIFETIME(Kh) — LIFETIME(Kh)

HLG-320H-C1750A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

Typical applications

Downloads

Datasheet1

HLG-320H-C1750A datasheetHLG-320H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates4

UL Certificate(HLG-320H-C)(EN) PDF Download

CB Certificate(HLG-320H-C)(EN) PDF Download

EMC Certificate(HLG-320H-C)(EN) PDF Download

ENEC Certificate(HLG-320H-C)(EN) PDF Download

Test reports1

Test Report(HLG-320H-C1750)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-320H-C1750A to power high-output LED grow light modules?

Yes, provided the LED modules operate at 1750mA and their total string voltage falls within the 91-183V constant-current range. The 320.25W output is well suited for high-intensity horticulture fixtures. The built-in potentiometer on the -A variant lets you fine-tune the output current to match specific LED bin characteristics.

Is the HLG-320H-C1750A a good fit for driving LED high-bay fixtures in an industrial facility?

Yes. At 1750mA and up to 320.25W, it can power high-bay LED modules with string voltages in the 91-183V range. The adjustable output (875-1750mA) lets you reduce current to extend LED lifespan or match specific fixture requirements. Its -40°C to +85°C case temperature (Tcase) range and IP65/IP67-approved enclosure handle typical factory conditions.

Can the HLG-320H-C1750A drive LED modules in outdoor area lighting?

Yes, in sheltered outdoor locations. The HLG-320H-C series is IP65 or IP67 approved against dust and water, suitable for installation under canopies, inside poles, or in ventilated enclosures. For fully exposed outdoor mounting, confirm this version's IP rating first.

What does the adjustable output on the HLG-320H-C1750A allow me to do?

The built-in potentiometer lets you adjust the output current between 875mA and the rated 1750mA. This is useful for derating the LED drive current to reduce heat, extend LED life, or match a specific LED module's optimal operating current without needing an external dimmer or controller.

How many series LEDs can the HLG-320H-C1750A support?

The number depends on each LED's forward voltage at 1750mA. The driver's constant-current output range is 91-183V, so you divide that range by the individual LED forward voltage to determine the allowable series count. Ensure the total string voltage under operating conditions stays within 91-183V.

Can the HLG-320H-C1750A operate in freezing environments like a cold storage facility?

Yes. The HLG-320H-C1750A is rated for a case temperature (Tcase) of -40°C to +85°C, so it can handle cold storage and freezer environments. Working humidity is rated 20-95% RH non-condensing, so ensure any condensation risk is managed by the enclosure design.
