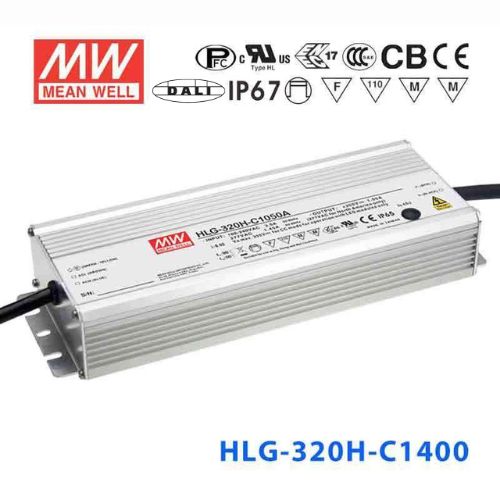

Mean Well HLG-320H-C1400DA Power Supply 320.6W 1400mA - DALI

Name: Mean Well HLG-320H-C1400DA Power Supply 320.6W 1400mA - DALI
Brand: Mean Well
SKU: HLG-320H-C1400DA
Price: 111.56 USD
Availability: InStock

Overview

HLG-320H-C1400DA is the model of this series: rated current 1400mA, rated power 320.6W, typical efficiency 94%. Type DA: DALI control technology (IP67).

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 design for indoor or outdoor installations
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-320H-C1400DASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER: 320.6W
CONSTANT CURRENT REGION^Note.2: 114 ~ 229V
OPEN CIRCUIT VOLTAGE (max.): 234V
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 235 ~ 252V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP67 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A: Io adjustable through built-in potentiometer.; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
DA (this model): DALI control technology.; IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request.; IP67

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-320H-C1400DA BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-320H-C1400DA 320W Constant Current Mode LED Driver — 320W Constant Current Mode LED Driver

HLG-320H-C1400DA OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-320H-C1400DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-320H-C1400DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-320H-C1400DA LIFETIME(Kh) — LIFETIME(Kh)

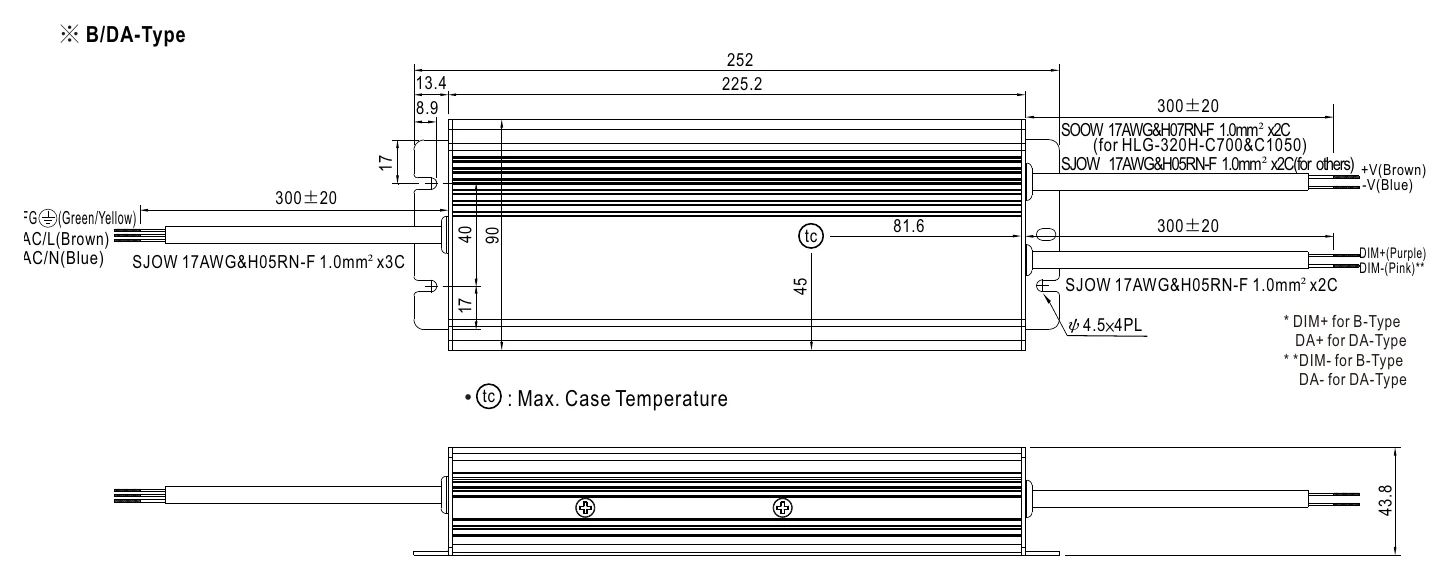

HLG-320H-C1400DA MECHANICAL SPECIFICATION ※ B/DA-Type — MECHANICAL SPECIFICATION ※ B/DA-Type

Typical applications

Downloads

Datasheet1

HLG-320H-C1400DA datasheetHLG-320H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates4

UL Certificate(HLG-320H-C)(EN) PDF Download

CB Certificate(HLG-320H-C)(EN) PDF Download

EMC Certificate(HLG-320H-C)(EN) PDF Download

ENEC Certificate(HLG-320H-C)(EN) PDF Download

Test reports1

Test Report(HLG-320H-C1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-320H-C1400DA to power LED street light fixtures with DALI control?

Yes. The HLG-320H-C1400DA outputs 1400mA constant current at up to 320.6W and supports DALI digital dimming (IEC62386-101, 102), making it suitable for smart street lighting systems. The series is IP65 or IP67 approved, so confirm this version's rating before mounting it inside pole bases or fixture housings exposed to weather.

Is the HLG-320H-C1400DA suitable for outdoor LED floodlights in a parking lot?

Yes. The 320.6W output at 1400mA provides ample power for high-output LED floodlight modules whose string voltage falls within the 114-229V range. The IP65/IP67-approved enclosure suits outdoor use (confirm this version's rating for direct rain and pooling), and the DALI interface enables centralized dimming schedules for energy management across the lot.

Can I integrate the HLG-320H-C1400DA into a building management system?

Yes. The DALI interface (IEC62386-101, 102) on the HLG-320H-C1400DA allows integration with DALI-compatible building automation controllers. This enables scheduled dimming, daylight harvesting, and occupancy-based control. The driver can be addressed individually (64 addresses) or as part of one of 16 DALI groups on a shared two-wire bus.

Can the HLG-320H-C1400DA drive LED arrays for large illuminated signage outdoors?

Yes, provided the LED string voltage at 1400mA falls within 114-229V. The 320.6W capacity supports demanding sign loads, and the DALI control lets you remotely adjust brightness. The series is IP65 or IP67 approved; confirm this version's rating before using it in exposed outdoor enclosures without additional weatherproofing.

How do I determine if the HLG-320H-C1400DA is compatible with my LED load?

Verify that your LED module or string requires 1400mA drive current and that its total forward voltage falls within the 114-229V constant-current range. The driver will automatically adjust its output voltage to maintain 1400mA through the load. Also confirm your DALI controller supports IEC62386 DALI devices for full dimming functionality.

Can the HLG-320H-C1400DA withstand installation in a coastal environment?

The HLG-320H-C series is IP65 or IP67 approved, so the enclosure is dust-tight and protected against water, and its -40°C to +85°C case temperature (Tcase) range suits coastal climates. The sheet gives no salt-spray rating, so in highly corrosive coastal environments additional protective measures such as a secondary enclosure are still recommended.
