Mean Well HLG-320H-C1050DA Power Supply - Constant Current LED Driver

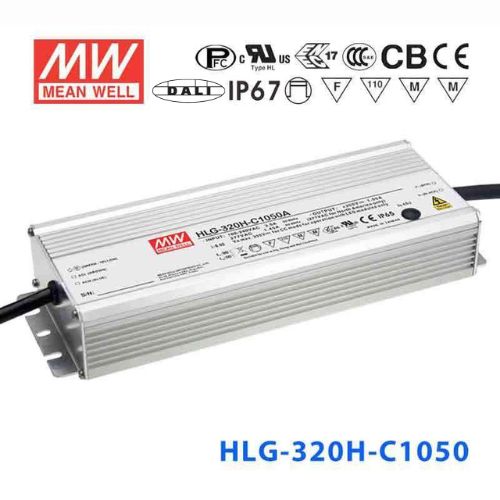

Name: Mean Well HLG-320H-C1050DA Power Supply 320.25W 1050mA - DALI
Brand: Mean Well
SKU: HLG-320H-C1050DA
Price: 111.56 USD
Availability: InStock

Overview

HLG-320H-C1050DA is the model of this series: rated current 1050mA, rated power 320.25W, typical efficiency 94%. Type DA: DALI control technology (IP67).

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 design for indoor or outdoor installations
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-320H-C1050DASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1050mA
RATED POWER: 320.25W
CONSTANT CURRENT REGION^Note.2: 152 ~ 305V
OPEN CIRCUIT VOLTAGE (max.): 311V
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 320 ~ 352V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP67 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A: Io adjustable through built-in potentiometer.; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
DA (this model): DALI control technology.; IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request.; IP67

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-320H-C1050DA BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-320H-C1050DA 320W Constant Current Mode LED Driver — 320W Constant Current Mode LED Driver

HLG-320H-C1050DA OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-320H-C1050DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-320H-C1050DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-320H-C1050DA LIFETIME(Kh) — LIFETIME(Kh)

HLG-320H-C1050DA MECHANICAL SPECIFICATION ※ B/DA-Type — MECHANICAL SPECIFICATION ※ B/DA-Type

Typical applications

Downloads

Datasheet1

HLG-320H-C1050DA datasheetHLG-320H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates4

UL Certificate(HLG-320H-C)(EN) PDF Download

CB Certificate(HLG-320H-C)(EN) PDF Download

EMC Certificate(HLG-320H-C)(EN) PDF Download

ENEC Certificate(HLG-320H-C)(EN) PDF Download

Test reports1

Test Report(HLG-320H-C1050)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-320H-C1050DA with a DALI lighting control system?

Yes. The DA suffix indicates a built-in DALI interface compliant with IEC62386-101 and 102 (207 by request). You can integrate this driver directly into a DALI bus for centralized dimming control and scene management, with 16 groups and 64 addresses. It delivers 1050mA constant current at up to 320.25W across a 152-305V range.

Is the HLG-320H-C1050DA suitable for outdoor LED fixtures fully exposed to rain?

It depends on the version's rating. The HLG-320H-C series is IP65 or IP67 approved, but the sheet does not state which rating applies to the C1050DA, so confirm it before exposing the driver directly to rain, ground-recessed fixtures, or locations where standing water is expected. Its -40°C to +85°C case temperature range suits outdoor climates.

Can I use the HLG-320H-C1050DA for smart building LED lighting with automated scheduling?

Yes. DALI enables individual fixture addressing (64 addresses), group dimming (16 groups), and scheduled scene changes through a DALI controller or building automation system. The 320.25W output at 1050mA handles demanding commercial fixtures, and the IP65/IP67-approved enclosure allows placement indoors and in sheltered outdoor locations.

Is the HLG-320H-C1050DA a good fit for LED tunnel or underpass lighting on a DALI bus?

Yes. Tunnel lighting often requires DALI control for daylight-adaptive dimming at entry and exit zones. This driver provides 1050mA constant current at up to 320.25W, and the series is IP65 or IP67 approved against dust and moisture. The -40°C to +85°C case temperature (Tcase) range covers seasonal extremes.

What is the LED string voltage requirement for the HLG-320H-C1050DA?

The constant-current operating range is 152-305V at 1050mA. configure your LEDs in series so the combined forward voltage falls within this window. The exact LED count depends on each LED's forward voltage — sum them and verify the total is between 152V and 305V.

How do the IP65 and IP67 ratings of the HLG-320H-C1050 variants compare?

IP65 protects against dust and water jets, suitable for sheltered outdoor or indoor locations. IP67 adds protection against temporary immersion in water. The sheet lists the HLG-320H-C series as IP65 or IP67 approved without assigning a rating to each version, so confirm the C1050DA's rating before using it where heavy rain, flooding risk, or pooling water is possible.
