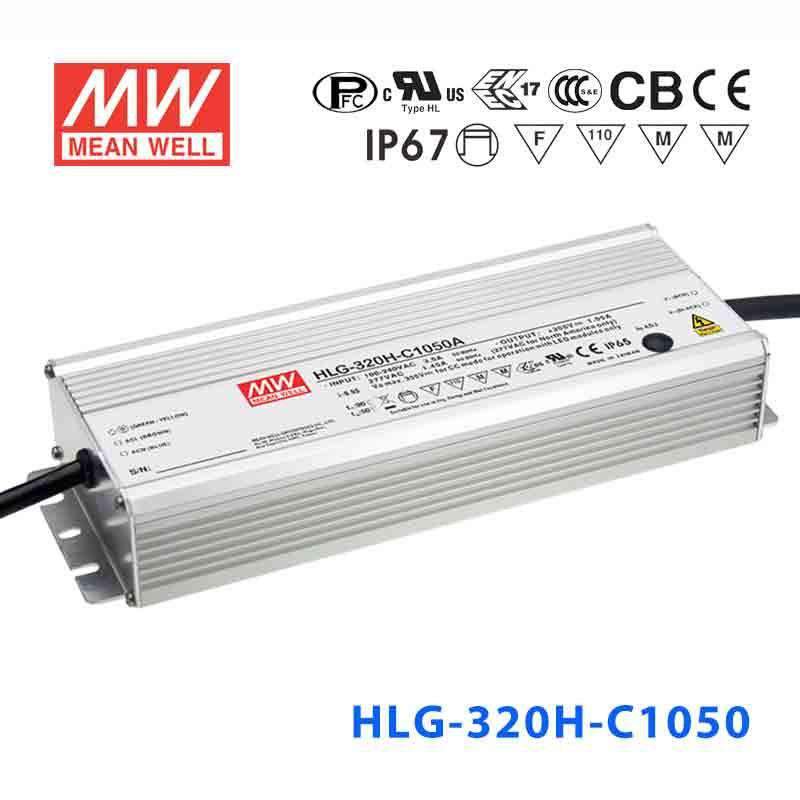

Mean Well HLG-320H-C1050A Power Supply - Universal AC Input, High Efficiency - IP67 - Adjustable Output Current - LED and Street Lighting Applications

Name: Mean Well HLG-320H-C1050A Power Supply 320.25W 1050mA - Adjustable
Brand: Mean Well
SKU: HLG-320H-C1050A
Price: 96.06 USD
Availability: InStock

Overview

HLG-320H-C1050A is the model of this series: rated current 1050mA, rated power 320.25W, typical efficiency 94%. Type A: Io adjustable through built-in potentiometer (IP65).

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-320H-C1050ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1050mA
RATED POWER: 320.25W
CONSTANT CURRENT REGION^Note.2: 152 ~ 305V
OPEN CIRCUIT VOLTAGE (max.): 311V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 525 ~ 1050mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 320 ~ 352V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A (this model): Io adjustable through built-in potentiometer.; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
DA: DALI control technology.; IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request.; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-320H-C1050A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-320H-C1050A 320W Constant Current Mode LED Driver — 320W Constant Current Mode LED Driver

HLG-320H-C1050A OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-320H-C1050A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-320H-C1050A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-320H-C1050A LIFETIME(Kh) — LIFETIME(Kh)

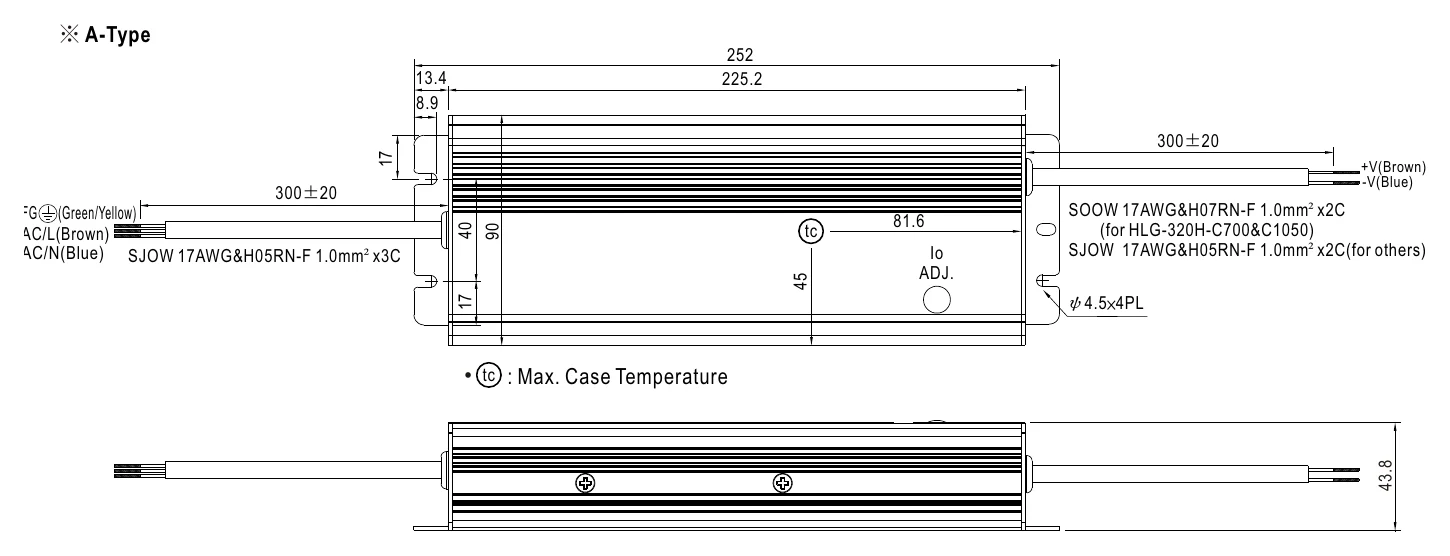

HLG-320H-C1050A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

Typical applications

Downloads

Datasheet1

HLG-320H-C1050A datasheetHLG-320H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates4

UL Certificate(HLG-320H-C)(EN) PDF Download

CB Certificate(HLG-320H-C)(EN) PDF Download

EMC Certificate(HLG-320H-C)(EN) PDF Download

ENEC Certificate(HLG-320H-C)(EN) PDF Download

Test reports1

Test Report(HLG-320H-C1050)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-320H-C1050A to power high-output LED floodlights?

Yes. The HLG-320H-C1050A delivers 1050mA constant current at up to 320.25W with a CC voltage range of 152-305V. This makes it well suited for high-output LED floodlights used in sports facility lighting, parking lot illumination, or building facade wash lights that require high-voltage series-connected LED arrays.

Is the HLG-320H-C1050A suitable for driving LEDs in large-format commercial signage?

Yes. At 320.25W and 1050mA constant current, this driver can power high-voltage LED strings in large channel letters, pylon signs, or monument sign cabinets. The built-in potentiometer lets you trim the output current between 525mA and 1050mA to suit your LED string within the 152-305V range.

Can I adjust the output of the HLG-320H-C1050A to match my LED load?

Yes. The A suffix indicates a built-in output adjustment potentiometer. This lets you fine-tune the constant-current output level to match your specific LED configuration without needing an external dimmer or controller. The CC voltage range spans 152-305V.

Is the HLG-320H-C1050A appropriate for high-bay LED lighting in industrial facilities?

Yes. With 320.25W at 1050mA, it handles high-bay fixtures with series LED strings in the 152-305V range. The IP65/IP67-approved enclosure and -40°C to +85°C case temperature (Tcase) range suit factories, distribution centers, and covered industrial bays where dust and occasional moisture are present.

What total forward voltage range should my LED string have for the HLG-320H-C1050A?

Your series-connected LED string's total forward voltage should fall within 152-305V. The driver operates in constant-current mode at 1050mA. The exact number of LEDs you can wire in series depends on each LED's individual forward voltage — sum them to ensure the total stays in the 152-305V window.

Can I install the HLG-320H-C1050A outdoors under a canopy or in a ventilated cabinet?

Yes. The HLG-320H-C series is IP65 or IP67 approved, protecting against dust ingress and water, making it suitable for covered outdoor locations such as canopy-mounted fixtures, ventilated electrical cabinets, or sheltered pole-mount enclosures. Avoid fully submerged installations.
