Mean Well HLG-240H-C1750A Power Supply 250.25W 1750mA - Adjustable | HLG-C Series - Constant Current LED Driver

Name: Mean Well HLG-240H-C1750A Power Supply 250.25W 1750mA - Adjustable
Brand: Mean Well
SKU: HLG-240H-C1750A
Price: 73.6 USD
Availability: InStock

Overview

HLG-240H-C1750A is the model of this series: rated current 1750mA, rated power 250.25W, typical efficiency 94%. Type A: Io adjustable through built-in potentiometer (IP65).

HLG-240H-C series is a 250W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-240H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifet ime>62000 hours
7 years warranty

Specifications

HLG-240H-C1750ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1750mA
RATED POWER: 250.25W
CONSTANT CURRENT REGION^Note.2: 71 ~ 143V
OPEN CIRCUIT VOLTAGE (max.): 146V
CURRENT ADJ. RANGE: Can be adjusted by internal potentiometer
CURRENT ADJ. RANGE: 875 ~ 1750mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 2.5A / 115VAC 1.3A / 230VAC 1.1A / 277VAC
INRUSH CURRENT(Typ.): COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 150 ~ 165V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Refer to "Derating Curve")
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213; IP65, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 2513.7K hrs min. Telcordia SR-332 (Bellcore) ; 228.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244.2*68*38.8mm (L*W*H)
PACKING: 1.3Kg; 12pcs/16.6Kg/0.84CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A (this model): Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request; IP67
D2: Built-in Smart timer dimming and programmable function; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-240H-C1750A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-240H-C1750A Illustration (page 5) — Illustration (page 5)

HLG-240H-C1750A 250W Constant Current Mode LED Driver — 250W Constant Current Mode LED Driver

HLG-240H-C1750A OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-240H-C1750A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-240H-C1750A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-240H-C1750A LIFETIME(Kh) — LIFETIME(Kh)

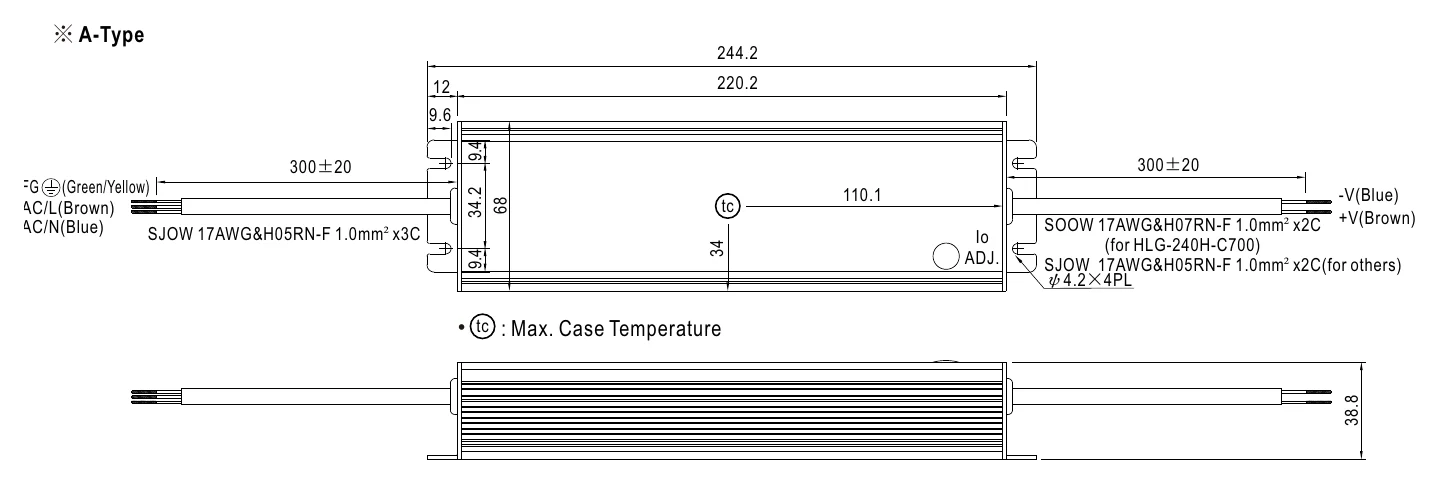

HLG-240H-C1750A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

Typical applications

LED street lighting
LED fishing lamp
LED harbor lighting
LED building architectural lighting
LED bay lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-240H-C1750A datasheetHLG-240H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates4

UL Certificate (HLG-240H-C)(EN) PDF Download

CB Certificate (HLG-240H-C)(EN) PDF Download

EMC Certificate (HLG-240H-C)(EN) PDF Download

ENEC Certificate (HLG-240H-C)(EN) PDF Download

Test reports1

Test Report(HLG-240H-C1750)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-240H-C1750A to power high-output LED downlights?

Yes. The HLG-240H-C1750A provides a constant 1750mA with a CC voltage range of 71-143V, delivering up to 250.25W. It can drive high-output LED downlight modules wired in series as long as their combined forward voltage falls between 71V and 143V. The adjustable output potentiometer lets you reduce the drive current to fine-tune brightness.

Is the HLG-240H-C1750A a good choice for driving LED modules in an indoor signage array?

Yes. At 1750mA and up to 250.25W, this driver handles high-brightness signage modules comfortably. The CC voltage range of 71-143V accommodates various series string configurations. Since it is a constant-current driver, it maintains consistent brightness across the LED string regardless of minor voltage variations.

Can the HLG-240H-C1750A drive LED grow light arrays?

Yes, provided the LED array's total forward voltage falls within 71-143V at 1750mA. At 250.25W, this driver has enough capacity for a sizeable grow light panel. The adjustable output current is useful for tuning light intensity to different growth stages. Note the working humidity rating is 20-95% RH non-condensing, so protect it from condensation and direct water spray in a greenhouse.

How do I adjust the output current on the HLG-240H-C1750A?

The A suffix means it includes a built-in potentiometer for output current adjustment. You can turn the potentiometer to reduce the drive current below the rated 1750mA, which lowers LED brightness. This variant does not include a remote dimming input, so adjustment must be done manually at the driver. For remote dimming, consider the -C1750AB or -C1750B.

Can the HLG-240H-C1750A be installed in a damp warehouse ceiling space?

Yes. The series is rated IP65 or IP67 depending on type for dust and water protection, and the working humidity rating is 20-95% RH non-condensing. A damp ceiling plenum or warehouse is suitable provided condensation is avoided; the case temperature must stay within -40°C to +90°C, with output derating at high ambient temperatures.

What are the differences between the HLG-240H constant-current variants at the 250W level?

The HLG-240H-C series at approximately 250W comes in several current ratings: C700 (700mA, 178-357V), C1050 (1050mA, 119-238V), C1400 (1400mA, 89-179V), C1750 (1750mA, 71-143V), and C2100 (2100mA, 59-119V). All share the same 244.2 x 68 x 38.8mm case. The choice depends on your LED string's forward voltage and required drive current.
