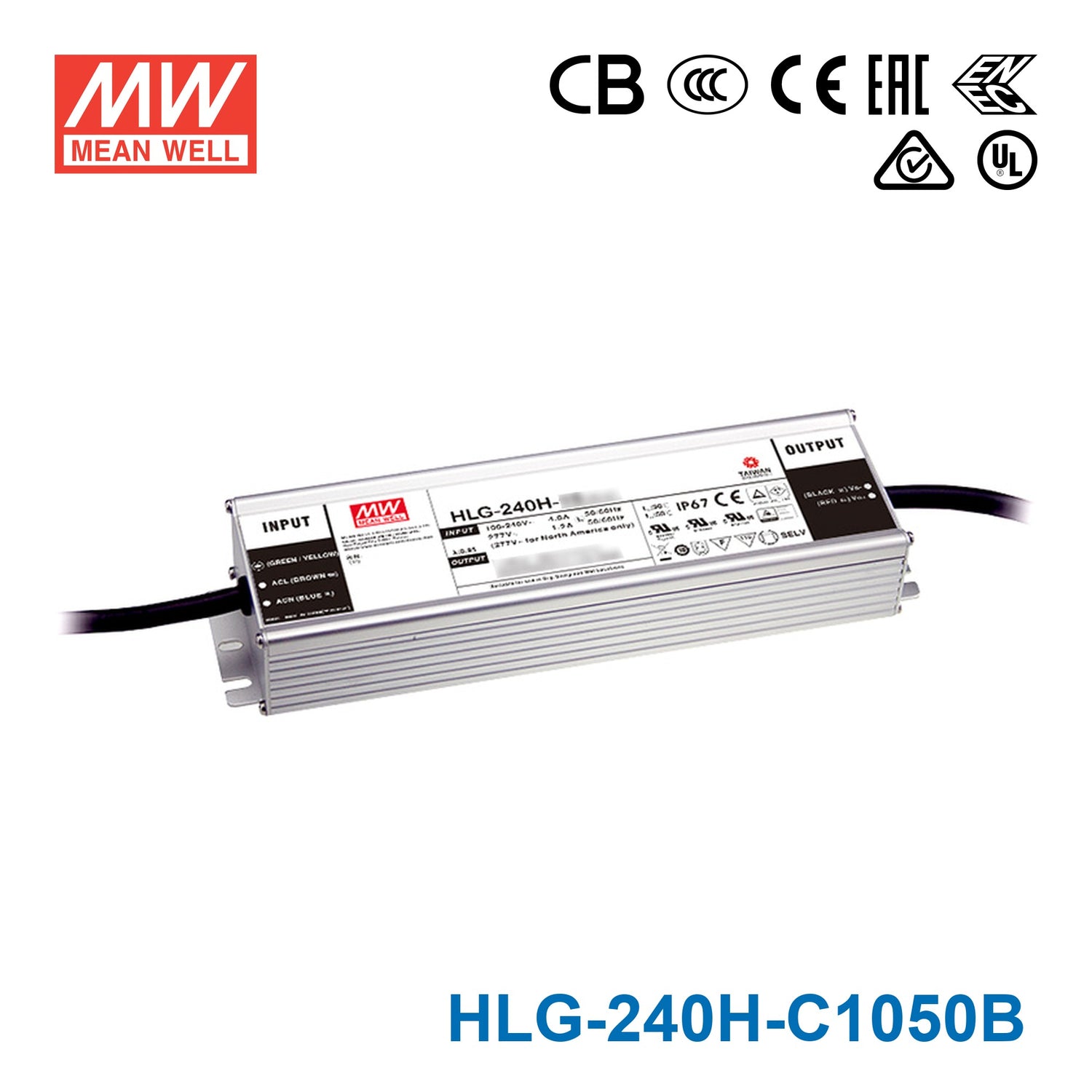

Mean Well HLG-240H-C1050B Power Supply 249.9W 1050mA - Dimmable
$75.56 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 95% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Cooling by free air convection |
| Output current adjustable |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W) |
| Optional CQC models available (A/Blank-Type) |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 75A at 230VAC |
| DC adjustment range | ±6% rated output voltage |
| Current adjustment range | 50%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 2500ms, 80ms, 15ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1, TUV EN60950-1 |
| EMC standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm); |
| Connection Output | A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm); C-Type: Terminal block |
| Dimension (LxWxH) (mm) | A/B/D/Blank-Type: 244.2x 68x 38.8 C-Type: 251x 68x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating249.9 Watt
-
Output Voltage241 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.61 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.87 lb
