Mean Well HLG-240H-C1050AB LED Driver- Adjustable and Dimmable

Name: Mean Well HLG-240H-C1050AB Power Supply 249.9W 1050mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HLG-240H-C1050AB
Price: 81.81 USD
Availability: InStock

Overview

HLG-240H-C1050AB is the model of this series: rated current 1050mA, rated power 249.9W, typical efficiency 93.5%. Type AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP65).

HLG-240H-C series is a 250W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-240H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifet ime>62000 hours
7 years warranty

Specifications

HLG-240H-C1050ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1050mA
RATED POWER: 249.9W
CONSTANT CURRENT REGION^Note.2: 119 ~ 238V
OPEN CIRCUIT VOLTAGE (max.): 241V
CURRENT ADJ. RANGE: Can be adjusted by internal potentiometer (A/AB type only)
CURRENT ADJ. RANGE: 525 ~ 1050mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.): 2.5A / 115VAC 1.3A / 230VAC 1.1A / 277VAC
INRUSH CURRENT(Typ.): COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 250 ~ 275V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Refer to "Derating Curve")
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213; IP65, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 2513.7K hrs min. Telcordia SR-332 (Bellcore) ; 228.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244.2*68*38.8mm (L*W*H)
PACKING: 1.3Kg; 12pcs/16.6Kg/0.84CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request; IP67
D2: Built-in Smart timer dimming and programmable function; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-240H-C1050AB BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-240H-C1050AB DIMMING OPERATION — DIMMING OPERATION

HLG-240H-C1050AB Illustration (page 5) — Illustration (page 5)

HLG-240H-C1050AB 250W Constant Current Mode LED Driver — 250W Constant Current Mode LED Driver

HLG-240H-C1050AB OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-240H-C1050AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-240H-C1050AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-240H-C1050AB LIFETIME(Kh) — LIFETIME(Kh)

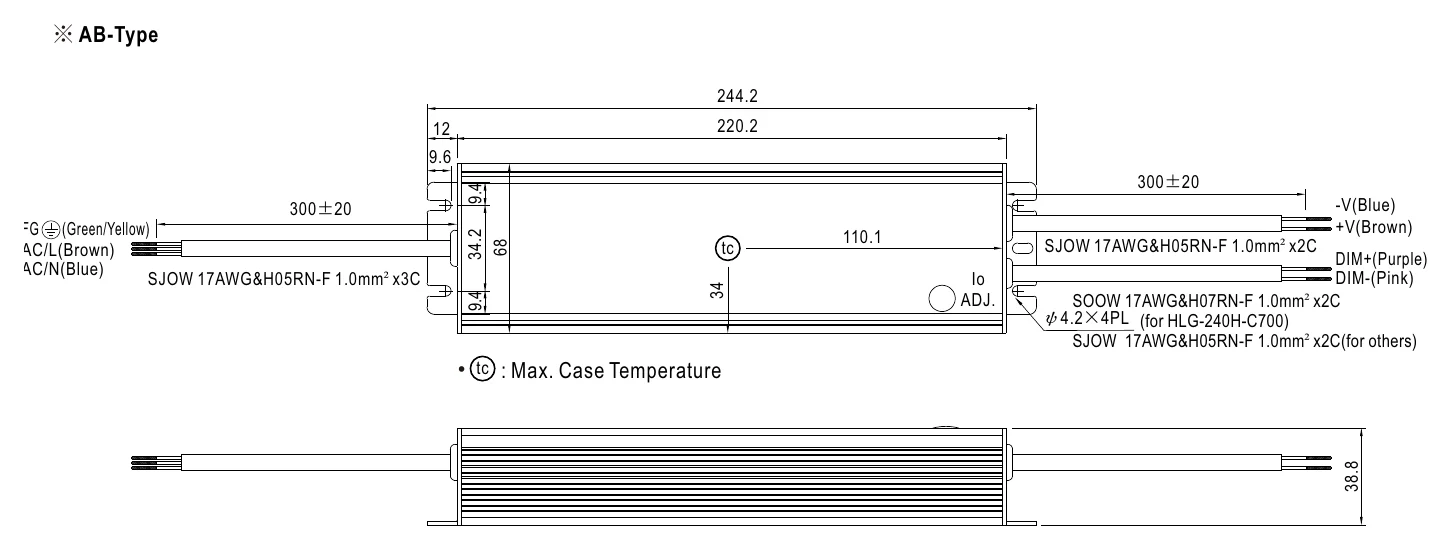

HLG-240H-C1050AB MECHANICAL SPECIFICATION ※ AB-Type — MECHANICAL SPECIFICATION ※ AB-Type

Typical applications

LED street lighting
LED fishing lamp
LED harbor lighting
LED building architectural lighting
LED bay lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-240H-C1050AB datasheetHLG-240H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates4

UL Certificate (HLG-240H-C)(EN) PDF Download

CB Certificate (HLG-240H-C)(EN) PDF Download

EMC Certificate (HLG-240H-C)(EN) PDF Download

ENEC Certificate (HLG-240H-C)(EN) PDF Download

Test reports1

Test Report(HLG-240H-C1050)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-240H-C1050AB for dimmable LED high-bay lighting in a warehouse?

Yes. The HLG-240H-C1050AB delivers 1050mA constant current at 249.9W with both adjustable output and 1-10V/PWM dimming. This suits high-bay fixtures where brightness needs to change based on occupancy or daylight levels. The LED string voltage must fall within the 119-238V CC range.

Is the HLG-240H-C1050AB suitable for dimmable commercial LED panel arrays?

Yes. At 249.9W and 1050mA, it powers medium-to-large LED panel arrays with series string voltages between 119V and 238V. The dimming input integrates with building management systems for scheduled or sensor-driven brightness control, and the adjustable output lets you calibrate current to your panels' optimal operating point.

Can the HLG-240H-C1050AB drive LED modules for large illuminated signage with dimming?

Yes. The 1050mA constant current output handles large sign module arrays whose combined forward voltage stays within 119-238V. The 1-10V/PWM dimming input enables day/night brightness scheduling, and the adjustable output trims current to match your specific LED module requirements.

What dimming methods does the HLG-240H-C1050AB support?

The HLG-240H-C1050AB accepts 1-10V analog and PWM dimming signals through its built-in dimming input. This allows integration with standard wall dimmers, lighting controllers, and building automation systems. The adjustable output potentiometer provides an additional level of static current calibration independent of the dimming signal.

How does the HLG-240H-C1050AB handle humid or dusty industrial environments?

The series is rated IP65 or IP67 depending on type for dust and water protection, and the working humidity rating is 20-95% RH non-condensing. With a case temperature (Tcase) range of -40°C to +90°C (output derating applies at high ambient temperatures), it suits warehouses, production floors, and covered outdoor industrial areas.

What LED string voltage range is compatible with the HLG-240H-C1050AB?

The CC voltage range is 119-238V. Your LED series string's total forward voltage must fall within this window. The driver automatically regulates its output voltage to deliver a steady 1050mA to the load. The number of LEDs in series depends on each LED's forward voltage.
