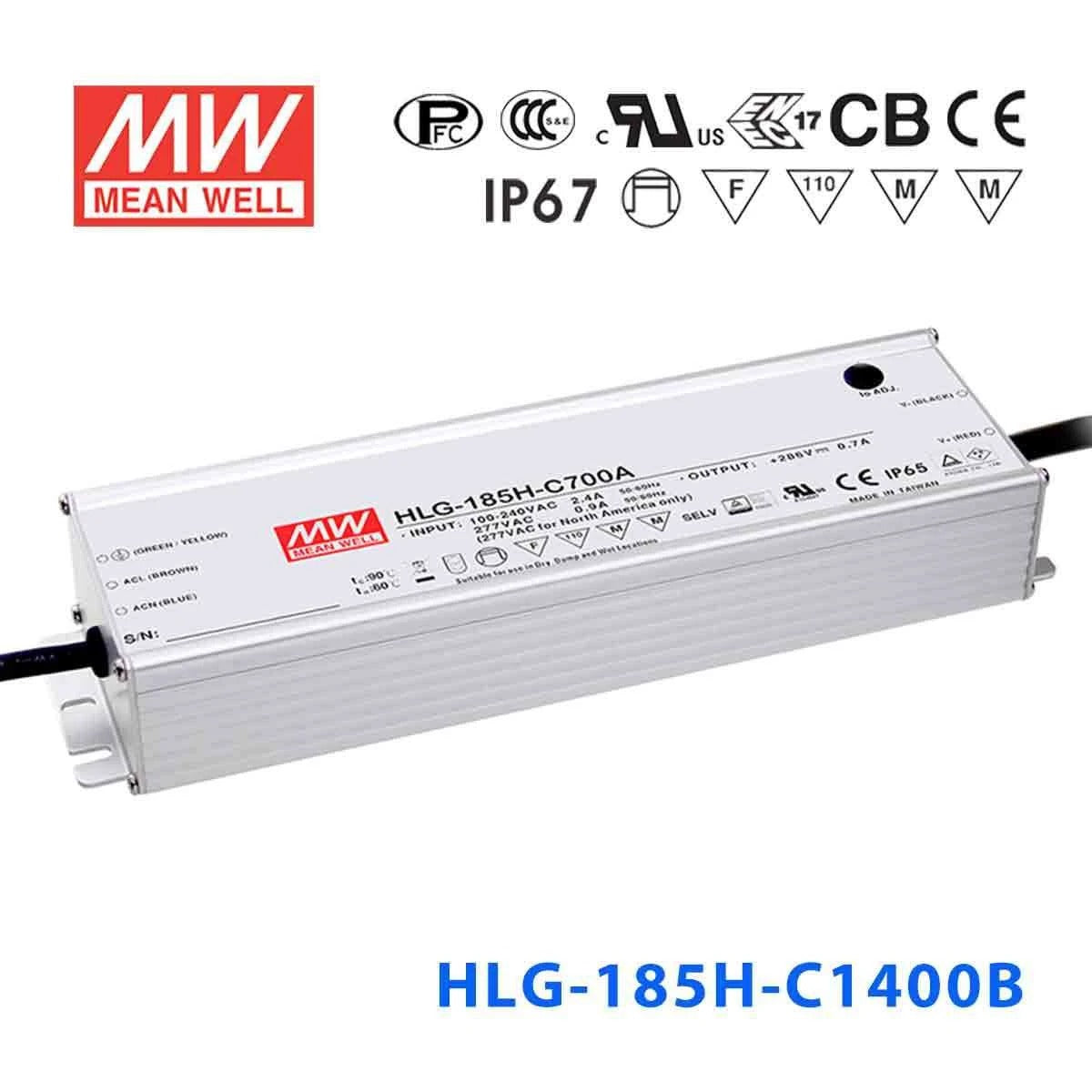

Mean Well HLG-185H-C1400B Constant Current LED Driver

Name: Mean Well HLG-185H-C1400B Power Supply 200.2W 1400mA - Dimmable
Brand: Mean Well
SKU: HLG-185H-C1400B
Price: 58.67 USD
Availability: InStock

Overview

HLG-185H-C1400B is the model of this series: rated current 1400mA, rated power 200.2W, typical efficiency 94%. Type B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP67).

HLG-185H-C series is a 200W AC/DC LED power supply featuring the constant current mode and high voltage output. HLG-185H-C operates from 90~305VAC and offers models with different rated current ranging between 500mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 design for indoor or outdoor installations
Function options: 3 in 1 dimming
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-185H-C1400BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER: 200.2W
CONSTANT CURRENT REGION^Note.2: 71V ~ 143V
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC or PF≧0.96/230VAC or PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%@≧50% load/115VAC, or 230VAC, or @≧75% load/277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 2A / 115VAC 1A / 230VAC 0.85A / 277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=900μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 160 ~ 170V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.7: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Refer to "Derating Curve")
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes;

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB/T19510.1,GB/T19510.213;IP67, J61347-1, J61347-2-13, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧50% load) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2458.6K hrs min. Telcordia SR-332 (Bellcore) ; 191.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 228*68*38.8mm (L*W*H)
PACKING: 1.15Kg; 12pcs/14.8Kg/0.8CUFT

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-185H-C1400B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-185H-C1400B DIMMING OPERATION — DIMMING OPERATION

HLG-185H-C1400B Illustration (page 5) — Illustration (page 5)

HLG-185H-C1400B OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-185H-C1400B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-185H-C1400B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

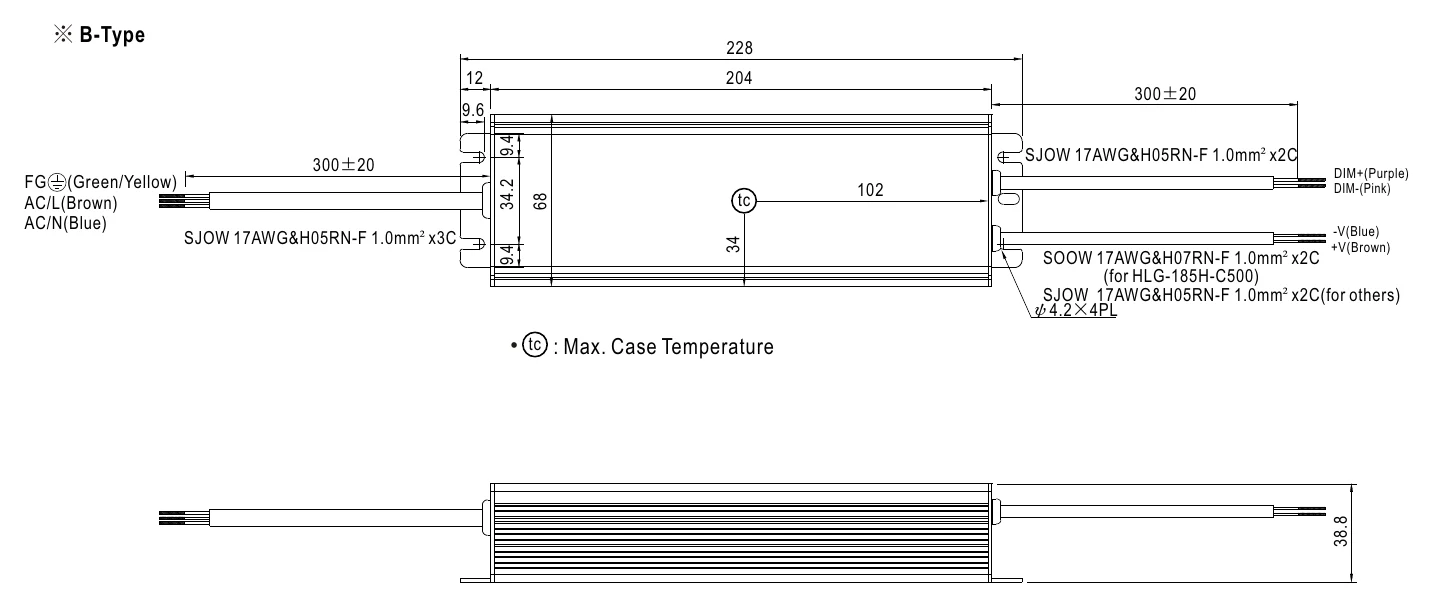

HLG-185H-C1400B MECHANICAL SPECIFICATION ※ B-Type — MECHANICAL SPECIFICATION ※ B-Type

HLG-185H-C1400B Dimensions (mm) — Dimensions (mm)

HLG-185H-C1400B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED fishing lamp
LED harbor lighting
LED building architectural lighting
LED bay lighting

Downloads

Datasheet1

HLG-185H-C1400B datasheetHLG-185H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates5

UL Certificate (HLG-185H-C)(EN) PDF Download

CB Certificate (HLG-185H-C)(EN) PDF Download

EMC Certificate (HLG-185H-C)(EN) PDF Download

ENEC Certificate (HLG-185H-C)(EN) PDF Download

PSE Certificate(HLG-185H-C)(EN) PDF Download

Test reports1

Test Report(HLG-185H-C1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-185H-C1400B for dimmable LED high-bay fixtures?

Yes. The HLG-185H-C1400B delivers 1400mA constant current with a 71-143V compliance range and includes a 1-10V/PWM dimming interface. It can drive high-bay LED fixtures wired in series, with smooth dimming for occupancy-based or daylight-harvesting control in warehouses and factories.

Is the HLG-185H-C1400B suitable for dimmable LED street light or area light projects?

Yes, when installed in a suitable enclosure. At 200.2W and 1400mA, it powers high-output LED modules used in street and area lighting. The dimming input allows midnight dimming schedules to reduce energy use. The series' IP65 or IP67 rating protects against dust and rain in covered pole-top enclosures.

Can this driver power series-connected LED panel lights with brightness control?

Yes, provided the panel LEDs are rated for 1400mA and the combined forward voltage of panels wired in series falls between 71V and 143V. The built-in dimming interface connects to standard 1-10V or PWM controllers for smooth brightness adjustment across the panel array.

What is the difference between the HLG-185H-C1400B and the HLG-185H-C1050B?

Both are dimmable constant-current drivers in the HLG-185H family. The C1400B outputs 1400mA at 71-143V (200.2W), while the C1050B outputs 1050mA at 95-190V (199.5W). The C1400B suits LEDs requiring higher drive current in shorter series strings, whereas the C1050B is better for lower-current LEDs in longer strings.

Can the HLG-185H-C1400B withstand high-temperature environments like factory ceilings?

The driver is rated for a case temperature (Tcase) of -40°C to +90°C, and full load is only available at lower ambient temperatures per the derating curve. If ambient temperatures are high, ensure adequate airflow around the driver to keep the case temperature down; life expectancy exceeds 62,000 hours when Tcase is about 75°C or less.

How do I determine if the HLG-185H-C1400B matches my LED module configuration?

Check that your LED modules are rated for 1400mA drive current and calculate the total forward voltage of all modules wired in series. The total must fall within the 71-143V compliance range. The number of modules you can connect depends on each module's individual forward voltage at 1400mA.
