Mean Well HLG-185H-C1400AB Power Supply 200.2W | Adjustable & Dimmable

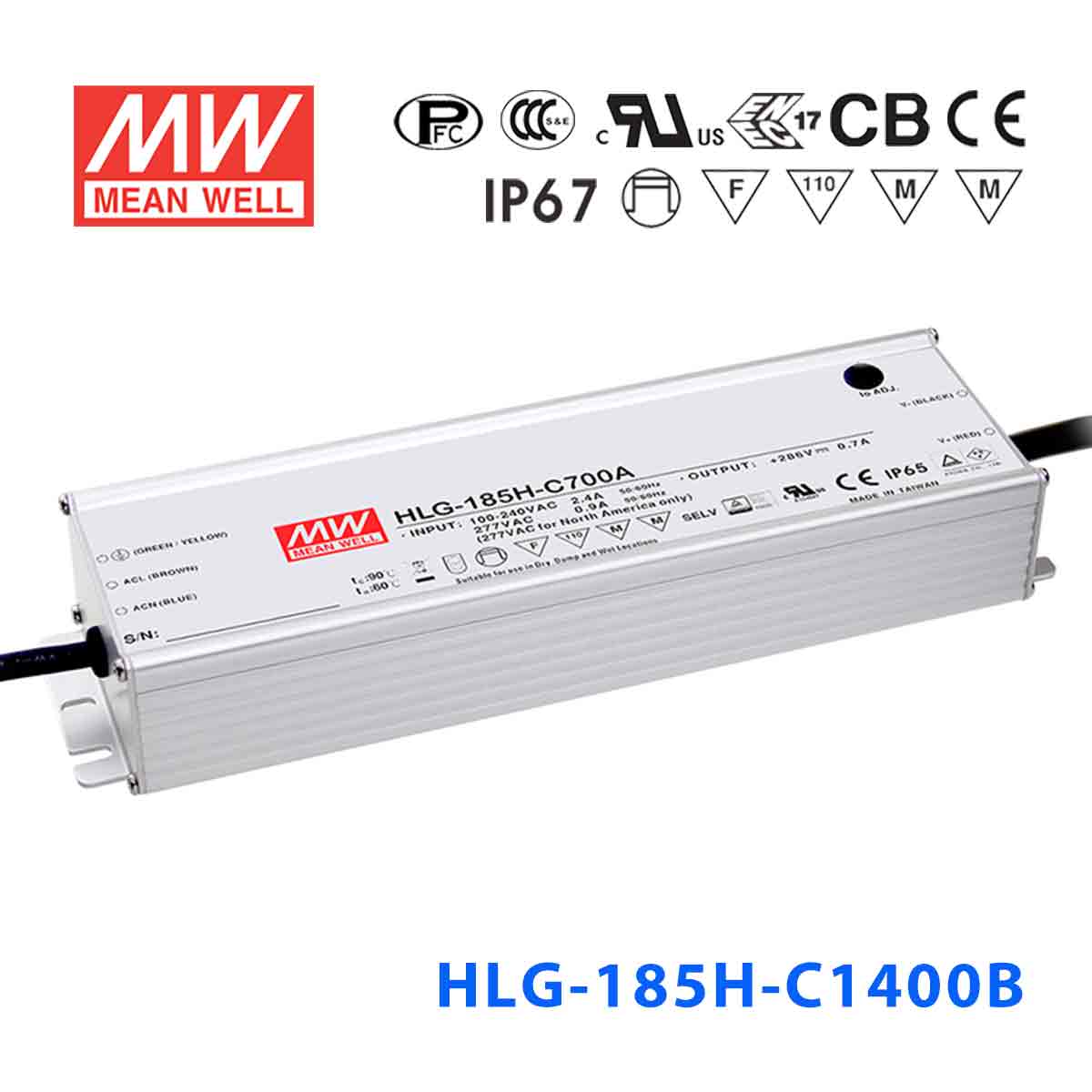

Name: Mean Well HLG-185H-C1400AB Power Supply 200.2W 1400mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HLG-185H-C1400AB
Price: 66.08 USD
Availability: InStock

Overview

HLG-185H-C1400AB is the model of this series: rated current 1400mA, rated power 200.2W, typical efficiency 94%. Type AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP65).

HLG-185H-C series is a 200W AC/DC LED power supply featuring the constant current mode and high voltage output. HLG-185H-C operates from 90~305VAC and offers models with different rated current ranging between 500mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-185H-C1400ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER: 200.2W
CONSTANT CURRENT REGION^Note.2: 71V ~ 143V
CURRENT ADJ. RANGE: Can be adjusted by internal potentiometer 700 ~ 1400mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC or PF≧0.96/230VAC or PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%@≧50% load/115VAC, or 230VAC, or @≧75% load/277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 2A / 115VAC 1A / 230VAC 0.85A / 277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=900μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 160 ~ 170V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.7: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Refer to "Derating Curve")
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes;

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB/T19510.1,GB/T19510.213;IP65, J61347-1, J61347-2-13, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧50% load) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2458.6K hrs min. Telcordia SR-332 (Bellcore) ; 191.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 228*68*38.8mm (L*W*H)
PACKING: 1.15Kg; 12pcs/14.8Kg/0.8CUFT

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.

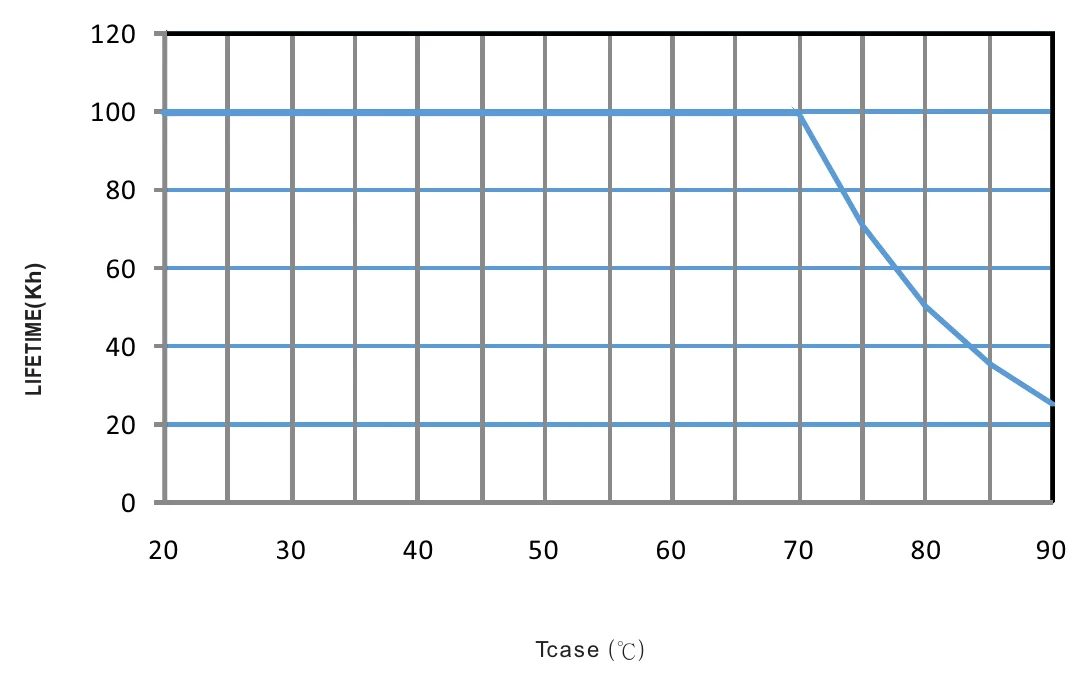

8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

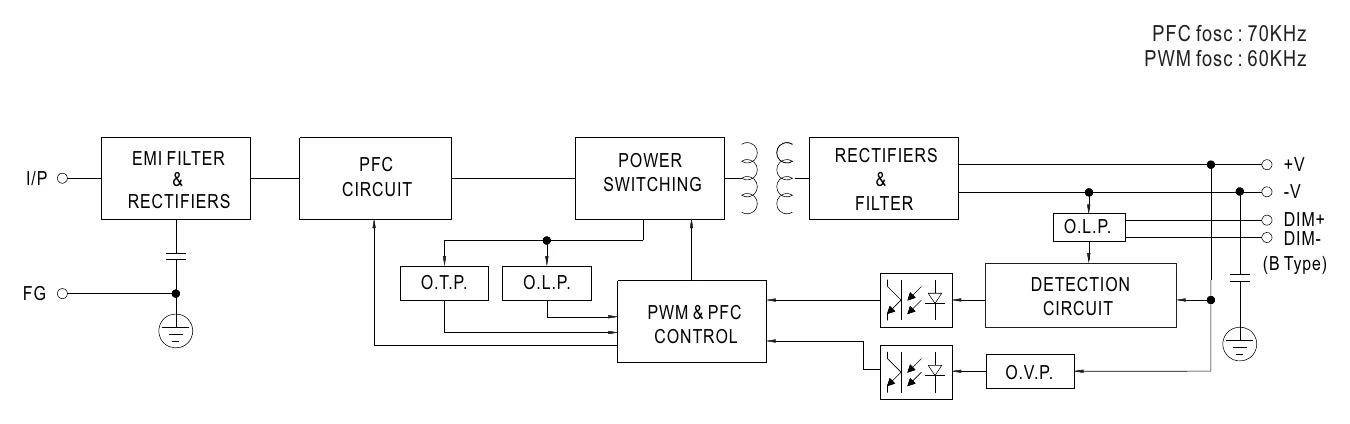

HLG-185H-C1400AB BLOCK DIAGRAM — BLOCK DIAGRAM

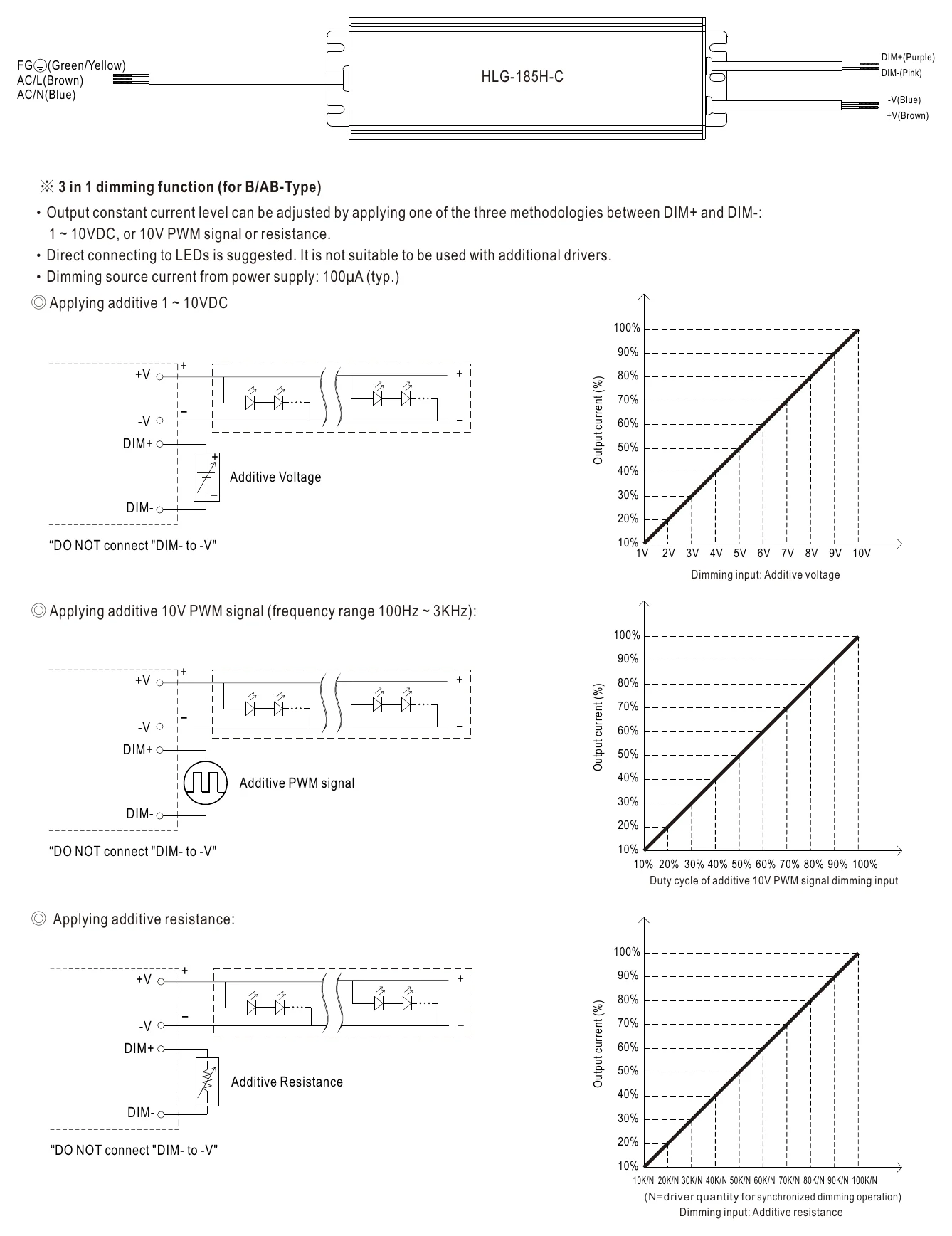

HLG-185H-C1400AB DIMMING OPERATION — DIMMING OPERATION

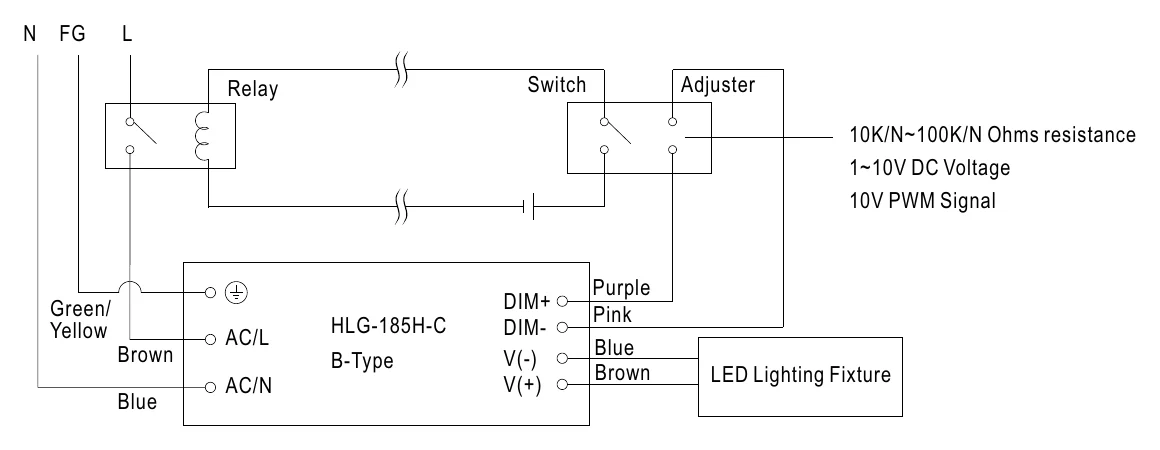

HLG-185H-C1400AB Illustration (page 5) — Illustration (page 5)

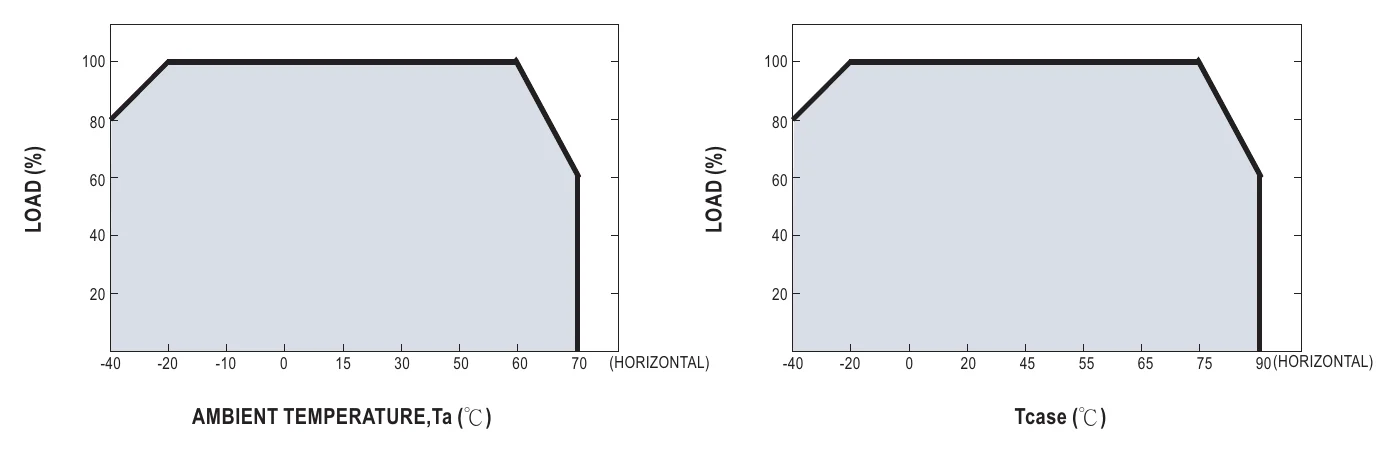

HLG-185H-C1400AB OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

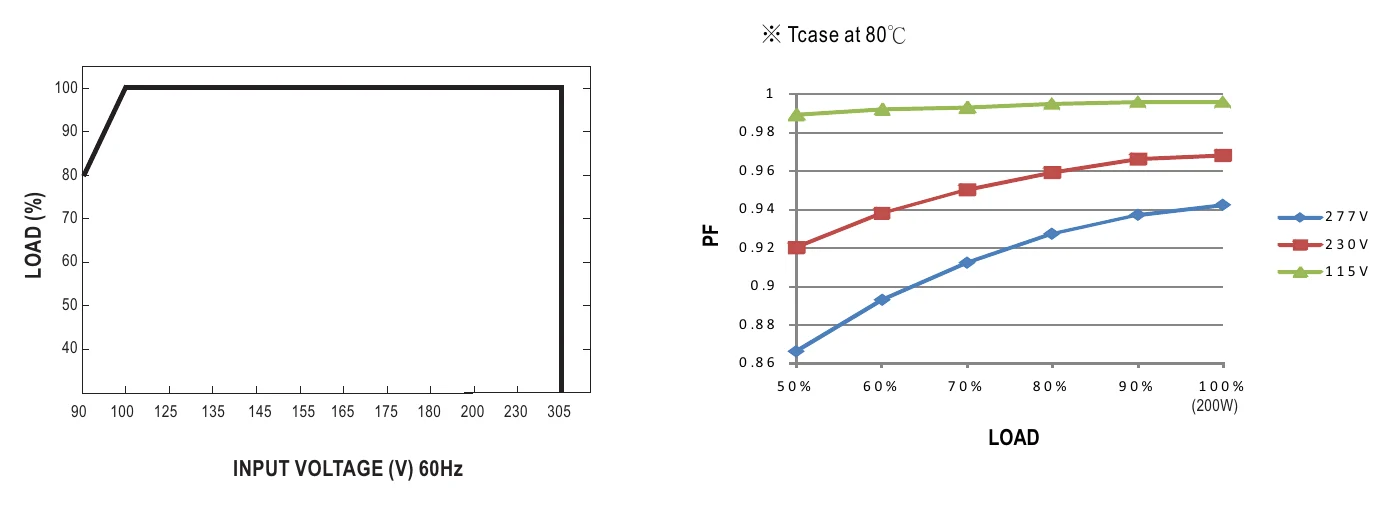

HLG-185H-C1400AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

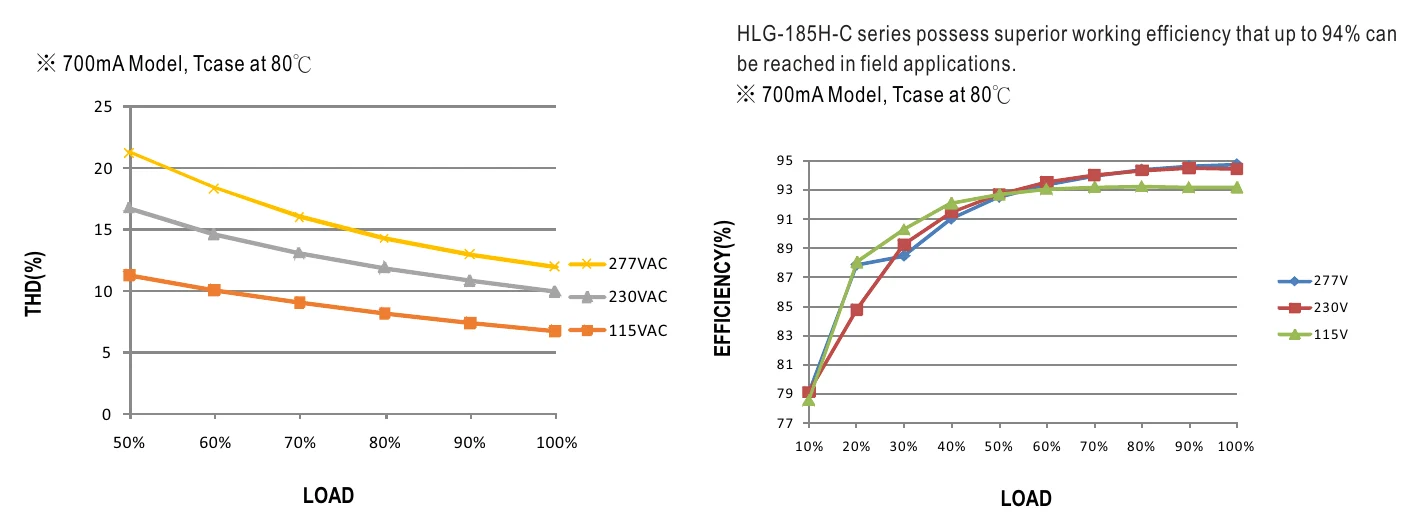

HLG-185H-C1400AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

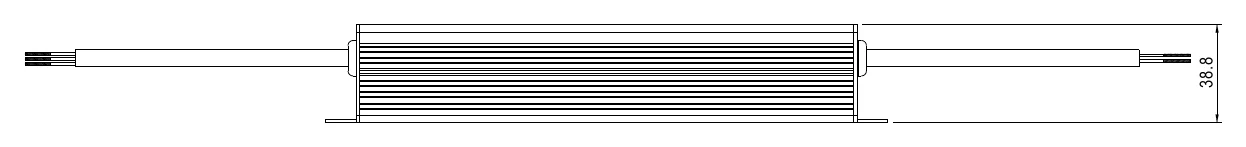

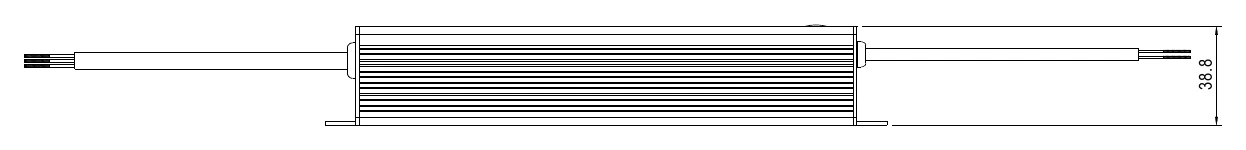

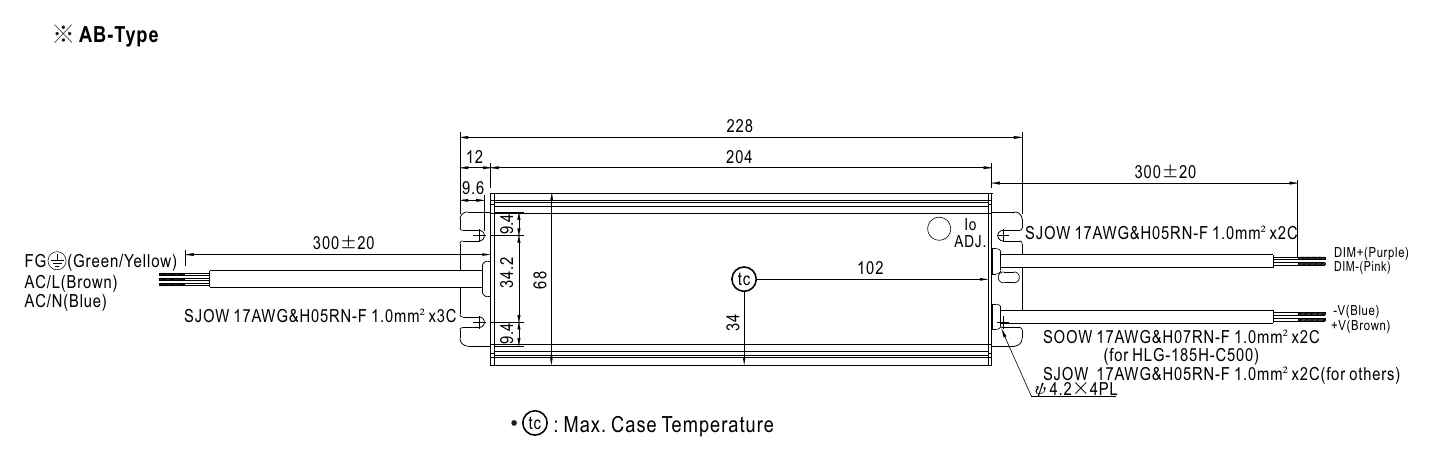

HLG-185H-C1400AB Dimensions (mm) — Dimensions (mm)

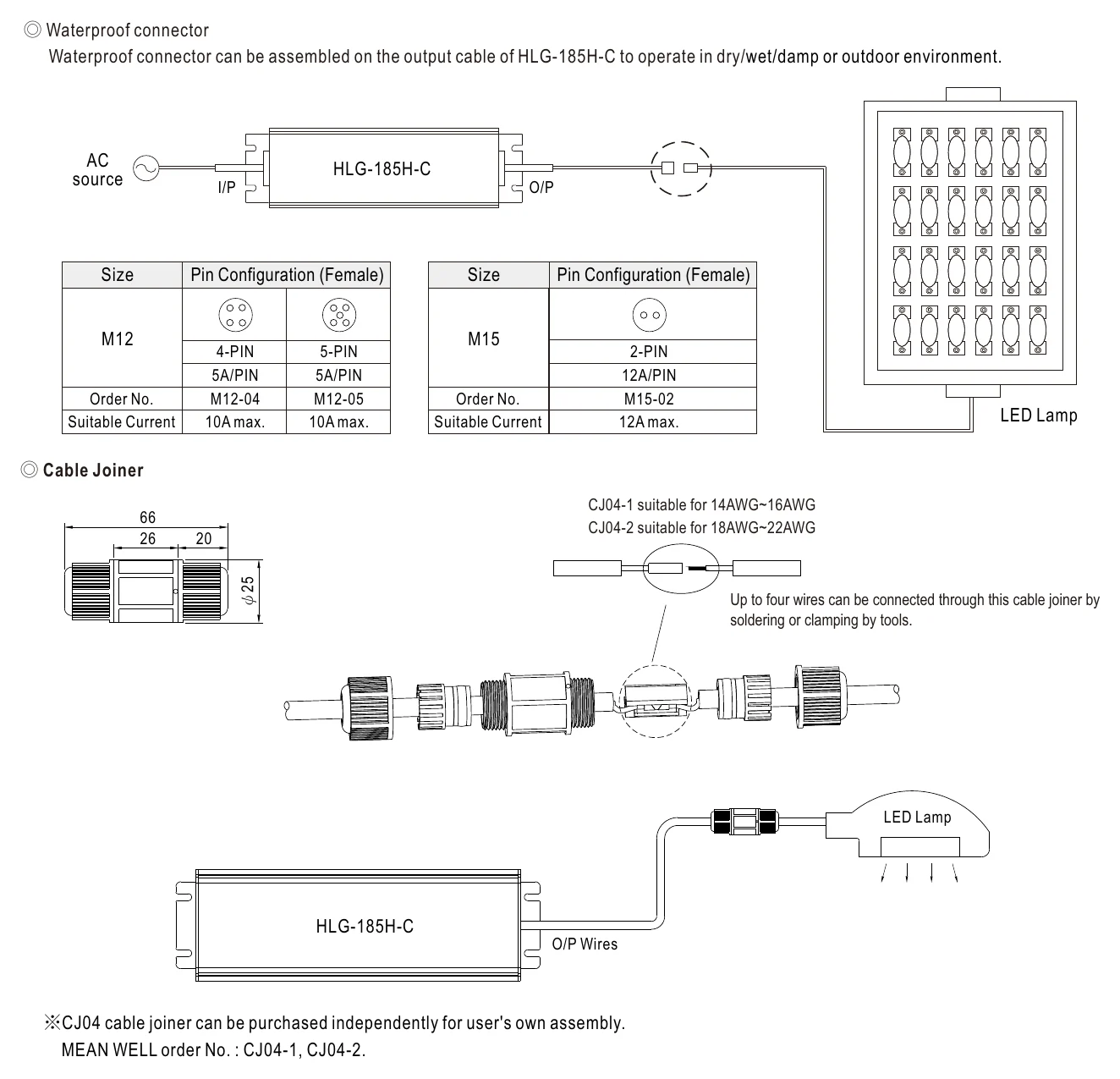

HLG-185H-C1400AB WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED fishing lamp
LED harbor lighting
LED building architectural lighting
LED bay lighting

Downloads

Datasheet1

HLG-185H-C1400AB datasheetHLG-185H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates5

UL Certificate (HLG-185H-C)(EN) PDF Download

CB Certificate (HLG-185H-C)(EN) PDF Download

EMC Certificate (HLG-185H-C)(EN) PDF Download

ENEC Certificate (HLG-185H-C)(EN) PDF Download

PSE Certificate(HLG-185H-C)(EN) PDF Download

Test reports1

Test Report(HLG-185H-C1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-185H-C1400AB for dimmable high-power LED downlight arrays?

Yes. The HLG-185H-C1400AB provides 1400mA constant current across a 71-143V range and includes both output adjustment and 1-10V/PWM dimming input. This combination makes it well suited for commercial downlight strings where both current trimming and smooth brightness control are needed.

Is the HLG-185H-C1400AB a good choice for dimmable LED grow lights?

Yes. Its 1400mA output with 200.2W capacity can drive high-power horticultural LEDs, and the dimming input allows you to adjust light intensity for different growth stages. The adjustable output potentiometer lets you fine-tune current to your specific LED modules, and the series' IP65 or IP67 rating and 10-95% RH non-condensing working humidity suit grow-room conditions.

Can this driver power series-connected LED COB fixtures with dimming in a retail space?

Yes. Configure your COB fixtures in series so the total forward voltage stays within 71-143V, and ensure each COB is rated for 1400mA. The AB model's dimming input integrates with standard retail lighting control systems for scene setting and energy management. At 200.2W, it handles substantial fixture loads.

How does the HLG-185H-C1400AB differ from the C1400A and C1400B?

All three share the same 200.2W, 1400mA, 71-143V constant-current specs. The C1400A has only an output adjustment potentiometer. The C1400B has only a dimming input (1-10V/PWM). The C1400AB combines both features, giving you manual current trimming and external dimming control in one unit.

Can I mount the HLG-185H-C1400AB outdoors under a building canopy?

Yes. The series' IP65 or IP67 rating protects against dust ingress and water jets from any angle, making canopy or soffit mounting suitable. It is rated for a case temperature (Tcase) of -40°C to +90°C, with load derating at high temperatures per the derating curve.

How many LEDs can the HLG-185H-C1400AB drive in a series string?

That depends on each LED's forward voltage at 1400mA. The driver's compliance range is 71-143V, so divide the available voltage by the per-LED forward voltage. For instance, LEDs with a 36V forward voltage would allow up to 3 in series (3 x 36V = 108V, within range). Always verify your LED specifications to keep the total string voltage between 71V and 143V.
