Mean Well HLG-185H-C1400A 200.2W 1400mA Power Supply - Adjustable

Name: Mean Well HLG-185H-C1400A Power Supply 200.2W 1400mA - Adjustable
Brand: Mean Well
SKU: HLG-185H-C1400A
Price: 59.21 USD
Availability: InStock

Overview

HLG-185H-C1400A is the model of this series: rated current 1400mA, rated power 200.2W, typical efficiency 94%. Type A: Io adjustable through built-in potentiometer (IP65).

HLG-185H-C series is a 200W AC/DC LED power supply featuring the constant current mode and high voltage output. HLG-185H-C operates from 90~305VAC and offers models with different rated current ranging between 500mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-185H-C1400ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER: 200.2W
CONSTANT CURRENT REGION^Note.2: 71V ~ 143V
CURRENT ADJ. RANGE: Can be adjusted by internal potentiometer 700 ~ 1400mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC or PF≧0.96/230VAC or PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%@≧50% load/115VAC, or 230VAC, or @≧75% load/277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 2A / 115VAC 1A / 230VAC 0.85A / 277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=900μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 160 ~ 170V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.7: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Refer to "Derating Curve")
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes;

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB/T19510.1,GB/T19510.213;IP65, J61347-1, J61347-2-13, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧50% load) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2458.6K hrs min. Telcordia SR-332 (Bellcore) ; 191.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 228*68*38.8mm (L*W*H)
PACKING: 1.15Kg; 12pcs/14.8Kg/0.8CUFT

MODEL ENCODING

A (this model): Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-185H-C1400A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-185H-C1400A Illustration (page 5) — Illustration (page 5)

HLG-185H-C1400A OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-185H-C1400A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-185H-C1400A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

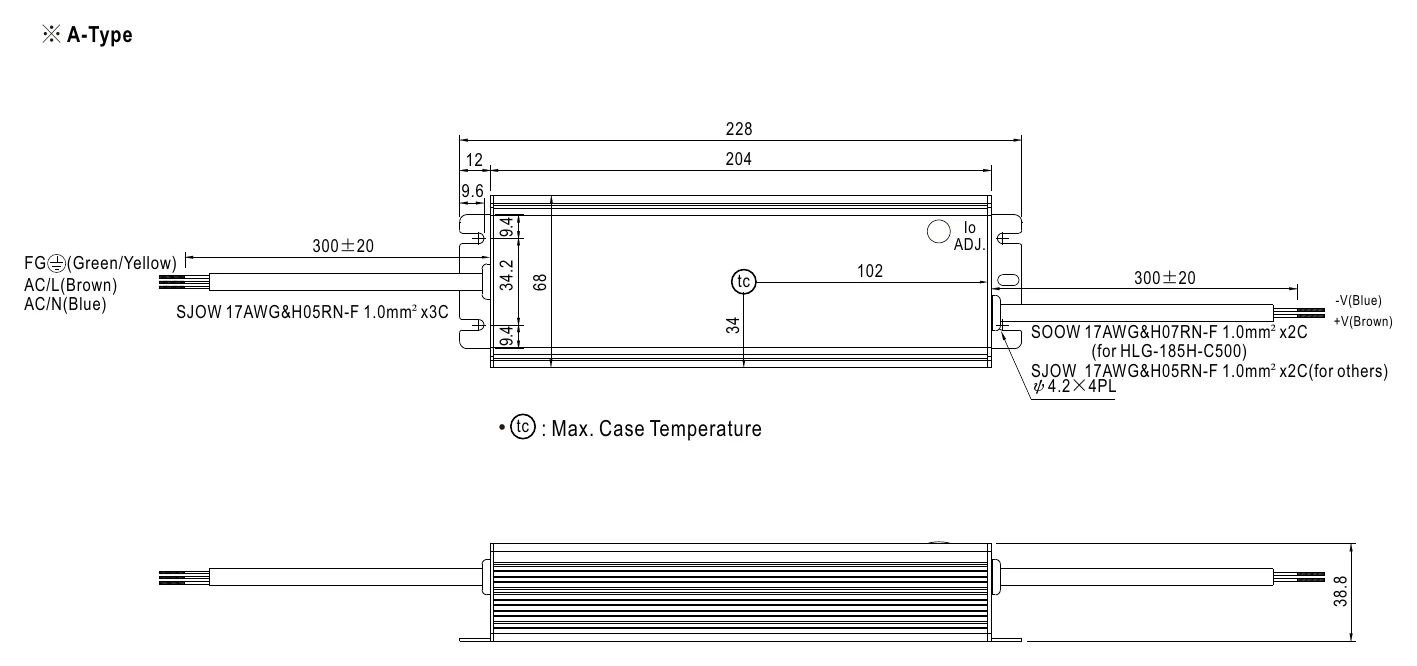

HLG-185H-C1400A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

HLG-185H-C1400A Dimensions (mm) — Dimensions (mm)

HLG-185H-C1400A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED fishing lamp
LED harbor lighting
LED building architectural lighting
LED bay lighting

Downloads

Datasheet1

HLG-185H-C1400A datasheetHLG-185H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates5

UL Certificate (HLG-185H-C)(EN) PDF Download

CB Certificate (HLG-185H-C)(EN) PDF Download

EMC Certificate (HLG-185H-C)(EN) PDF Download

ENEC Certificate (HLG-185H-C)(EN) PDF Download

PSE Certificate(HLG-185H-C)(EN) PDF Download

Test reports1

Test Report(HLG-185H-C1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-185H-C1400A to drive high-power LED downlights in a commercial ceiling?

Yes. The HLG-185H-C1400A delivers 1400mA constant current with a 71-143V compliance range, providing up to 200.2W. It can power series-connected high-power LED downlights that require 1400mA drive current. The built-in adjustment potentiometer lets you fine-tune current to optimize light output and efficiency.

Is the HLG-185H-C1400A suitable for driving LED grow light arrays?

Yes. At 1400mA and 200.2W, it can drive high-power LED arrays commonly used in horticultural lighting. The 71-143V compliance range accommodates various series string configurations, and the adjustable output lets you dial in the optimal current for your specific LED modules. The series' IP65 or IP67 rating and 10-95% RH non-condensing working humidity suit grow-room conditions.

Can this driver power a series string of LED COB modules for high-bay industrial lighting?

Yes, provided each COB module is rated for 1400mA and the total forward voltage of the series string falls between 71V and 143V. The number of COBs depends on each module's forward voltage. At 200.2W, it delivers substantial power for high-bay fixtures in warehouses or factories.

Is the HLG-185H-C1400A appropriate for outdoor LED floodlight installations?

Yes, when installed in a sheltered location. The series' IP65 or IP67 rating protects against dust and water jets, so it can be mounted in covered outdoor areas or ventilated enclosures. It is rated for a case temperature (Tcase) of -40°C to +90°C, with derating per the derating curve. Ensure the floodlight LEDs are rated for 1400mA and the total forward voltage is within 71-143V.

How does the 1400mA C1400A model differ from other constant-current HLG-185H variants?

The HLG-185H constant-current range includes C500 (500mA, 200-400V), C700 (700mA, 143-286V), C1050 (1050mA, 95-190V), and C1400 (1400mA, 71-143V), all rated around 200W. The C1400A has the highest current and lowest voltage range, ideal for fewer high-current LEDs in series. The A suffix means adjustable output only, with no dimming input.

Can I install the HLG-185H-C1400A in an enclosed, non-ventilated space?

The driver is rated for a maximum case temperature (Tcase) of +90°C, but it generates heat under full load. In an enclosed space with poor airflow, the case temperature may rise, requiring load derating or triggering over-temperature protection, which shuts down the output. It is recommended to allow some ventilation or use a heat-sinking mounting surface to keep the case temperature within the rated range.
