Mean Well HLG-185H-C1050AB Power Supply - Adjustable and Dimmable

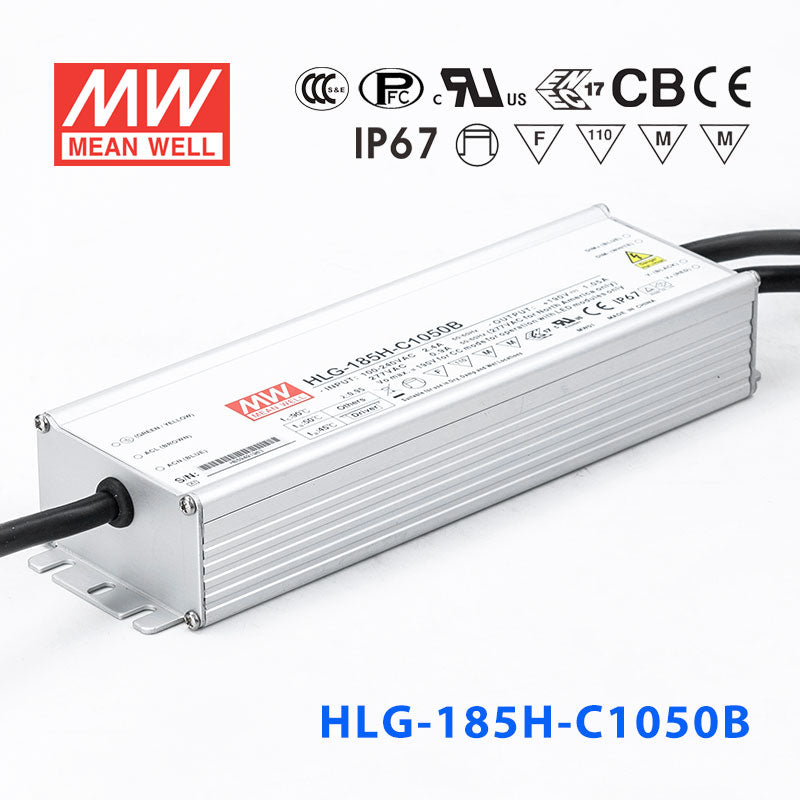

Name: Mean Well HLG-185H-C1050AB Power Supply 199.5W 1050mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HLG-185H-C1050AB
Price: 66.08 USD
Availability: InStock

Overview

HLG-185H-C1050AB is the model of this series: rated current 1050mA, rated power 199.5W, typical efficiency 94%. Type AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP65).

HLG-185H-C series is a 200W AC/DC LED power supply featuring the constant current mode and high voltage output. HLG-185H-C operates from 90~305VAC and offers models with different rated current ranging between 500mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-185H-C1050ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1050mA
RATED POWER: 199.5W
CONSTANT CURRENT REGION^Note.2: 95V ~ 190V
CURRENT ADJ. RANGE: Can be adjusted by internal potentiometer (A/AB type only) 525 ~ 1050mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC or PF≧0.96/230VAC or PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%@≧50% load/115VAC, or 230VAC, or @≧75% load/277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 2A / 115VAC 1A / 230VAC 0.85A / 277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=900μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 210 ~ 225V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.7: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Refer to "Derating Curve")
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes;

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB/T19510.1,GB/T19510.213;IP65, J61347-1, J61347-2-13, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧50% load) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2458.6K hrs min. Telcordia SR-332 (Bellcore) ; 191.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 228*68*38.8mm (L*W*H)
PACKING: 1.15Kg; 12pcs/14.8Kg/0.8CUFT

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-185H-C1050AB BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-185H-C1050AB DIMMING OPERATION — DIMMING OPERATION

HLG-185H-C1050AB Illustration (page 5) — Illustration (page 5)

HLG-185H-C1050AB OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-185H-C1050AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-185H-C1050AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-185H-C1050AB Dimensions (mm) — Dimensions (mm)

HLG-185H-C1050AB WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED fishing lamp
LED harbor lighting
LED building architectural lighting
LED bay lighting

Downloads

Datasheet1

HLG-185H-C1050AB datasheetHLG-185H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates5

UL Certificate (HLG-185H-C)(EN) PDF Download

CB Certificate (HLG-185H-C)(EN) PDF Download

EMC Certificate (HLG-185H-C)(EN) PDF Download

ENEC Certificate (HLG-185H-C)(EN) PDF Download

PSE Certificate(HLG-185H-C)(EN) PDF Download

Test reports1

Test Report(HLG-185H-C1050)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-185H-C1050AB to drive high-voltage LED downlight arrays?

Yes. The HLG-185H-C1050AB delivers a constant 1050mA across a 95-190V output range, making it well suited for series strings of high-voltage LED downlights. At 199.5W, it can handle substantial arrays, and the built-in adjustment potentiometer lets you fine-tune output current to match the LEDs' optimal drive level.

Is the HLG-185H-C1050AB suitable for large LED signage modules that require constant current?

Yes. Its 1050mA constant-current output with a 95-190V compliance range can power long series strings of signage LED modules. The adjustable output and 1-10V/PWM dimming input allow brightness scheduling for day and night operation, which is common in commercial signage installations.

Can I dim the HLG-185H-C1050AB for architectural LED lighting projects?

Yes. The AB suffix indicates both an adjustment potentiometer and a 3-in-1 dimming interface that accepts 1-10VDC, 10V PWM or resistance between DIM+ and DIM-. This lets it work with lighting controls that provide one of these signals. At 199.5W and 1050mA, it can drive architectural LED fixtures wired in series where smooth dimming is required.

Can this driver power a series string of LED COB modules for high-bay lighting?

Yes, provided the total forward voltage of your COB string falls within the 95-190V compliance range and each module is rated for 1050mA drive current. The number of COBs you can connect in series depends on each module's individual forward voltage. The series' IP65 or IP67 rating also allows installation in damp industrial environments.

Can I install the HLG-185H-C1050AB in a sheltered outdoor location?

Yes. Its IP65 or IP67 rating protects against dust and water jets, making it suitable for covered outdoor areas, canopy-mounted fixtures, or ventilated enclosures. It is rated for a case temperature (Tcase) of -40°C to +90°C, with load derating at high temperatures per the derating curve.

How does the HLG-185H-C1050AB compare to other constant-current models in the HLG-185H-C series?

The HLG-185H constant-current family includes C500 (500mA, 200-400V), C700 (700mA, 143-286V), C1050 (1050mA, 95-190V), and C1400 (1400mA, 71-143V) variants, all rated around 200W. Lower-current models have higher compliance voltage for longer LED strings, while higher-current models suit LEDs that need more drive current in shorter strings. The AB suffix on each means it has both output adjustment and dimming input.
