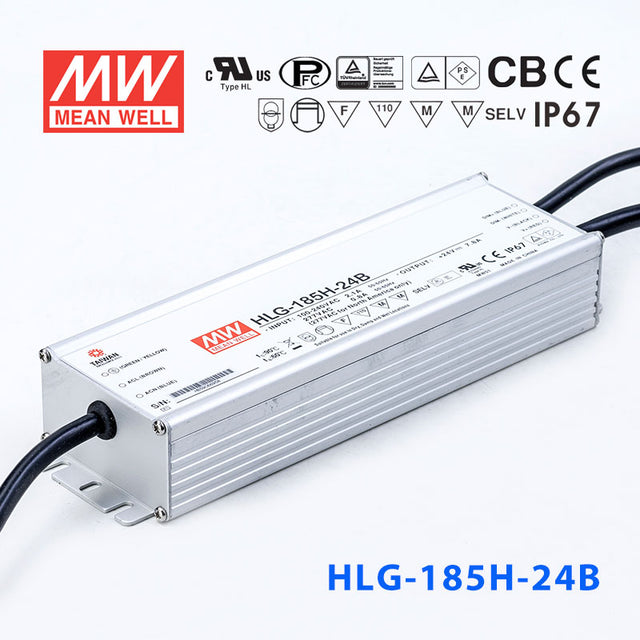

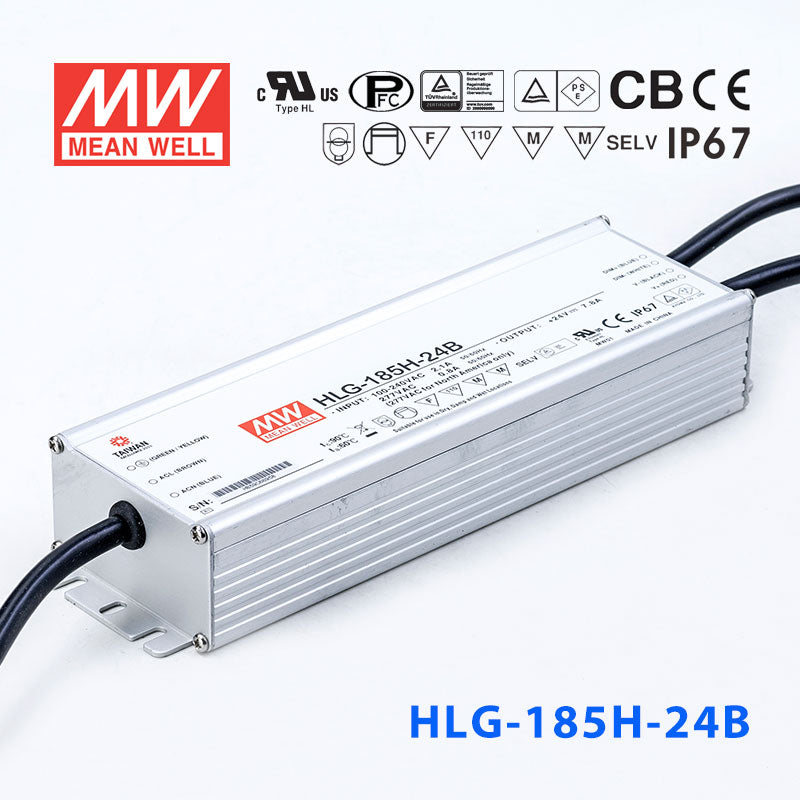

Mean Well HLG-185H-24AB Power Supply 185W 24V - Adjustable and Dimmable

Name: Mean Well HLG-185H-24AB Power Supply 185W 24V - Adjustable and Dimmable 7.8A
Brand: Mean Well
SKU: HLG-185H-24AB
Price: 66.08 USD
Availability: InStock

Overview

HLG-185H-24AB is the 24V output model of this series: rated current 7.8A, rated power 187.2W, typical efficiency 93.5%. Type AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP65).

HLG-185H series is a 185W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-185H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-185H-24ABSpecifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.4: 12 ~ 24V
RATED CURRENT: 7.8A
RATED POWER: 187.2W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 22 ~ 27V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 3.9 ~ 7.8A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.) 12V: 1.8A / 115VAC 0.8A / 230VAC 0.7A / 277VAC
AC CURRENT (Typ.) 15V ~ 54V: 2.1A / 115VAC 0.9A / 230VAC 0.8A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=445μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 28 ~ 34V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.9: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”),CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13，AS/NZS 61347-1, AS/NZS 61347-2-13 independent;GB/T19510.1,GB/T19510.213 (except for D-type) ; IP65 or IP67; J61347-1, J61347-2-13(except for D-type) , EAC TP TC 004, KC61347-1,KC61347-2-13 (except for D-type) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1(except for D-type) ,EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF: 2184.8K hrs min. Telcordia SR-332 (Bellcore) ; 197.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 228*68*38.8mm (L*W*H)
PACKING: 1.15Kg; 12pcs/14.8Kg/0.8CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB (this model): Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes15

Technical drawings

HLG-185H-24AB BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-185H-24AB DIMMING OPERATION — DIMMING OPERATION

HLG-185H-24AB Illustration (page 5) — Illustration (page 5)

HLG-185H-24AB STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-185H-24AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-185H-24AB Dimensions (mm) — Dimensions (mm)

HLG-185H-24AB WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-185H-24AB datasheetHLG-185H-SPEC.PDF · 2026-07-24 edition PDF Download

Certificates5

UL Certificate (HLG-185H)(EN) PDF Download

TUV Certificate (HLG-185H)(EN) PDF Download

EMC Certificate (HLG-185H)(EN) PDF Download

PSE Certificate (HLG-185H)(EN) PDF Download

CCC Certificate(HLG-185H)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-185H-24AB for dimmable 24V LED lighting in a restaurant or hospitality setting?

Yes. The HLG-185H-24AB delivers 187.2W at 24V with built-in 1-10V/PWM dimming input, making it well-suited for hospitality environments where lighting scenes change throughout the day. The adjustable output also lets you trim voltage and current to match the exact LED load.

Can the HLG-185H-24AB power dimmable 24V LED strip in a covered patio or pergola?

Yes. The series' metal housing with IP65/IP67 ingress protection is designed for indoor and outdoor applications, so it suits sheltered outdoor areas like covered patios, pergolas, or gazebos. The built-in dimming input lets you pair with a 1-10V or PWM controller to adjust brightness for different times of day without additional dimmable drivers.

Is the HLG-185H-24AB a good choice for adjustable-brightness 24V LED signage indoors?

Yes. With 187.2W at 24V and both output adjustment and dimming capability, it can power 24V LED signs where brightness needs to change — for example, retail displays that dim at night or trade show lighting that adapts to ambient light. The adjustable output trims the base voltage to match the sign modules precisely.

How many meters of 24V LED strip can the HLG-185H-24AB drive?

Divide 187.2W by your strip's power per meter. A strip rated at 19.2W/m allows about 9.75 meters (187.2W / 19.2W per meter = 9.75m), while a 9.6W/m strip allows about 19.5 meters. Always check your strip's rated power per meter and keep total load at or below 187.2W.

Can the HLG-185H-24AB be used in a covered outdoor area exposed to humidity and dust?

Yes. The HLG-185H series has a metal housing with IP65/IP67 ingress protection that suits both indoor and outdoor applications, including covered outdoor areas with dust or occasional splashing. Working humidity is rated 20-95% RH non-condensing, so avoid spots where condensation forms on the unit.

What dimming options does the HLG-185H-24AB support compared to the other 24V variants?

The HLG-185H-24AB supports both output adjustment via built-in potentiometer and external dimming via 1-10V, 10V PWM or resistance. The -24A offers adjustment only (no dimming input), the -24B offers dimming input only (no potentiometer adjustment), and the base -24 has fixed output with no adjustment or dimming. All four share the same 187.2W / 24V / 7.8A output.
