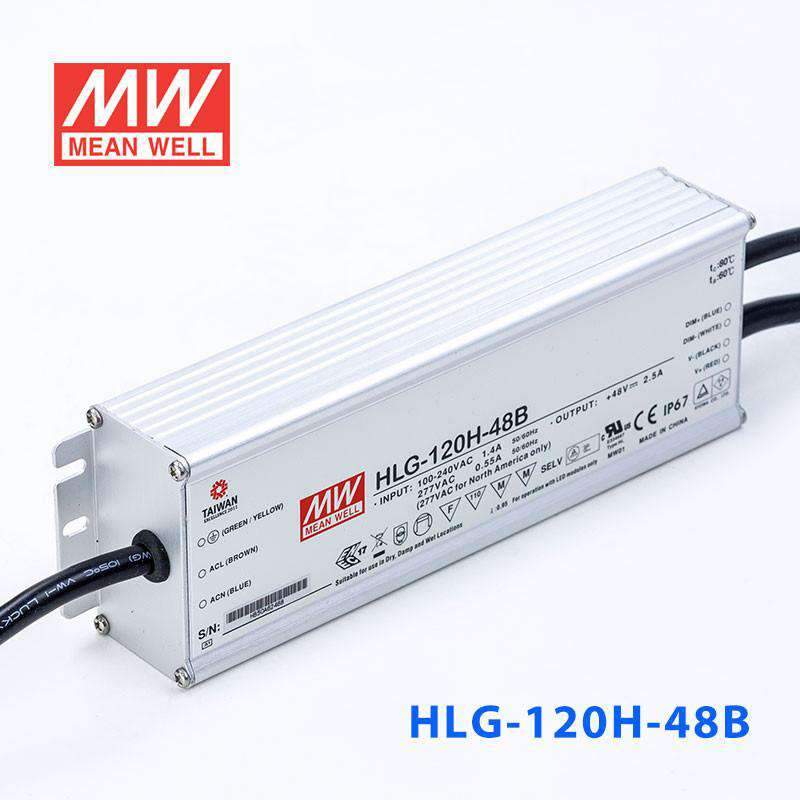

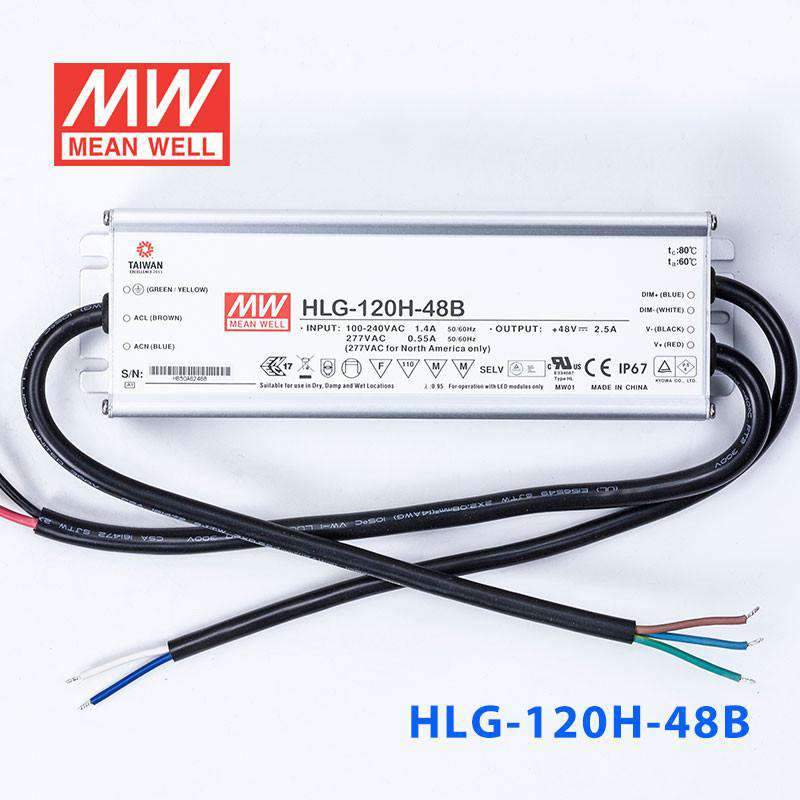

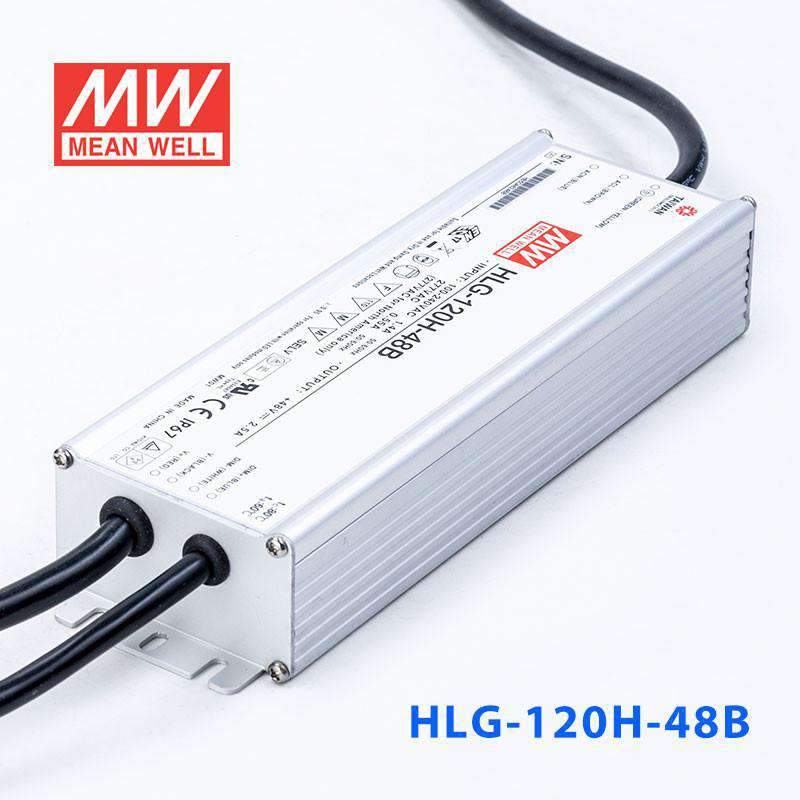

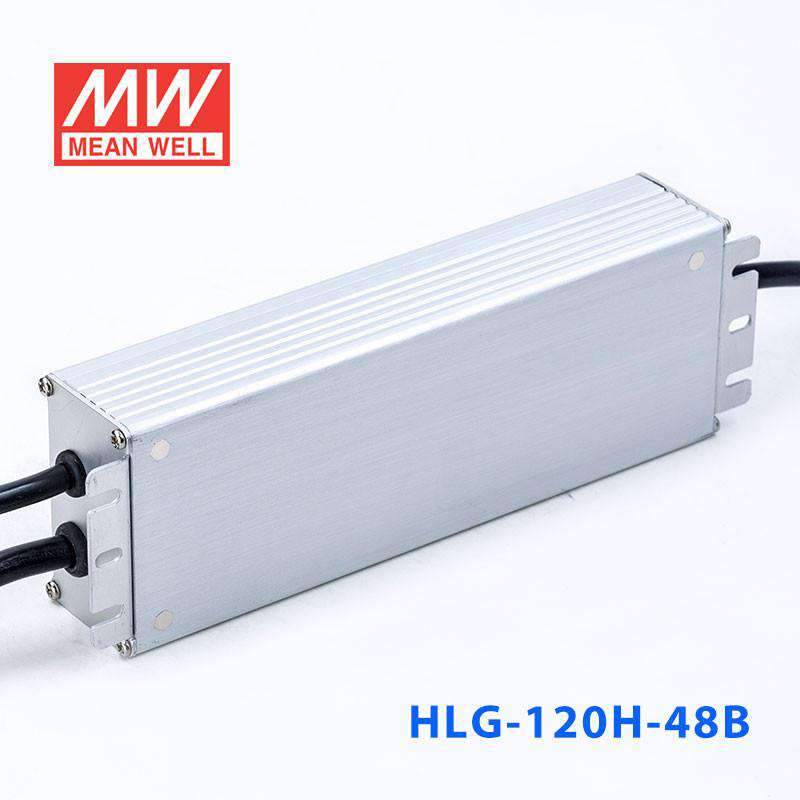

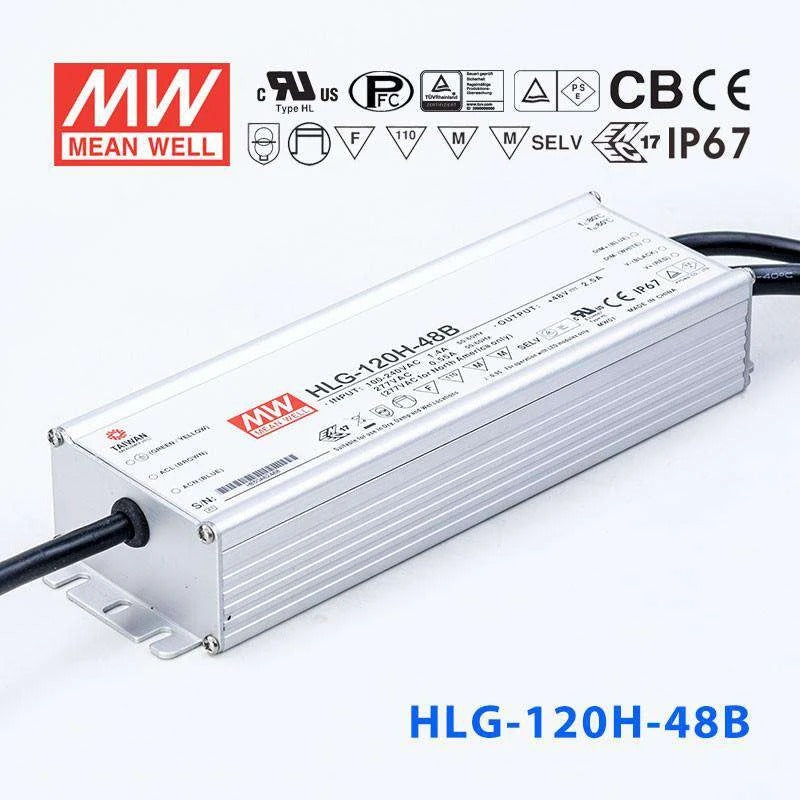

Mean Well HLG-120H-48B Power Supply 120W 48V- Dimmable 2.5A

$61.80 USD
Shipping calculated at checkout.
Model
|

Your order will be processed within 24 hours

Overview

HLG-120H-48B is the 48V output model of this series: rated current 2.5A, rated power 120W, typical efficiency 93.5%.

HLG-120H series is a 120W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-120H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-120H-48BSpecifications from the official datasheet (2019-12-10 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE
48V
CONSTANT CURRENT REGIONNote.4
24 ~ 48V
RATED CURRENT
2.5A
RATED POWER
120W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 43 ~ 53V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 1.2 ~ 2.5A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1200ms,50ms/115VAC 500ms,50ms/230VAC
HOLD UP TIME (Typ.)
12ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.)
93.5%
AC CURRENT (Typ.)
1.4A / 115VAC 0.6A / 230VAC 0.55A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 60A(twidth=375μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
5 units (circuit breaker of type B) / 9 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
54 ~ 63V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +80℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750 (type”HL”) , CSA C22.2 No. 250.0-08, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 independent; GB19510.1,GB19510.14, IP65 or IP67, J61347-1, J61347-2-13 (except for B,AB and D-type),BIS IS15885( for 12B,24B,36A,54A only), EAC TP TC 004 , KC61347-1,KC61347-2-13(except for AB,D-type) approved ; Design refer to UL60950-1, TUV EN60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to EN55015, EN55032 Class B, EN61000-3-2 Class C (@ load≧50%) ; EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF
559.5K hrs min. Telcordia SR-332 (Bellcore); 167.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
220*68*38.8mm (L*W*H)
PACKING
1.12Kg; 12pcs/14.4Kg/0.8CUFT

Certifications & ratings

Type
HL
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly Tc point (or TMP, per DLC), is about 75℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-120H-48B BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-120H-48B DIMMING OPERATION
DIMMING OPERATION
HLG-120H-48B Illustration (page 5)
Illustration (page 5)
HLG-120H-48B STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
HLG-120H-48B TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-120H-48B MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
HLG-120H-48B ※B-Type
※B-Type
HLG-120H-48B ‧tc : Max. Case Temperature
‧tc : Max. Case Temperature
HLG-120H-48B ※AB-Type
※AB-Type
HLG-120H-48B Dimensions (mm)
Dimensions (mm)
HLG-120H-48B WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HLG-120H-48B with a dimmer for outdoor 48V LED strip installations?

Yes. The HLG-120H-48B accepts 1-10V and PWM dimming signals and carries an IP67 waterproof rating, making it ideal for outdoor 48V LED strip runs where you also need brightness control. It can be mounted in exposed locations without a secondary enclosure.

Is the HLG-120H-48B suitable for dimmable 48V LED landscape or garden lighting?

Yes. At 120W and 48V with IP67 waterproof protection, it can power 48V landscape fixtures outdoors and be dimmed via a 1-10V signal for different scene settings. Its -40°C to +80°C case temperature (Tcase) rating handles seasonal temperature extremes.

Can I pair with the HLG-120H-48B to a building management system for scheduled dimming?

Yes, if the system provides a 1-10VDC, 10V PWM, or resistance dimming output. This allows scheduled brightness changes, such as reducing sign or facade lighting intensity during late-night hours, while the IP67 rating permits outdoor placement.

How many meters of 48V LED strip can the HLG-120H-48B power?

The HLG-120H-48B supplies up to 120W at 48V. If your 48V strip draws 8W/m, you could run up to 15 meters (120W / 8W per meter = 15m). Always check your strip's rated power per meter and ensure the total load stays at or below 120W.

Can the HLG-120H-48B handle fully exposed outdoor conditions year-round?

Yes. Its IP67 rating means the unit is sealed against dust ingress and can withstand temporary submersion up to 1 meter. Combined with the -40°C to +80°C case temperature (Tcase) rating and metal housing, it is designed for permanent outdoor exposure in all seasons.
