Mean Well

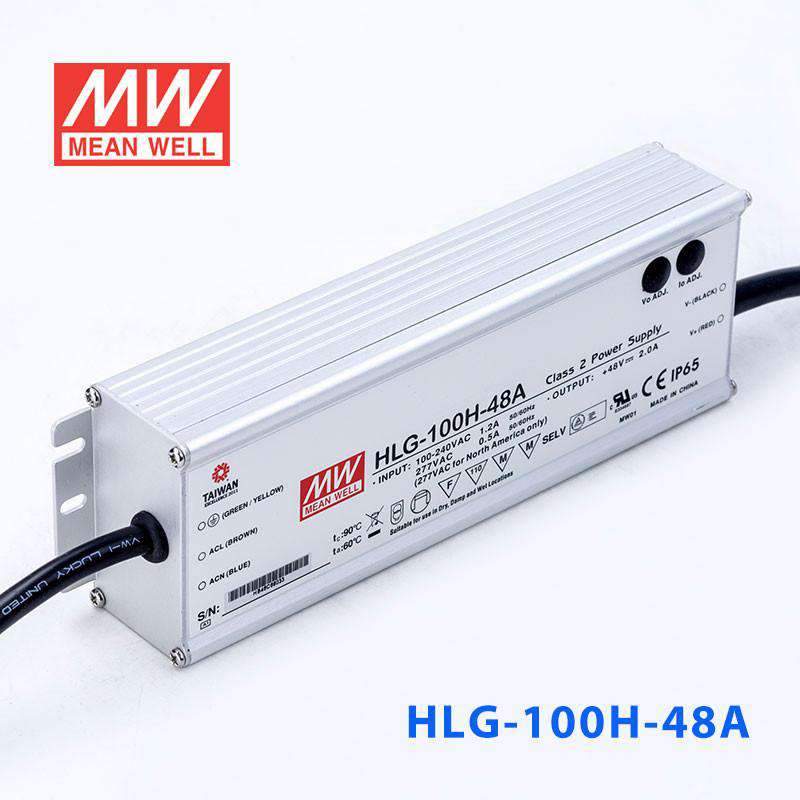

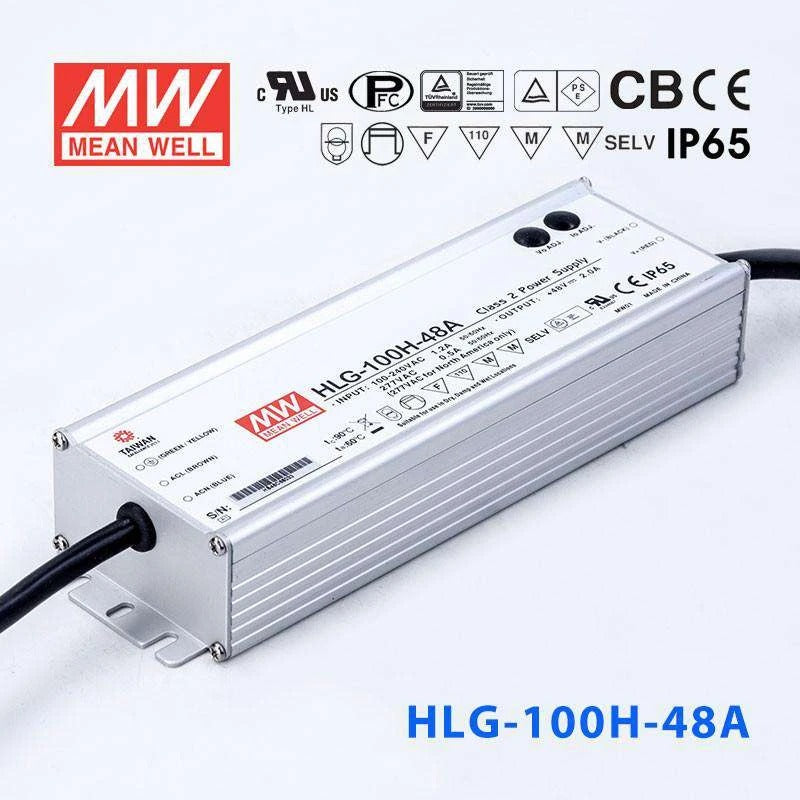

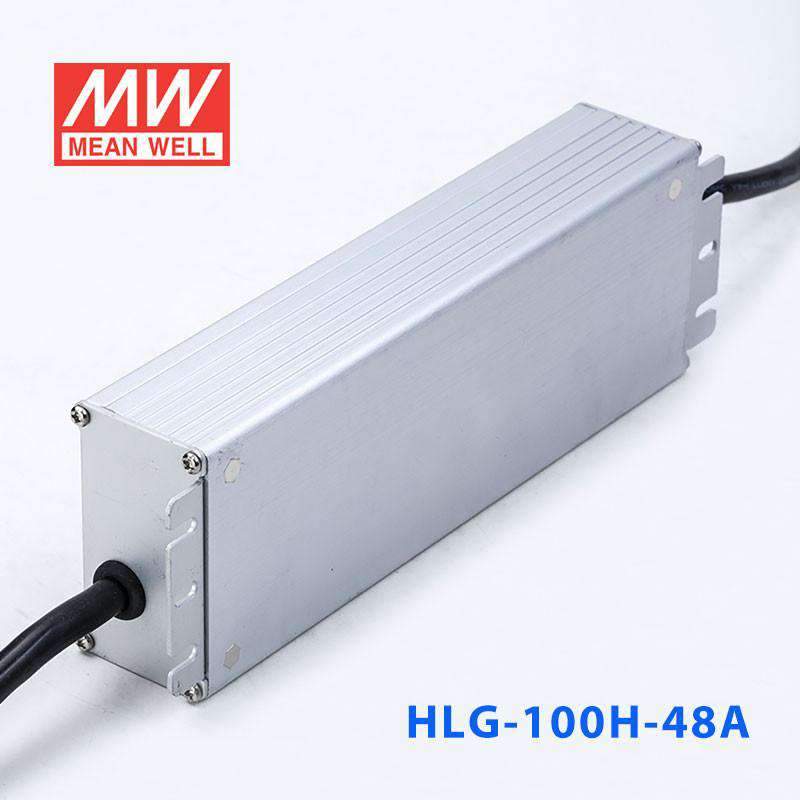

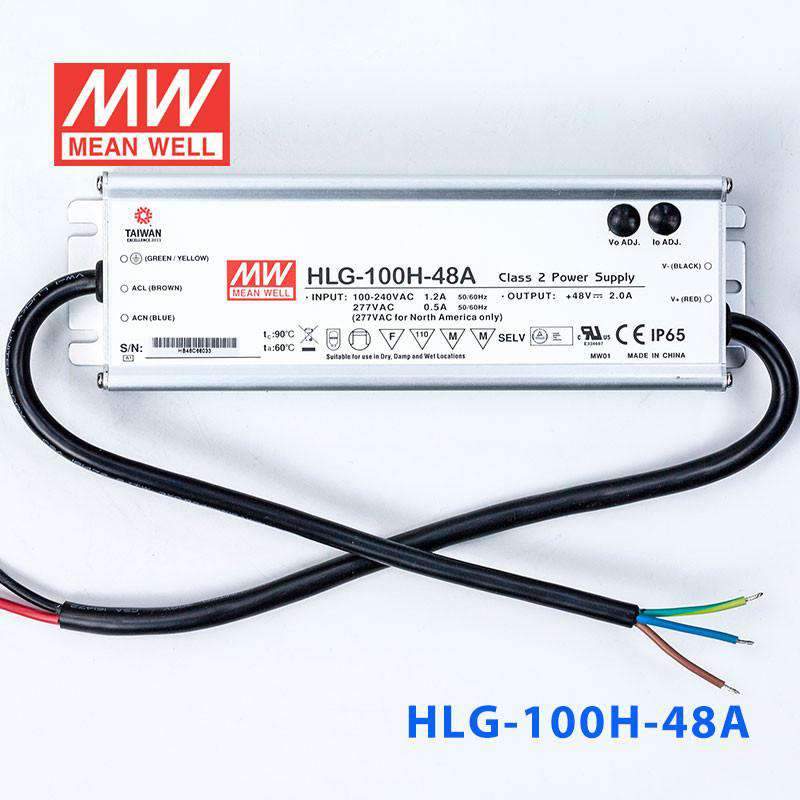

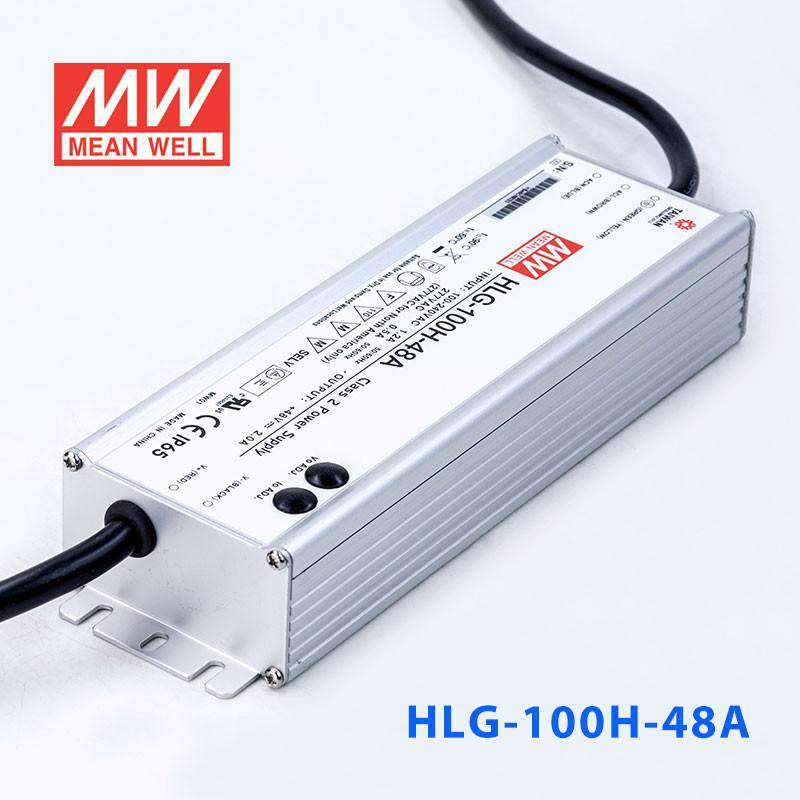

Mean Well HLG-100H-48A Power Supply 100W 48V - Adjustable 2A

premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-100H-48A
$58.37 USD
Shipping calculated at checkout.

Select model — 22 in this family

HLG-100H-48A
In stock
|

Overview

HLG-100H-48A is the 48V output model of this series: rated current 2A, rated power 96W, typical efficiency 93%.

HLG-100H series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-100H operates from 90～305VAC and offers models with different rated voltage ranging between 20V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-100H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • Class 2 power unit
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-100H-48ASpecifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE
48V
CONSTANT CURRENT REGIONNote.4
24 ~ 48V
RATED CURRENT
2A
RATED POWER
96W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 43 ~ 53V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 1.25 ~ 2A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1200ms,50ms/115VAC 500ms,50ms/230VAC
HOLD UP TIME (Typ.)
16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.)
93%
AC CURRENT (Typ.)
1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 60A(twidth=415μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 106% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
54 ~ 63V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURENote.9
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +80℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750 (type”HL”) , CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213, IP65 or IP67, J61347-1, J61347-2-13 (except for D-type) , KC61347-1,KC61347-2-13 (except for D-type) ,EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1, EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF
2185.8K hrs min. Telcordia SR-332(Bellcore) ; 167.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
220*68*38.8mm (L*W*H)
PACKING
1.12Kg; 12pcs/14.4Kg/0.8CUFT
Test conditions and notes15
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
  10. 10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  11. 11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  12. 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  14. 14. For A/AB type need to consider build in using to comply with Type HL application.
  15. 15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-100H-48A BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-100H-48A DIMMING OPERATION
DIMMING OPERATION
HLG-100H-48A Illustration (page 5)
Illustration (page 5)
HLG-100H-48A STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
HLG-100H-48A TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-100H-48A MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
HLG-100H-48A ※B-Type
※B-Type
HLG-100H-48A ‧tc : Max. Case Temperature
‧tc : Max. Case Temperature
HLG-100H-48A ※AB-Type
※AB-Type
HLG-100H-48A Dimensions (mm)
Dimensions (mm)
HLG-100H-48A WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HLG-100H-48A for indoor 48V LED cove or troffer lighting with adjustable output?

Yes. The HLG-100H-48A delivers 48V at up to 2A (96W rated power) with a built-in potentiometer that lets you fine-tune output voltage (43-53V) and current (1.25-2A). This is useful for optimizing LED cove or troffer light output to match room requirements without exceeding the 96W rating.

Is the HLG-100H-48A suitable for 48V LED grow light arrays that need output trimming?

It can power 48V horticultural LED modules up to 96W. The adjustable output allows you to tune intensity for different growth phases. Since grow environments can be humid, ensure the driver is in a ventilated location.

Can I power adjustable 48V LED track lighting with the HLG-100H-48A?

Yes, provided the total load of the track system stays at or below 96W. The potentiometers let you set the output voltage within 43-53V and the current within 1.25-2A to match the specific LED modules on the track. The wide 90-305VAC input supports installation in various countries.

How many meters of 48V LED strip can the HLG-100H-48A drive?

The HLG-100H-48A provides up to 96W at 48V. Divide 96W by the strip's rated wattage per meter. A 48V strip rated at 8W/m allows approximately 12 meters (96W / 8W per meter = 12m). Always check your strip's rated power per meter and stay within the 96W limit.

Is the HLG-100H-48A rated for outdoor use under a building overhang or canopy?

The HLG-100H series' IP65/IP67 metal-housing design suits semi-sheltered outdoor locations like overhangs, canopies, or ventilated equipment cabinets. For fully exposed or submersion-prone locations, confirm the exact IP rating of this A-type first.

What does the 'A' suffix mean on the HLG-100H-48A compared to the base HLG-100H-48?

The 'A' suffix indicates built-in potentiometers for adjusting output voltage (43-53V) and current (1.25-2A). The base HLG-100H-48 has fixed output. Both deliver the same 96W, 48V, 2A rated output at their default settings.
