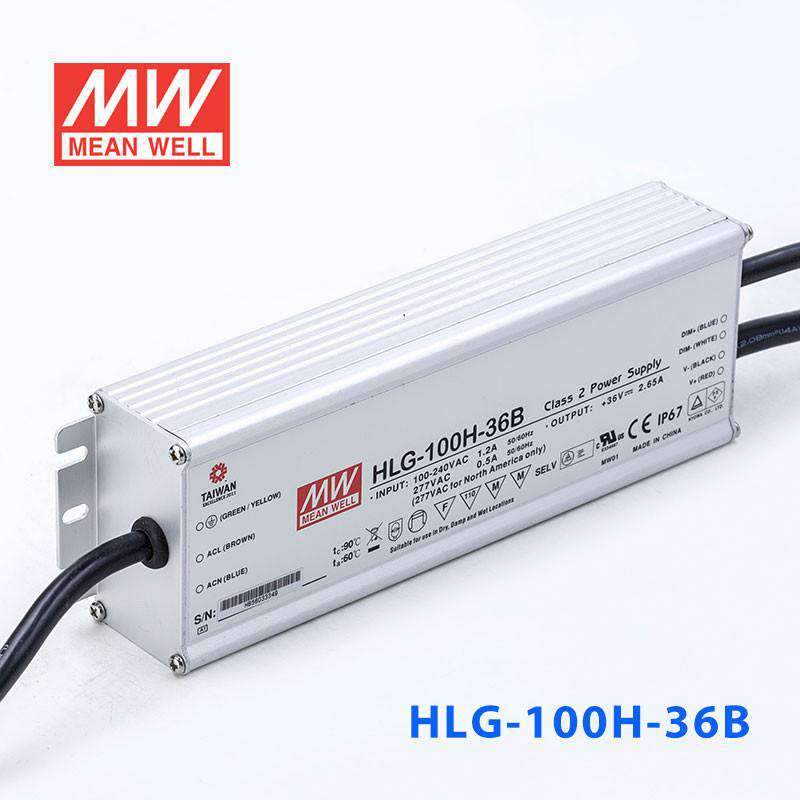

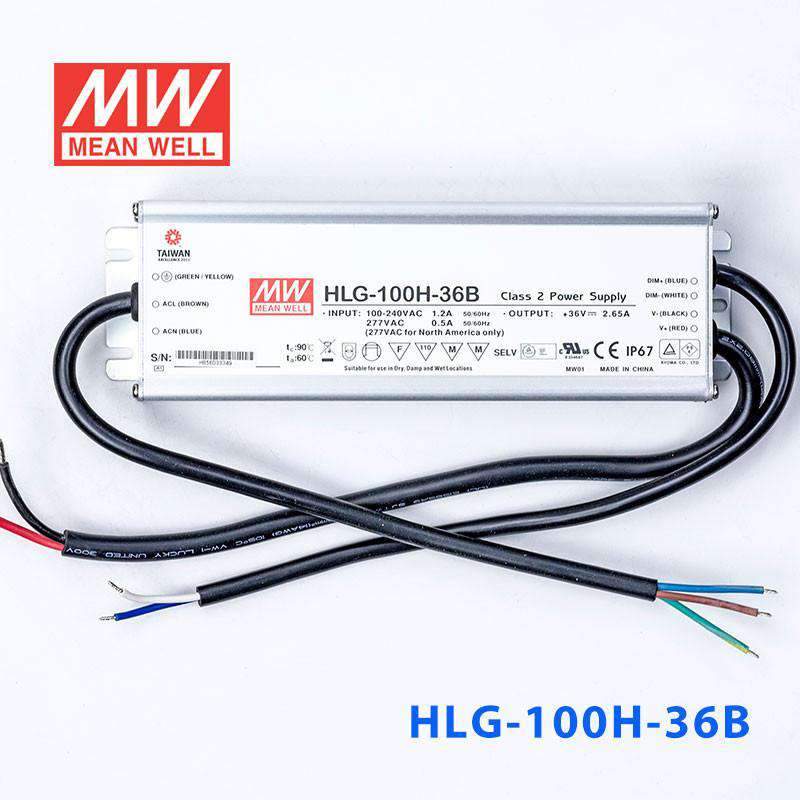

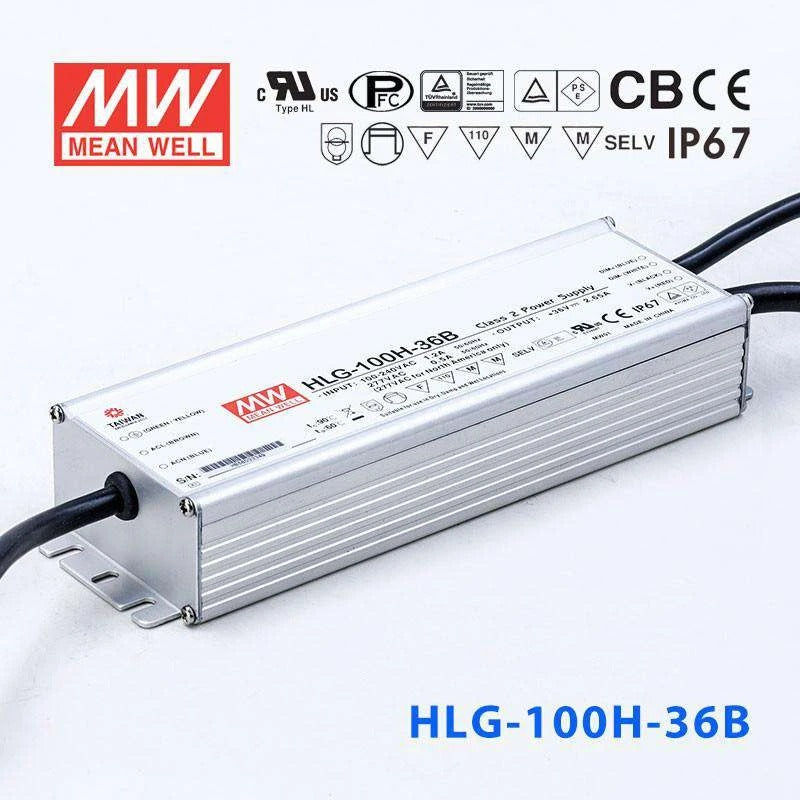

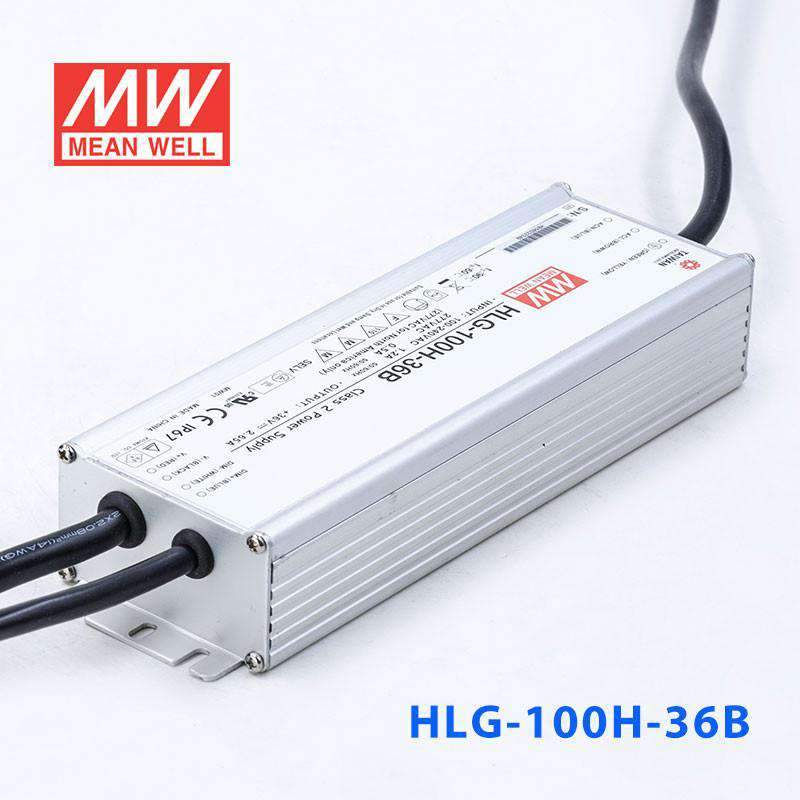

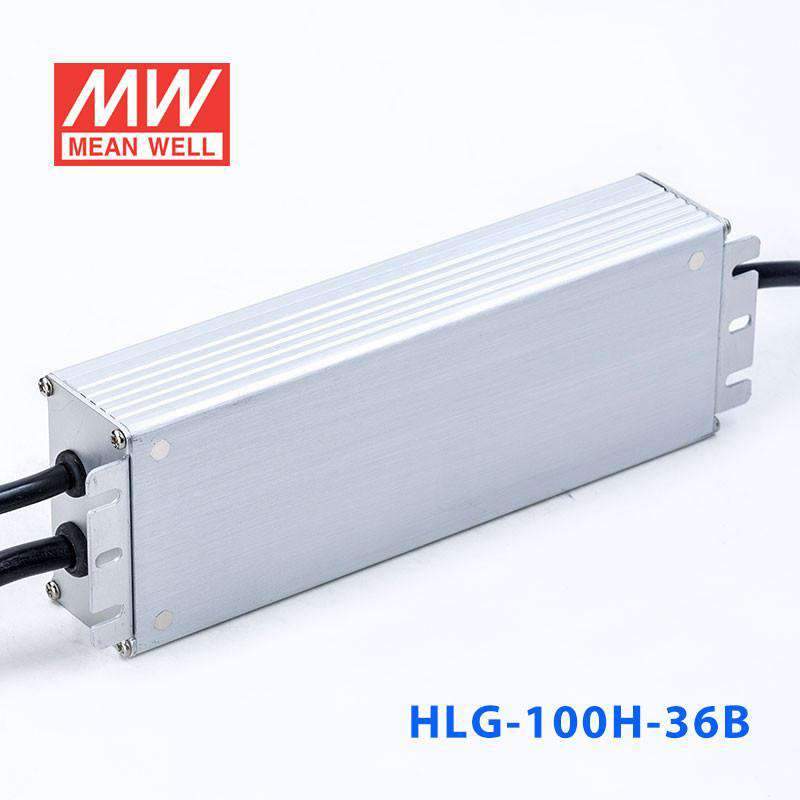

Mean Well HLG-100H-36B Power Supply | 100W 36V - Dimmable

Name: Mean Well HLG-100H-36B Power Supply 100W 36V - Dimmable 2.65A
Brand: Mean Well
SKU: HLG-100H-36B
Price: 59.82 USD
Availability: InStock

Overview

HLG-100H-36B is the 36V output model of this series: rated current 2.65A, rated power 95.4W, typical efficiency 93%. Type B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) (IP67).

HLG-100H series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-100H operates from 90～305VAC and offers models with different rated voltage ranging between 20V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-100H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP67 rating for indoor or outdoor installations
Function options: 3 in 1 dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-100H-36BSpecifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.4: 18 ~ 36V
RATED CURRENT: 2.65A
RATED POWER: 95.4W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1200ms,50ms/115VAC 500ms,50ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC
INRUSH CURRENT (Typ.): COLD START 60A(twidth=415μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 106% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 41 ~ 46V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.9: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750 (type”HL”) , CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213, IP67, J61347-1, J61347-2-13 (except for D-type) , KC61347-1,KC61347-2-13 (except for D-type) ,EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1, EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF: 2185.8K hrs min. Telcordia SR-332(Bellcore) ; 167.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*68*38.8mm (L*W*H)
PACKING: 1.12Kg; 12pcs/14.4Kg/0.8CUFT

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-100H-36B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-100H-36B DIMMING OPERATION — DIMMING OPERATION

HLG-100H-36B Illustration (page 5) — Illustration (page 5)

HLG-100H-36B STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-100H-36B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-100H-36B ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HLG-100H-36B Dimensions (mm) — Dimensions (mm)

HLG-100H-36B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-100H-36B datasheetHLG-100H-SPEC.PDF · 2026-07-24 edition PDF Download

Certificates4

UL Certificate (HLG-100H)(EN) PDF Download

TUV Certificate (HLG-100H)(EN) PDF Download

EMC Certificate (HLG-100H)(EN) PDF Download

PSE Certificate (HLG-100H)(EN) PDF Download

Test reports1

Test Report (HLG-100H-36)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-100H-36B for outdoor dimmable 36V LED pathway lighting?

Yes. The HLG-100H-36B delivers 36V at up to 2.65A (95.4W rated power) with 3-in-1 dimming (1-10VDC, 10V PWM or resistance), and the HLG-100H series' IP65/IP67 metal-housing design suits outdoor use. This makes it a good fit for pole-mounted pathway lighting where the driver is exposed to weather and the installation requires brightness control for nighttime dimming schedules.

Is the HLG-100H-36B suitable for dimmable 36V LED parking lot fixtures?

It works well for 36V LED parking lot luminaires up to 95.4W. The dimming input allows scheduled brightness reduction during off-peak hours to save energy, and the series' IP65/IP67 metal housing handles rain and snow, with a case temperature range of -40°C to +80°C (Tcase).

Can I use the HLG-100H-36B for dimmable 36V LED marine or dock lighting?

The series' IP65/IP67 metal-housing design makes the HLG-100H-36B a practical choice for dock-side lighting exposed to rain. The sheet gives no salt-spray or submersion rating, so mount it sheltered from direct sea spray and above water level. At 95.4W and 36V with dimming, it supports dock walkway or boat slip lighting with brightness control.

What is the maximum 36V LED strip length the HLG-100H-36B can support?

The HLG-100H-36B supplies 95.4W at 36V. For a strip consuming 12W per meter, the maximum run would be approximately 7.9 meters (95.4W / 12W per meter). A more efficient strip at 6W/m could extend to about 15.9 meters. Always check your strip's rated power per meter.

How does the HLG-100H-36B perform in freezing outdoor conditions?

The HLG-100H-36B is rated for a case temperature (Tcase) of -40°C to +80°C, so it handles freezing conditions well. Its metal enclosure with IP65/IP67 ingress protection suits outdoor use, and its fanless, free-air-convection design has no fan to stall in ice or snow.
