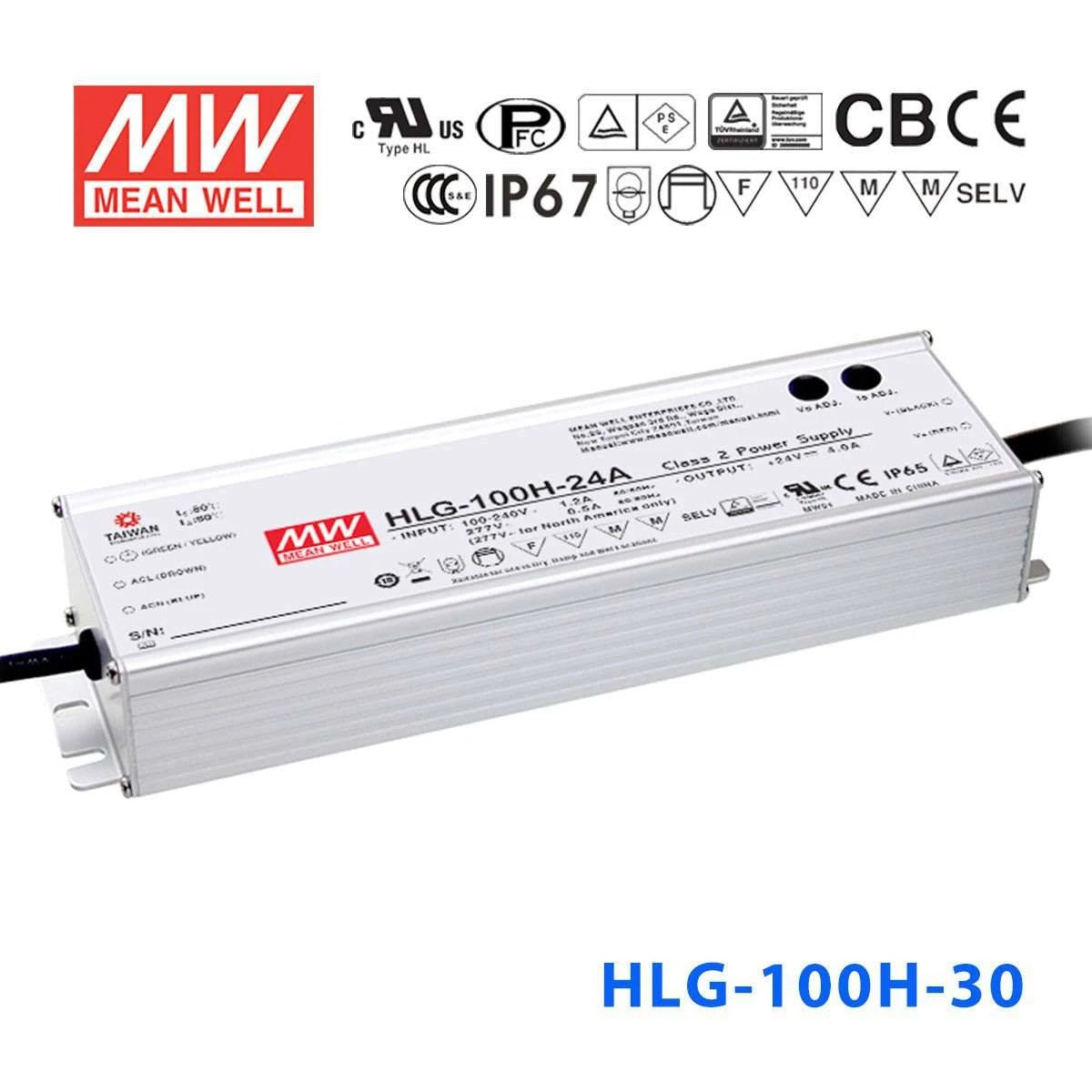

HLG Series HLG-100H-30 Constant Voltage + Constant Current LED Driver

Name: Mean Well HLG-100H-30 Power Supply 100W 30V 3.2A
Brand: Mean Well
SKU: HLG-100H-30
Price: 56.64 USD
Availability: InStock

Overview

HLG-100H-30 is the 30V output model of this series: rated current 3.2A, rated power 96W, typical efficiency 93%. Type Blank: Io and Vo fixed (IP67).

HLG-100H series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-100H operates from 90～305VAC and offers models with different rated voltage ranging between 20V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-100H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP67 rating for indoor or outdoor installations
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-100H-30Specifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE: 30V
CONSTANT CURRENT REGION^Note.4: 15 ~ 30V
RATED CURRENT: 3.2A
RATED POWER: 96W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1200ms,50ms/115VAC 500ms,50ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC
INRUSH CURRENT (Typ.): COLD START 60A(twidth=415μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 106% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 34 ~ 38V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.9: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750 (type”HL”) , CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213, IP65 or IP67, J61347-1, J61347-2-13 (except for D-type) , KC61347-1,KC61347-2-13 (except for D-type) ,EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1, EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF: 2185.8K hrs min. Telcordia SR-332(Bellcore) ; 167.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*68*38.8mm (L*W*H)
PACKING: 1.12Kg; 12pcs/14.4Kg/0.8CUFT

MODEL ENCODING

Blank (this model): Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-100H-30 BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-100H-30 Illustration (page 5) — Illustration (page 5)

HLG-100H-30 STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-100H-30 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-100H-30 MECHANICAL SPECIFICATION ※Blank/D-Type — MECHANICAL SPECIFICATION ※Blank/D-Type

HLG-100H-30 ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HLG-100H-30 Dimensions (mm) — Dimensions (mm)

HLG-100H-30 WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-100H-30 datasheetHLG-100H-SPEC.PDF · 2026-07-24 edition PDF Download

Certificates4

UL Certificate (HLG-100H)(EN) PDF Download

TUV Certificate (HLG-100H)(EN) PDF Download

EMC Certificate (HLG-100H)(EN) PDF Download

PSE Certificate (HLG-100H)(EN) PDF Download

Test reports1

Test Report (HLG-100H-30)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-100H-30 to power 30V LED strip lighting outdoors?

Yes. The HLG-100H-30 outputs 30V at up to 3.2A (96W rated power), and the HLG-100H series' IP65/IP67 metal-housing design is intended for indoor and outdoor applications; use a waterproof connector on the output cable for 30V LED strip installations exposed to rain or moisture. Its -40°C to +80°C case temperature (Tcase) range also handles temperature extremes well.

Is the HLG-100H-30 a good fit for powering 30V LED signage?

It is well suited for 30V LED signage applications that draw up to 96W total. The series' IP65/IP67 metal-housing design fits outdoor sign cabinets, and the constant-current mode with a 15-30V region helps maintain consistent brightness across LED modules.

Can I run 30V LED panel lights from the HLG-100H-30?

Yes, provided the total panel load does not exceed 96W. The HLG-100H-30 delivers 30V at up to 3.2A in constant-current mode, which is appropriate for commercial or architectural 30V LED panel arrays. Its wide 90-305VAC input supports installation on most mains supplies worldwide.

How many meters of 30V LED strip can the HLG-100H-30 support?

That depends on the strip's rated power per meter. The HLG-100H-30 provides 96W at 30V. For example, if your strip draws 10W per meter, you could run up to 9.6 meters (96W / 10W per meter = 9.6m). Always check your strip's rated power per meter and keep total load at or below 96W.

Can the HLG-100H-30 be installed in a wet or damp location?

Yes. The HLG-100H series' metal housing with IP65/IP67 ingress protection lets it operate in dry, damp, wet or outdoor locations; use waterproof connectors on the cable connections in wet locations. The series comes in IP65 and IP67 versions, so confirm this type's rating before in-ground or flood-prone installations.

What are the differences between the HLG-100H-30, 30A, 30AB, and 30B variants?

All four share the same 96W, 30V, 3.2A core specs. The base HLG-100H-30 has fixed output. The -30A adds output adjustment via built-in potentiometers (27-33V, 2-3.2A). The -30AB adds both adjustable output and 3-in-1 dimming. The -30B offers dimming without adjustable output. The series comes in IP65 and IP67 versions; check the rating of each type.
