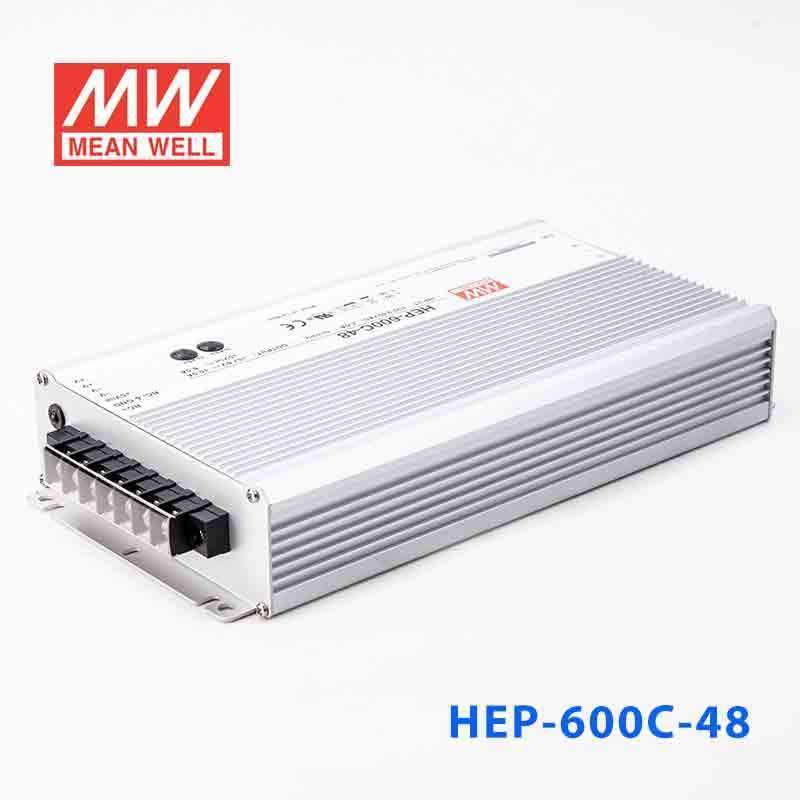

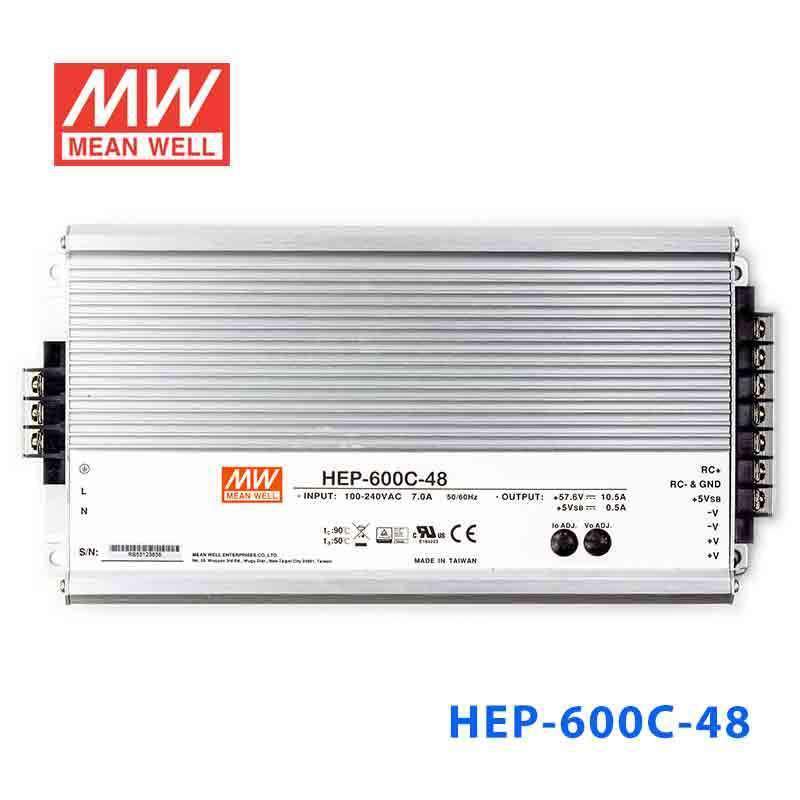

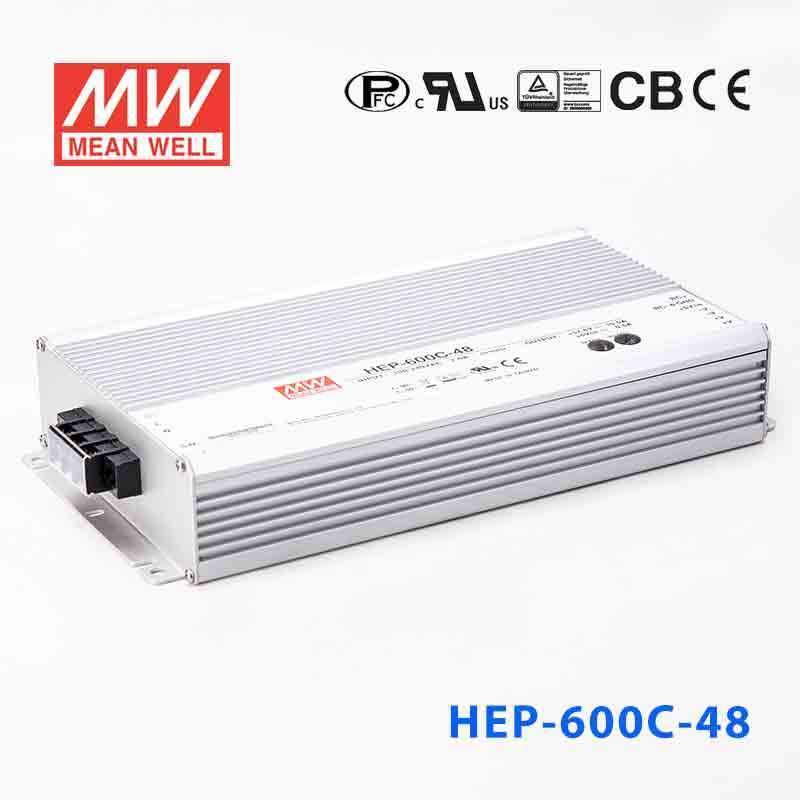

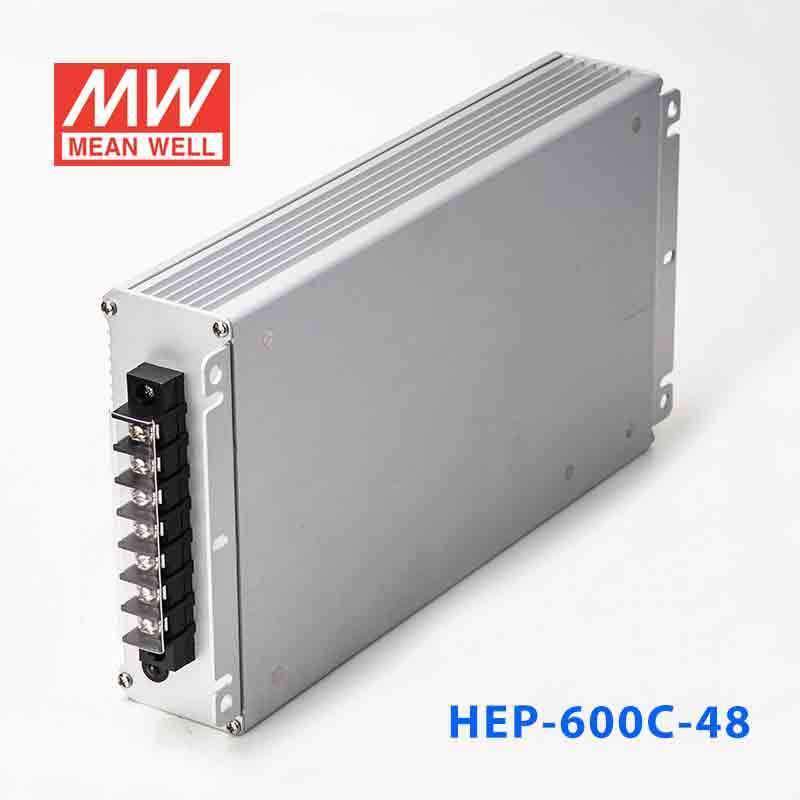

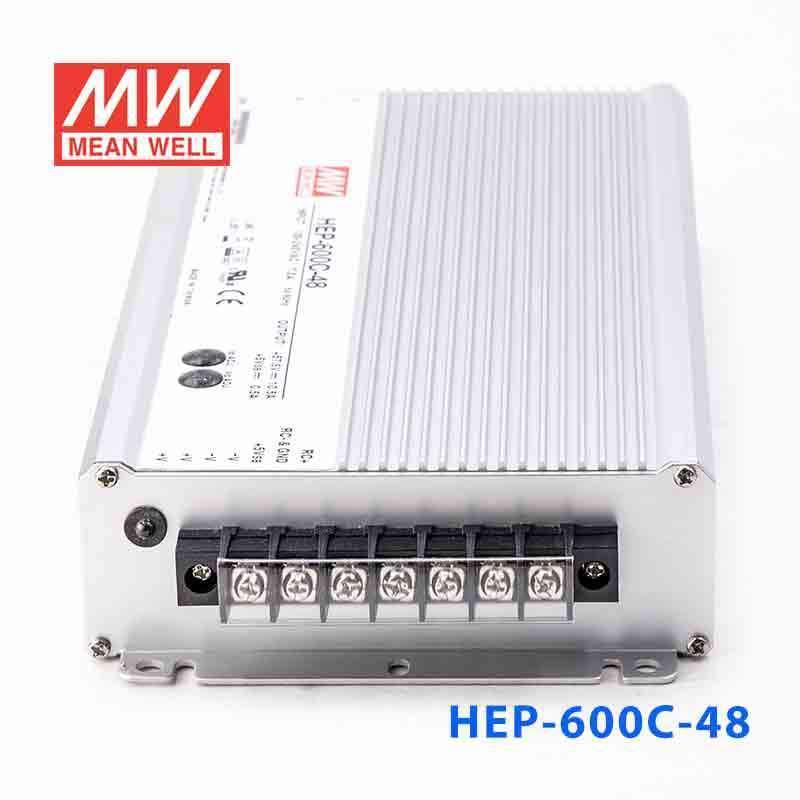

Mean Well HEP-600C-48 Battery Chargers 600W 57.6V 10.5A - 3 Stage W/PFC

Name: Mean Well HEP-600C-48 Battery Chargers 600W 57.6V 10.5A - 3 Stage W/PFC
Brand: Mean Well
SKU: HEP-600C-48
Price: 251.89 USD
Availability: InStock

suitable for lead-acid and Li-ion batterieshigh efficiency up to 95.5%operating altitude up to 5000 meterswithstand 10G vibration test

SKU HEP-600C-48

$251.89 USD

Shipping calculated at checkout.

In stock

Overview

HEP-600C-48 is the model of this series: typical efficiency 95.5%.

HEP-600C series is an AC-to-DC battery charger providing up to 600W, designed with aluminum case and fully potted by silicone. It features the high efficiency (up to 95.5%), waterproof and low no-load power consumption (<0.5W) at remote OFF. Incorporating state of the art design, the fan-less HEP-600C is capable of working under high-vibration (10G), dusty, humid, and oily environment. Other features include adjustable voltage/current and wide working temperature range (-40~+70℃).

Features

Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
3 stage charging
Universal AC input / Full range
Built-in active PFC function
No load power consumption <0.5W at remote OFF
High efficiency up to 95.5%
Fanless design, cooling by free air convection
Aluminum case and filling with heat-conducted glue
Withstand 10G vibration test
-40 ~ +70℃ wide operating range
Output voltage and output current can be adjusted through internal potentiometer
Protection: Short circuit / Over voltage / Over temperature
3 color LED loading indicator
Operating altitude up to 5000 meters (Note.5)
6 years warranty

Specifications

HEP-600C-48Specifications from the official datasheet (2025-10-10 edition)

OUTPUT

BOOST CHARGE VOLTAGE Vboost: 57.6V
FLOAT CHARGE VOLTAGE Vfloat: 54.4V
VOLTAGE ADJ. RANGE: 46.1 ~ 60.5V
CURRENT ADJ. RANGE: 5.2 ~ 10.5A
RECOMMENDED BATTERY CAPACITY(AMP HOURS)^{Note 3}: 35 ~ 105AH
BATTERY TYPE: Open & Sealed Lead Acid
OUTPUT CURRENT: 10.5A

INPUT

VOLTAGE RANGE: 90~264VAC(277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load
EFFICIENCY (Typ.): 95.5%
AC CURRENT (Typ.): 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC
INRUSH CURRENT (Typ.): COLD START 70A(twidth=1010μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER VOLTAGE: 68 ~ 73V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE ON/OFF CONTROL: Power on : "Hi" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit
5V STANDBY: 5VSB : 5V@0.5A ; tolerance ±5%, ripple : 100mVp-p(max.)

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 60℃)
VIBRATION: 20 ~ 500Hz, 10G 10min./1cycle, 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.4: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE^Note.4: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE^Note.4: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.4: Compliance to BS EN/EN55032 (CISPR32), radiation class A, conduction class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY^Note.4: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020

OTHERS

MTBF: 857.2K hrs min. Telcordia SR-332 (Bellcore) ; 73.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 280*144*48.5mm (L*W*H)
PACKING: 3.9Kg; 4pcs/16Kg/0.9CUFT

Test conditions and notes5

1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
3. This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HEP-600C-48 Block Diagram — Block Diagram

HEP-600C-48 Charging Curve — Charging Curve

HEP-600C-48 Derating Curve — Derating Curve

HEP-600C-48 Illustration (page 4) — Illustration (page 4)

Typical applications

Suitable for battery charger at harsh environment
Robotic lawn mower
Electronic transportation vehicle
Recreational craft, personal yacht or workboat
Security network and system
Telecommunication base station
Equipments or instruments with back-up battery

Downloads

Certificates6

Mean Well HEP-600(C)-TUV Certificate PDF Download

Mean Well HEP-600(C)-CB(TUV) Certificate PDF Download

Mean Well HEP-600(C)-CB(UL) Certificate PDF Download

Mean Well HEP-600(C)-EMC Certificate PDF Download

Mean Well HEP-600 (C)-CE-dec Certificate PDF Download

Mean Well HEP-600(C)-UK-dec Certificate PDF Download

Test reports1

Mean Well HEP-600C-48 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What are the main output ratings of the Mean Well HEP-600C-48?

The HEP-600C-48 is a 600W battery charger with a 57.6V boost / 54.4V float charge voltage and 10.5A rated current. It is designed for applications that need a higher-power 3-stage charging solution with PFC.

What input range does the HEP-600C-48 support?

This model accepts a wide input range of 90 to 264VAC (277VAC operational) and 128 to 370VDC. Its universal AC input helps it fit a broad range of industrial power environments.

Is the HEP-600C-48 suitable for demanding industrial environments?

Yes. The unit is rated for operation from -40°C to +70°C (per its derating curve) and is tested to withstand 10G vibration. Those characteristics make it a strong option for demanding industrial and commercial applications.

Does this charger use active PFC and high-efficiency design?

Yes, the HEP-600C-48 includes built-in power factor correction (PF>0.98 at 115VAC, >0.95 at 230VAC) and offers a typical efficiency of 95.5%. That combination helps reduce wasted energy and supports more efficient operation in higher-power systems.

What protection features are included in the HEP-600C-48?

This model includes over voltage protection (68 to 73V) and over temperature protection. Both shut down the output voltage and recover when the unit is re-powered.

What kinds of applications is the HEP-600C-48 commonly used for?

The HEP-600C-48 is intended for industrial lead-acid battery charging applications that need 57.6V boost charging at up to 10.5A. Buyers typically consider it for higher-power systems where wide input range and rugged environmental performance matter.

How does the HEP-600C-48 differ from lower-power battery chargers?

Compared with lower-power chargers, this model provides 600W output capacity with 57.6V at 10.5A, making it better suited to larger or more demanding battery charging loads. It also stands out with 95.5% typical efficiency, PFC, and a -40°C to +70°C operating temperature range.
