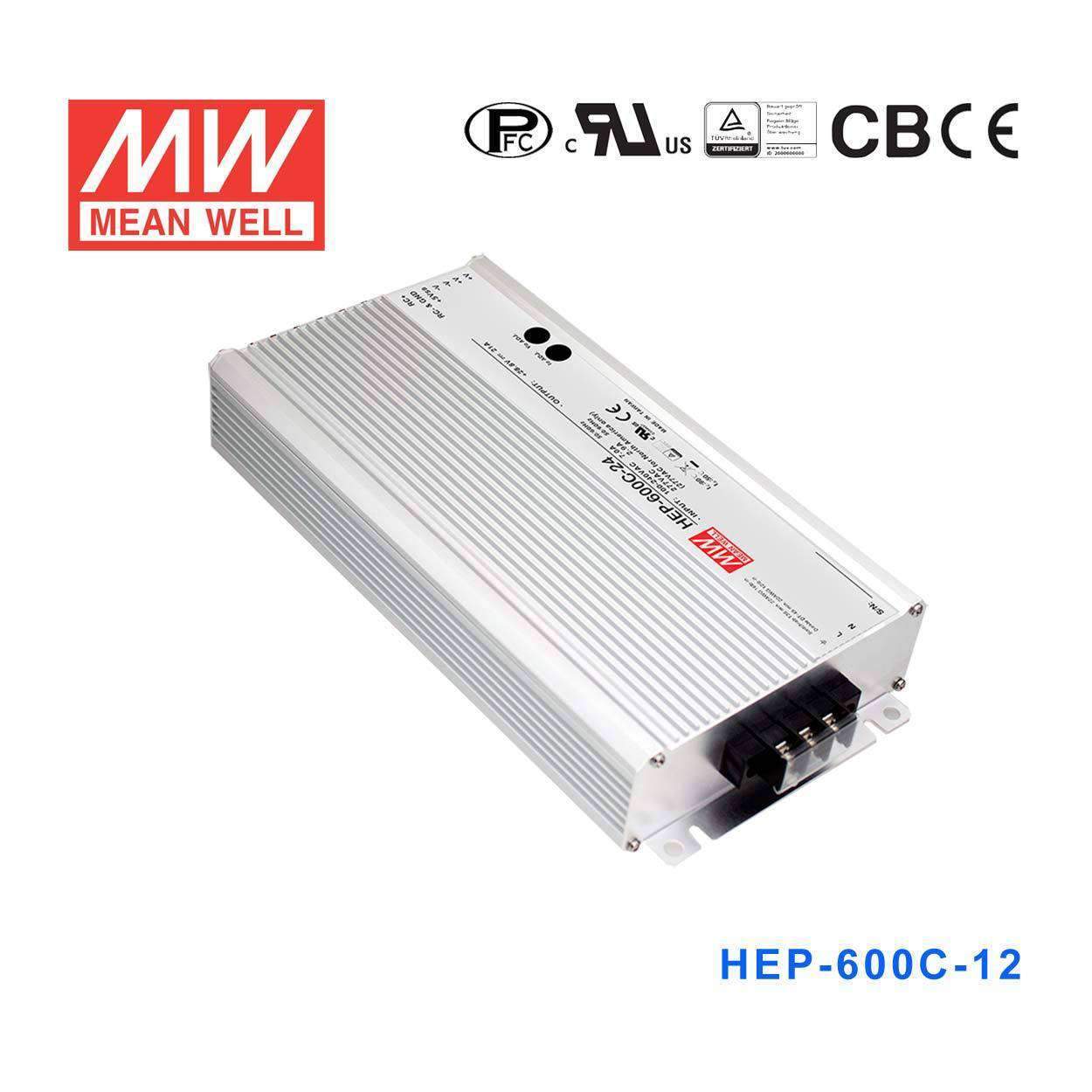

Mean Well HEP-600C-12 Battery Chargers 600W 14.4V 35A - 3 Stage W/PFC

Name: Mean Well HEP-600C-12 Battery Chargers 600W 14.4V 35A - 3 Stage W/PFC
Brand: Mean Well
SKU: HEP-600C-12
Price: 251.89 USD
Availability: InStock

suitable for lead-acid and Li-ion batterieshigh efficiency up to 95.5%operating altitude up to 5000 meterswithstand 10G vibration test

SKU HEP-600C-12

$251.89 USD

Shipping calculated at checkout.

In stock

Overview

HEP-600C-12 is the model of this series: typical efficiency 93.5%.

HEP-600C series is an AC-to-DC battery charger providing up to 600W, designed with aluminum case and fully potted by silicone. It features the high efficiency (up to 95.5%), waterproof and low no-load power consumption (<0.5W) at remote OFF. Incorporating state of the art design, the fan-less HEP-600C is capable of working under high-vibration (10G), dusty, humid, and oily environment. Other features include adjustable voltage/current and wide working temperature range (-40~+70℃).

Features

Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
3 stage charging
Universal AC input / Full range
Built-in active PFC function
No load power consumption <0.5W at remote OFF
High efficiency up to 95.5%
Fanless design, cooling by free air convection
Aluminum case and filling with heat-conducted glue
Withstand 10G vibration test
-40 ~ +70℃ wide operating range
Output voltage and output current can be adjusted through internal potentiometer
Protection: Short circuit / Over voltage / Over temperature
3 color LED loading indicator
Operating altitude up to 5000 meters (Note.5)
6 years warranty

Specifications

HEP-600C-12Specifications from the official datasheet (2025-10-10 edition)

OUTPUT

BOOST CHARGE VOLTAGE Vboost: 14.4V
FLOAT CHARGE VOLTAGE Vfloat: 13.6V
VOLTAGE ADJ. RANGE: 11.5 ~ 15.1V
CURRENT ADJ. RANGE: 17.5 ~ 35A
RECOMMENDED BATTERY CAPACITY(AMP HOURS)^{Note 3}: 135 ~ 400AH
BATTERY TYPE: Open & Sealed Lead Acid
OUTPUT CURRENT: 35A

INPUT

VOLTAGE RANGE: 90~264VAC(277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.): 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC
INRUSH CURRENT (Typ.): COLD START 70A(twidth=1010μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER VOLTAGE: 16.5 ~ 20.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE ON/OFF CONTROL: Power on : "Hi" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit
5V STANDBY: 5VSB : 5V@0.5A ; tolerance ±5%, ripple : 100mVp-p(max.)

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 60℃)
VIBRATION: 20 ~ 500Hz, 10G 10min./1cycle, 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.4: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE^Note.4: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE^Note.4: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.4: Compliance to BS EN/EN55032 (CISPR32), radiation class A, conduction class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY^Note.4: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020

OTHERS

MTBF: 857.2K hrs min. Telcordia SR-332 (Bellcore) ; 73.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 280*144*48.5mm (L*W*H)
PACKING: 3.9Kg; 4pcs/16Kg/0.9CUFT

Test conditions and notes5

1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
3. This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HEP-600C-12 Block Diagram — Block Diagram

HEP-600C-12 Charging Curve — Charging Curve

HEP-600C-12 Derating Curve — Derating Curve

HEP-600C-12 Illustration (page 4) — Illustration (page 4)

Typical applications

Suitable for battery charger at harsh environment
Robotic lawn mower
Electronic transportation vehicle
Recreational craft, personal yacht or workboat
Security network and system
Telecommunication base station
Equipments or instruments with back-up battery

Downloads

Certificates6

Mean Well HEP-600(C)-TUV Certificate PDF Download

Mean Well HEP-600(C)-CB(TUV) Certificate PDF Download

Mean Well HEP-600(C)-CB(UL) Certificate PDF Download

Mean Well HEP-600(C)-EMC Certificate PDF Download

Mean Well HEP-600 (C)-CE-dec Certificate PDF Download

Mean Well HEP-600(C)-UK-dec Certificate PDF Download

Test reports1

Mean Well HEP-600C-12 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the HEP-600C-12 designed for?

The Mean Well HEP-600C-12 is a 600W battery charger with a 14.4V boost / 13.6V float charge voltage and 35A rated current. It is intended for industrial and commercial open and sealed lead-acid battery charging applications where a high-power 3-stage charger is needed.

What are the key electrical specifications of the HEP-600C-12?

This model is rated for 600W output power, 14.4V boost charge voltage, and 35A rated current. It also includes PFC and supports universal AC input from 90 to 264VAC (277VAC operational), with DC input support from 128 to 370VDC.

Is the HEP-600C-12 suitable for harsh industrial environments?

Yes. The unit is designed for harsh environments and is specified for operation from -40°C to +70°C, subject to its derating curve. It is also rated for 10G vibration (20 to 500Hz), which makes it a strong fit for demanding environments.

How efficient is the HEP-600C-12 battery charger?

The HEP-600C-12 offers a typical efficiency of 93.5%, which helps reduce heat and improve overall energy performance in continuous-duty applications. It also provides a remote ON/OFF control input and a 5V/0.5A standby output.

What protection features are included in the HEP-600C-12?

This model includes over voltage protection (16.5 to 20.5V) and over temperature protection. Both shut down the output voltage and recover when the unit is re-powered, helping protect the charger during abnormal operating conditions.

How does the HEP-600C-12 compare with basic battery chargers?

Compared with simpler chargers, the HEP-600C-12 stands out with its 600W output, 3-stage charging design, PFC, and -40°C to +70°C operating temperature range. It is better suited to demanding commercial or industrial duty than entry-level chargers.

What certifications and warranty does the HEP-600C-12 include?

The HEP-600C-12 is approved to UL62368-1, TUV BS EN/EN62368-1 and EAC TP TC 004 safety standards, and it complies with EMC standards including BS EN/EN55032 (radiation class A, conduction class B) and BS EN/EN61000-4 immunity.
