Mean Well HEP-100-12 Power Supply | HEP Series | 100.08W 12V

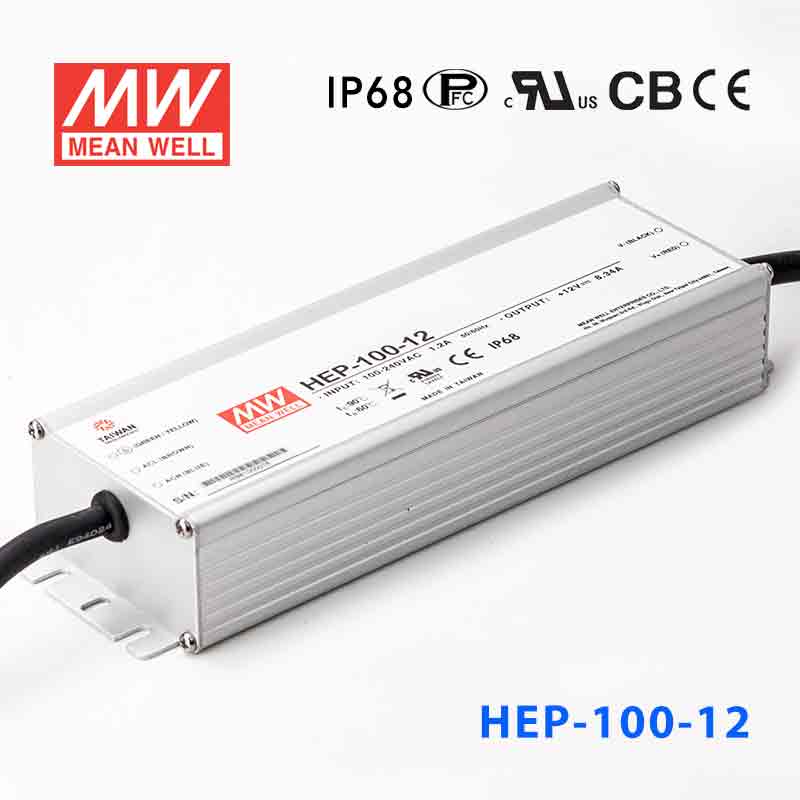

Name: Mean Well HEP-100-12 Power Supply 100.08W 12V 8.34A
Brand: Mean Well
SKU: HEP-100-12
Price: 96.62 USD
Availability: InStock

Overview

HEP-100-12 is the 12V output model of this series: rated current 8.34A, rated power 100.08W, typical efficiency 92%. Type Blank: Optional model, with fixed Vo and Io level (IP68).

HEP-100 is a 100W industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environment. The entire series is housed with the aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 93%, enabling HEP-100 perfectly work between -55℃ and +70℃ under free air convection.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 93%
Fanless design, cooling by free air convection
-55~+70℃ wide operating range
Aluminum case and filling with heat-conducted silicone
IP65 design, optional IP68 rated model available
Meet 6KV surge immunity level
Withstand 10G vibration test
Protections: Short circuit / Overload / Over voltage / Over temperature
Operating altitude up to 5000 meters (Note.9)
6 years warranty

Specifications

HEP-100-12Specifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 8.34A
RATED POWER: 100.08W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE^Note.5: 10.8 ~ 13.5V
CURRENT ADJ. RANGE: 5 ~ 8.34A
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.7: 1200ms,50ms/115VAC 500ms,50ms/230VAC at full load
HOLD UP TIME (Typ.): 16ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGE^Note.4: 90~264VAC (277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC, PF>0.91/277VAC at full load
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC
INRUSH CURRENT(Typ.): COLD START 60A at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVERLOAD: 105 ~ 125% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 14 ~ 17V Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -55 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -60 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.6,9: UL62368-1, IEC62368-1,IP68, EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level (surge 6KV), EAC TP TC 020

OTHERS

MTBF: 1970.2K hrs min. Telcordia SR-332 (Bellcore) ; 164.8Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*68*38.8mm (L*W*H)
PACKING: 1.12Kg; 12pcs/14.4Kg/0.8CUFT

MODEL ENCODING

A: Standard model, Vo and Io level can be adjusted through internal potentiometer; IP65
Blank (this model): Optional model, with fixed Vo and Io level; IP68

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. Safety and EMC design refer to BS EN/EN60598-1, CNS15233, GB7000.1, FCC part18.
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HEP-100-12 Block Diagram — Block Diagram

HEP-100-12 Mechanical Specification — Mechanical Specification

Typical applications

Outdoor telecommunication equipment
Outdoor electronic signage and billboard
Petroleum plant or mine shaft facility

Downloads

Datasheet1

HEP-100-12 datasheetHEP-100-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates6

Mean Well HEP-EAC Certificate PDF Download

Mean Well HEP-100-150-185-CB(UL) Certificate PDF Download

Mean Well HLG-100-120-150-185(H)-HEP-100-150-185-EMC Certificate PDF Download

Mean Well HEP-100-150-185-UK-dec Certificate PDF Download

Mean Well HEP-100-150-185-CE-dec Certificate PDF Download

Mean Well HEP-100-150-FCC Certificate PDF Download

Test reports1

Mean Well HEP-100-12 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the Mean Well HEP-100-12 for a 12V industrial control or automation system?

Yes, this model is a 12V constant voltage power supply rated for 100.08W and 8.34A output. That makes it suitable for 12V industrial control, automation, and embedded systems that need a regulated 12V DC supply within that power and current range.

Is the HEP-100-12 suitable for 12V embedded or IT equipment in harsh environments?

It can be a fit for 12V embedded and IT equipment when the load stays within 100.08W and 8.34A. The 92% typical efficiency, 10G vibration resistance, and operating range of -55°C to +70°C (with derating per the derating curve) make it appropriate for demanding environments.

Can this power supply run a 12V outdoor electronics or monitoring system?

It is designed for harsh-environment use and carries an IP68 rating, so it is suited to outdoor or exposed locations where a sealed power supply is needed. It provides 12V constant voltage output up to 8.34A and 100.08W, so the connected 12V system needs to stay within those limits.

Can the HEP-100-12 be used indoors and outdoors in very hot or very cold conditions?

Yes, the unit is rated IP68 and has an operating temperature range of -55°C to +70°C, with output derating at the temperature extremes per the derating curve. Those specs make it suitable for both indoor and outdoor environments where moisture, dust, or wide temperature swings are a concern.

How does the HEP-100-12 compare with other HEP-100 series voltage options?

The HEP-100-12 is rated 100.08W at 12V and 8.34A, and the HEP-100-12A has the same 100.08W, 12V, and 8.34A ratings. Other HEP-100 variants are HEP-100-15 and HEP-100-15A at 100.05W, 15V, 6.67A; HEP-100-24 and HEP-100-24A at 96W, 24V, 4A; and HEP-100-36 and HEP-100-36A at 95.4W, 36V, 2.65A. The remaining options are HEP-100-48 and HEP-100-48A at 96W, 48V, 2A, plus HEP-100-54 and HEP-100-54A at 95.58W, 54V, 1.77A.
